System 800 Wide Span Shelving

In stock

System 800 wide span shelving provides adjustable storage for warehouse cartons, stockroom inventory, bins and parts. Choose welded frames, step beams and wire, steel or OSB decking, with supply and installation across the GTA and southern Ontario, plus supply-only shipping across Canada.

System 800 one-piece welded shelving frame

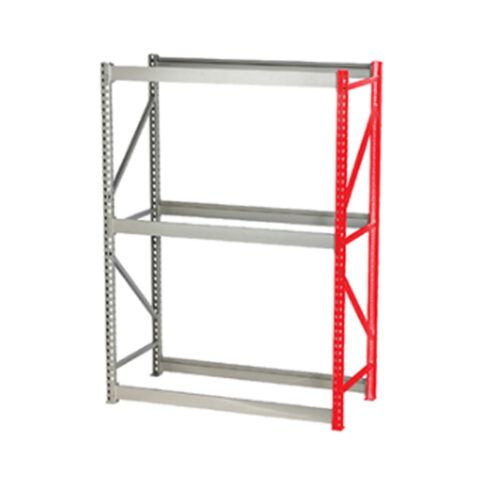

FramesChoose depth & heightView product →

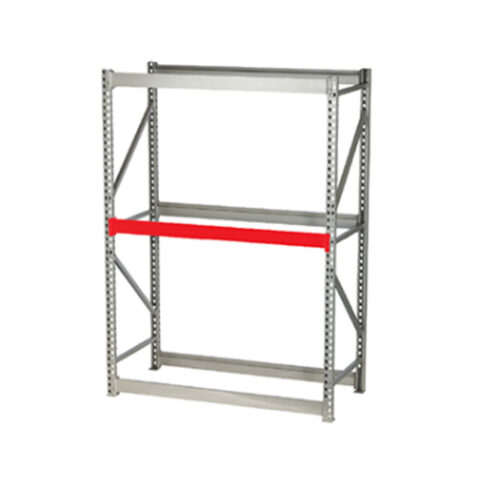

BeamsChoose your shelf spanView product →

Galvanized wire deck for System 800 shelving

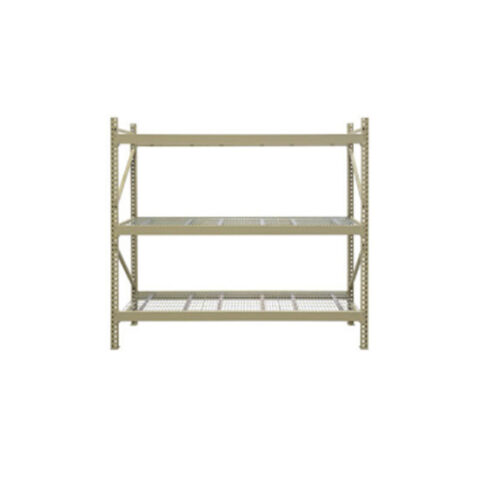

Wire DecksOpen mesh surfaceView product →

Galvanized steel shelf pan for System 800 shelving

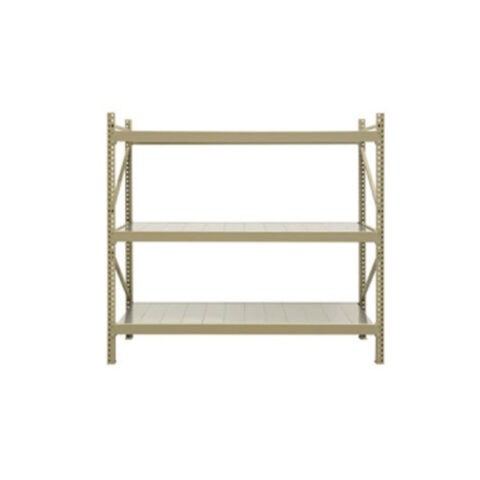

Steel DecksGalvanized steel pansView product →

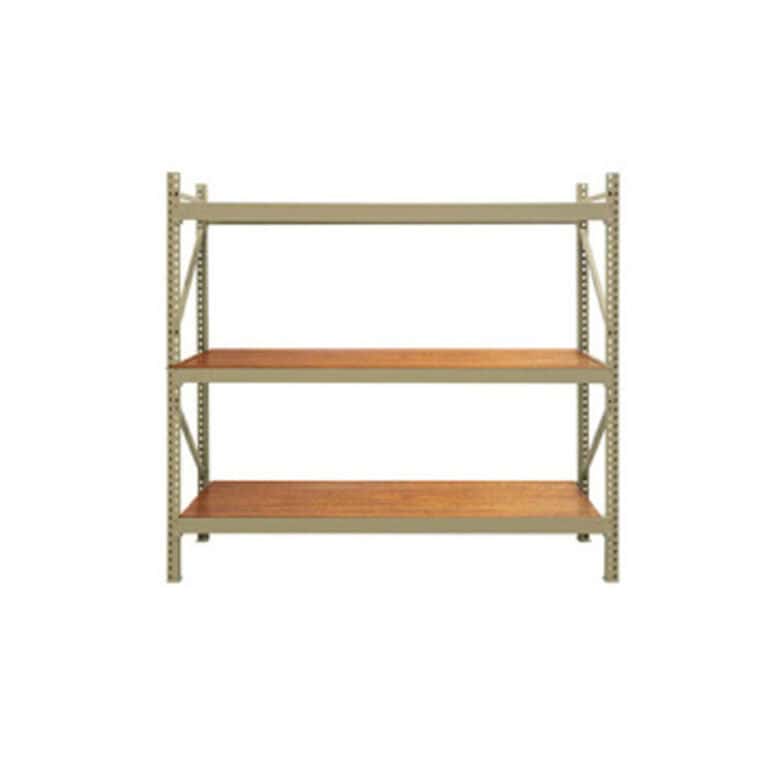

Wood DecksEconomical OSB shelvingView product →

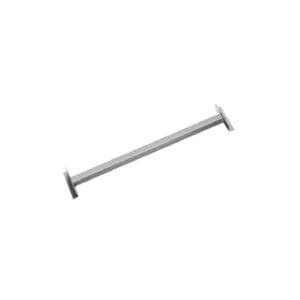

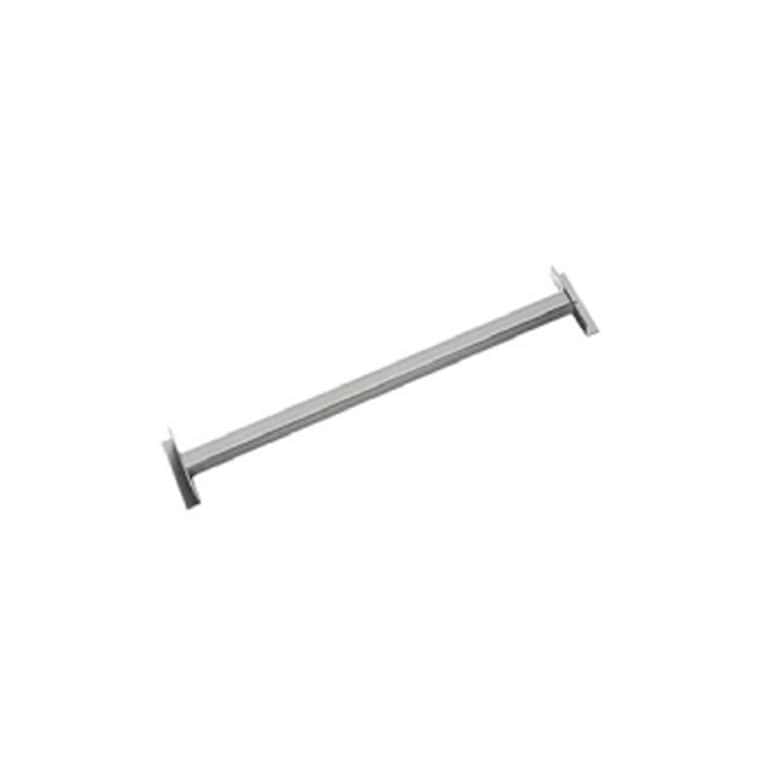

Wood shelf support for System 800 shelving

SupportsSupport your wood shelvesView product →

Need a complete shelving system?Get a free quote →Call 905-883-0316 Explore 18″-deep tire storage →

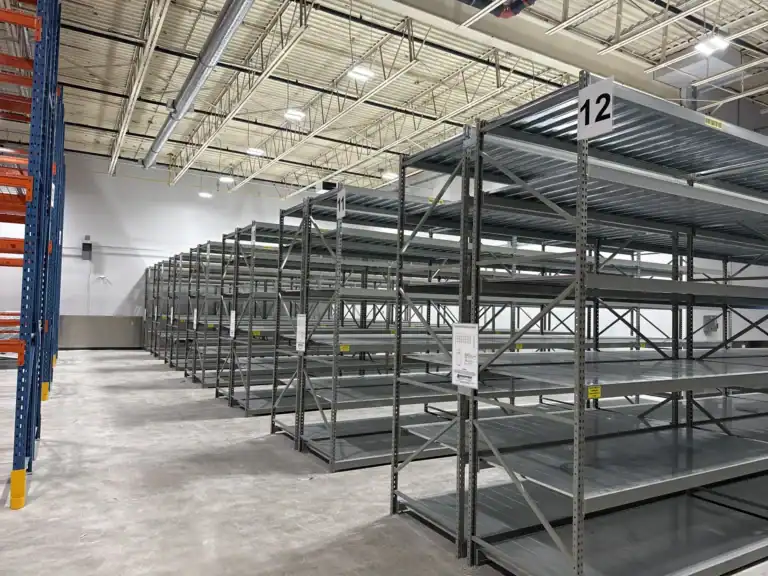

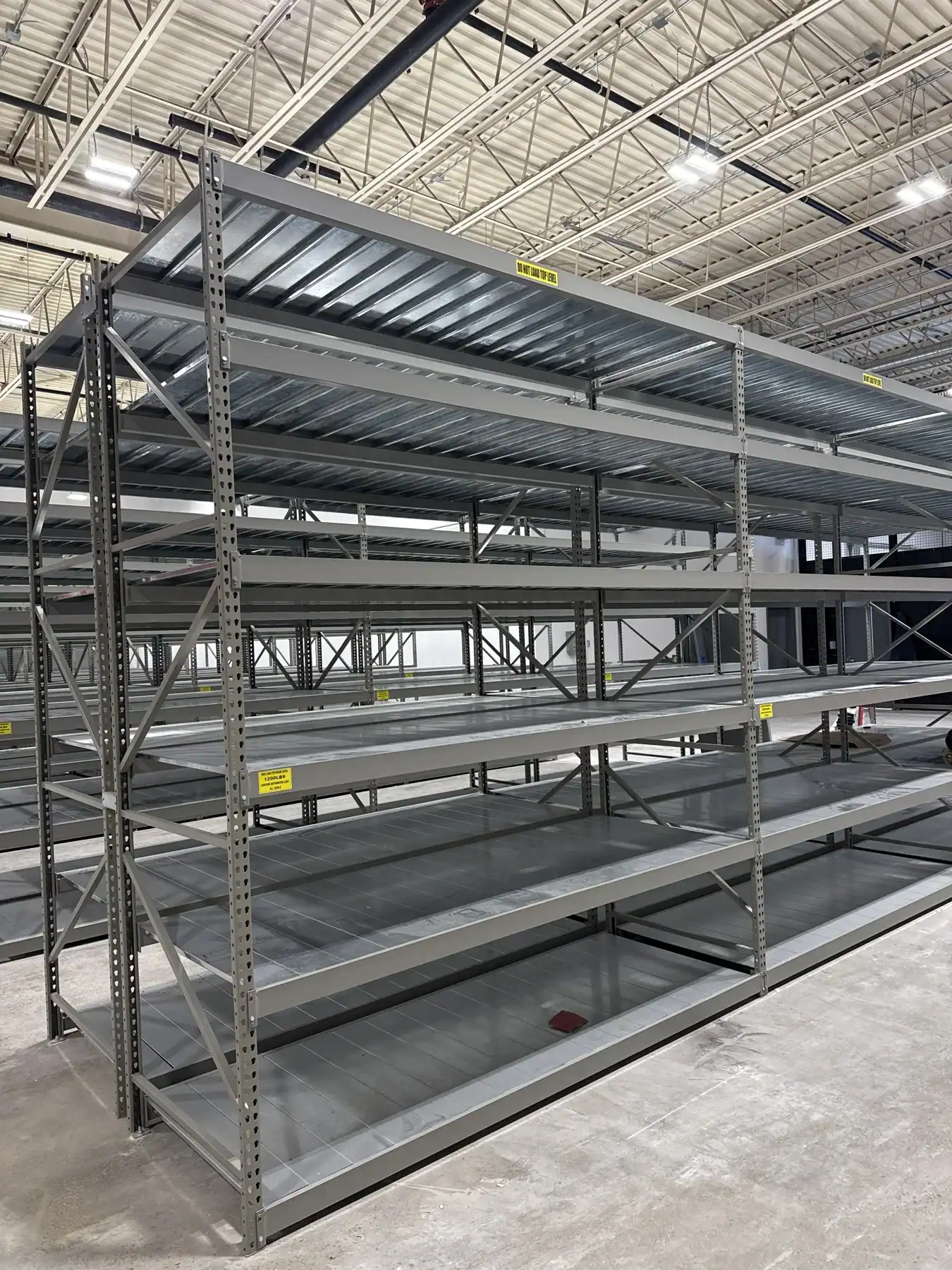

Rows of System 800 wide span shelving in a warehouse

Real shelving installations. Click any photo to enlarge.

Flexible storage. Practical choices.

Wide shelves for everyday picking and storage.

Keep cartons, bins, parts and supplies organized and easy to reach. System 800 combines one-piece welded frames with step beams that let you position shelf levels to suit your stock.

Adjustable on 1½″ centres to make better use of the space between shelves.
48″, 72″ or 96″ beam widths for short bays or longer shelf spans.
18″, 24″, 30″ or 36″ frame depths with a choice of frame heights.
Three decking options: galvanized wire, galvanized steel pans or OSB wood.
Light grey powder-epoxy finish on phosphate-undercoated steel frames and beams.

Tell us what you’re storing and the weight per shelf. We’ll confirm the appropriate beams, decks and supports for your application.

Start with the structure

Choose your frame and beam sizes.

Pick the frame depth and height, then the beam width and profile. The listed frame combinations vary by depth; the 84″ height is listed for 24″-deep frames.

＋

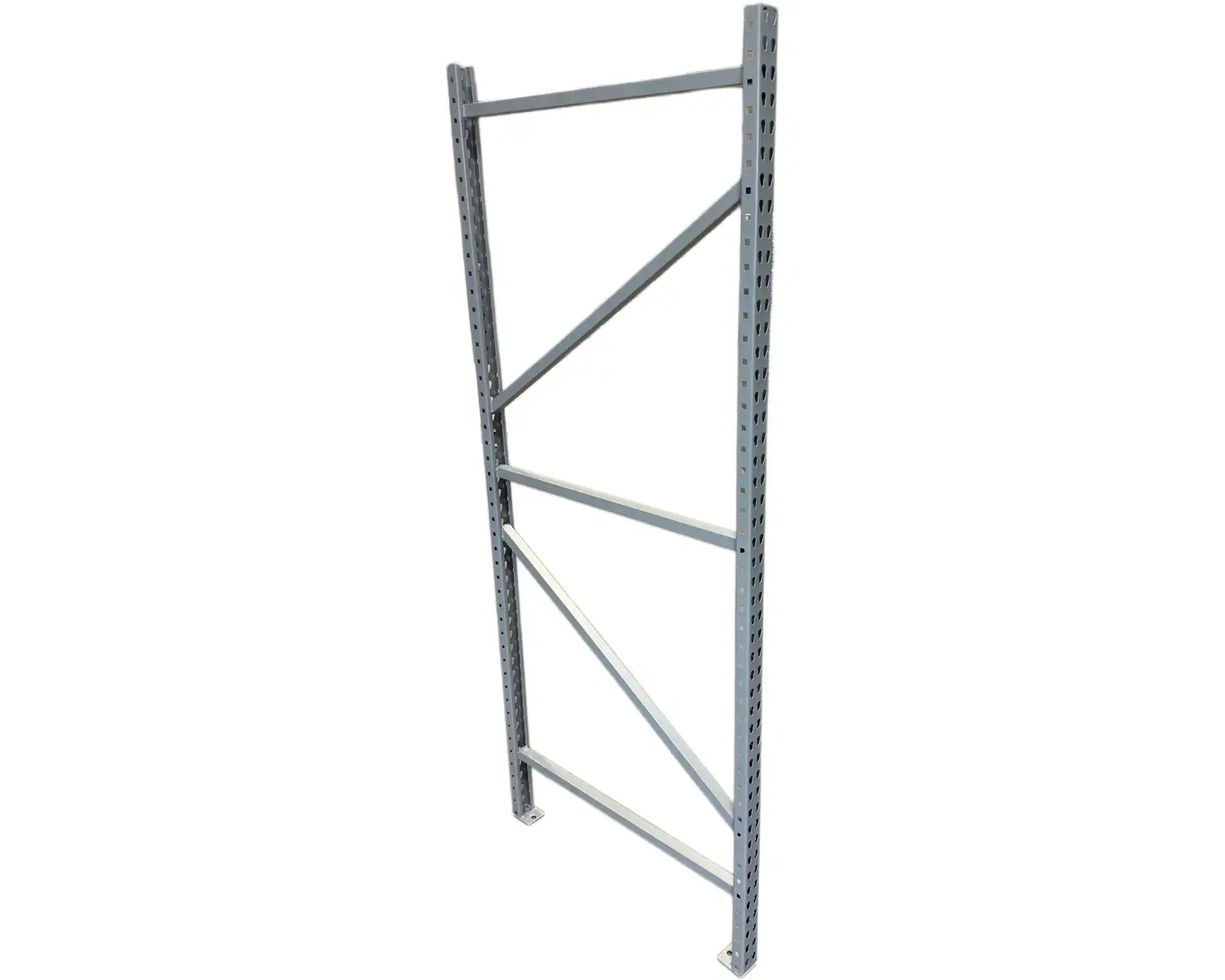

One-piece welded frames

A ready-assembled frame with 14-gauge roll-formed steel posts and 14-gauge welded tube bracing.

Welded steel foot plates
⅜″ holes for floor anchoring
Four standard depths: 18″, 24″, 30″ and 36″

View frame sizes & part numbers

Part number	Depth	Height
801 1872	18″	72″
801 1896	18″	96″
801 18120	18″	120″
801 2472	24″	72″
801 2484	24″	84″
801 2496	24″	96″
801 24120	24″	120″
801 3072	30″	72″
801 3096	30″	96″
801 30120	30″	120″
801 3672	36″	72″
801 3696	36″	96″
801 36120	36″	120″

Open Frames product page →

＋

＋

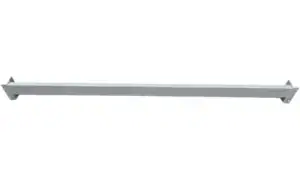

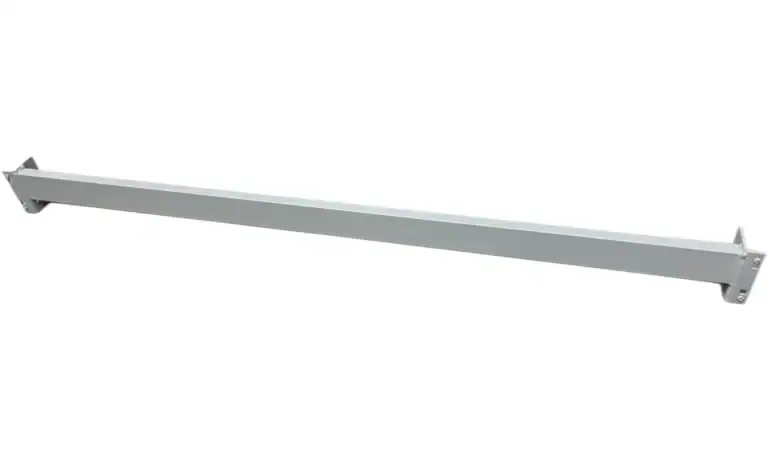

Step beams

Seamlessly welded steel beams with two rivets on each end plate for straightforward connection to the frame.

Widths: 48″, 72″ and 96″
Nominal profiles: 2″ or 3″
Choose the beam and decking together for your load

View beam sizes & part numbers

Part number	Width	Profile
802 4802	48″	2″
802 4803	48″	3″
802 7202	72″	2″
802 7203	72″	3″
802 9602	96″	2″
802 9603	96″	3″

Open Beams product page →

Choose your shelf surface

Wire, steel or wood?

Different stock calls for different surfaces. Match your decking to the items you store, your handling needs and your budget.

＋

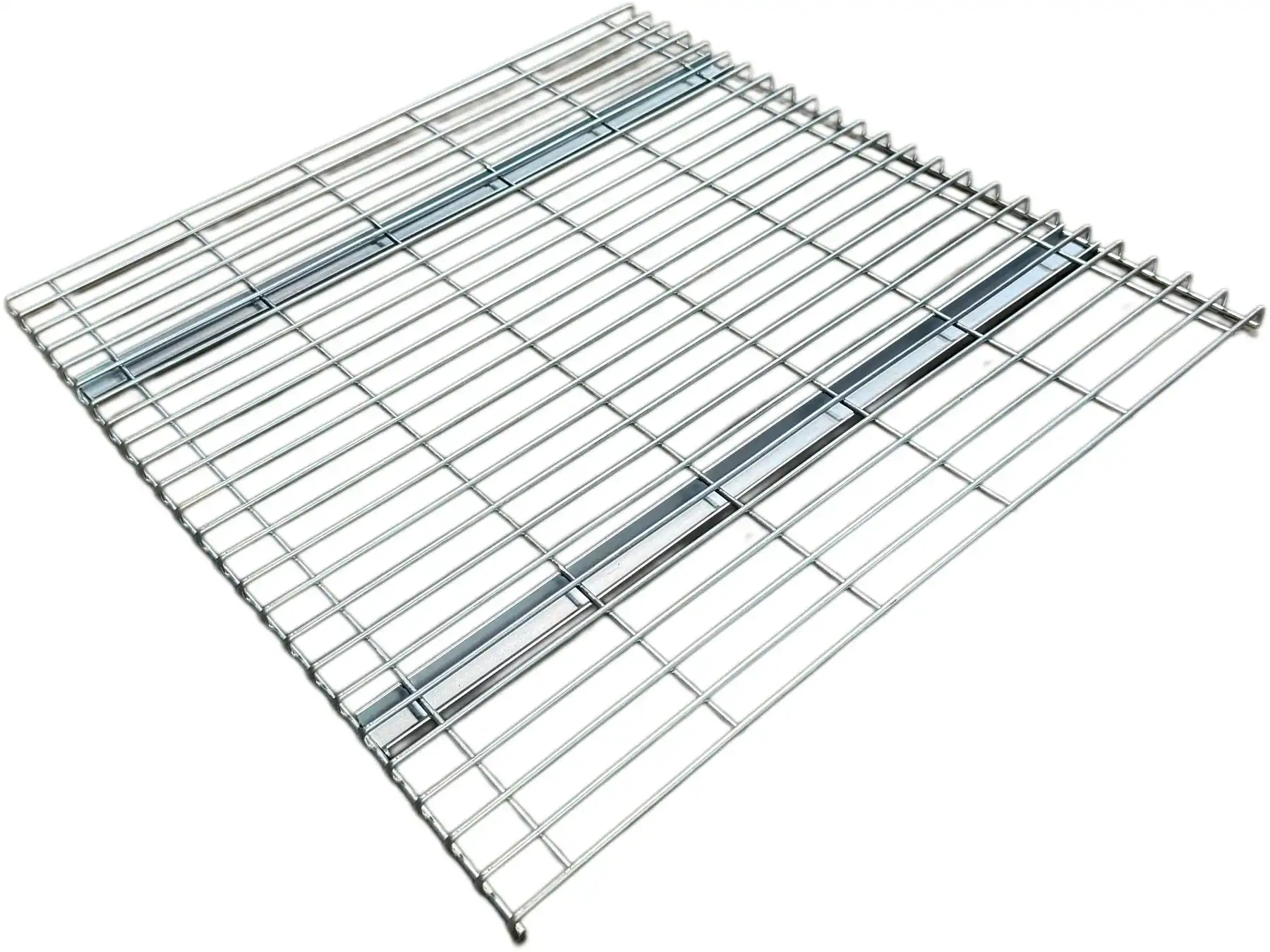

Wire decks

An open mesh surface for visible, ventilated storage.

Galvanized in-step wire decks
7-gauge wire
14-gauge support channels
24″-wide deck sections

Wire deck sizes

Part no.	Frame depth	Deck depth	Width
804 18	18″	16¼″	24″
804 24	24″	22¼″	24″
804 30	30″	28¼″	24″
804 36	36″	34¼″	24″

View Wire Decks →

＋

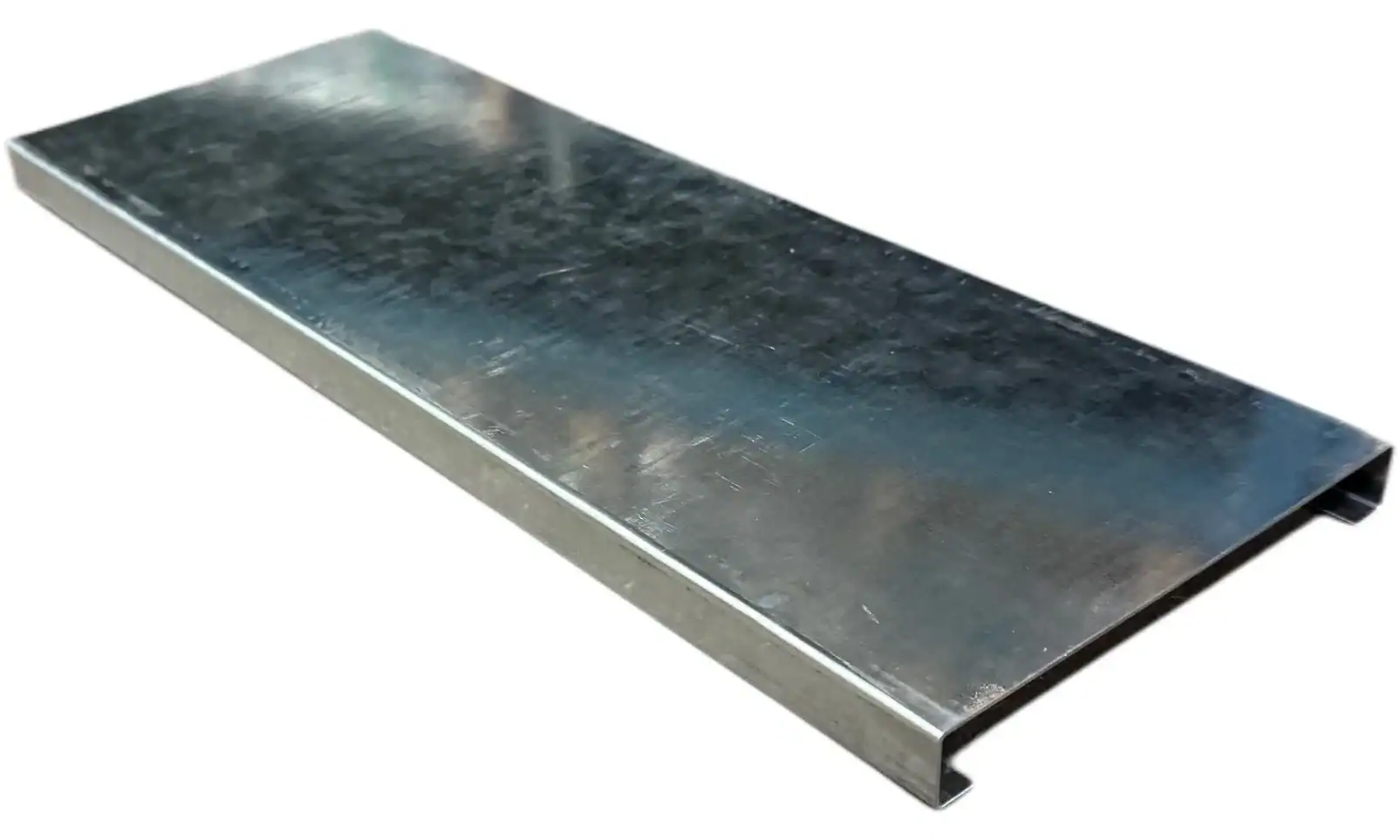

Galvanized steel pans

A solid metal surface assembled from drop-in shelf pans.

Galvanized 17-gauge steel
6″-wide pan sections
Designed for System 800
Available for all four frame depths

Steel pan sizes

Part no.	Frame depth	Pan depth	Width
805 18	18″	16¼″	6″
805 24	24″	22¼″	6″
805 30	30″	28¼″	6″
805 36	36″	34¼″	6″

View Steel Decks →

＋

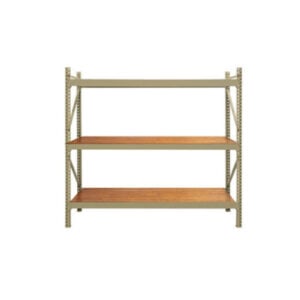

OSB wood decks

A budget-friendly alternative to an all-metal shelf surface.

Canadian-made oriented strand board
Cut sizes for the listed beam widths
Available for all four frame depths
Supports recommended at 30″ and 36″ depths

Wood deck sizes

Part no.	Actual depth	Actual width
808 1848	16¼″	47½″
808 1872	16¼″	71½″
808 1896	16¼″	95½″
808 2448	22¼″	47½″
808 2472	22¼″	71½″
808 2496	22¼″	95½″
808 3048	28¼″	47½″
808 3072	28¼″	71½″
808 3096	28¼″	95½″
808 3648	34¼″	47½″
808 3672	34¼″	71½″
808 3696	34¼″	95½″

View Wood Decks →

Frame depth and actual deck depth are different measurements. Use the tables to match the deck to its frame; confirm component fit before adding parts to an existing system.

Need help choosing a surface? Compare wire, steel and wood shelving decks in our practical guide.

＋

Finish the shelf properly

Don’t overlook wood supports.

Wood supports are available for 24″, 30″ and 36″-deep shelving, and are recommended for 30″ and 36″ depths. We’ll include the appropriate supports when we quote your shelving configuration.

There is no wood support for the 18″-deep shelving, as the shallower depth generally does not need one.

Wood support sizes & part numbers

Part number	Fits frame depth
807 24	24″
807 30	30″
807 36	36″

View Supports →

See it in use

From one bay to a full warehouse.

Browse these installation photos for a closer look at shelf surfaces, connected bays and warehouse layouts.

＋

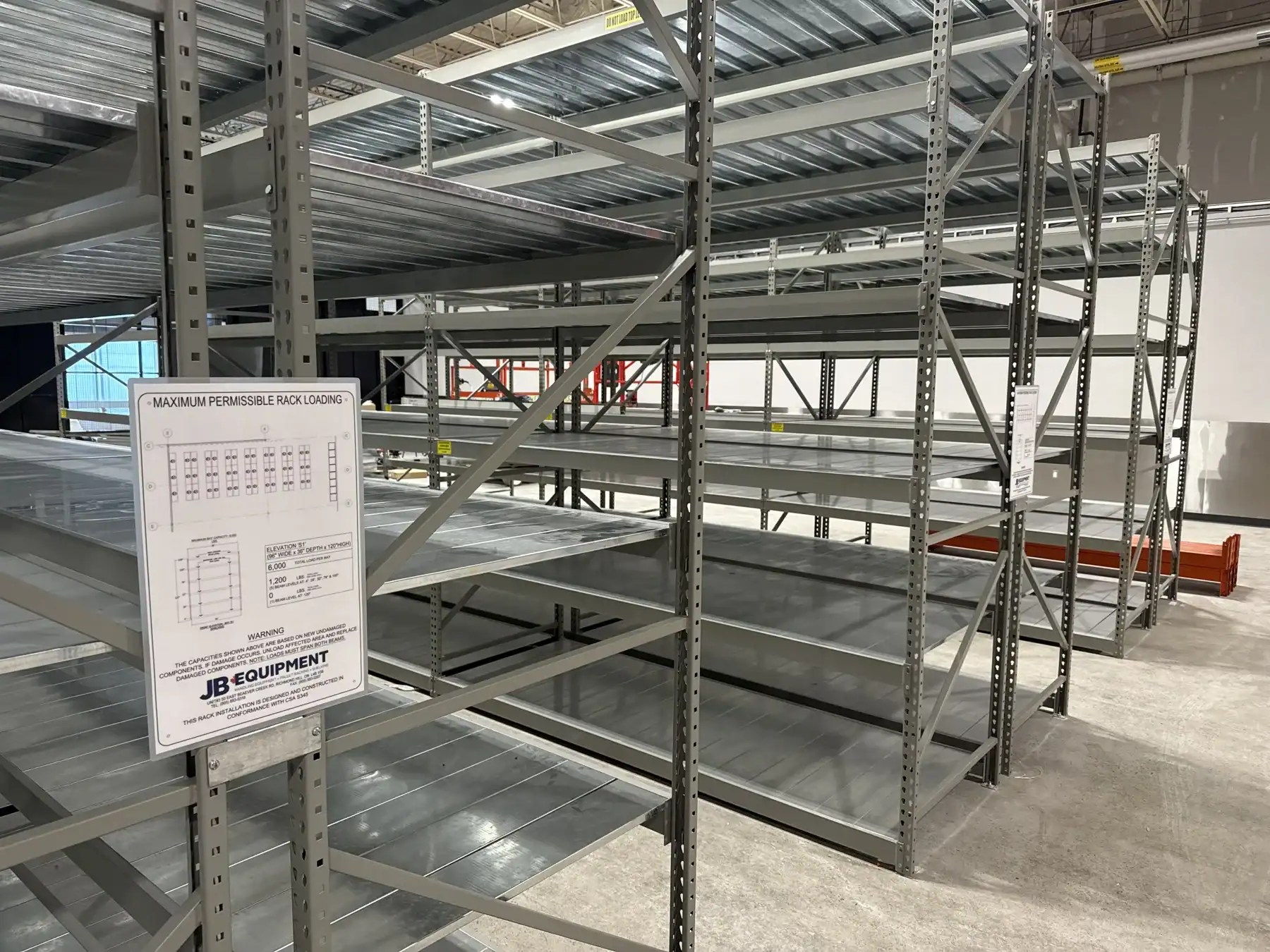

Installed System 800 shelving bays in a warehouse

＋

Click to enlarge. Use the arrows to browse all five installation photos.

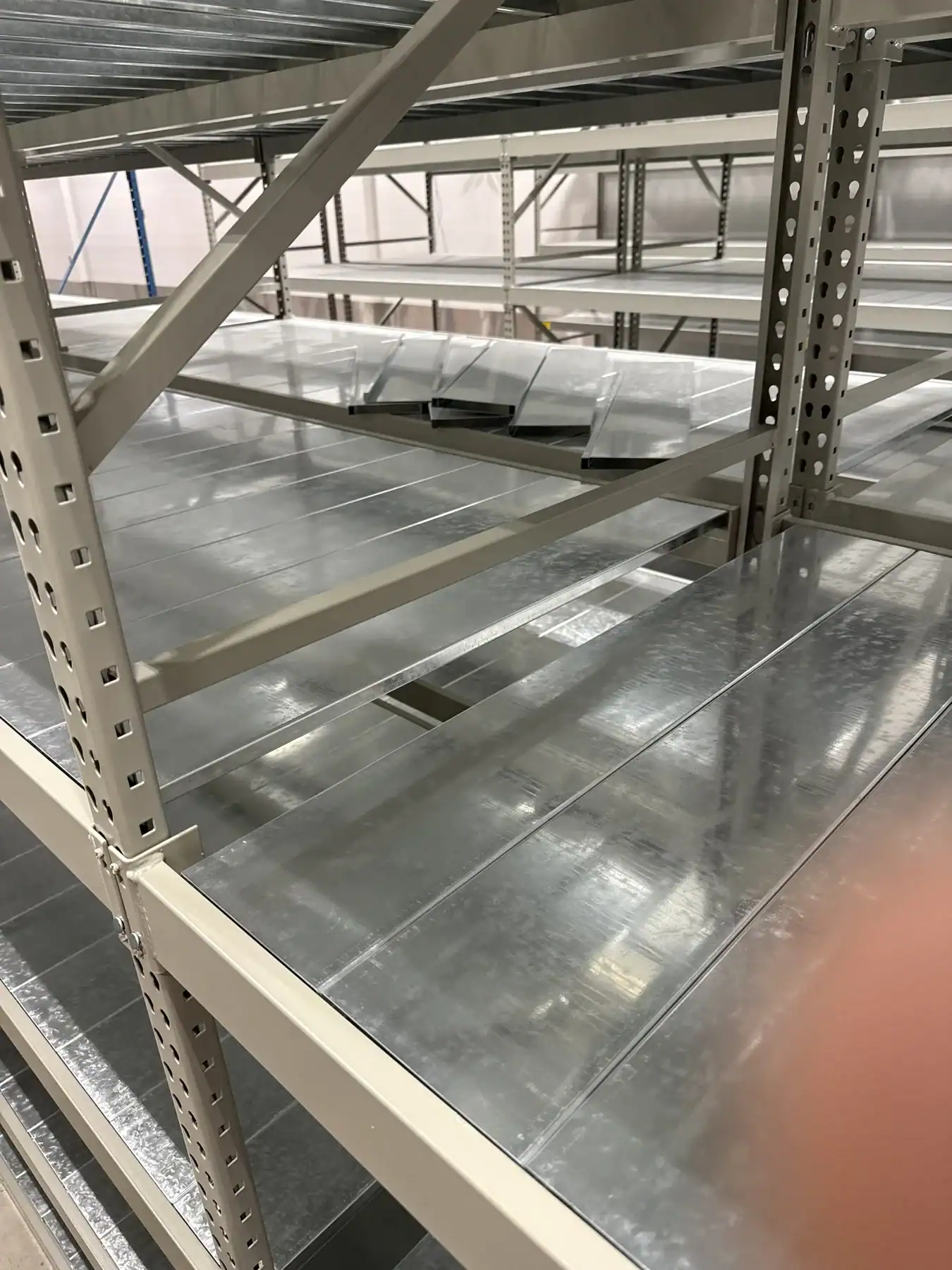

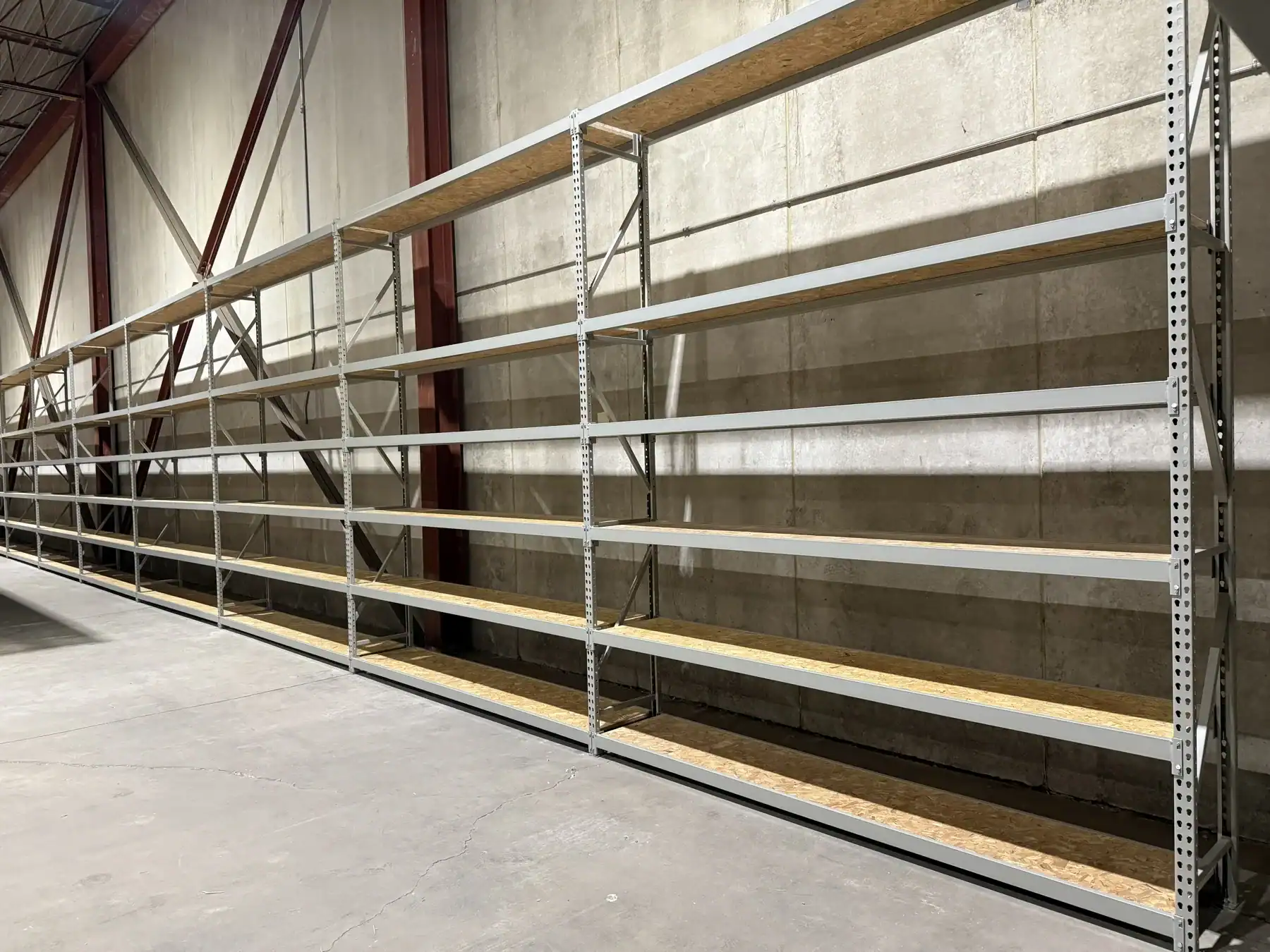

Photos show warehouse aisles, individual bays, a long wood-deck shelving run and close-up steel shelf surfaces.

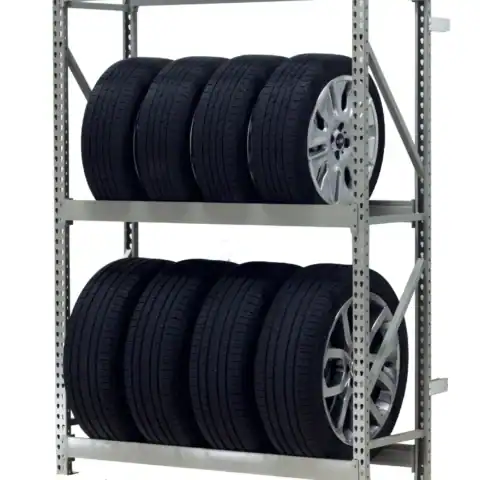

Wide span shelving configured for tire storage

＋

More ways to use wide span

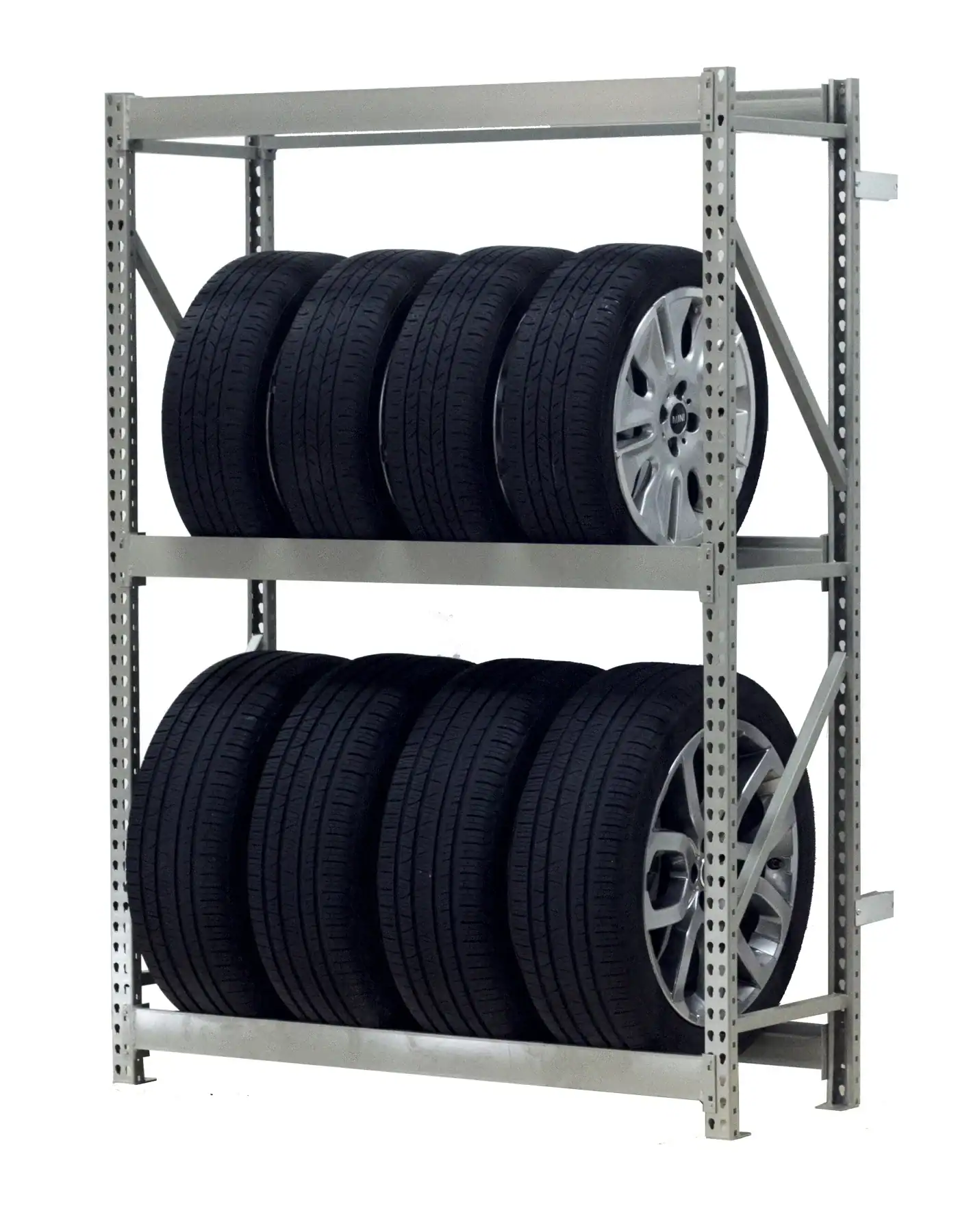

18″-deep shelving. Upright tire storage.

System 800 widespan shelving makes a practical tire-storage system using 18″-deep frames. Store tires vertically, standing upright side by side rather than stacked flat.

Tell us the tire sizes, quantities and available floor space so we can recommend a suitable configuration.

Explore Tire Storage →

Supply & installationGTA and southern Ontario

Canada-wide shippingFor supply-only orders

Since 1985Help with projects big and small

System 800 shelving questions

Which shelving sizes can I choose?

Beam widths are 48″, 72″ and 96″. Frame depths are 18″, 24″, 30″ and 36″, with 72″, 96″ and 120″ heights listed in each depth. A 24″-deep × 84″-high frame is also listed. Open the frame and beam tables above for individual part numbers.

Which deck should I choose?

Wire offers an open mesh surface. Steel pans create a solid metal shelf. OSB wood decks are an economical alternative. Share the size and weight of the items you store and we’ll help choose the right deck and supports.

How much weight can each shelf hold?

Capacity depends on the specific beams, span, decking, supports and loading arrangement. Ask us to confirm the rating for your configuration before ordering or loading it. No single capacity applies to every System 800 shelf.

Can I add components to shelving I already own?

Send photos and measurements of your existing frames, beam connections and decks. We’ll check the required component fit rather than assume that similar-looking shelving parts are interchangeable.

Do you install System 800 shelving?

Yes. JB Equipment supplies and installs shelving across the GTA and southern Ontario, from small stockrooms to larger warehouse projects. Supply-only orders can ship across Canada.

What should I send for a quote?

Send your room dimensions, desired shelf depth and height, number of shelf levels, decking preference, and approximate load per shelf. A quick sketch and photos help us plan the layout.
