PROTECTION WHERE IT COUNTS
More than a pallet rack accessory
Bollards can be part of a wider warehouse protection plan, from individual rack ends to rows of shelving and equipment areas. Their yellow finish provides a clear visual reference around fixed assets and helps identify the boundaries of working areas.
- Pallet racking: position bollards near exposed rack ends and vulnerable corners, with suitable clearance for loads and handling equipment.
- Shelving: define the ends of storage rows and protect exposed areas beside working aisles.
- Equipment areas: discuss suitable placement around machinery, workstations and other fixed assets.
- Building fronts: ask us about suitability for your entrance or exterior application, including exposure and mounting conditions.
PRODUCT DETAILS

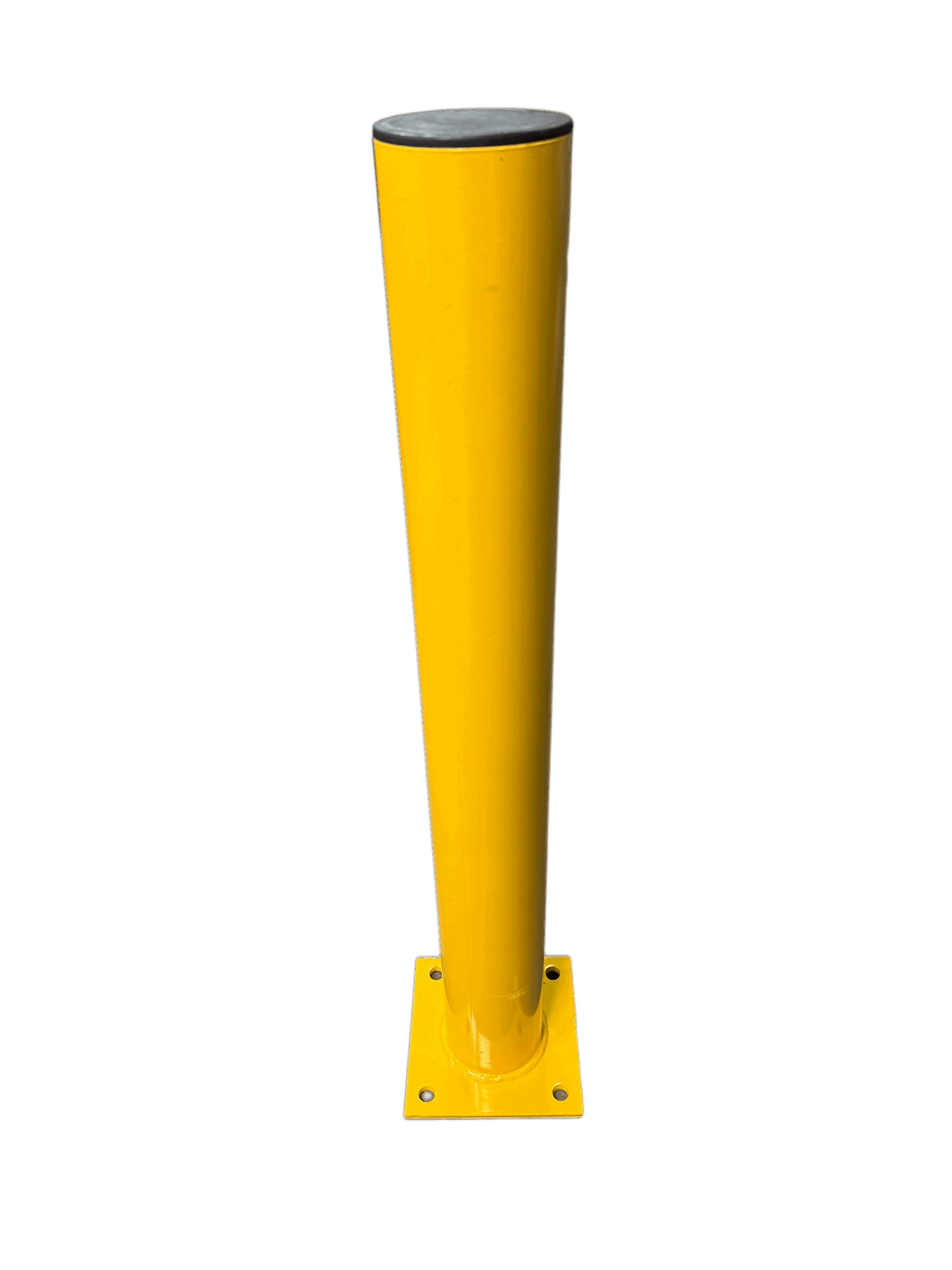

JBBOL39X5 specifications
A straightforward surface-mounted design with a welded tube and square base plate. Use the model number when requesting pricing or planning quantities.
| Model | JBBOL39X5 |
|---|---|
| Overall height | 39″ |
| Tube size | 5″ |
| Base plate | 8″ × 8″, heavy-duty |
| Construction | All-welded steel |
| Appearance | Yellow post with black cap |
| Mounting style | Surface-mounted base plate |
Square steel bollards
For docks, doorways and high-traffic areas, we also supply heavy-duty square bollards. Each one is a 4 × 4 in square steel tube welded to an 8 × 8 × 1/2 in steel base plate with four 3/4 in anchor holes, finished in safety yellow powder coat. Choose 24, 36 or 48 in heights. Anchors are not included.
| Model | Height | Weight |
|---|---|---|
| JKBD125 | 24″ | 30 lb |
| JKBH857 | 36″ | 40 lb |
| JKBD126 | 48″ | 50 lb |
ON THE JOB

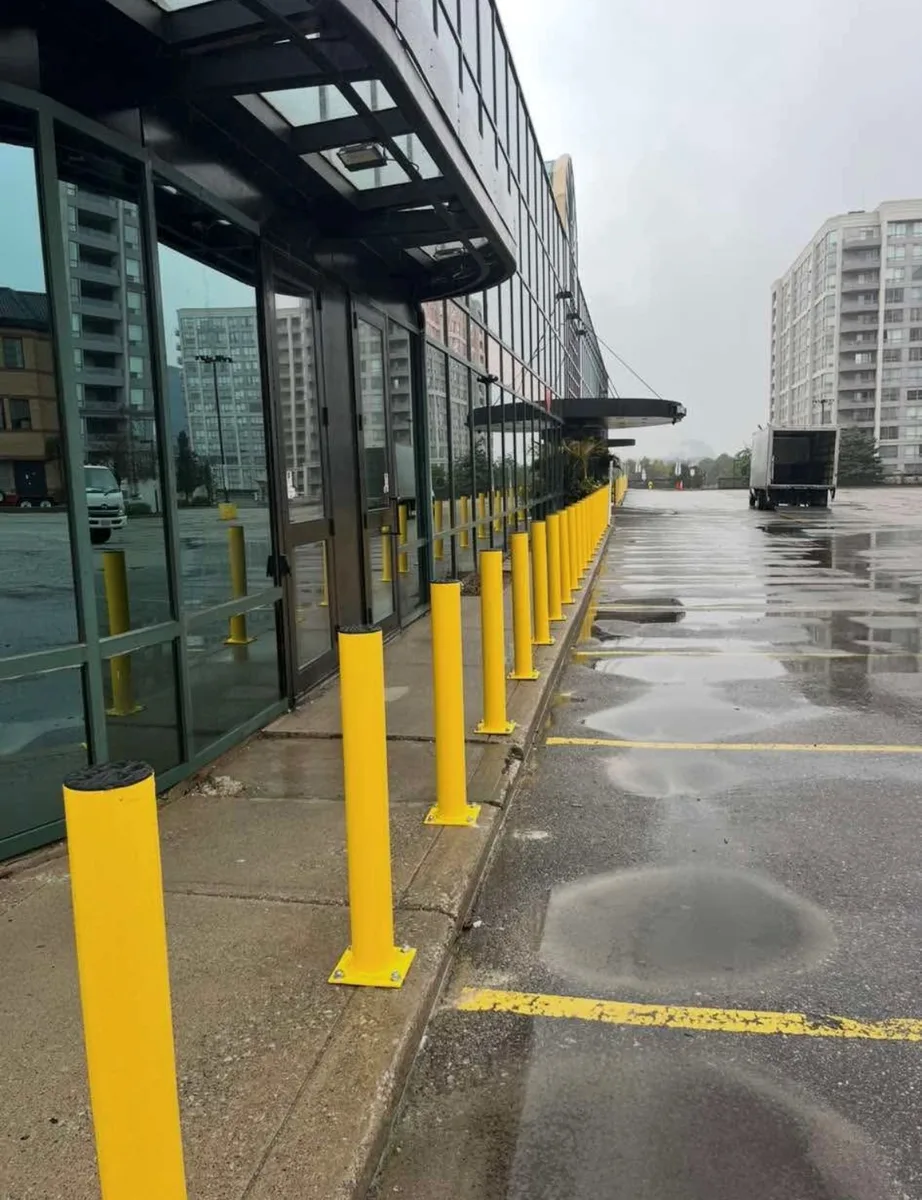

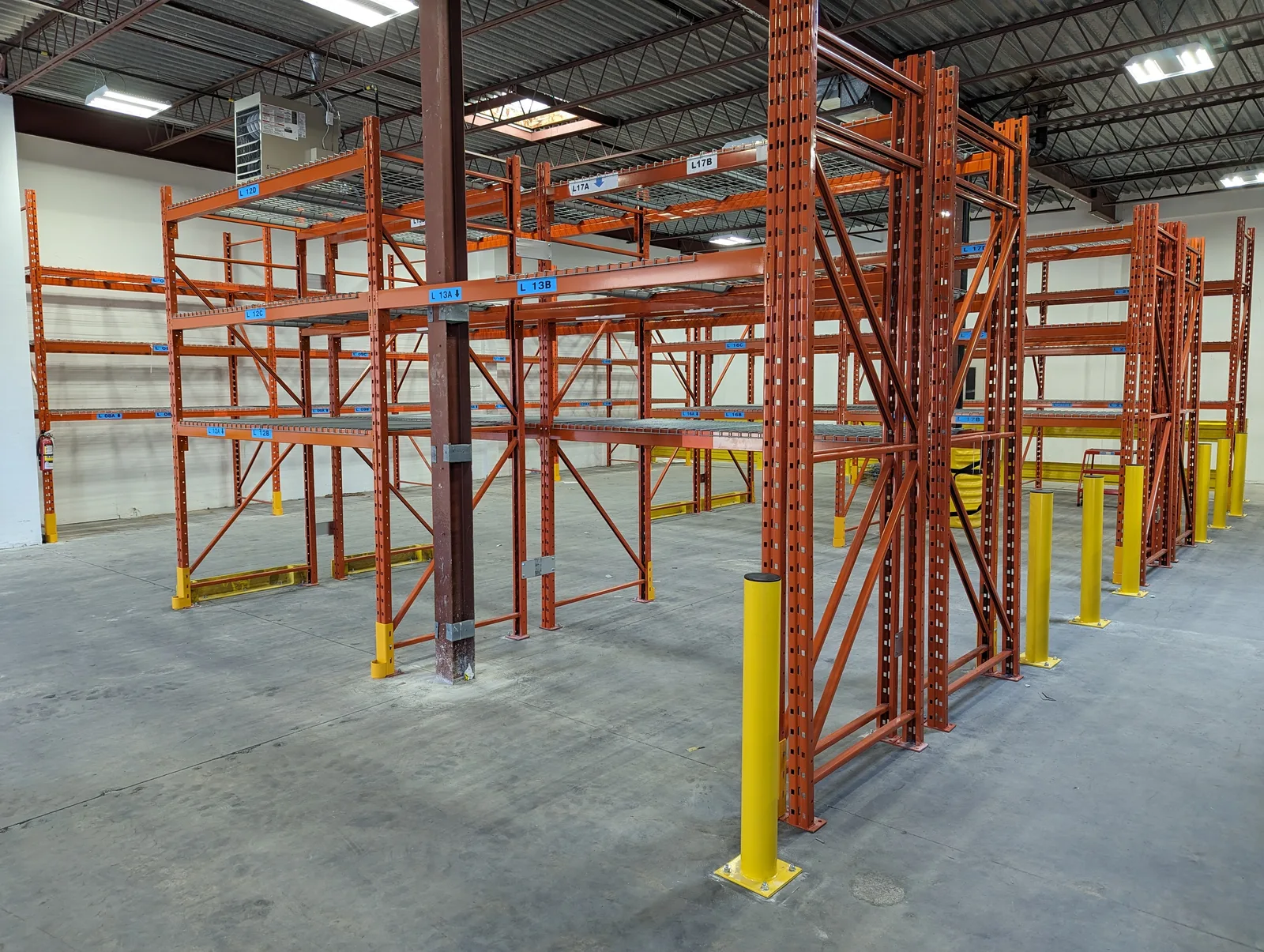

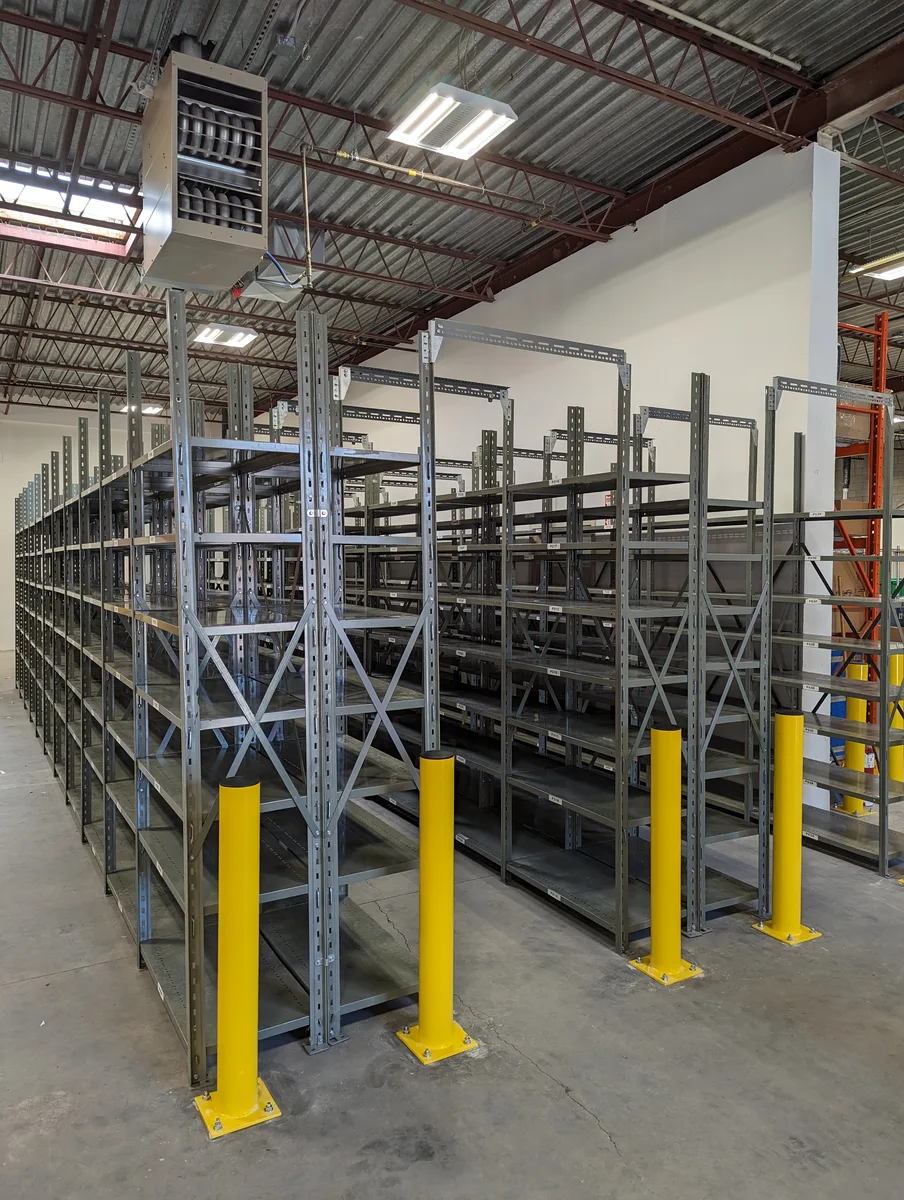

Bollards installed at customer sites
See how our bollards have been used alongside warehouse storage and building fronts. Each installation needs to be planned for its own layout, floor conditions and traffic.
PLAN YOUR PROJECT
Placement and installation
Start with the areas you want to protect, then consider aisle widths, turning space, door operation and access for staff. Bollards should not obstruct required exits or create avoidable trip hazards around their base plates.
Anchors and mounting details must be selected for the substrate and application. Tell us about your floor or mounting surface and ask about installation support before ordering.
This page does not specify a crash or impact rating. Where a rated vehicle barrier is required, a bollard must be selected and installed to meet the project’s engineering requirements.
Questions about warehouse bollards
Do these bollards attach to the pallet rack?
No. The bollard has its own base plate for surface mounting, so it is installed independently of the rack or shelving frame.
Can I use them outside?
Our installation photos include a building-front application. Contact us to confirm suitability for your exposure, mounting surface and protection requirements.
What should I include in a quote request?
Include the quantity, model (JBBOL39X5 or a square bollard part number), delivery location and where the bollards will be used. Photos or a simple layout are helpful; let us know if you also need installation support.
LET’S TALK ABOUT YOUR PROJECT
Request a bollard quote
Tell us how many bollards you need and where they will be installed. JB Equipment serves the GTA and Southern Ontario, with shipping available across Canada.
