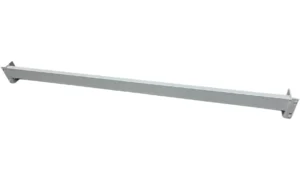

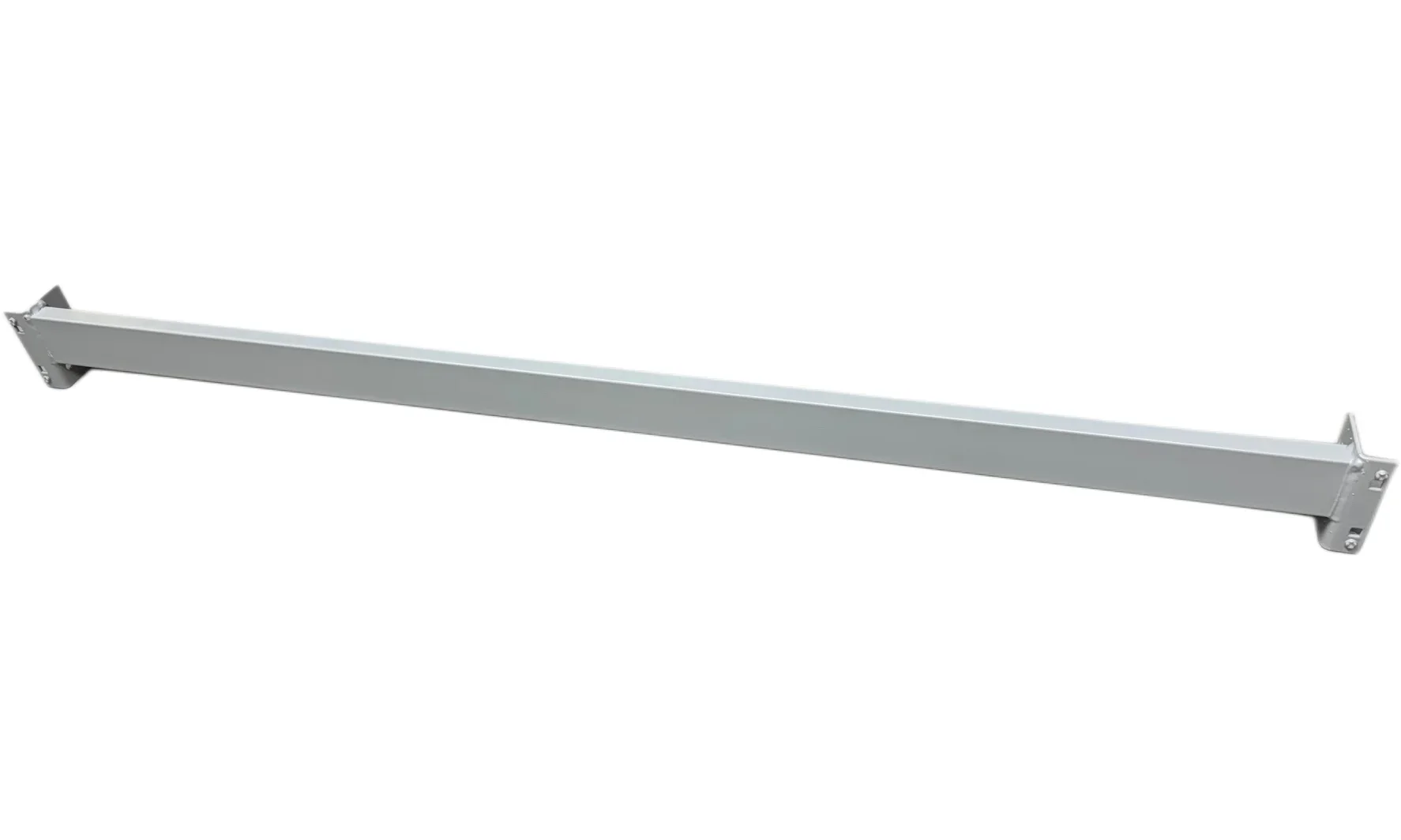

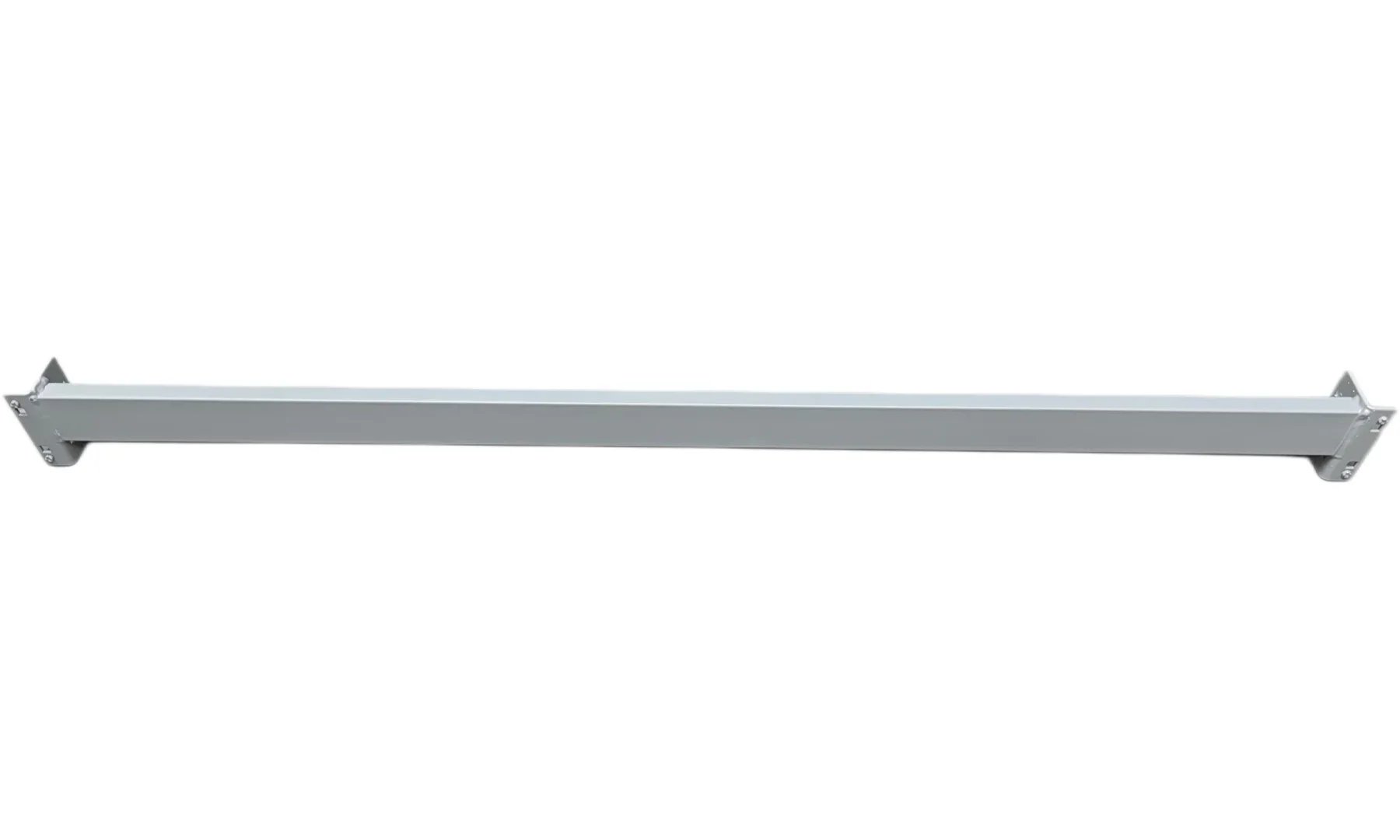

System 800 Shelving Step Beams
Connect your System 800 frames with steel step beams sized for your shelving layout. Choose a 48″, 72″ or 96″ width and a nominal 2″ or 3″ beam profile, then match the decking and supports to the load.
- Seamlessly welded steel construction
- Two rivets on each end plate for installation
- 48″, 72″ and 96″ widths
- Nominal 2″ and 3″ profiles
- Light grey powder-epoxy finish
Find the right fit
Sizes & part numbers
Choose the beam profile for the specific span and loading arrangement. A width or profile alone is not a shelf-capacity rating.
| Part number | Beam width | Nominal profile |
|---|---|---|
| 802 4802 | 48″ | 2″ |
| 802 4803 | 48″ | 3″ |
| 802 7202 | 72″ | 2″ |
| 802 7203 | 72″ | 3″ |
| 802 9602 | 96″ | 2″ |
| 802 9603 | 96″ | 3″ |
Plan it properly
Match the beam to the whole shelf.
The beam, deck and support arrangement work together. Tell us the width you need, the decking you prefer and the weight per level so we can quote the appropriate combination.
Three shelf spans
48″, 72″ and 96″ beam widths let you plan shorter bays or longer shelf spans.
Choice of decking

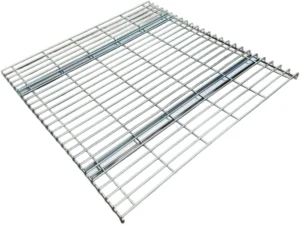

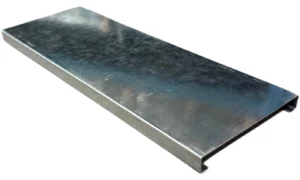

Step beams work with the listed System 800 wire decks, steel pans and OSB wood decks.
Adding to an existing bay
Send connection photos and measurements so we can confirm the correct fit.
Your questions answered
What is the difference between the 2″ and 3″ profiles?
They are different nominal beam profiles. We’ll help select the appropriate option for your span and load; no single capacity applies to all beam sizes.
Can I use these with my existing shelving?
We need to confirm the system and connection details. Similar-looking parts are not necessarily interchangeable.
Can these be used for tire storage?

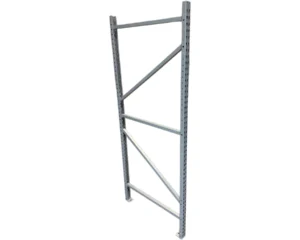

Yes, System 800 beams can be combined with 18″-deep frames for an upright tire-storage configuration. Send your tire sizes and quantities for a suitable layout.
Complete your configuration.
Need help choosing components?
Send your measurements, photos and intended loads. We’ll quote the right parts or a complete System 800 shelving installation.
