System 800 Wide Span Shelving Frames

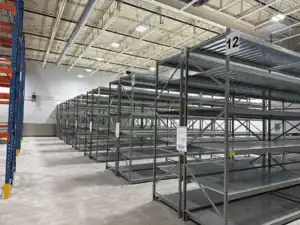

Start your shelving system with the right depth and height. These one-piece welded shelving frames and uprights form the structure of System 800 wide span shelving, from a single storage bay to longer shelving runs.
- 14-gauge roll-formed steel posts
- 14-gauge seamlessly welded tube bracing
- Welded steel foot plates with ⅜″ anchoring holes
- Light grey powder-epoxy finish
- Shelf levels adjustable on 1½″ centres
Find the right fit
Sizes & part numbers
The 84″ height is listed only for 24″-deep frames. Other listed depths are available in 72″, 96″ and 120″ heights.
| Part number | Frame depth | Frame height |
|---|---|---|
| 801 1872 | 18″ | 72″ |
| 801 1896 | 18″ | 96″ |
| 801 18120 | 18″ | 120″ |
| 801 2472 | 24″ | 72″ |
| 801 2484 | 24″ | 84″ |
| 801 2496 | 24″ | 96″ |
| 801 24120 | 24″ | 120″ |
| 801 3072 | 30″ | 72″ |
| 801 3096 | 30″ | 96″ |
| 801 30120 | 30″ | 120″ |
| 801 3672 | 36″ | 72″ |
| 801 3696 | 36″ | 96″ |
| 801 36120 | 36″ | 120″ |
Plan it properly
Start with the space, then the stock.
Choose a depth that suits your cartons, bins or other items, then select a frame height for the available space. Share your intended shelf levels and loads so we can match the frames, beams and decking as a complete system.
Shelf depth
18″, 24″, 30″ and 36″ frame depths are listed. Actual deck depths are smaller to fit between the beam steps.
Existing shelving
Send a photo of the frame and beam connection before ordering replacement or extension components.

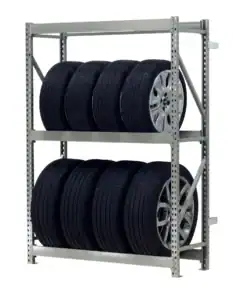

Tire storage
18″-deep frames can form a System 800 rack for storing tires upright.
Your questions answered
Are the frames supplied as separate posts and braces?
No. These are one-piece welded frames with welded tube bracing and foot plates.
Can shelf levels be moved?
System 800 shelf levels can be positioned on 1½″ centres to suit the items being stored.
Do frames come in every depth and height combination?
Use the table above for the listed combinations. The 84″-high frame is listed in 24″ depth only.
Complete your configuration.
Need help choosing components?
Send your measurements, photos and intended loads. We’ll quote the right parts or a complete System 800 shelving installation.
