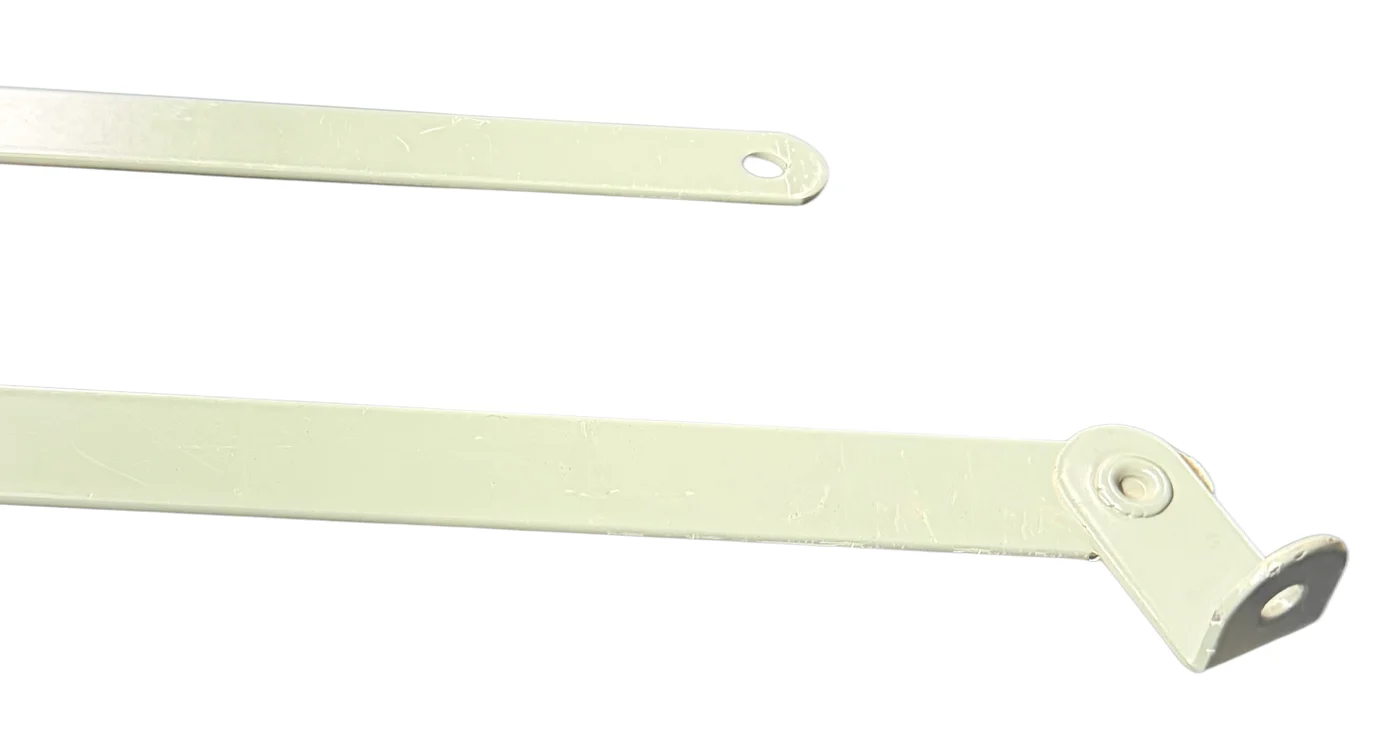

System 200 Side & Back Braces

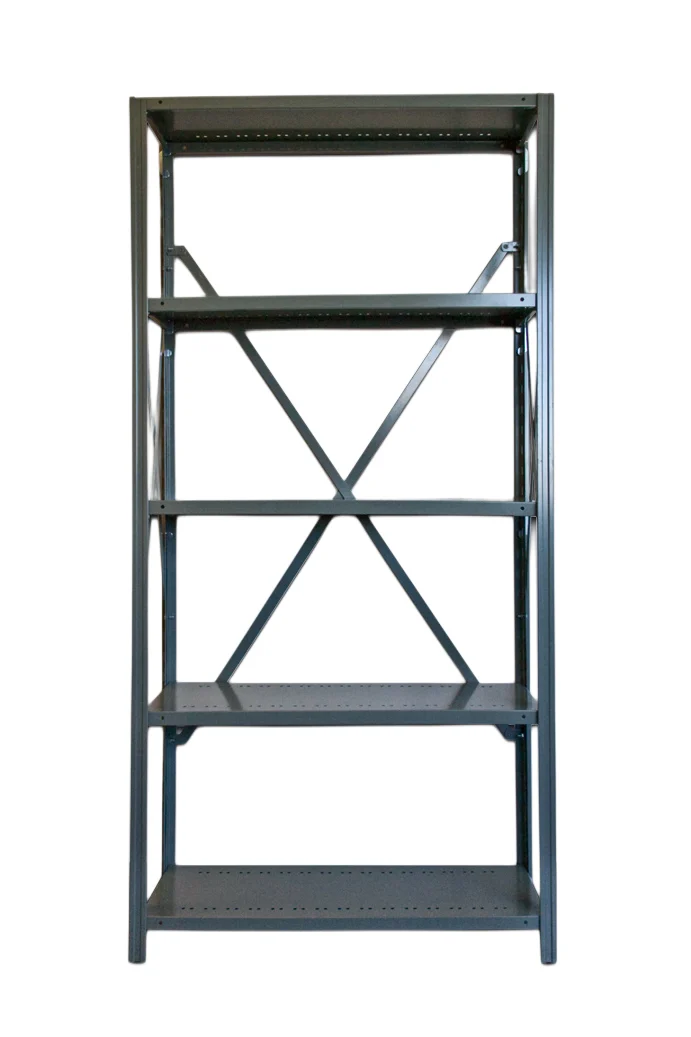

Complete your shelving layout with the bracing it requires. System 200 side and back braces form bolted X-bracing to maintain rigidity in individual bays and connected shelving rows.
- Bolted X-bracing for shelving sides and backs.
- Braces are supplied in pairs.
- Side brace lengths: 37″ and 43″.
- Back brace 208 61 is 61″ long.
Ordering for an existing system? Send photos and dimensions so we can check the match.
Specify the right part
Brace sizes & part numbers
Choose the correct side or back brace for the shelving layout. These are brace lengths, not shelf dimensions.
| Part number | Type | Length |
|---|---|---|
| 207 37 | Side brace | 37″ |
| 207 43 | Side brace | 43″ |
| 208 61 | Back brace | 61″ |
The confirmed length for back brace 208 61 is 61″.
Before you order
Layout determines placement
Bracing locations depend on the number of bays and whether the shelving is arranged in single or double rows.
Allow for shelf positions
Plan brace connections around the intended shelf heights. Brace bolts can interfere with a shelf position.
Need access from both sides?

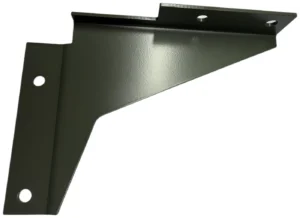

Ask about a layout using gussets. Do not omit required X-bracing without confirming an appropriate alternative arrangement.
Complete your System 200 setup
Need parts or a complete shelving layout?
Send the part numbers, quantities and dimensions you need. We can help with replacement components, additional bays or a new System 200 installation.
