System 200 components

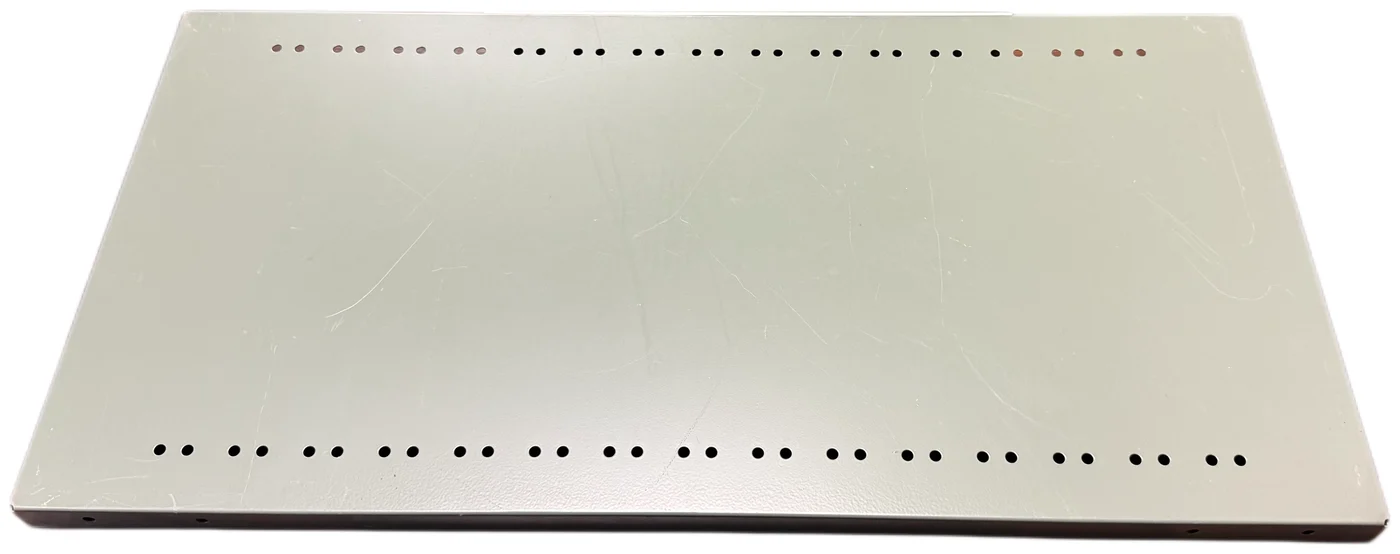

System 200 Steel Shelves
Build shelf levels around the cartons, bins and supplies you store. System 200 solid steel shelves connect to T-posts with compression clips and can be repositioned as your storage needs change.
- 19-gauge steel with return-bend bottom edges.
- Punched to accept shelf dividers.
- Four compression clips per shelf.
- Olive-grey powder-painted finish.
Ordering for an existing system? Send photos and dimensions so we can check the match.
Specify the right part
Shelf sizes & part numbers
Choose the shelf depth and width, then confirm how many levels you need in each bay. Dimensions below are depth × width.
| Part number | Depth | Width |
|---|---|---|
| 201 1236 | 12″ | 36″ |
| 201 1242 | 12″ | 42″ |
| 201 1248 | 12″ | 48″ |
| 201 1536 | 15″ | 36″ |
| 201 1542 | 15″ | 42″ |
| 201 1548 | 15″ | 48″ |
| 201 1836 | 18″ | 36″ |
| 201 1842 | 18″ | 42″ |
| 201 1848 | 18″ | 48″ |
| 201 2436 | 24″ | 36″ |
| 201 2442 | 24″ | 42″ |
| 201 2448 | 24″ | 48″ |
| 201 3242 | 32″ | 42″ |
The 32″ × 42″ shelf is an additional listed size. Confirm availability when requesting your quote.
Before you order
Match the footprint
Measure the bins or cartons you plan to store and the clear space available for the shelving.
Allow for shelf clips
Include four 200SC clips for every shelf. Posts and bracing must suit the complete bay or run.
Confirm the load
Tell us the weight per shelf and how it is distributed. Capacity must be checked for the selected shelf and bay configuration.
Complete your System 200 setup
Need parts or a complete shelving layout?
Send the part numbers, quantities and dimensions you need. We can help with replacement components, additional bays or a new System 200 installation.
