System 200 components

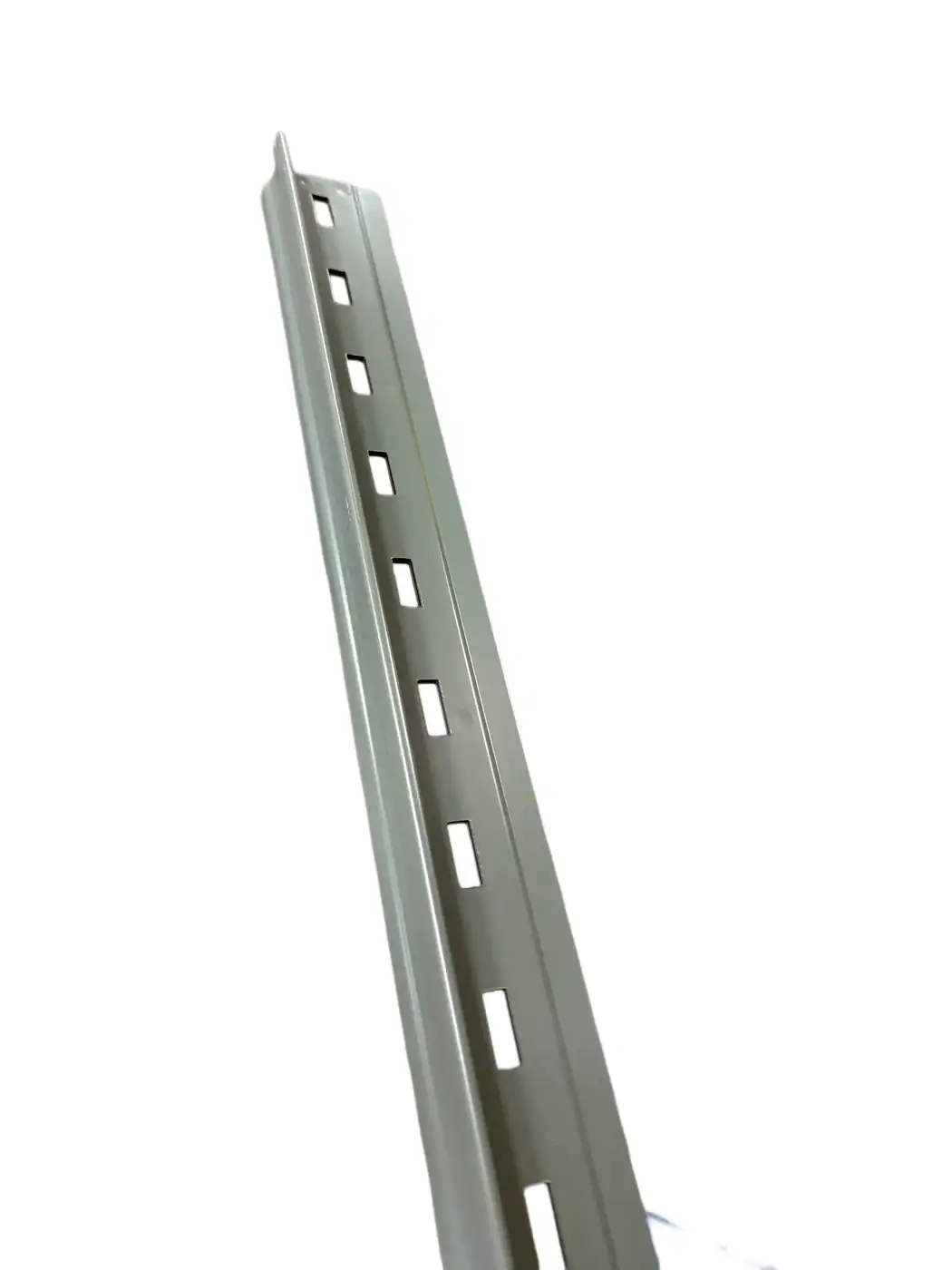

System 200 Shelving T-Posts

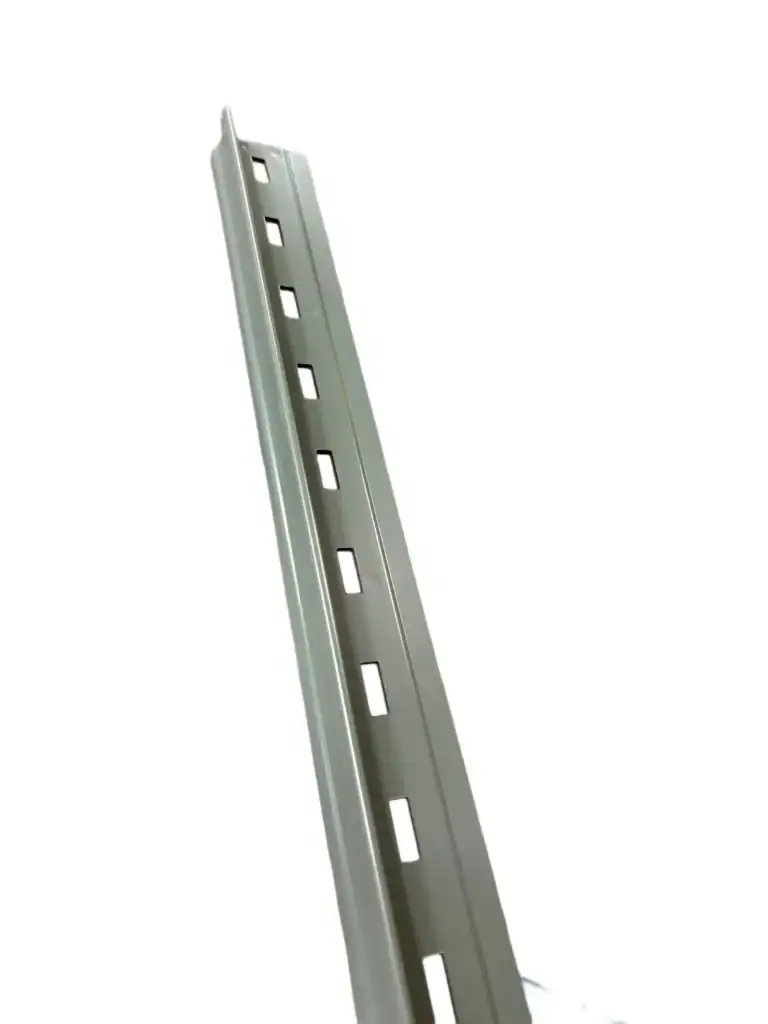

Create a single shelving bay or extend a continuous row with System 200 T-posts. The slotted post design supports adjustable shelf levels and common posting between adjacent bays.
- Manufactured from 15-gauge steel.
- Shelf positions adjust in 2″ increments.
- Accepts two standard compression clips at a position.
- Four standard heights: 76″, 88″, 100″ and 124″.
Ordering for an existing system? Send photos and dimensions so we can check the match.
Specify the right part
Post heights & part numbers
Choose the height to suit your available clearance and shelf layout. Common posting can be used between adjacent bays when the complete shelving run is properly configured.
| Part number | Height |
|---|---|
| 205 76 | 76″ |
| 205 88 | 88″ |
| 205 100 | 100″ |
| 205 124 | 124″ |
Posts, shelves, clips, bracing and anchoring requirements should be selected together.
Before you order
Check clear height
Account for overhead obstructions and the access needed to use the upper shelf levels.
Plan the entire run
Share the number of bays and shelf levels so we can confirm the post and clip quantities.
Match existing shelving
Send photos of the post profile, slots and shelf connections before ordering an extension or replacement.
Complete your System 200 setup
Need parts or a complete shelving layout?
Send the part numbers, quantities and dimensions you need. We can help with replacement components, additional bays or a new System 200 installation.
