Product overview

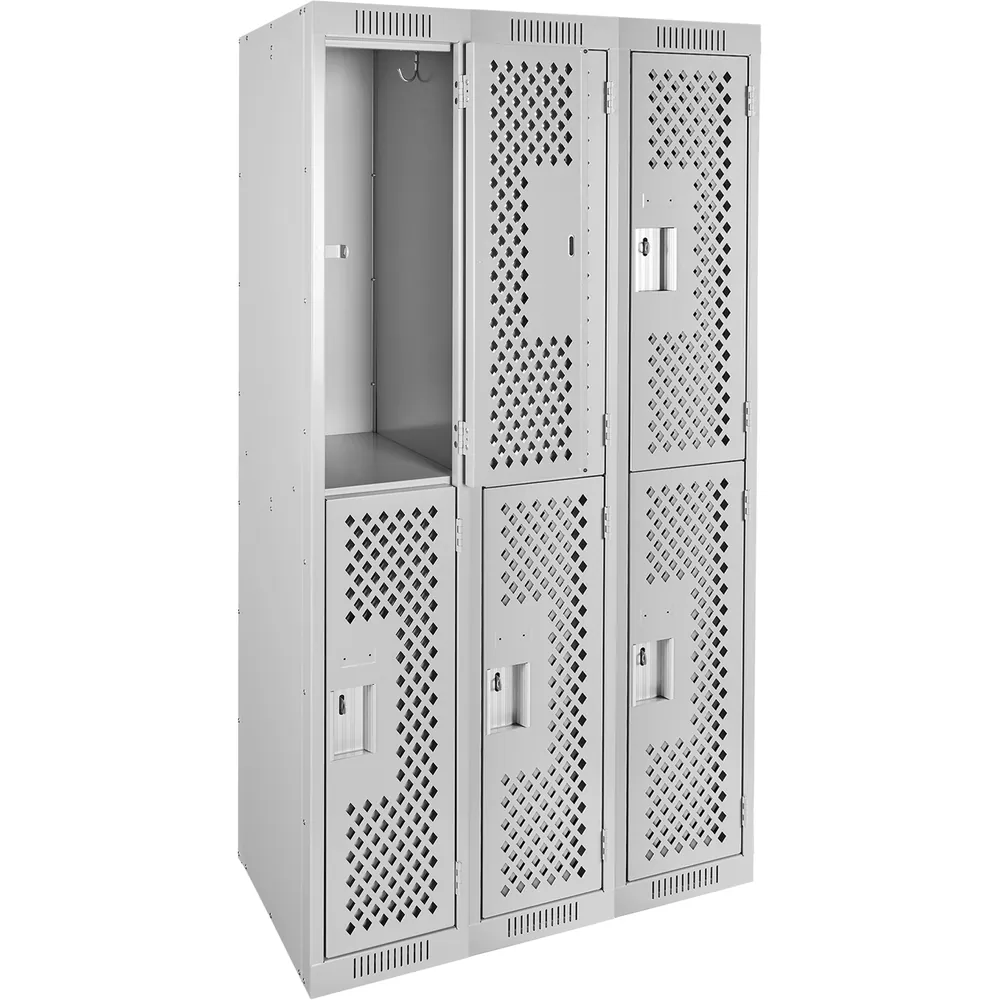

Perforated lockers are the best choice for gyms, team rooms, pool and arena change rooms, fire halls and food plants, where clothing and gear is often wet or sweaty. The open diamond pattern lets you see at a glance that a locker is empty, while each door still locks with a padlock.
Construction and features
- Diamond-pattern perforated doors for maximum air flow
- Prime grade cold rolled steel, shipped fully assembled
- All-welded frame and doors, resistance welded at all four corners; riveted body panels
- 16-gauge frames, 20-gauge double pan doors, 24-gauge bodies and shelves

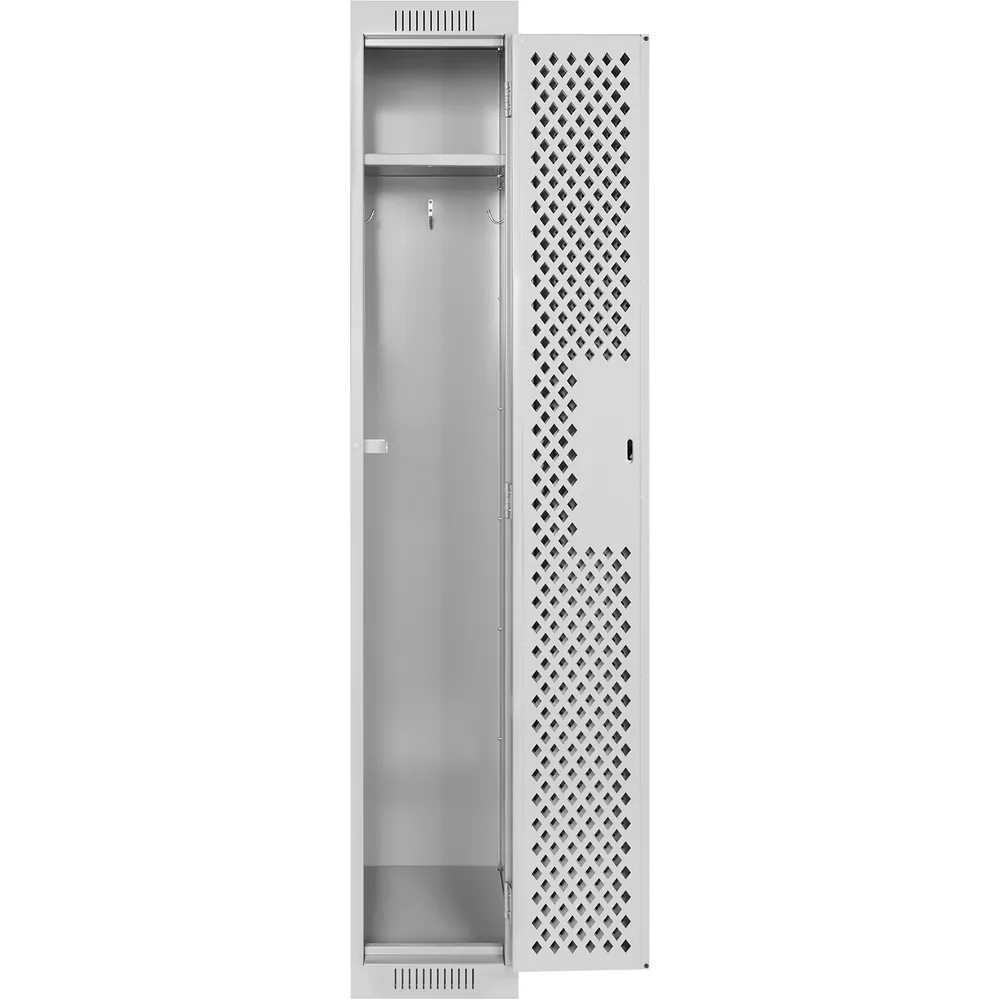

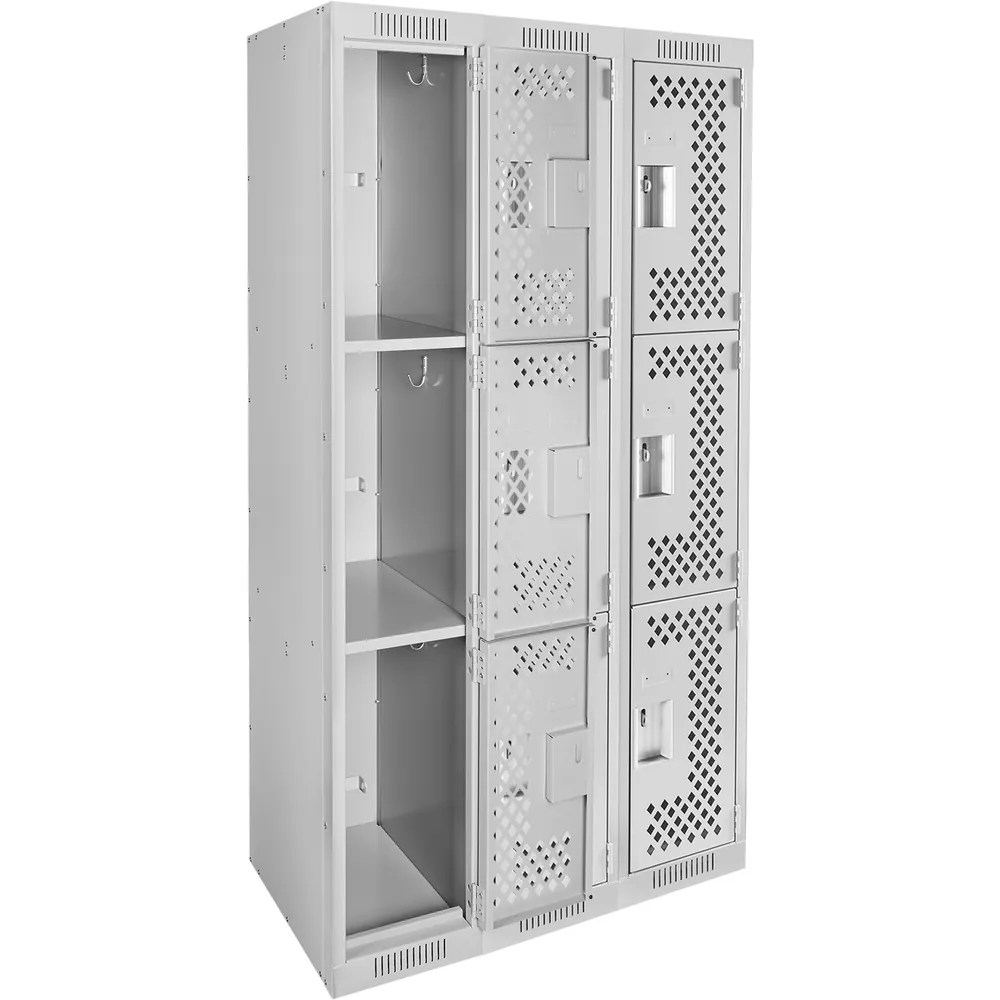

- Single tier: hat shelf and three coat hooks; double and triple tier: two coat hooks per opening

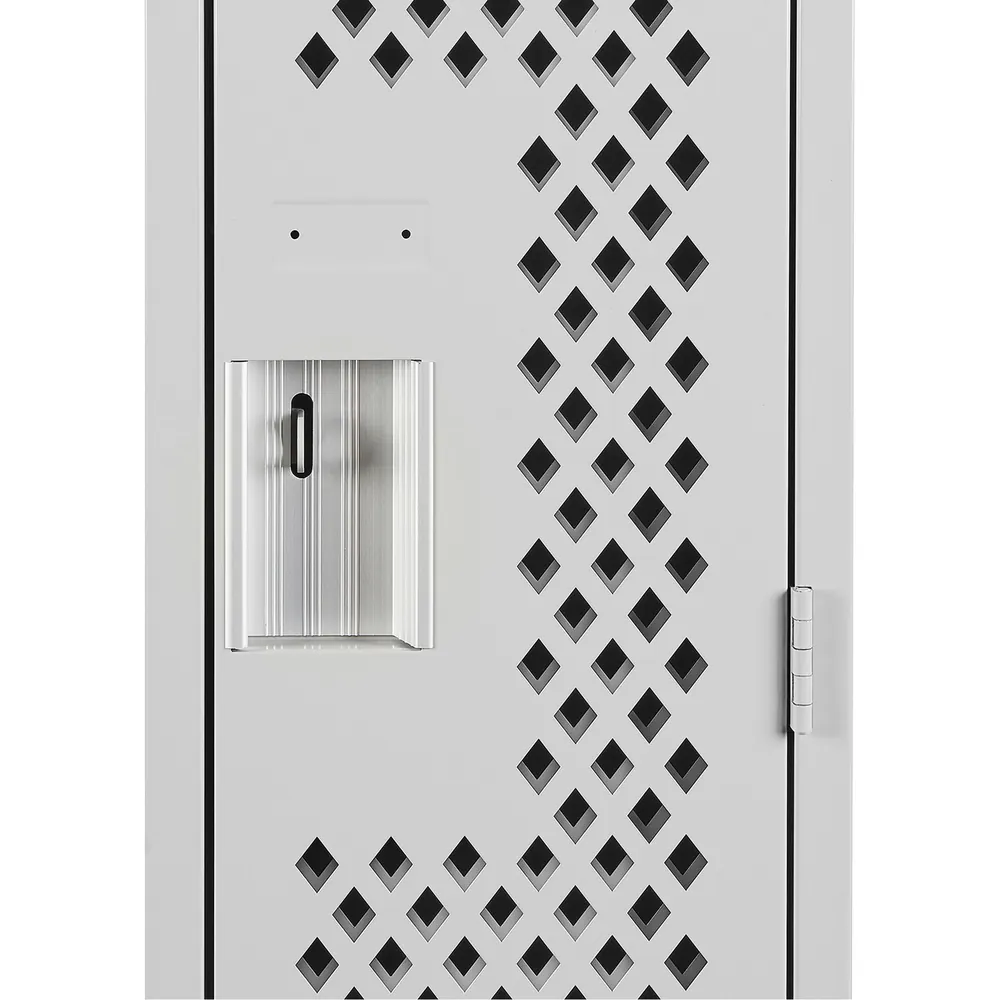

- Aluminum recessed padlock handle on every door
- Ventilation holes on the top and bottom frame cross pieces
- Polyester epoxy powder coat finish in grey (other colours by special order)
- Made in Canada
Options
- Free-standing 6″ steel base: lifts lockers on legs so you can clean underneath (see Locker Bases & Accessories)
- Lock options: padlock (standard), built-in key cylinder lock, digital keypad lock or coin-operated lock
- Number plates in sets of 25, and plastic base inserts to protect locker floors
Ventilated locker models
Select a part number to see its photo. Scroll sideways on small screens to see every column. Each opening is 12″ wide × 18″ deep. Need perforated box lockers? See 6-Tier Box Lockers.
| Part number | Tiers | Bank of | Overall W × D × H (in) | Openings |
|---|---|---|---|---|

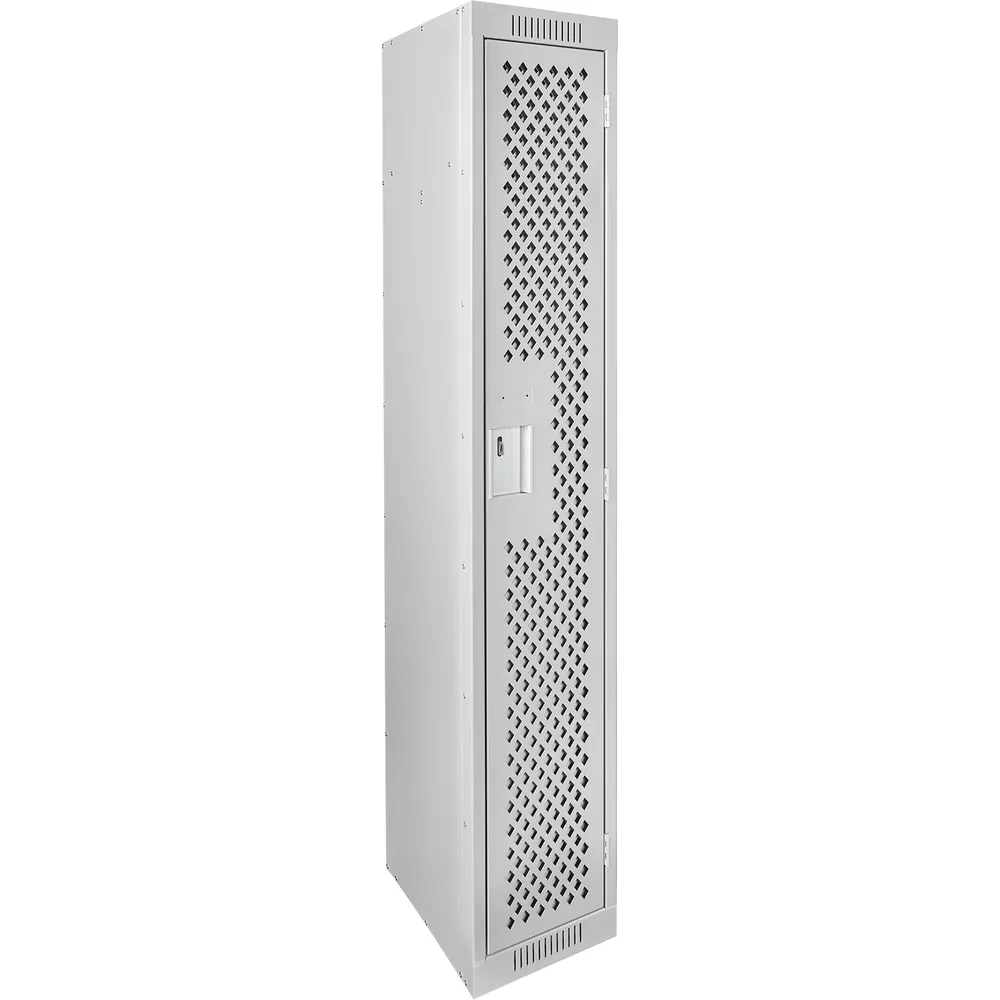

| JFBJ478 | Single | 1 | 12 × 18 × 72 | 1 |
| JFBJ479 | Single | 2 | 24 × 18 × 72 | 2 |

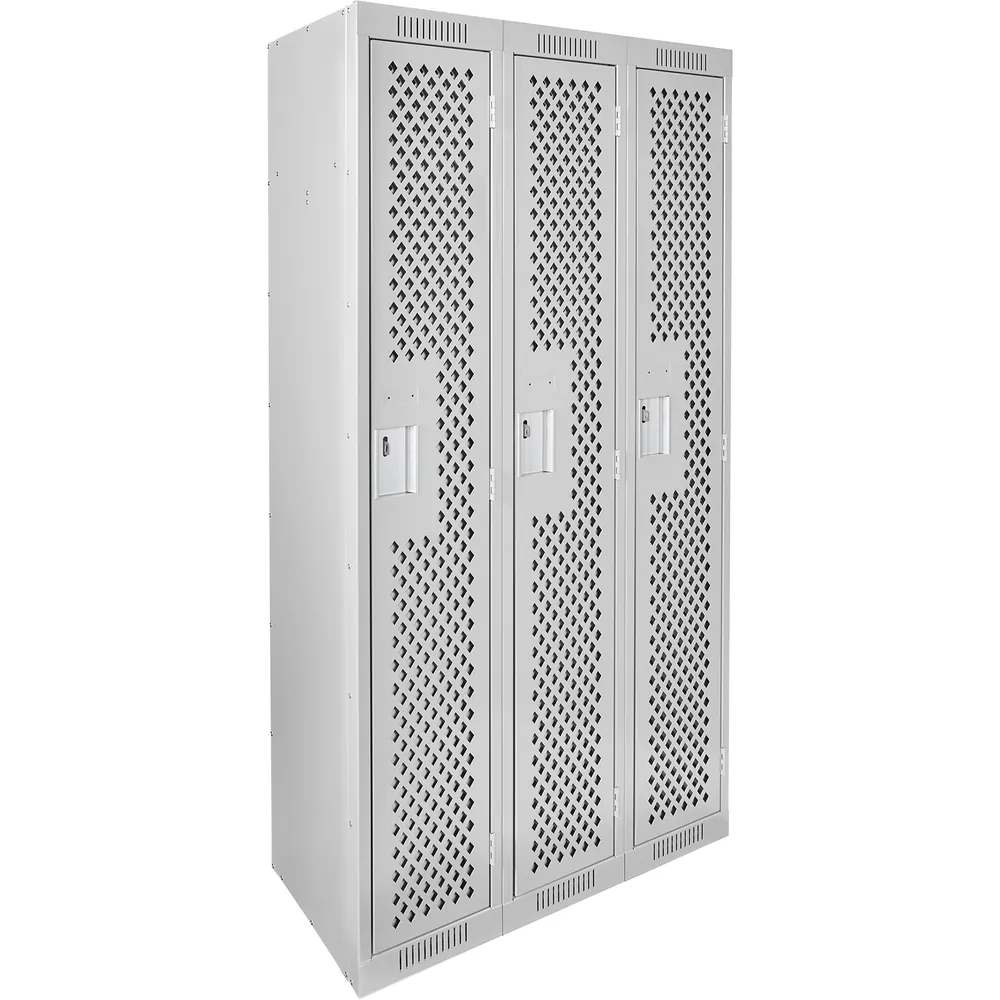

| JFBJ480 | Single | 3 | 36 × 18 × 72 | 3 |

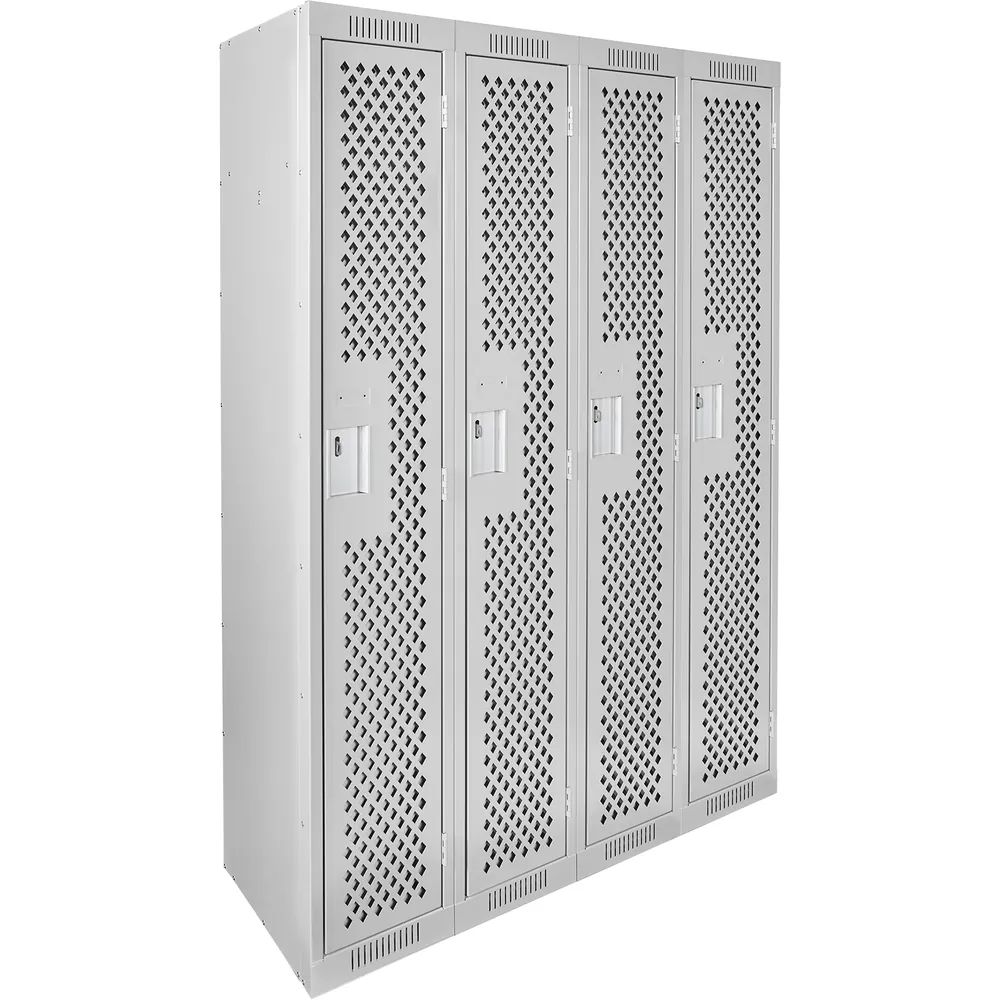

| JFBJ481 | Single | 4 | 48 × 18 × 72 | 4 |
| JFBJ482 | Double | 1 | 12 × 18 × 72 | 2 |

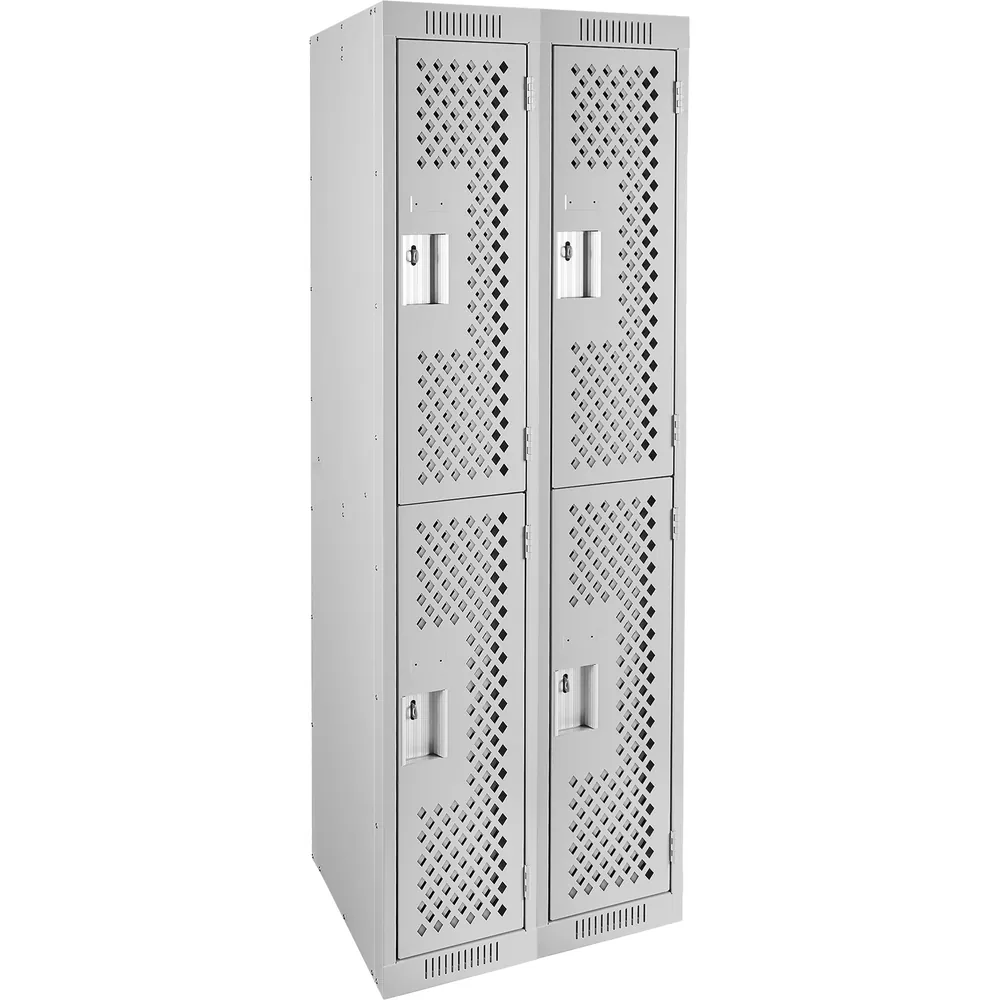

| JFBJ483 | Double | 2 | 24 × 18 × 72 | 4 |
| JFBJ484 | Double | 3 | 36 × 18 × 72 | 6 |
| JFBJ485 | Double | 4 | 48 × 18 × 72 | 8 |
| JFBJ486 | Triple | 1 | 12 × 18 × 72 | 3 |

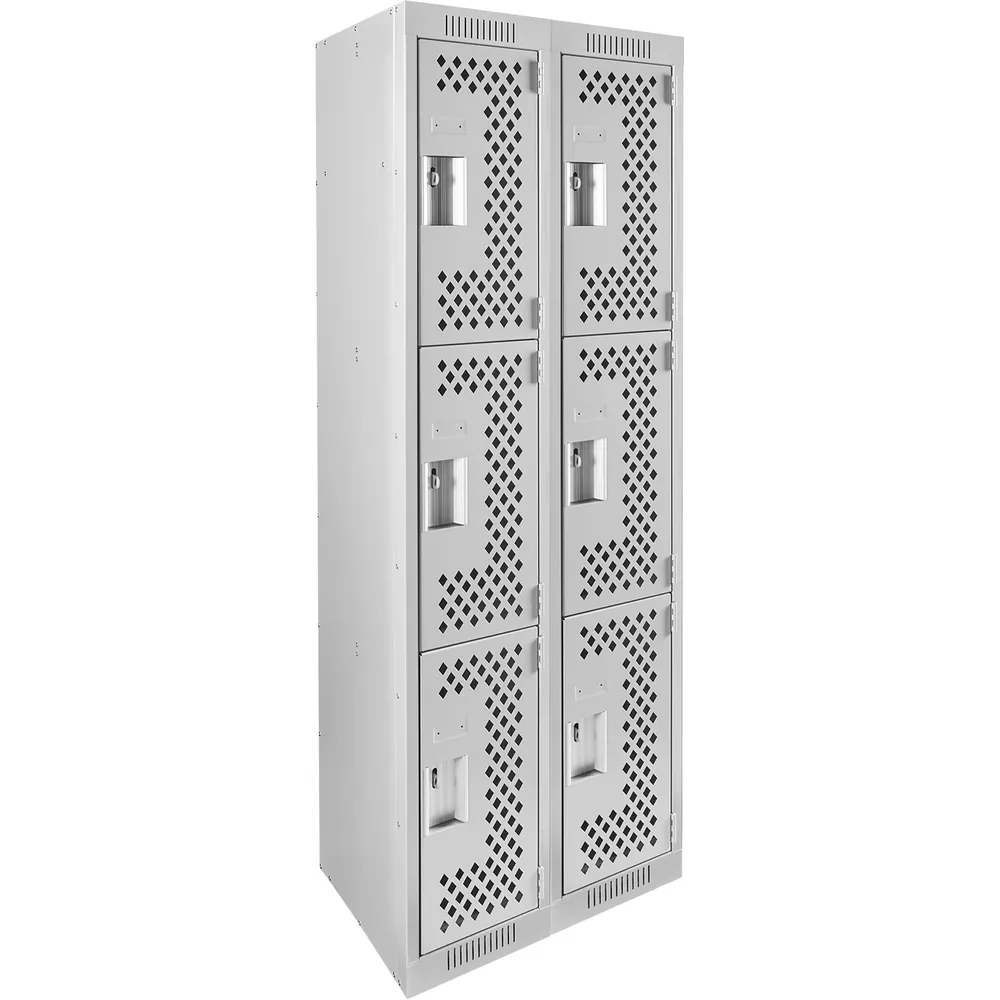

| JFBJ487 | Triple | 2 | 24 × 18 × 72 | 6 |
| JFBJ488 | Triple | 3 | 36 × 18 × 72 | 9 |
| JFBJ489 | Triple | 4 | 48 × 18 × 72 | 12 |
Ordering and delivery
Send us the JB part numbers and quantities you need using the inquiry form, or call (905) 883-0316. We will confirm price, colour and lead time. JB Equipment delivers and installs lockers across the GTA and Southern Ontario, and ships across Canada.
