Product overview

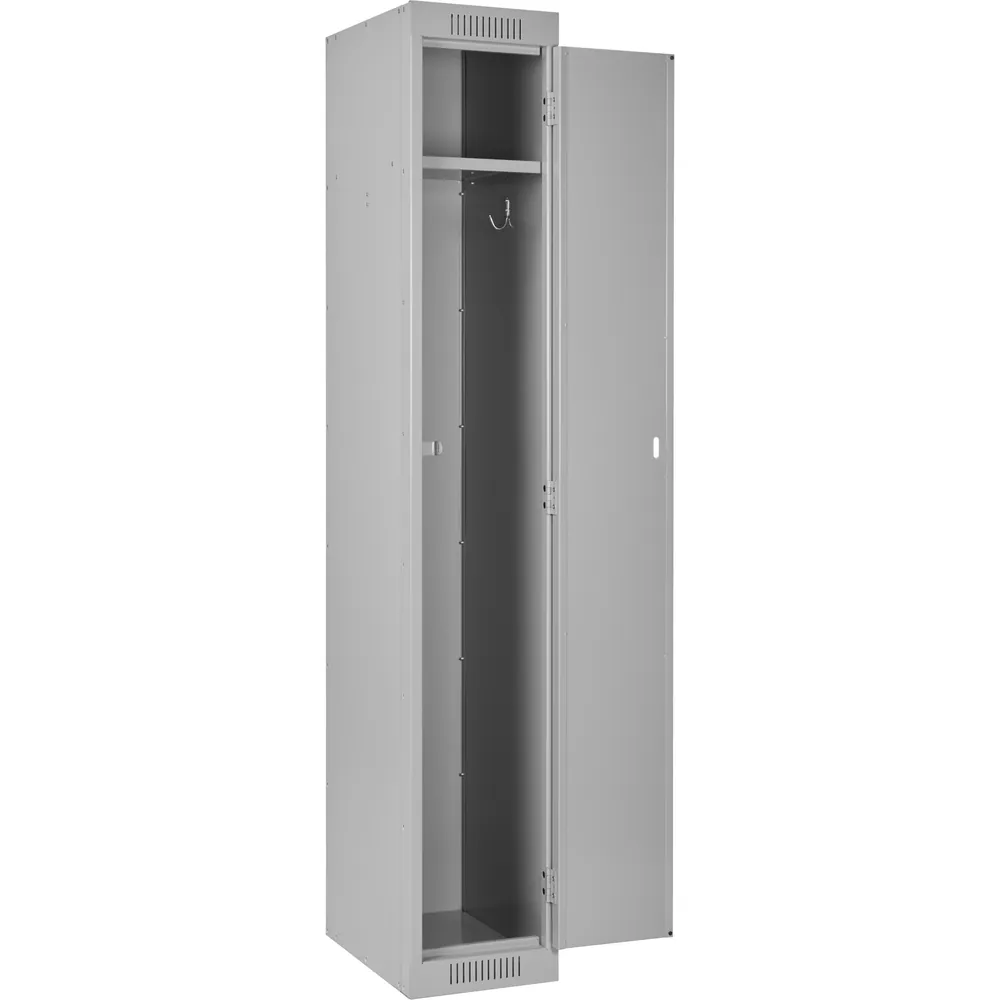

Single-tier lockers give each person a full-height compartment for coats, work clothes, boots and personal items. They are the standard choice for employee change rooms, plants, warehouses, schools and arenas. Each locker is all-welded and riveted from prime grade cold rolled steel and arrives fully assembled, so it can be placed and used the same day.
Construction and features
- Prime grade cold rolled steel, shipped fully assembled

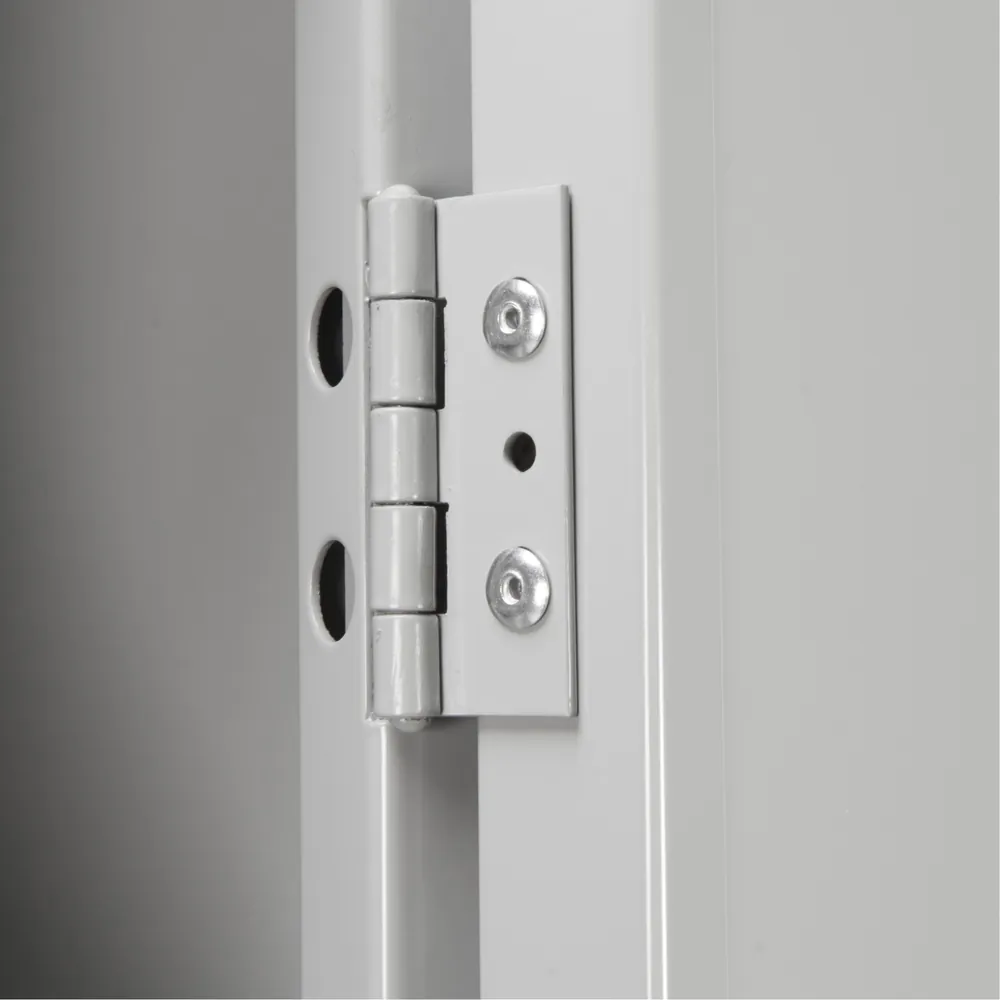

- All-welded frame and doors, resistance welded at all four corners; riveted body panels
- 16-gauge frames, 20-gauge double pan doors, 24-gauge bodies and shelves

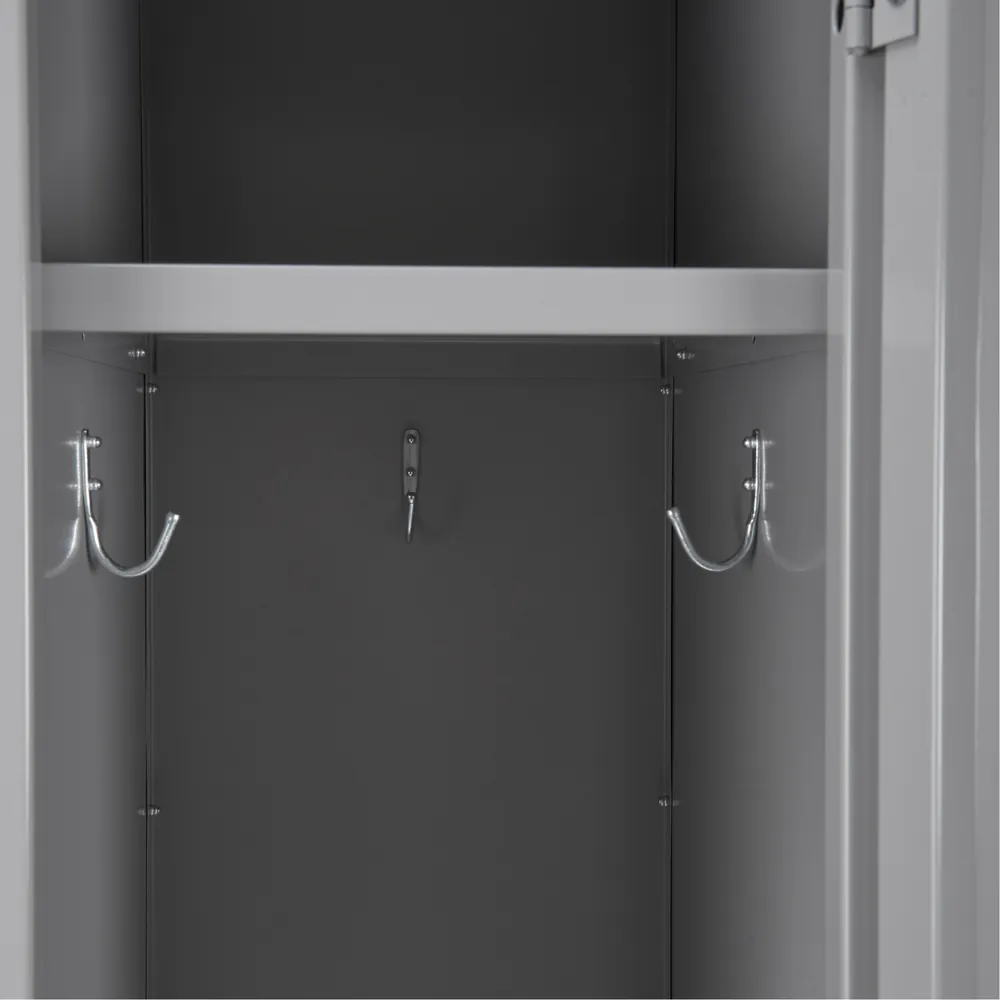

- Each opening includes one hat shelf and three coat hooks
- Aluminum recessed padlock handle on every door
- Ventilation holes on the top and bottom frame cross pieces
- Polyester epoxy powder coat finish in grey (other colours by special order)
- Made in Canada
Options
- Slope top: stops dust, debris and clutter from collecting on top of the locker and is easier to keep clean
- Recessed base: raises the locker 4″ off the floor for a clean, finished look
- Free-standing 6″ steel base: lifts lockers on legs so you can clean underneath (see Locker Bases & Accessories)
- Lock options: padlock (standard), built-in key cylinder lock, digital keypad lock or coin-operated lock
- Number plates in sets of 25, and plastic base inserts to protect locker floors
Single-tier locker models
Select a part number to see its photo. Scroll sideways on small screens to see every column. Each opening is 12″ wide × 18″ deep. Door height is 65-1/2″. Heights include the slope top (+6″) and recessed base (+4″) where listed.
| Part number | Style | Bank of | Overall W × D × H (in) | Openings |
|---|---|---|---|---|

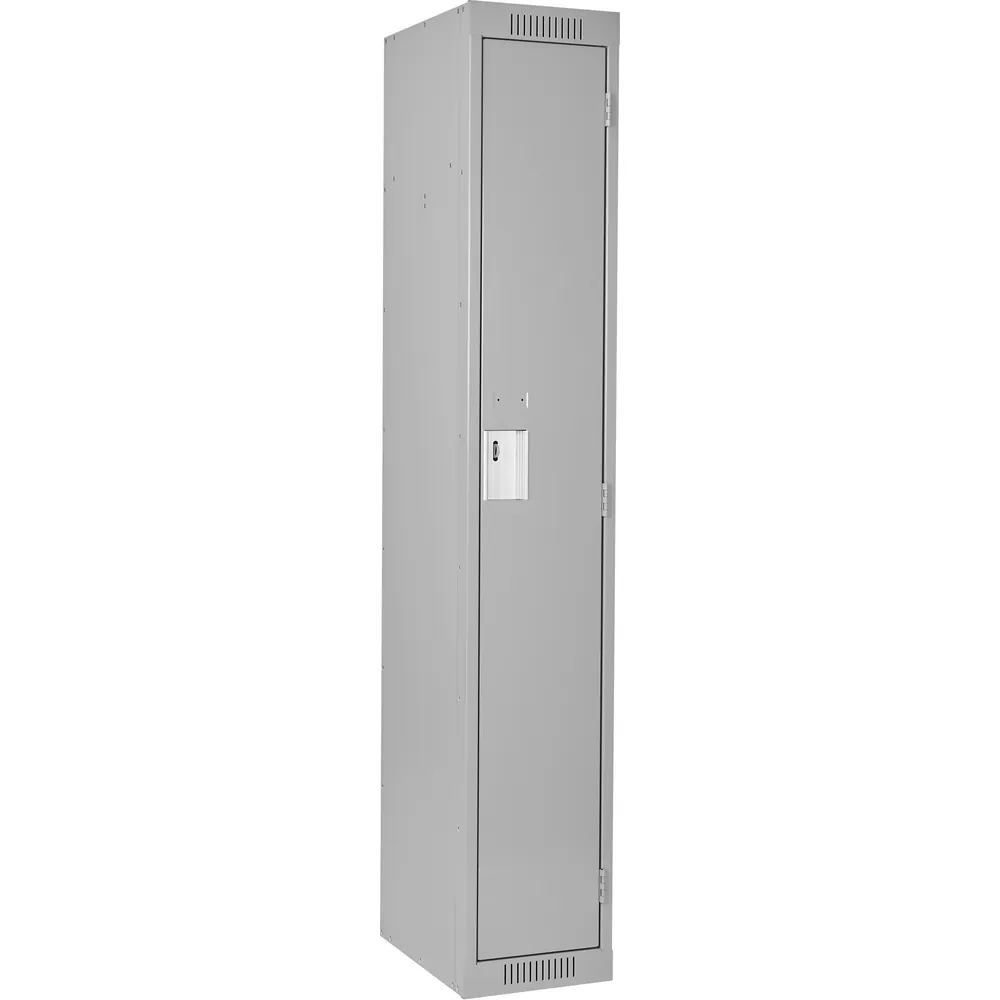

| JFBJ151 | Basic | 1 | 12 × 18 × 72 | 1 |
| JFBJ152 | Basic | 2 | 24 × 18 × 72 | 2 |

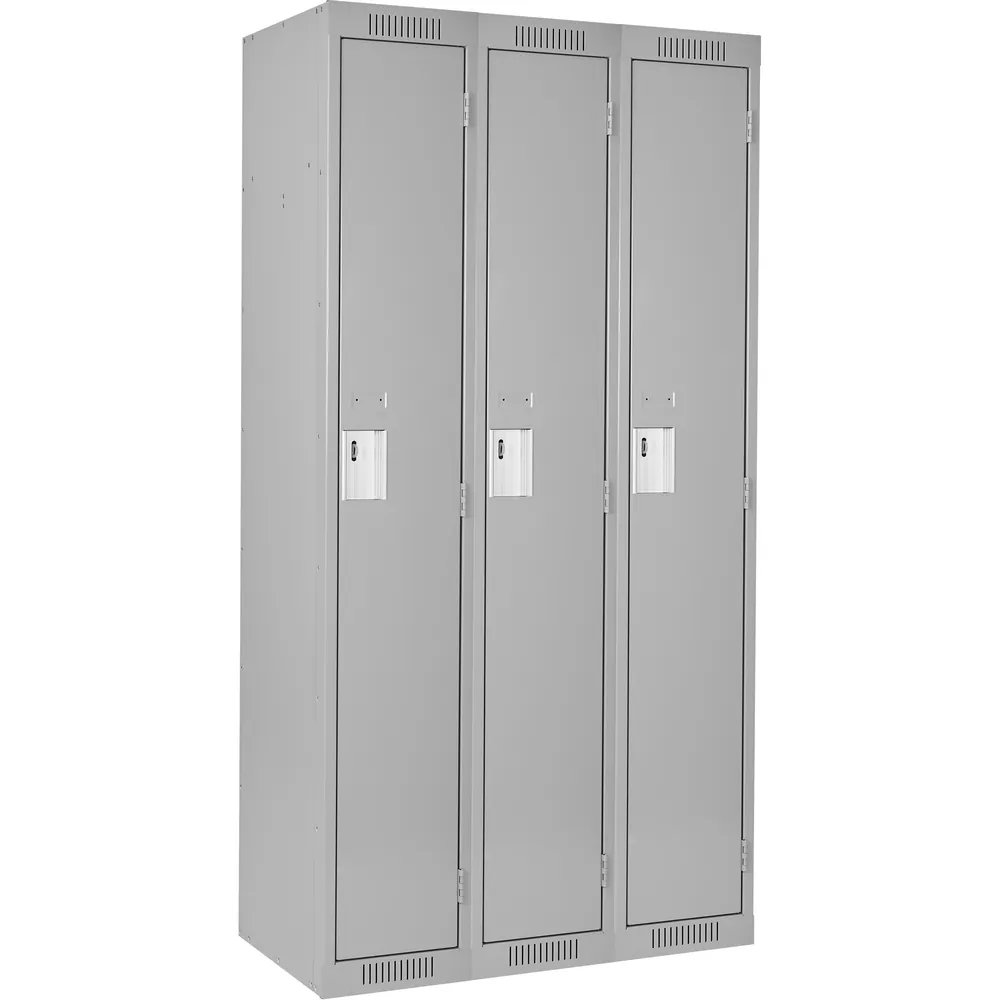

| JFBJ153 | Basic | 3 | 36 × 18 × 72 | 3 |

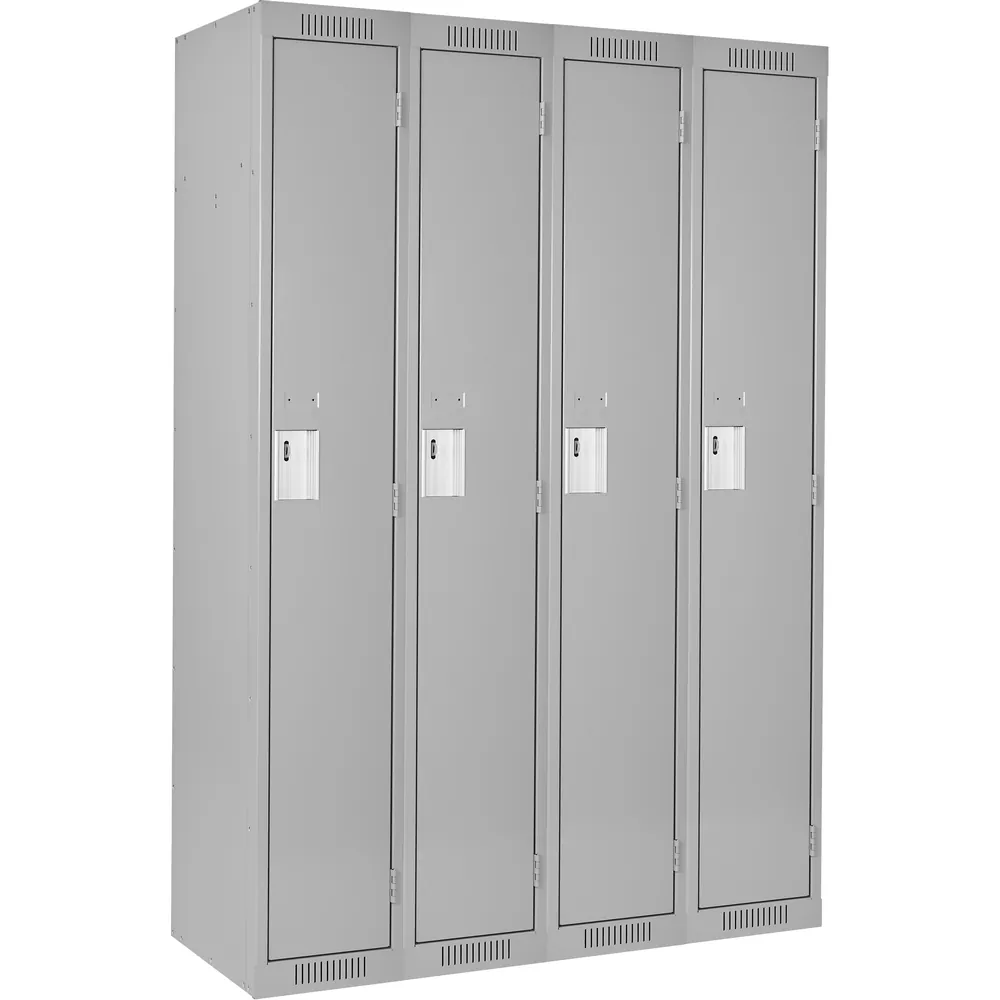

| JFBJ154 | Basic | 4 | 48 × 18 × 72 | 4 |
| JFBJ176 | Slope top | 1 | 12 × 18 × 78 | 1 |
| JFBJ177 | Slope top | 2 | 24 × 18 × 78 | 2 |

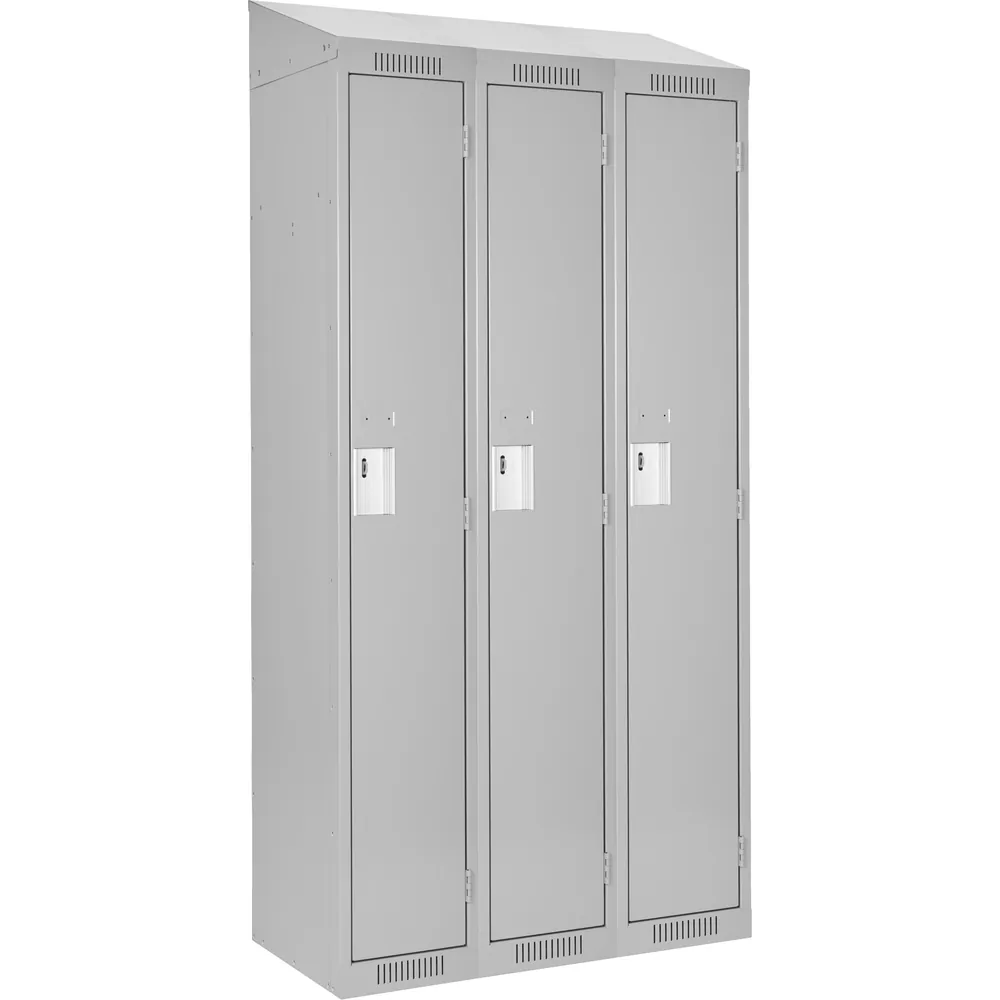

| JFBJ178 | Slope top | 3 | 36 × 18 × 78 | 3 |
| JFBJ179 | Slope top | 4 | 48 × 18 × 78 | 4 |
| JFBJ224 | Recessed base | 1 | 12 × 18 × 76 | 1 |
| JFBJ225 | Recessed base | 2 | 24 × 18 × 76 | 2 |
| JFBJ226 | Recessed base | 3 | 36 × 18 × 76 | 3 |
| JFBJ227 | Recessed base | 4 | 48 × 18 × 76 | 4 |
| JFBJ200 | Slope top + recessed base | 1 | 12 × 18 × 82 | 1 |
| JFBJ201 | Slope top + recessed base | 2 | 24 × 18 × 82 | 2 |

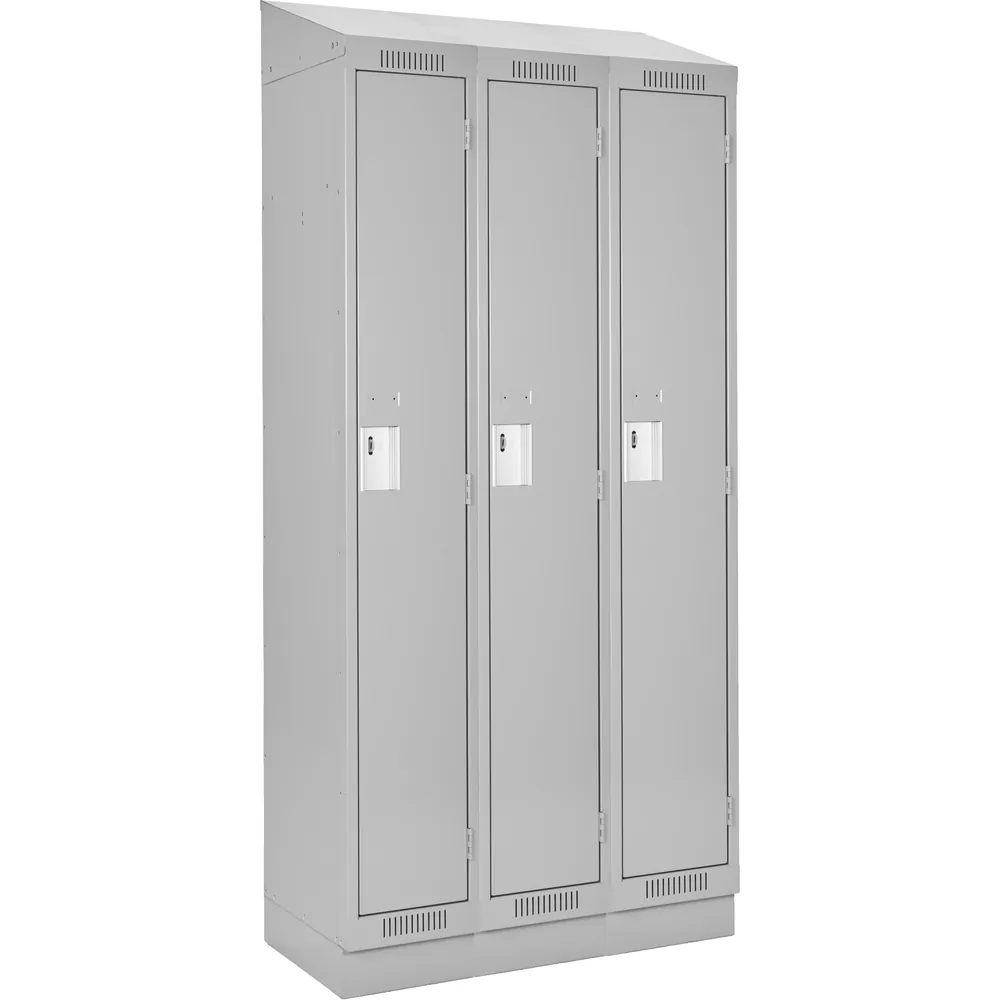

| JFBJ202 | Slope top + recessed base | 3 | 36 × 18 × 82 | 3 |
| JFBJ203 | Slope top + recessed base | 4 | 48 × 18 × 82 | 4 |
Ordering and delivery
Send us the JB part numbers and quantities you need using the inquiry form, or call (905) 883-0316. We will confirm price, colour and lead time. JB Equipment delivers and installs lockers across the GTA and Southern Ontario, and ships across Canada.
