Product overview

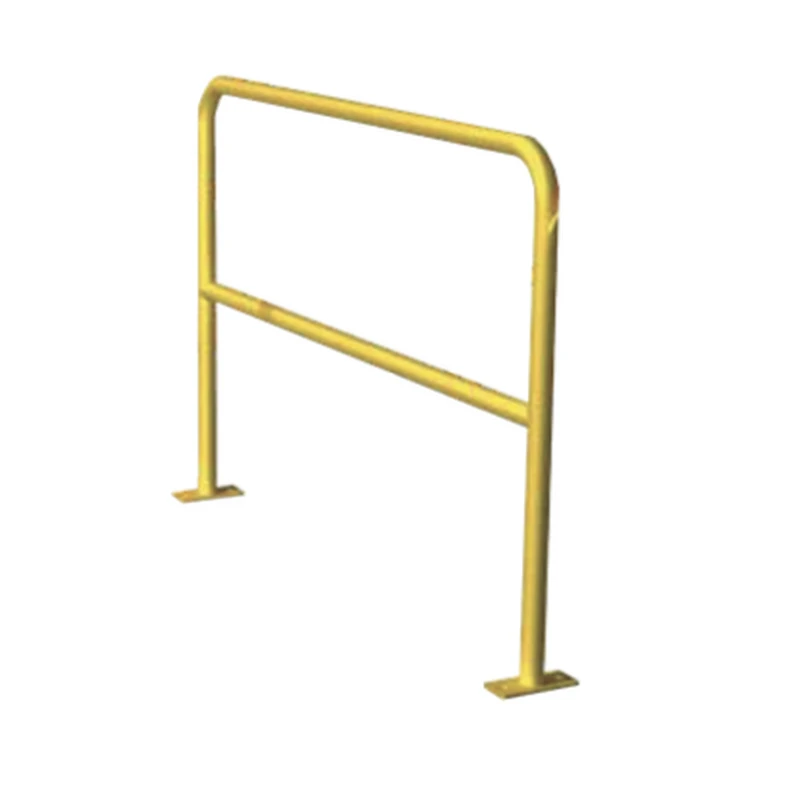

Steel safety handrails form a fixed barrier along walkways, mezzanine and dock edges, machinery, and pedestrian aisles. Each section is fully welded from steel pipe, stands 42 inches high with a 21-inch mid-rail, and bolts to the floor through heavy-duty mounting plates. Sections can be combined to protect runs of almost any length.
Construction and features
- Constructed from 1-1/2-inch pipe with a 1.9-inch outside diameter.
- 42-inch overall height with a 21-inch-high mid-rail.
- Mounting plates measure 7 x 3 x 3/8 inches with pre-drilled 3/4-inch holes.
- Eight standard lengths: 24, 36, 48, 60, 72, 84, 96 and 120 inches.
- Heavy-duty, all-welded construction with a safety-yellow powder-coated finish.
Models and specifications
Choose the section length that fits your run, and include the complete part number when you request a quote. Shipping dimensions are not installed dimensions.
Scroll sideways to see all specification columns.
| Part number | Length (in) | Height (in) | Weight (lbs) | Finish | Colour | Shipping Size (in) |
|---|---|---|---|---|---|---|
| HR24 | 24 | 42 | 33 | Powder Coat | Yellow | 25 x 7 x 42 |
| HR36 | 36 | 42 | 38 | Powder Coat | Yellow | 37 x 7 x 42 |
| HR48 | 48 | 42 | 43 | Powder Coat | Yellow | 49 x 7 x 42 |
| HR60 | 60 | 42 | 48 | Powder Coat | Yellow | 61 x 7 x 42 |
| HR72 | 72 | 42 | 54 | Powder Coat | Yellow | 73 x 7 x 42 |
| HR84 | 84 | 42 | 65 | Powder Coat | Yellow | 85 x 7 x 42 |
| HR96 | 96 | 42 | 76 | Powder Coat | Yellow | 97 x 7 x 42 |

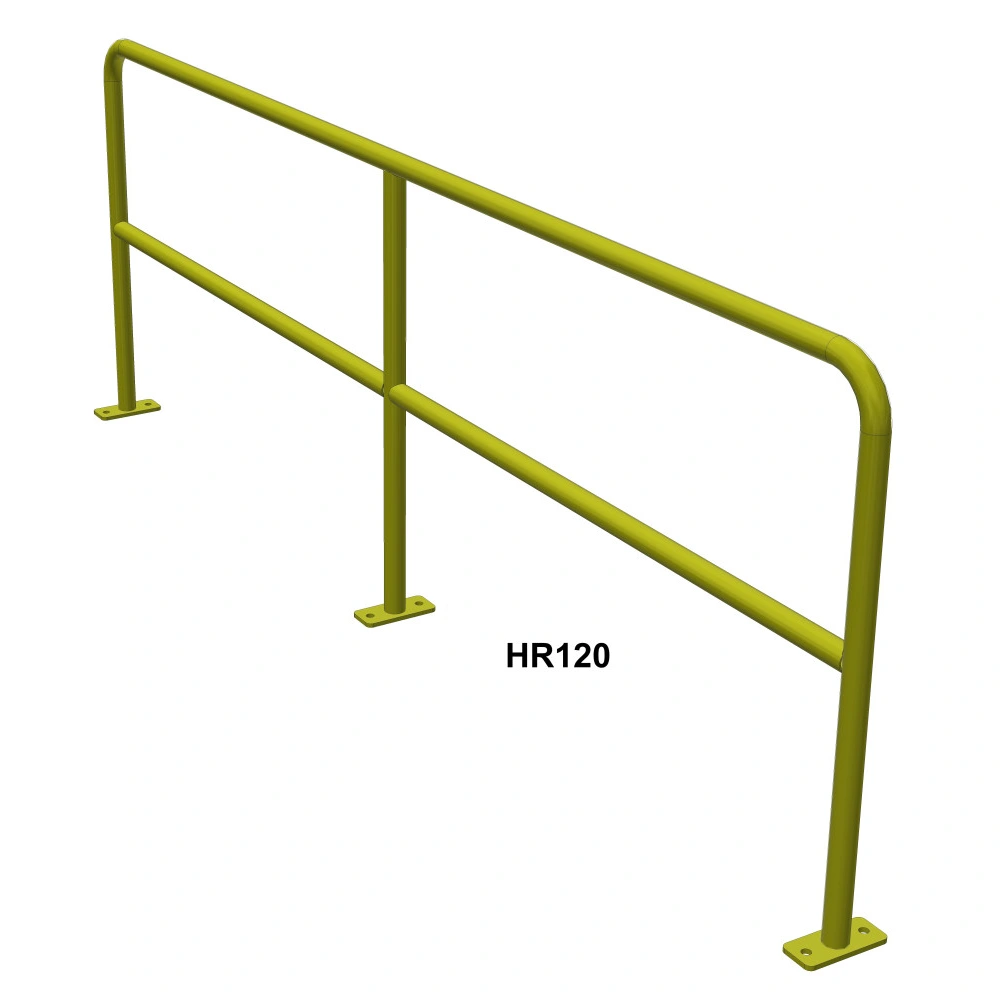

| HR120 | 120 | 42 | 87 | Powder Coat | Yellow | 121 x 7 x 42 |
Available options
Confirm availability and compatibility for the selected model when requesting a quote.
- 5/8-inch wedge anchor bolts for floor mounting are available separately.
- Need kick protection at the base? See safety handrails with toe boards.
- Add access points with matching safety handrail gates.
- Custom lengths and layouts are available on request.
Photo and ordering notes
Photos show representative configurations; use the part number and specification table to define your order.
Include the part numbers, quantities, the layout of your run and your delivery location in the inquiry form. Confirm the anchoring method suits your floor before installation.
