Product overview
These steel safety handrails include a mid-rail and toe board for railing configurations where a kickplate is specified. They use welded pipe construction and pre-drilled mounting plates, and are offered in a range of standard section lengths.
Construction and features
- Constructed from 1-1/2-inch pipe with a 1.9-inch outside diameter.
- Includes a 21-inch-high mid-rail and 5-inch-high toe board.
- Overall height is 42 inches.
- Mounting plates measure 7 x 3 x 3/8 inches and have pre-drilled 3/4-inch holes.
- Available in lengths from 2 to 10 feet, including 3, 4, 5, 6 and 8 feet.
- Heavy-duty, all-welded construction with a yellow powder-coated finish.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Height (in) | Weight (lbs) | Finish | Colour | Shipping Size (in) |
|---|---|---|---|---|---|---|

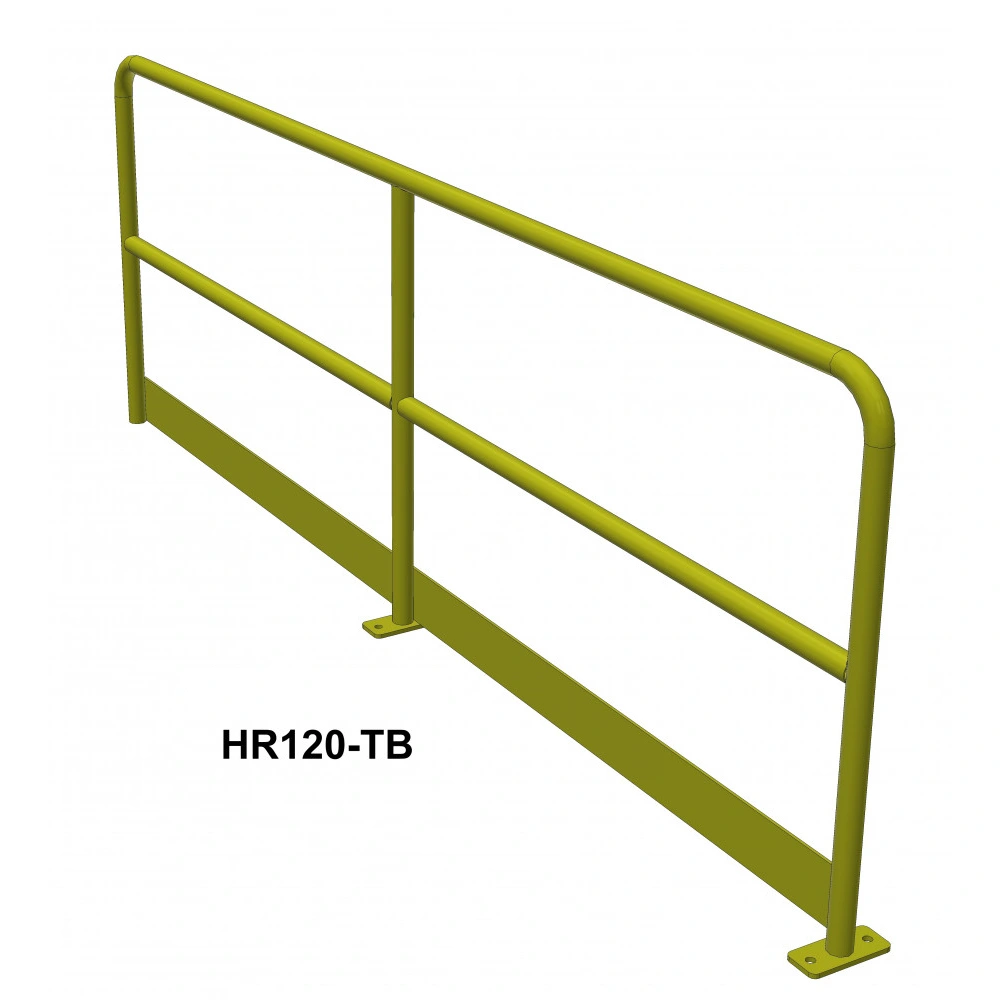

| HR120-TB | 120 | 42 | 130 | Powder Coat | Yellow | 121 x 7 x 42 |
| HR24-TB | 24 | 42 | 42 | Powder Coat | Yellow | 25 x 7 x 42 |
| HR36-TB | 36 | 42 | 51 | Powder Coat | Yellow | 37 x 7 x 42 |
| HR48-TB | 48 | 42 | 60 | Powder Coat | Yellow | 49 x 7 x 42 |
| HR60-TB | 60 | 42 | 70 | Powder Coat | Yellow | 61 x 7 x 42 |
| HR72-TB | 72 | 42 | 80 | Powder Coat | Yellow | 73 x 7 x 42 |
| HR96-TB | 96 | 42 | 110 | Powder Coat | Yellow | 97 x 7 x 42 |
Available options
Confirm availability and compatibility for the selected model when requesting a quote.
- 5/8-inch wedge anchors are available as an option.
- The family information also lists versions with or without toeboards.
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
