Product overview
Industrial workstation fans give individual workers steady, direct airflow at assembly lines, packing stations, loading docks and machine areas. Mount them on the 180° double locking arm to swing the fan into position, with power outlets built into the arm.
Workstation fans
- 120 V, 60 Hz enclosed motor.
- 1.8 m power cord with UL/CUL plug.
- Aluminum blades.
- Locking arm sold separately.
| Part number | Blade size (in) | Blade material | HP | Speeds | CFM |
|---|---|---|---|---|---|

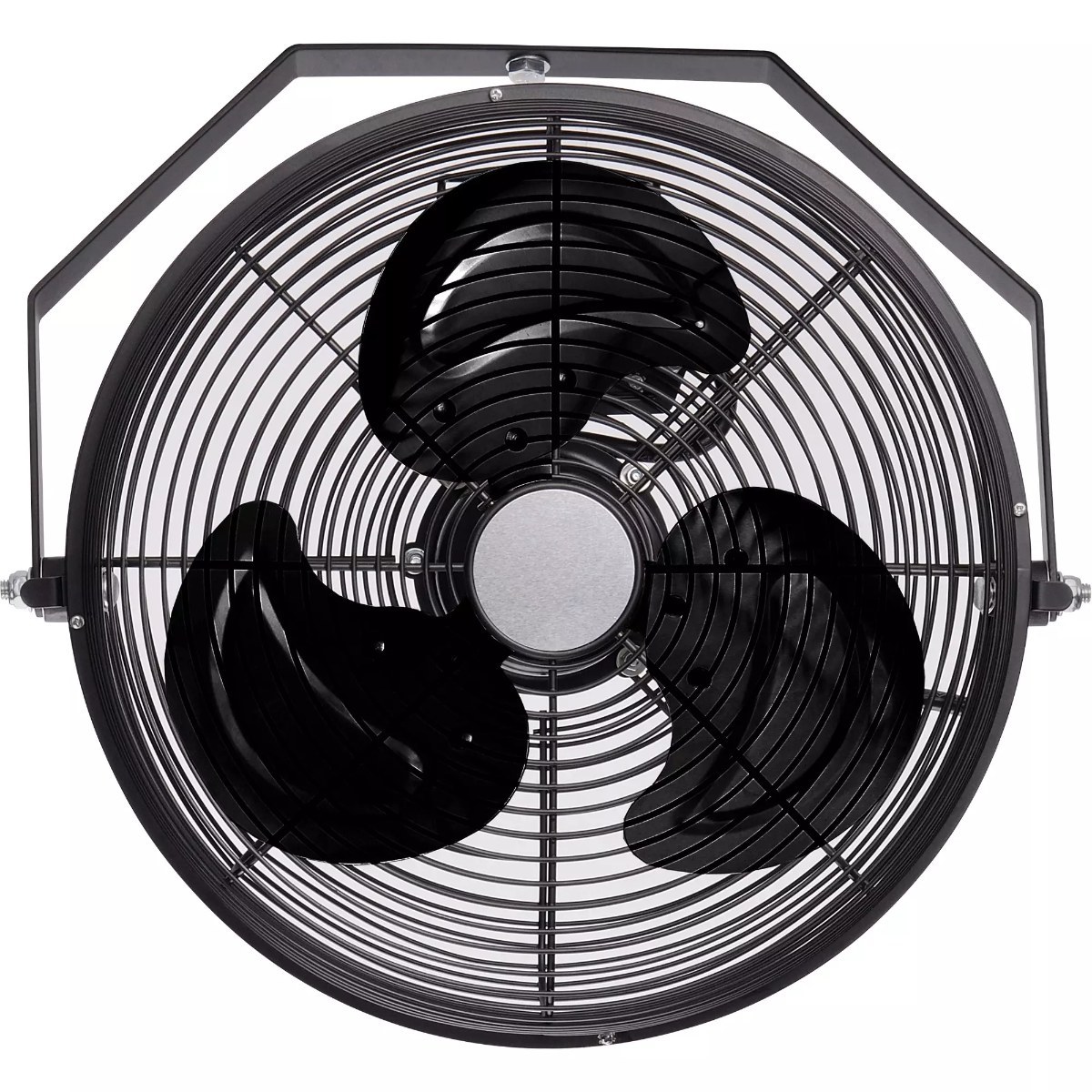

| JEBB540 | 12 | Aluminum | 1/12 | 3 | 2,600 / 2,400 / 1,600 |

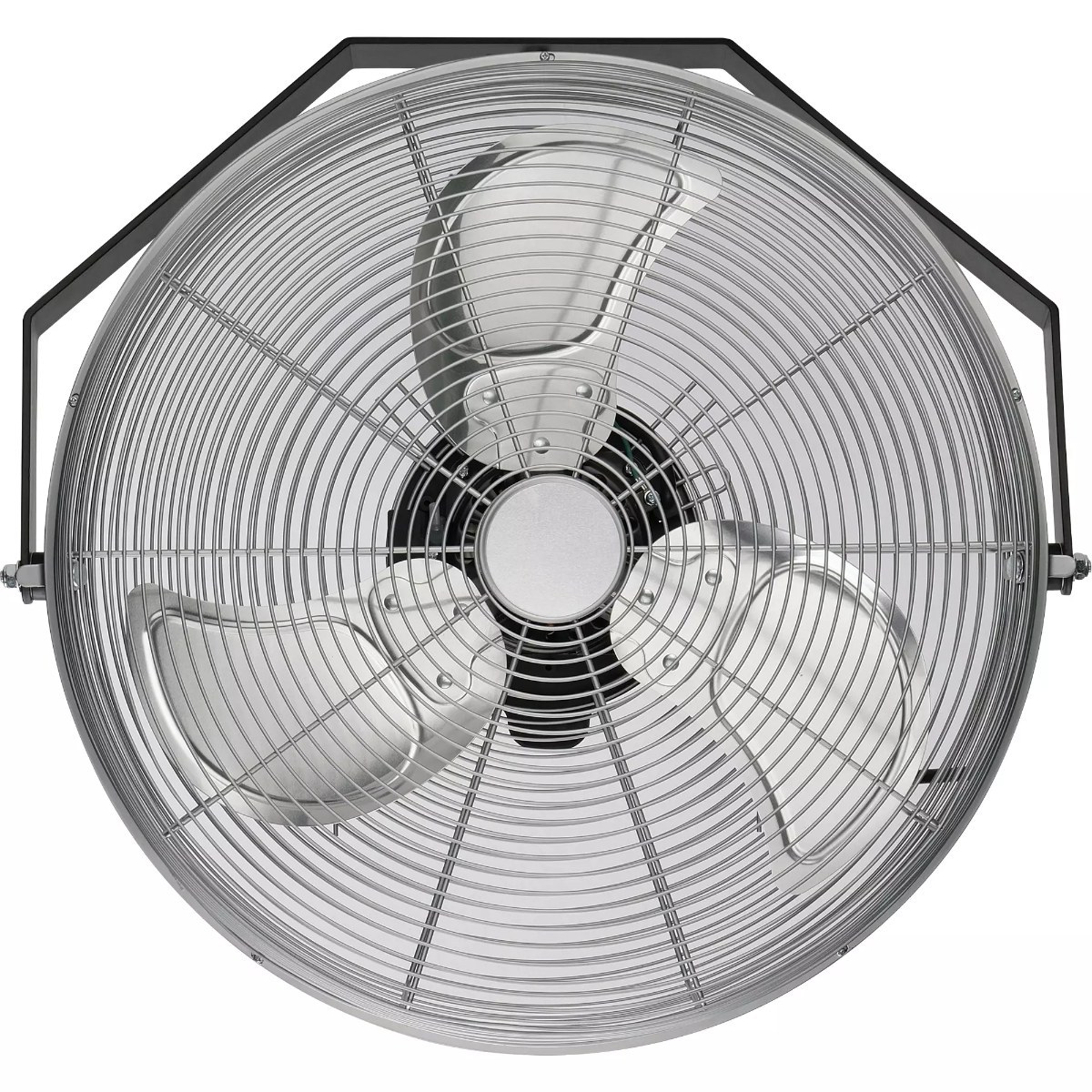

| JEBB541 | 18 | Aluminum | 1/4 | 3 | 3,800 / 3,600 / 2,600 |

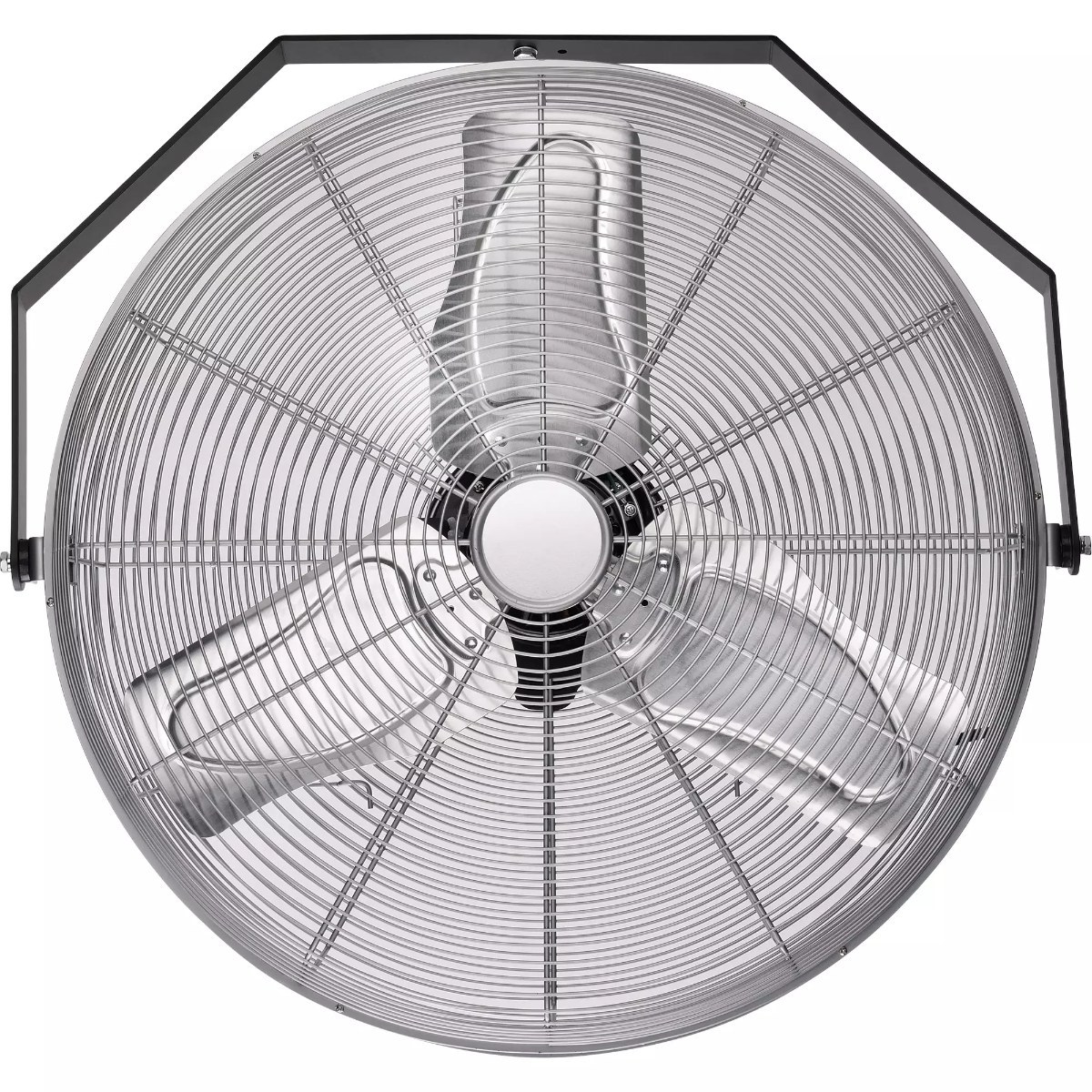

| JEBB542 | 24 | Aluminum | 1/3 | 2 | 8,600 / 5,900 |

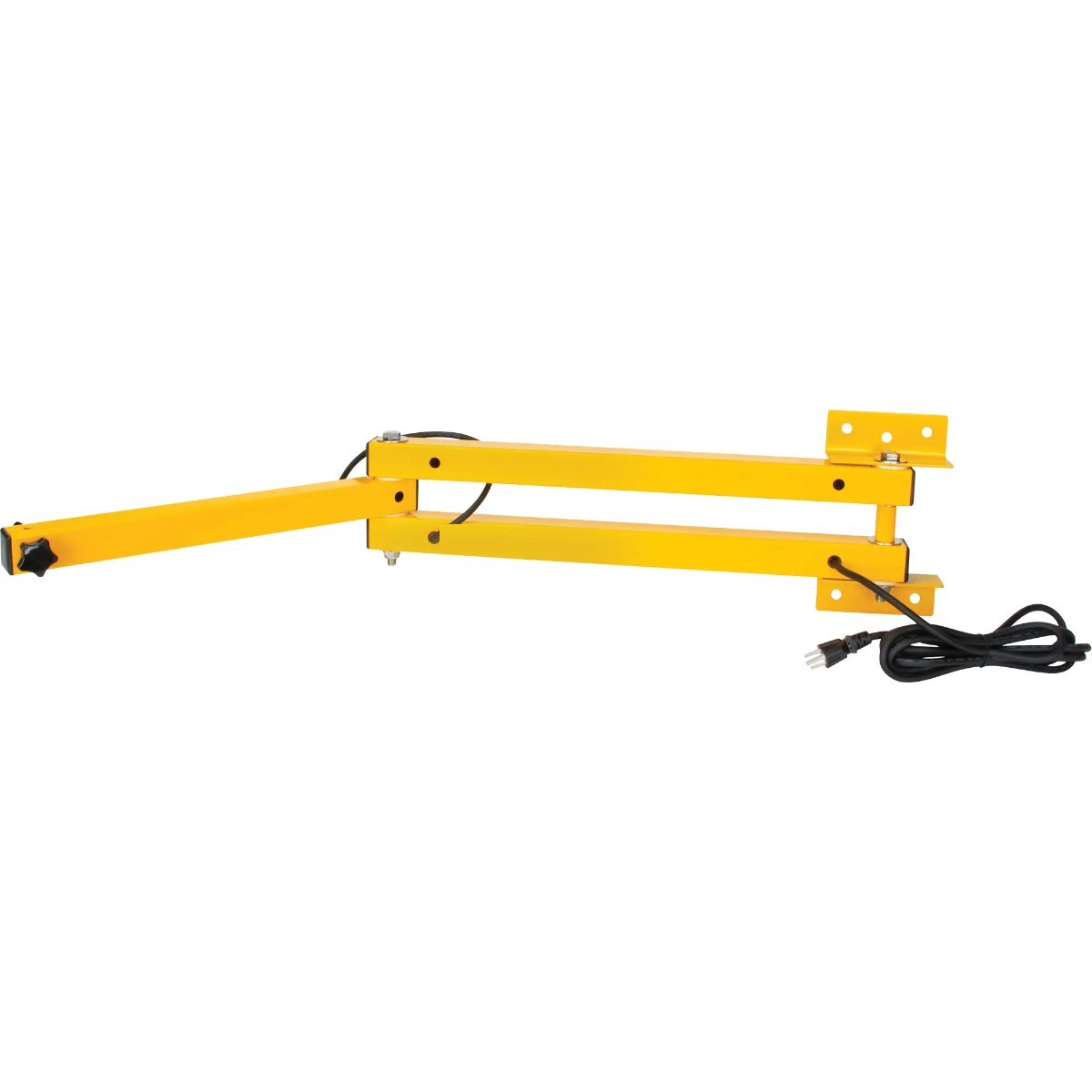

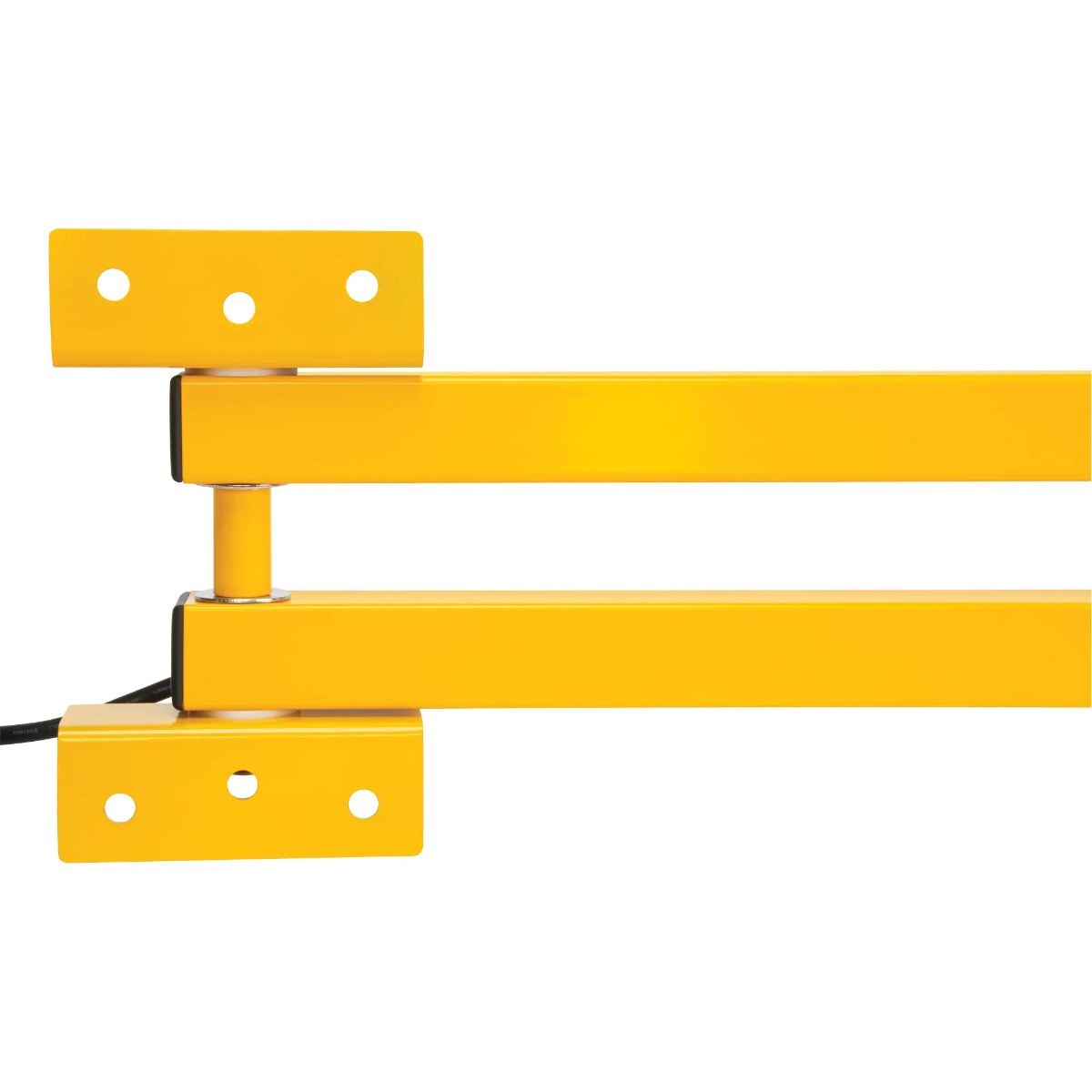

180° double locking arm with 2 receptacles
- Moveable arm accommodates many locations, applications and positions.
- Wide range of motion; will not sag when extended.

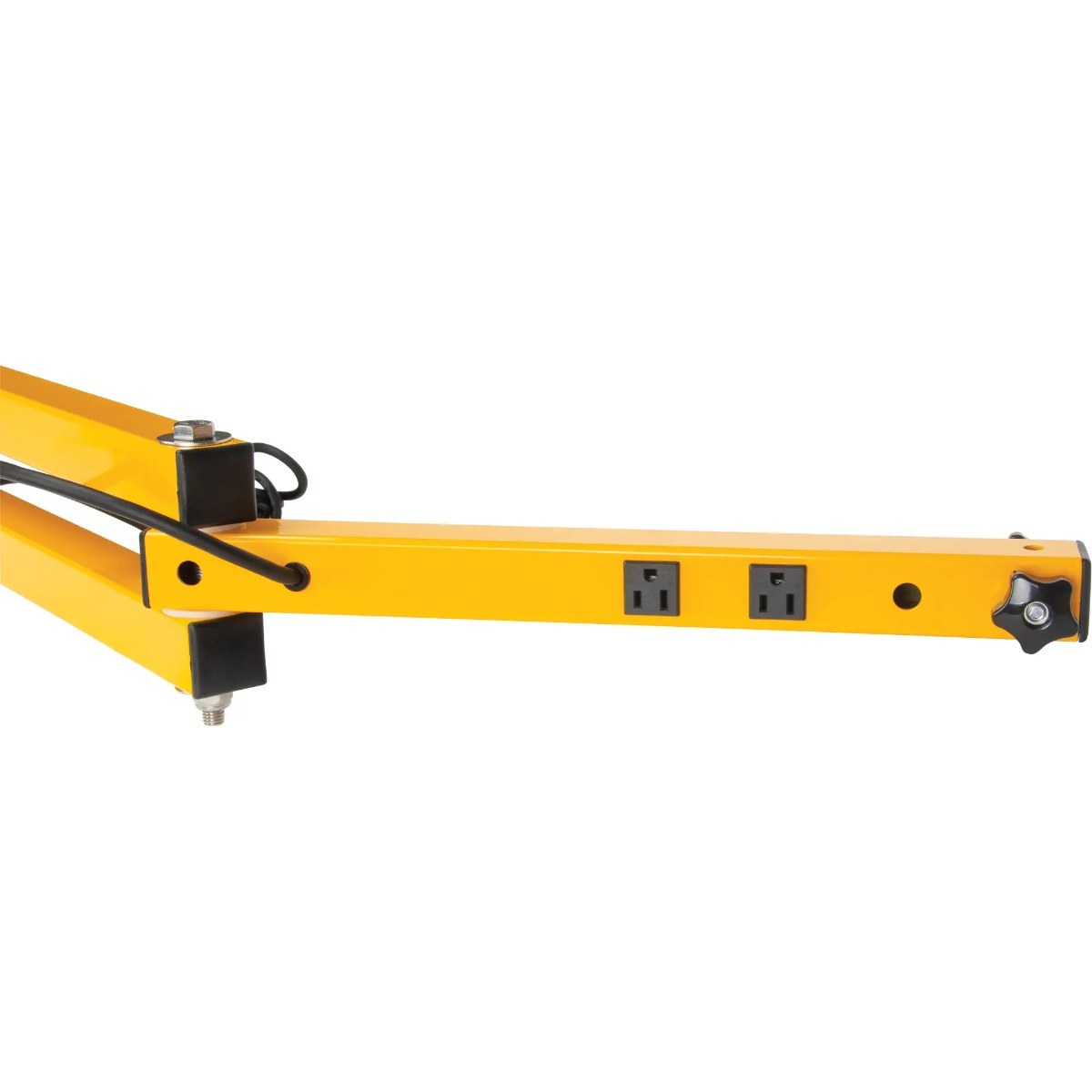

- 2 AC receptacles for easy fan hook-up.
- Fits the 12-, 18- and 24-inch workstation fans.
- 40-inch length, yellow finish.
| Part number | Description | Length (in) | Colour |
|---|---|---|---|
| JEBB539 | 180° double locking arm with 2 receptacles | 40 | Yellow |
Ordering
Include the part numbers, quantities and your delivery location in the inquiry form. Remember to add the locking arm if you need one.
- Manufacturer’s warranty: 1 year limited.
- Also see floor and portable fans and industrial pedestal and wall mount fans.
