Industrial pedestal and wall mount air circulating fans for warehouses, shops and loading docks, from 22 to 30 inches and up to 13,400 CFM, oscillating or non-oscillating.
Light industrial, industrial-duty and heavy-duty models.
Heavy-duty industrial fans carry a 5-year warranty.
Foldable pedestal fan and high-velocity wall fan also available.
Pedestal and wall mount air circulating fans move large volumes of air across warehouses, shops, loading docks and production floors to keep workers cool and air moving. Choose from light industrial, industrial-duty and heavy-duty models in 22- to 30-inch sizes, oscillating or non-oscillating, plus a foldable pedestal fan and a high-velocity wall fan. All run on standard 120 V power.

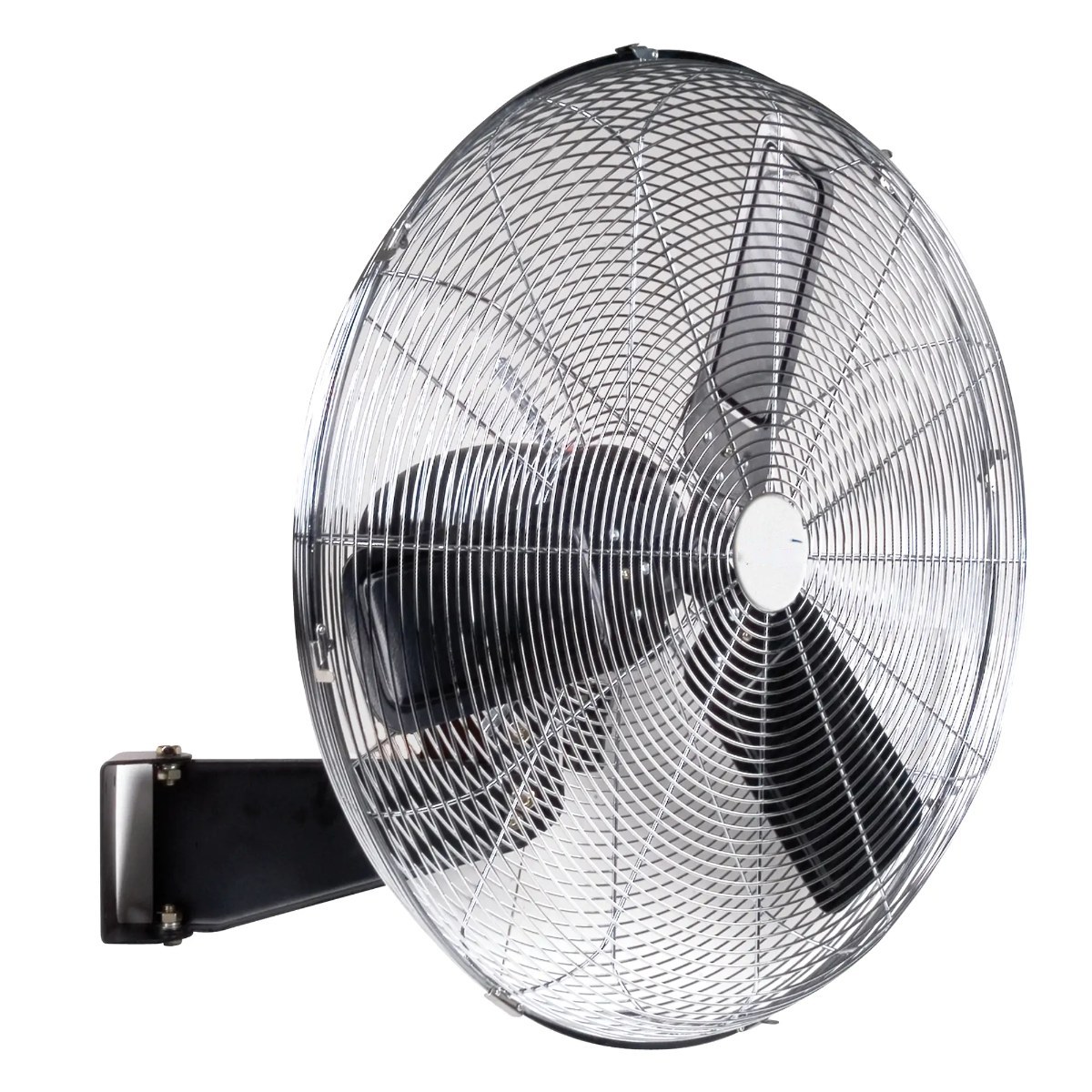

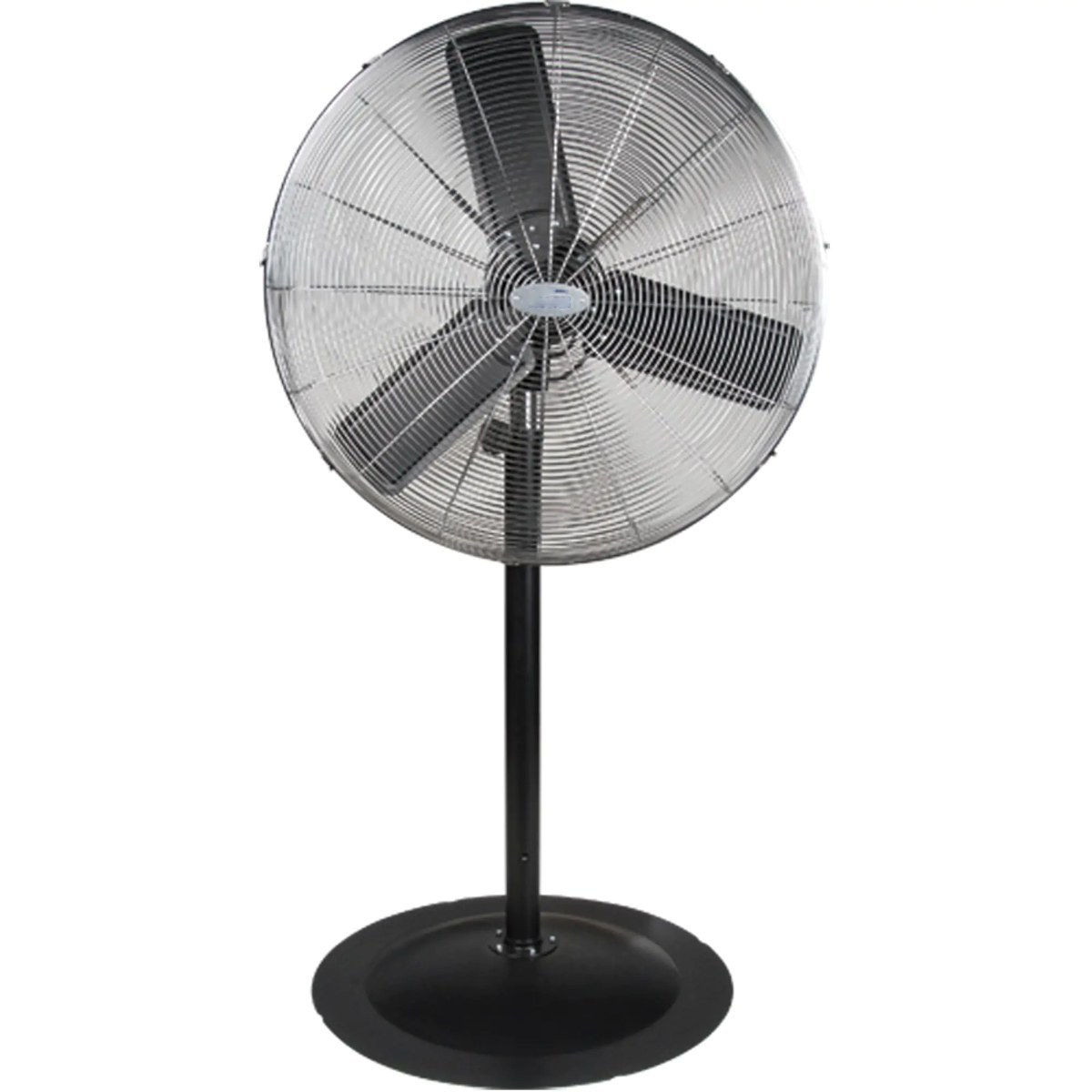

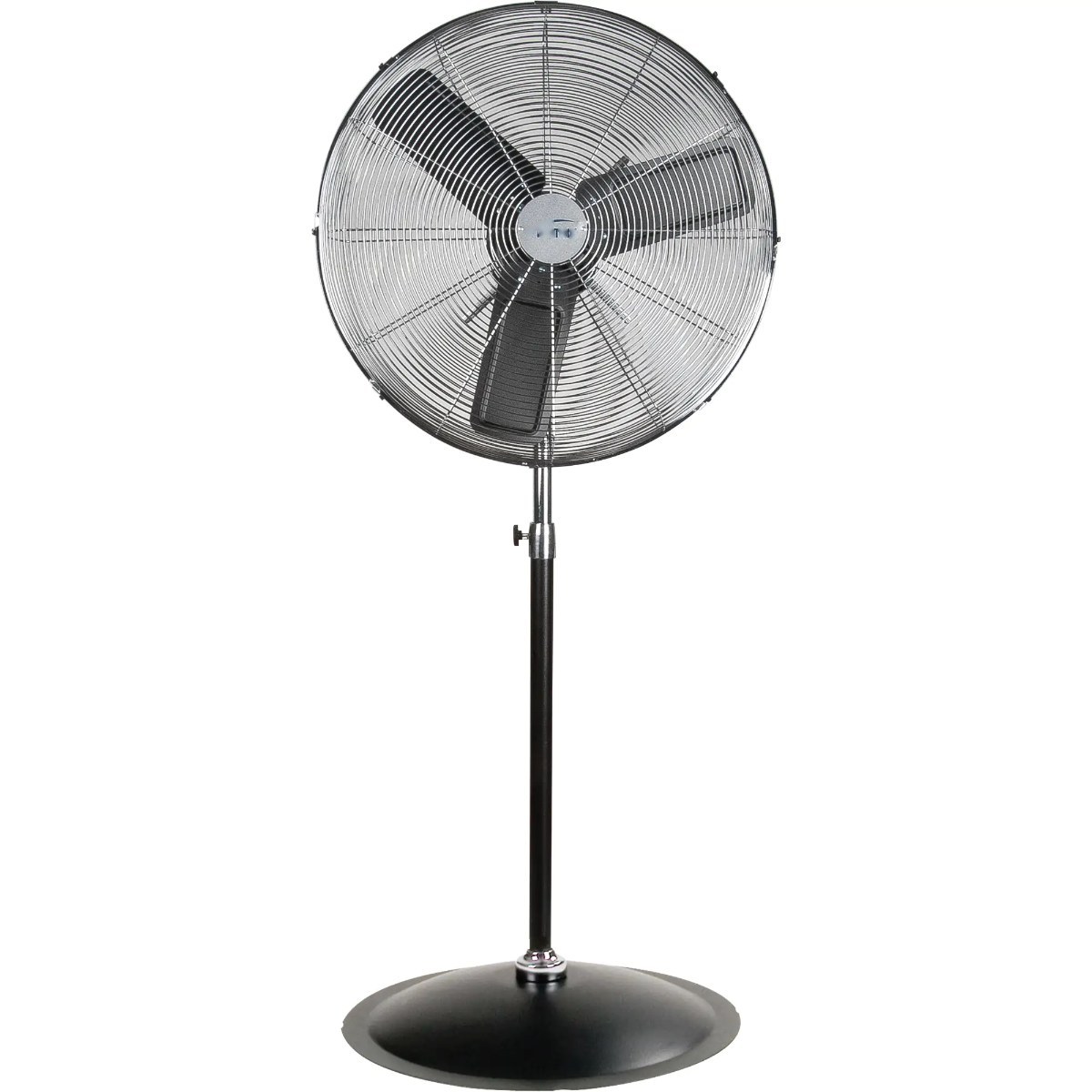

26 in oscillating pedestal (JEBA282)26 in oscillating wall mount (JEBA284)30 in non-oscillating pedestal (JEBA571)
All-metal construction.
6 ft SJT power cord.
Pedestal stem length: 89-124 cm (adjustable height).
Pedestal models marked * have adjustable height and a heavy-duty round base for added stability.
Light industrial-duty air circulating fans
Part number
Mode
Size and mount
HP
Volts
Max CFM
Min CFM
Speeds
Weight (lbs)
JEBA282
Oscillating
26" pedestal *
1/4
120
7,525
4,050
3
26.5
JEBA283
Oscillating
30" pedestal *
1/3
120
8,775
6,780
3
31
JEBA284
Oscillating
26" wall mount
1/4
120
7,525
4,050
3
25
JEBA654
Oscillating
30" wall mount
1/3
120
8,775
6,780
3
—
JEBA657
Non-oscillating
26" pedestal *
1/4
120
7,700
6,060
2
—
JEBA571
Non-oscillating
30" pedestal *
1/3
120
8,000
7,000
2
31
JEBA655
Non-oscillating
26" wall mount
1/4
120
7,700
6,060
2
—
JEBA656
Non-oscillating
30" wall mount
1/3
120
8,000
7,000
2
—
* Adjustable height and heavy-duty round base. Weights are listed where the manufacturer publishes them.
Industrial-duty air circulating fans

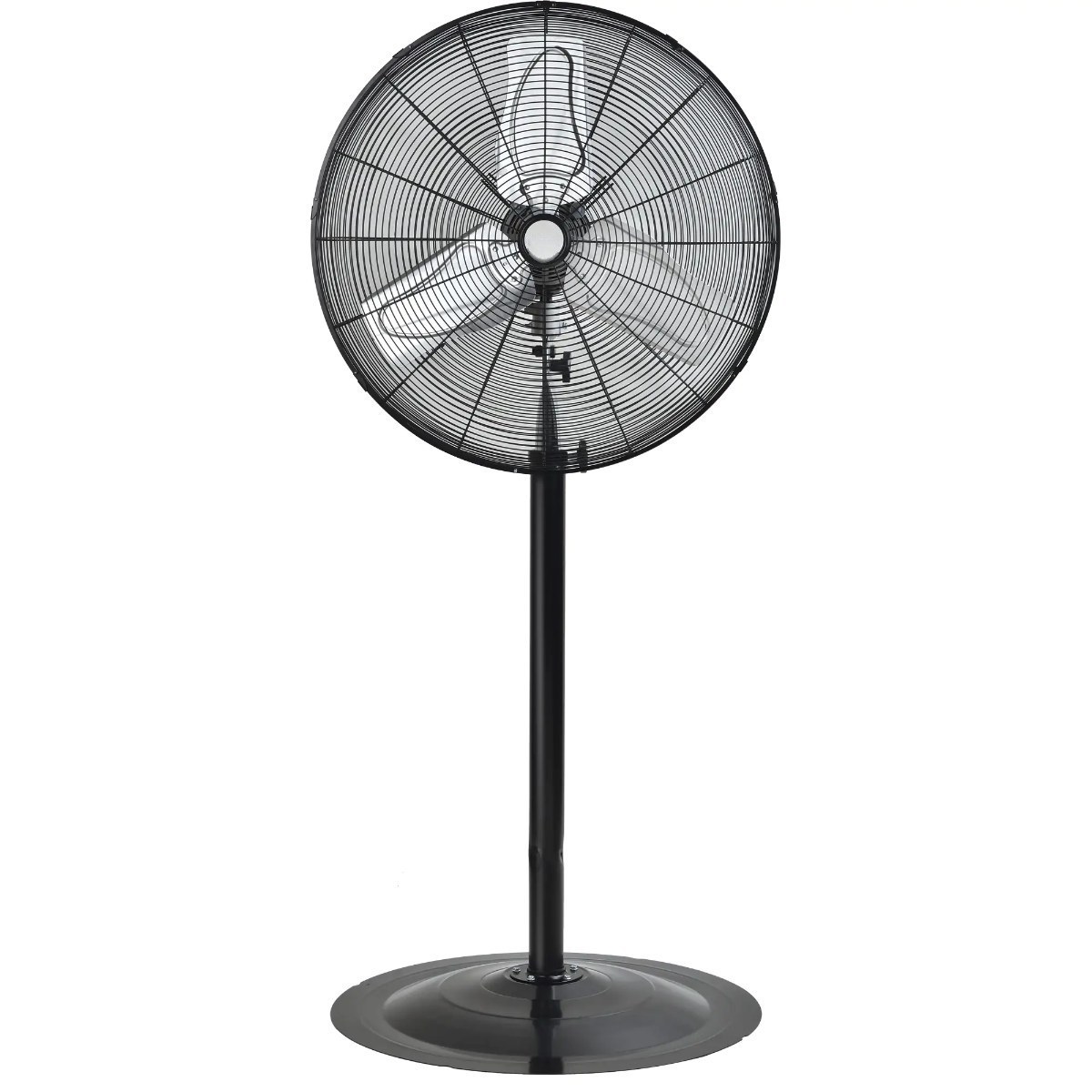

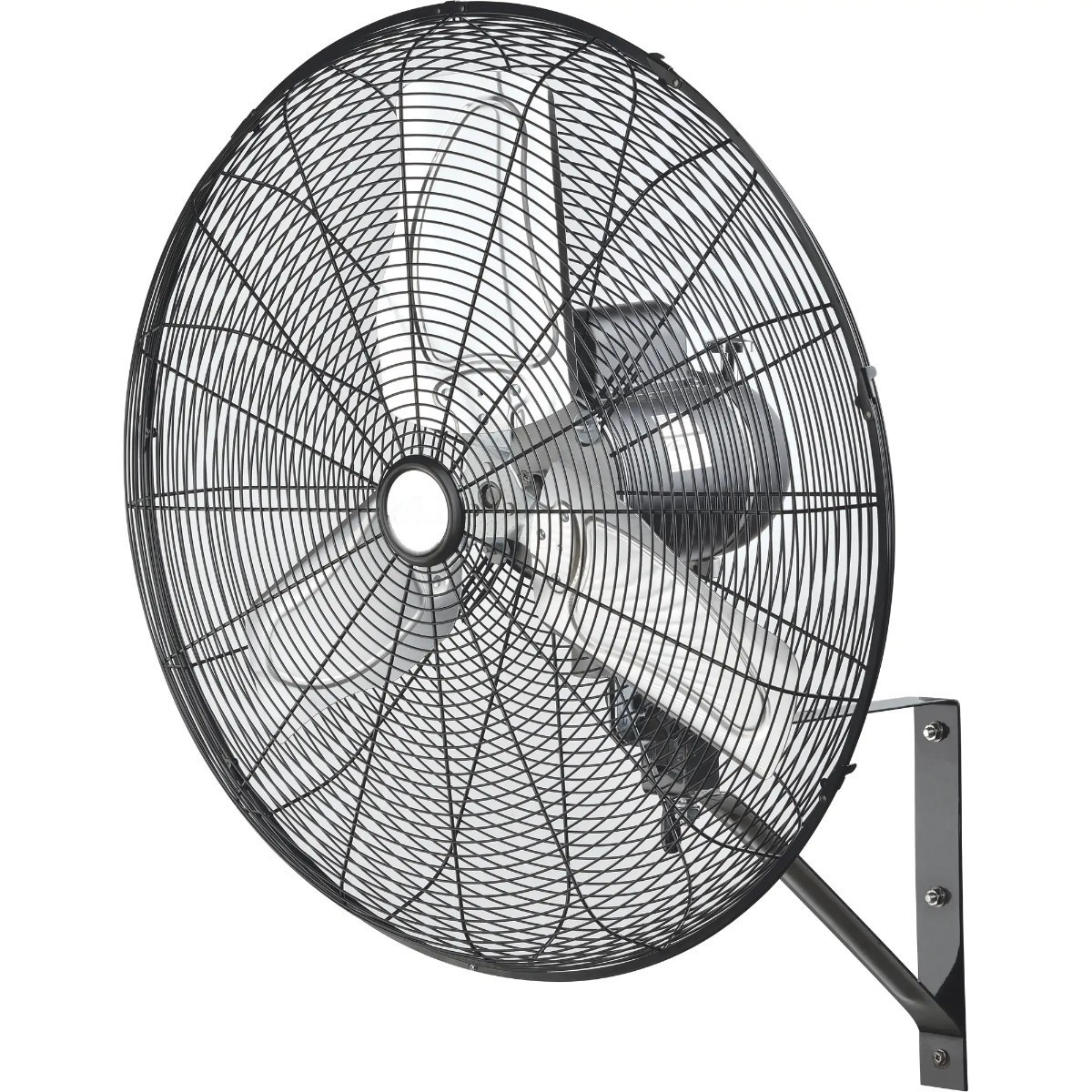

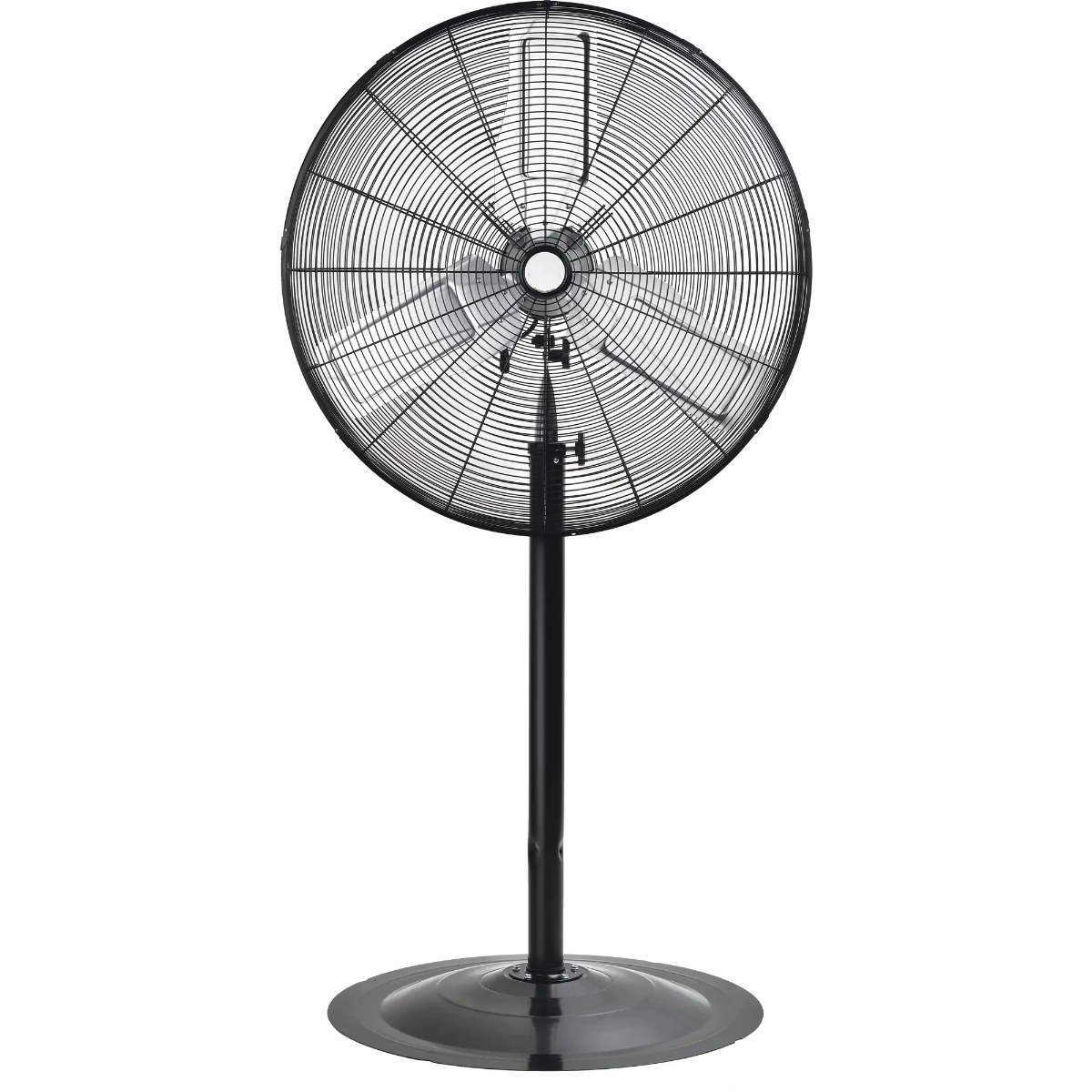

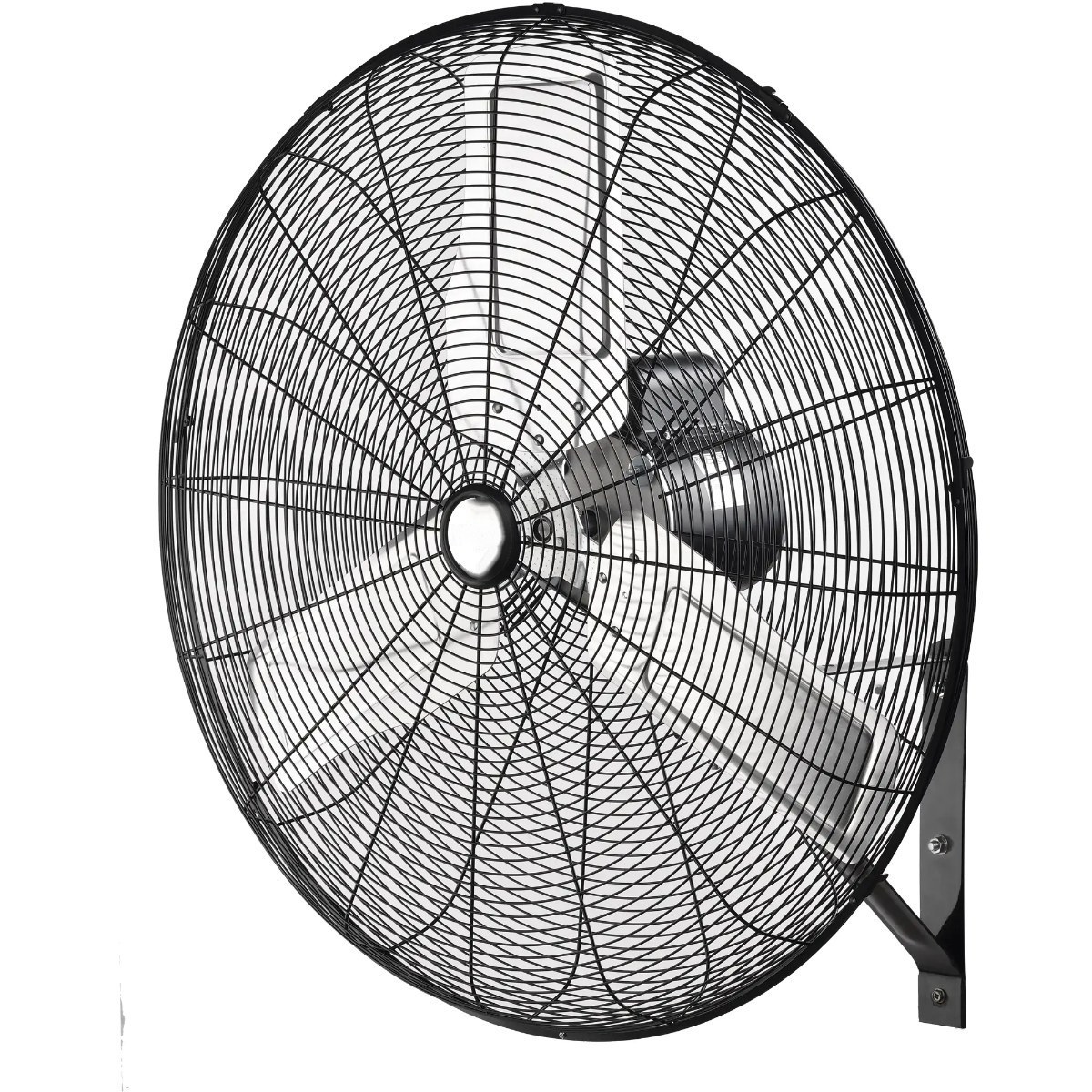

24 in oscillating pedestal (JEBA643)30 in non-oscillating pedestal (JEBA646)24 in oscillating wall mount (JEBA645)30 in non-oscillating wall mount (JEBA648)
All-metal construction.
9.8 ft SJT power cord.
Pedestal stem length: 89-124 cm.
Pedestal models have an open motor; wall mount models have a fully enclosed motor.
Industrial-duty air circulating fans
Part number
Mode
Size and mount
HP
Volts
Max CFM
Min CFM
Speeds
JEBA645
Oscillating
24" wall mount
1/4
120
11,500
7,680
2
JEBA649
Oscillating
30" wall mount
1/4
120
10,780
7,760
2
JEBA643
Oscillating
24" pedestal *
1/4
120
11,800
7,760
2
JEBA647
Oscillating
30" pedestal *
1/3
120
13,200
6,700
2
JEBA644
Non-oscillating
24" wall mount
1/4
120
11,500
7,680
2
JEBA648
Non-oscillating
30" wall mount
1/4
120
10,780
7,440
2
JEBA642
Non-oscillating
24" pedestal *
1/4
120
11,800
7,760
2
JEBA646
Non-oscillating
30" pedestal *
1/4
120
10,780
7,440
2
* Adjustable height and heavy-duty round base.
Heavy-duty industrial air circulating fans

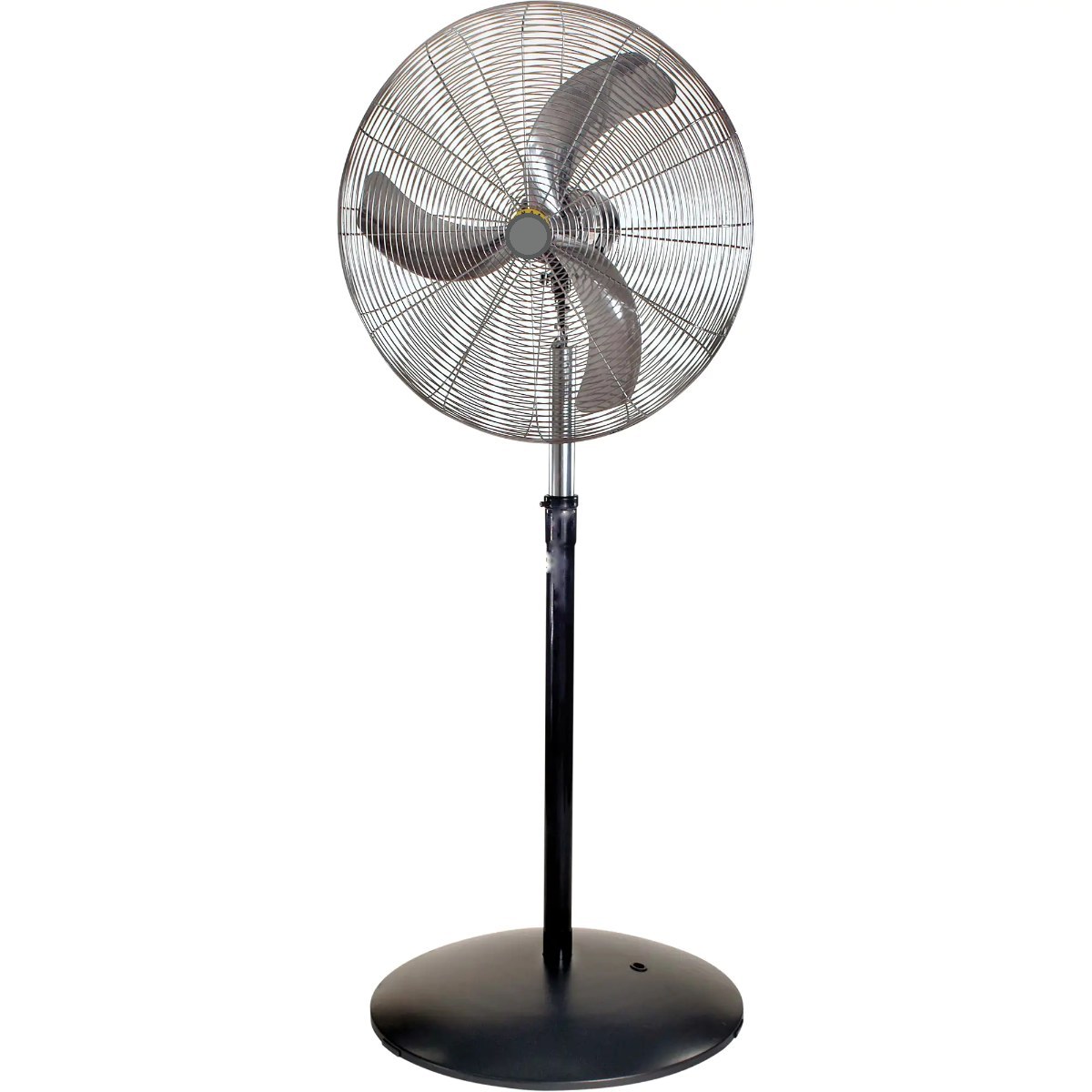

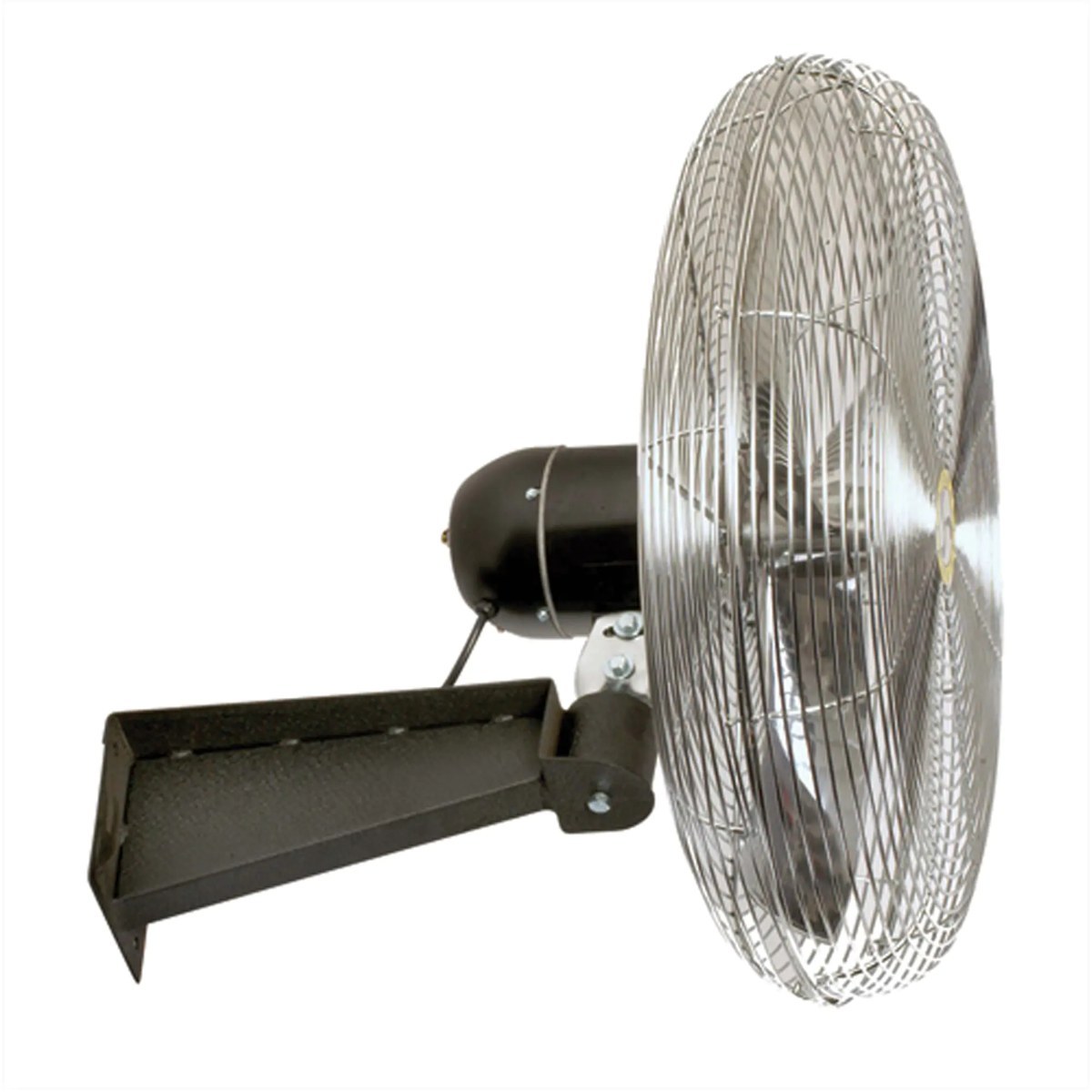

24 in pedestal (JEBA349)24 in wall mount (JEBA350)
Wall and I-beam mounts can be installed by one person.
Includes cord and plug; meets OSHA standards.
5-year manufacturer’s warranty.
Heavy-duty industrial air circulating fans
Part number
Mode
Size and mount
Full-load amps
CFM high / med / low
RPM high / med / low
Weight (lbs)
JEBA353
Oscillating
24" pedestal
2.5
5,387 / 4,356 / 3,125
1,070 / 850 / 628
89
JEBA355
Oscillating
30" pedestal
2.6
7,996 / 5,859 / 4,063
1,045 / 789 / 561
95
JEBA354
Oscillating
24" wall mount
2.5
5,387 / 4,356 / 3,125
1,070 / 850 / 628
60
JEBA356
Oscillating
30" wall mount
2.6
7,996 / 5,859 / 4,063
1,045 / 789 / 561
64
JEBA349
Non-oscillating
24" pedestal
2.5
5,588 / 4,556 / 3,325
1,110 / 900 / 700
85
JEBA351
Non-oscillating
30" pedestal
2.8
8,402 / 6,259 / 4,463
1,098 / 880 / 660
87
JEBA350
Non-oscillating
24" wall mount
2.5
5,588 / 4,556 / 3,325
1,110 / 900 / 700
56
JEBA352
Non-oscillating
30" wall mount
2.8
8,402 / 6,259 / 4,463
1,098 / 880 / 660
60
Performance ratings are conducted in accordance with AMCA Standard 230-99.
Heavy-duty oscillating fans

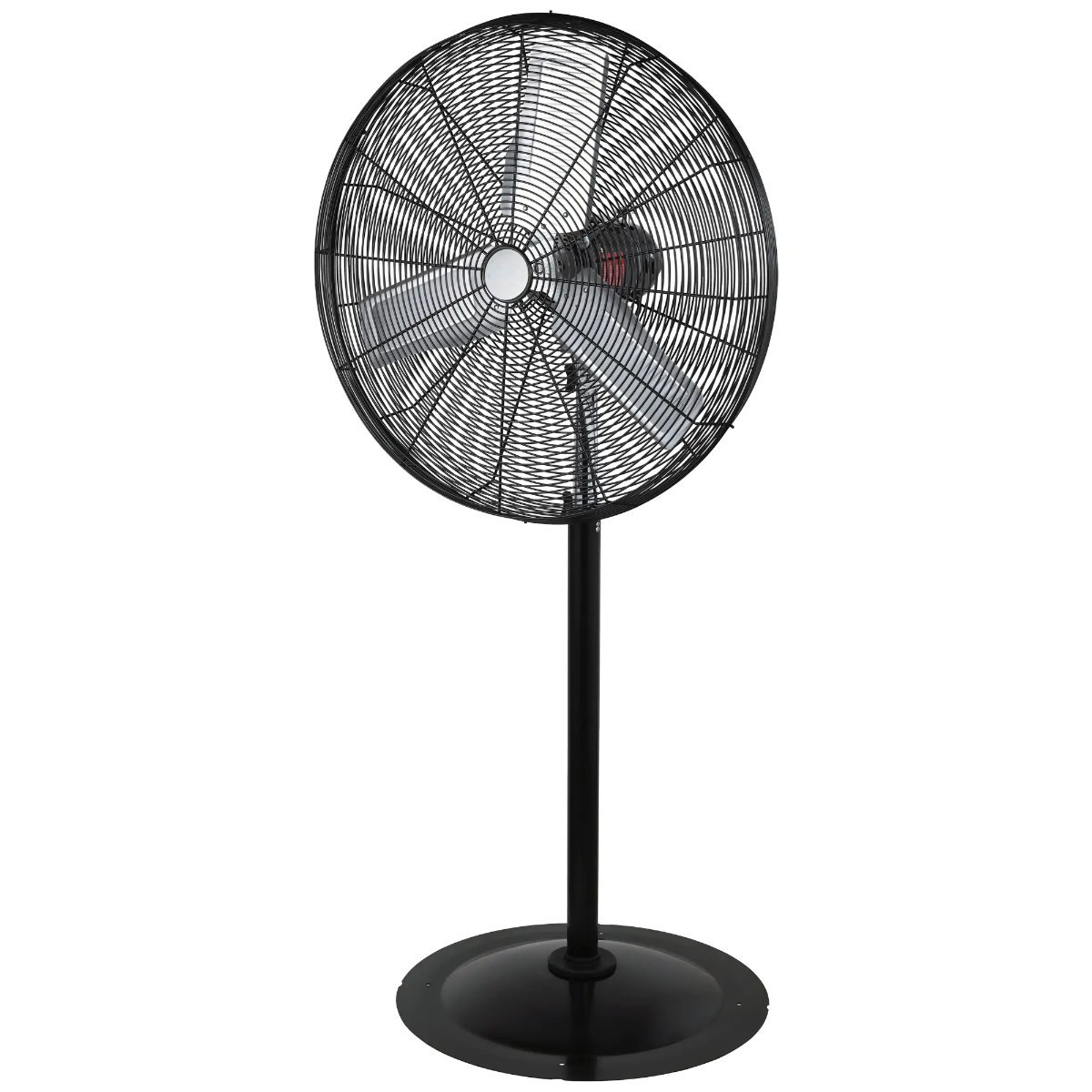

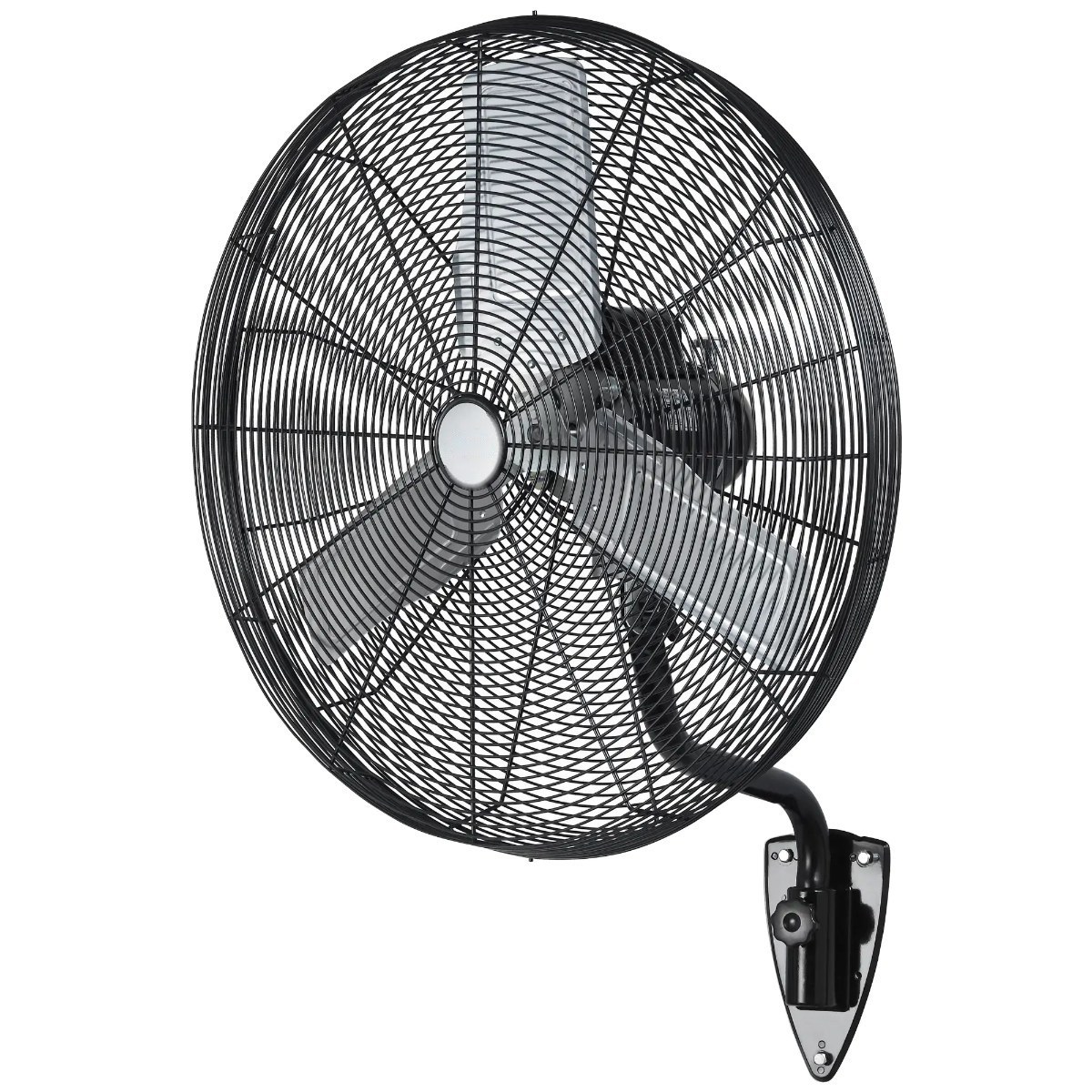

30 in pedestal (JEBA666)30 in wall mount (JEBA667)
Can be used in oscillating or non-oscillating mode.
Pedestal: all-metal construction with chrome grill and black base, adjustable height, heavy-duty round base (69.3 cm diameter), 9.8 ft SJT power cord, open motor.
Wall mount: all-metal construction.
Heavy-duty oscillating fans
Part number
Size and mount
HP
Speeds
Max CFM
JEBA666
30" pedestal
1/3
3
13,200
JEBA667
30" wall mount
1/3
3
13,400
Oscillating pedestal fan

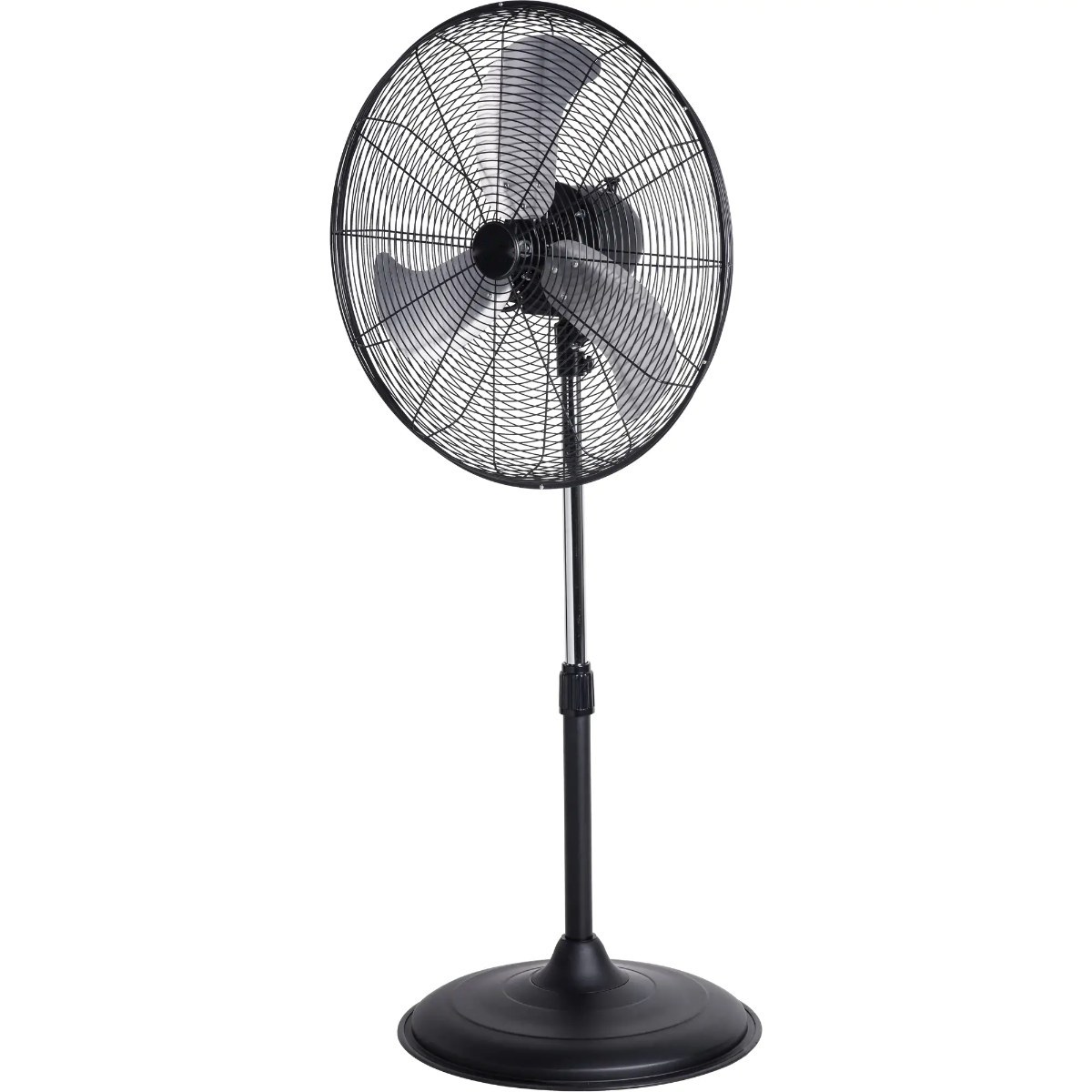

22 in oscillating pedestal (JEBB239)
All-metal construction.
6.5 ft SJT power cord.
Adjustable height and a heavy-duty round base for added stability.
Open motor with direct drive.
120 V, 60 Hz, 1.35 A, 1,450 RPM.
Oscillating pedestal fan
Part number
Diameter (in)
HP
Speeds
Max CFM
JEBB239
22
1/16
3
4,500
Foldable pedestal fan

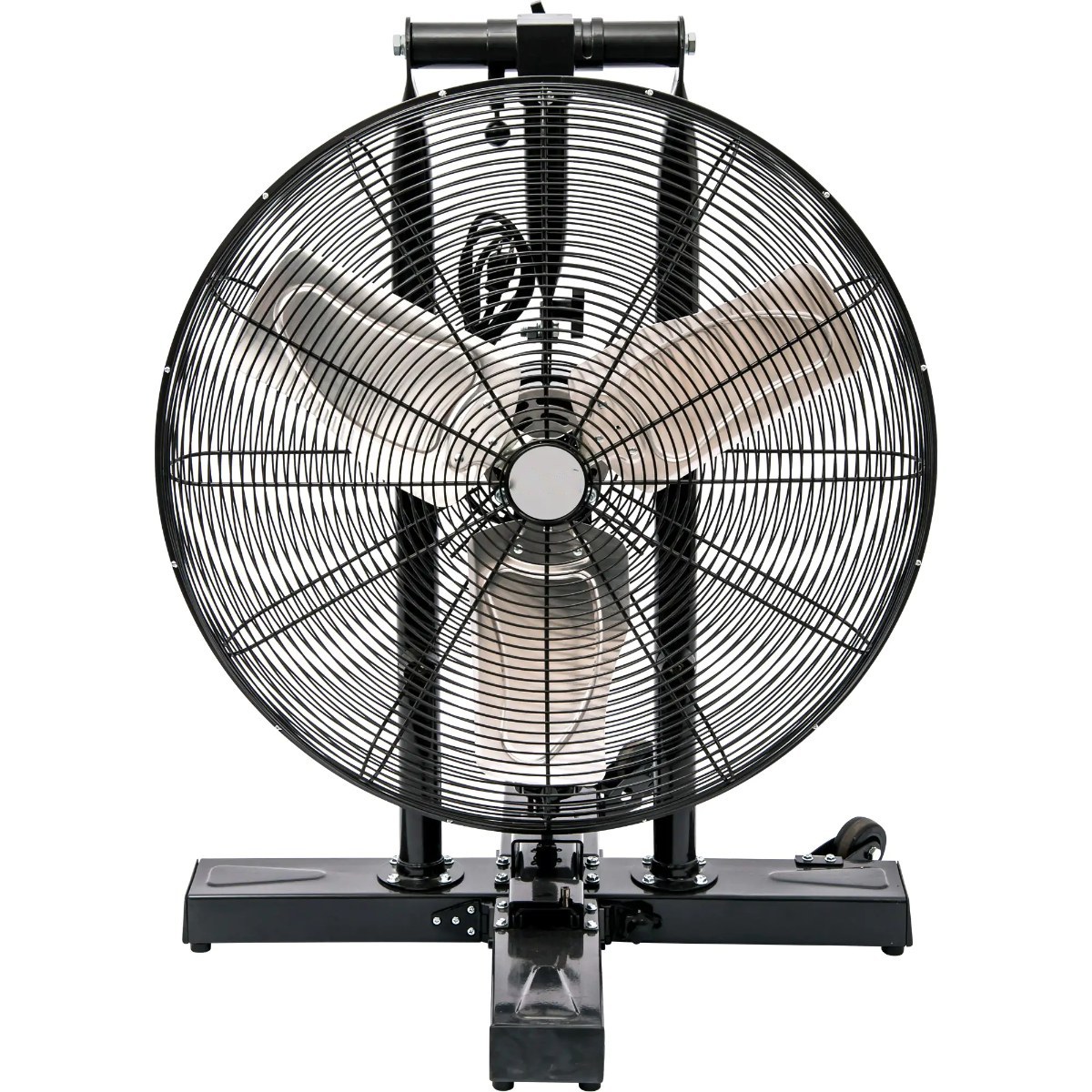

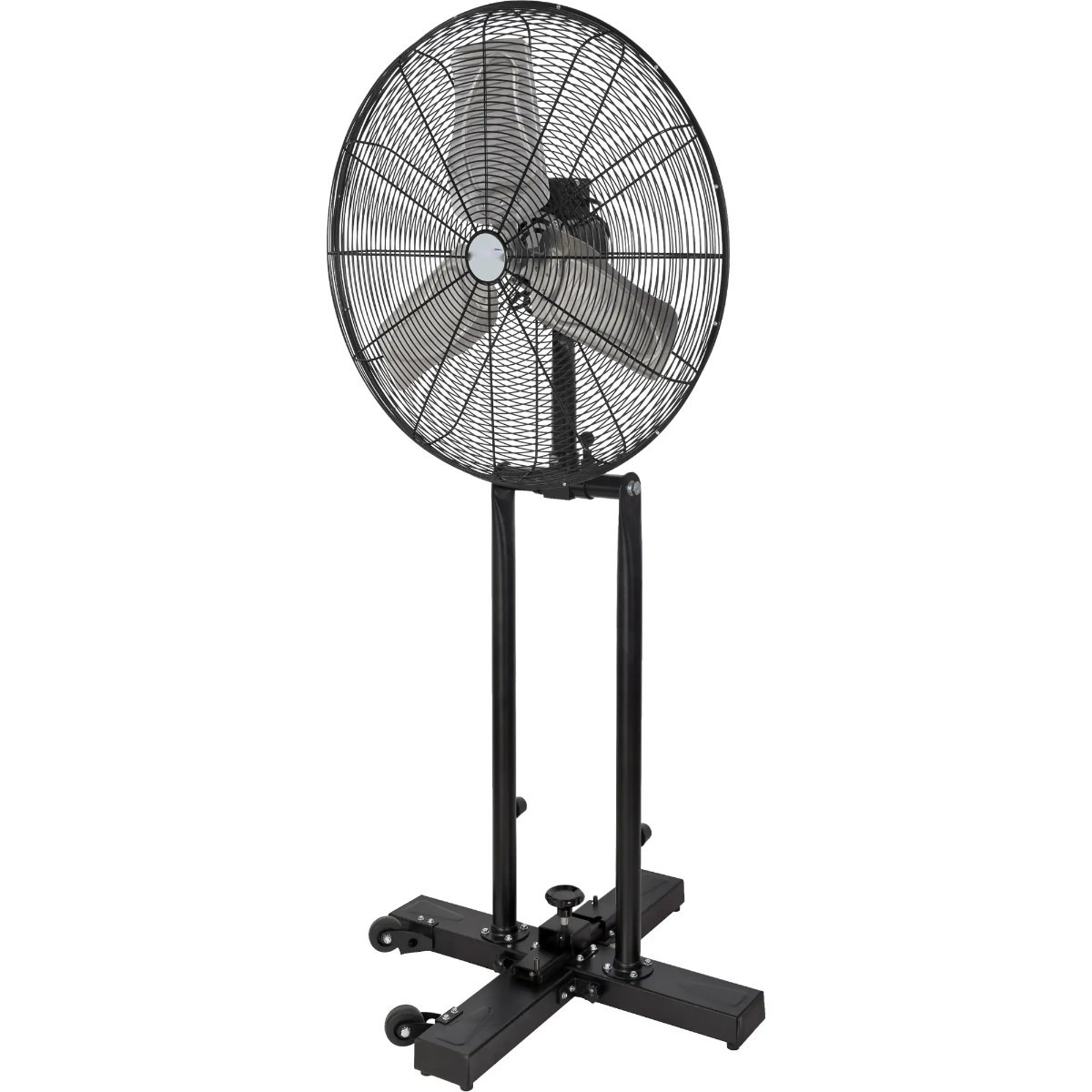

Pedestal position (JEBB116)Front view
Works as a pedestal fan or a floor fan.
Fully assembled.
All-metal construction painted black and chrome, with aluminum blades.
Two casters for easy moving.
120 V, 60 Hz direct-drive motor; non-oscillating.
Foldable pedestal fan
Part number
Diameter (in)
HP
Speeds
CFM high / med / low
JEBB116
24
1/4
3
7,000 / 4,500 / 3,500
High-velocity oscillating wall fan

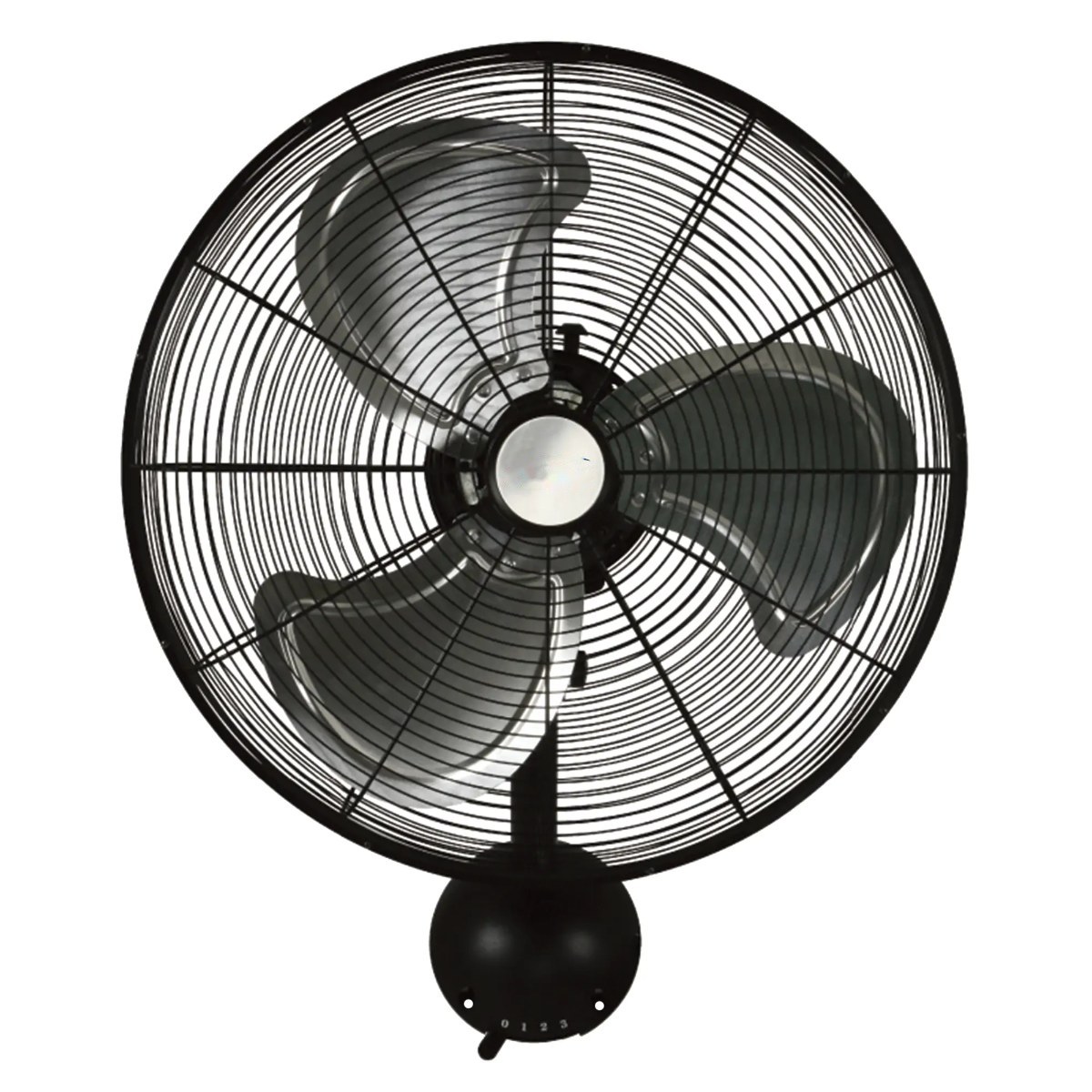

20 in high-velocity wall fan (JEBA660)
Adjustable tilting fan head.
Sliding switch at the front of the base.
Rotating or fixed air direction.
120 V.
High-velocity oscillating wall fan
Part number
Diameter (in)
HP
Speeds
CFM high / med / low
JEBA660
20
1/5
3
4,800 / 4,500 / 4,000
Ordering
Include the part numbers, quantities and your delivery location in the inquiry form. Not sure which fan you need? Tell us the size of the area, the ceiling height and whether you need pedestal or wall mounting.
Manufacturer’s warranty: 1 year limited, except heavy-duty industrial air circulating fans (5 years).
