Powered Counterbalanced Stackers
This powered walkie counterbalanced design provides a different load-access arrangement from a straddle stacker. Confirm the working aisle, turning space and floor conditions together with the required lift height and load centre.
Features and selection
- Powered counterbalanced handling configuration
- AC travel drive and powered lifting
- Choice of nominal mast heights
Check the complete truck length, turning envelope, service weight and pallet access. Select the battery and charger as part of the quoted configuration rather than assuming every listed package is standard.
Models and specifications
Select a JB part number to view its photo. Configuration-dependent details must be confirmed in the quote. Swipe the table on smaller screens to see all columns.
| JB part number / photo | Rated capacity | Height / range | Platform or forks | Model details |
|---|---|---|---|---|

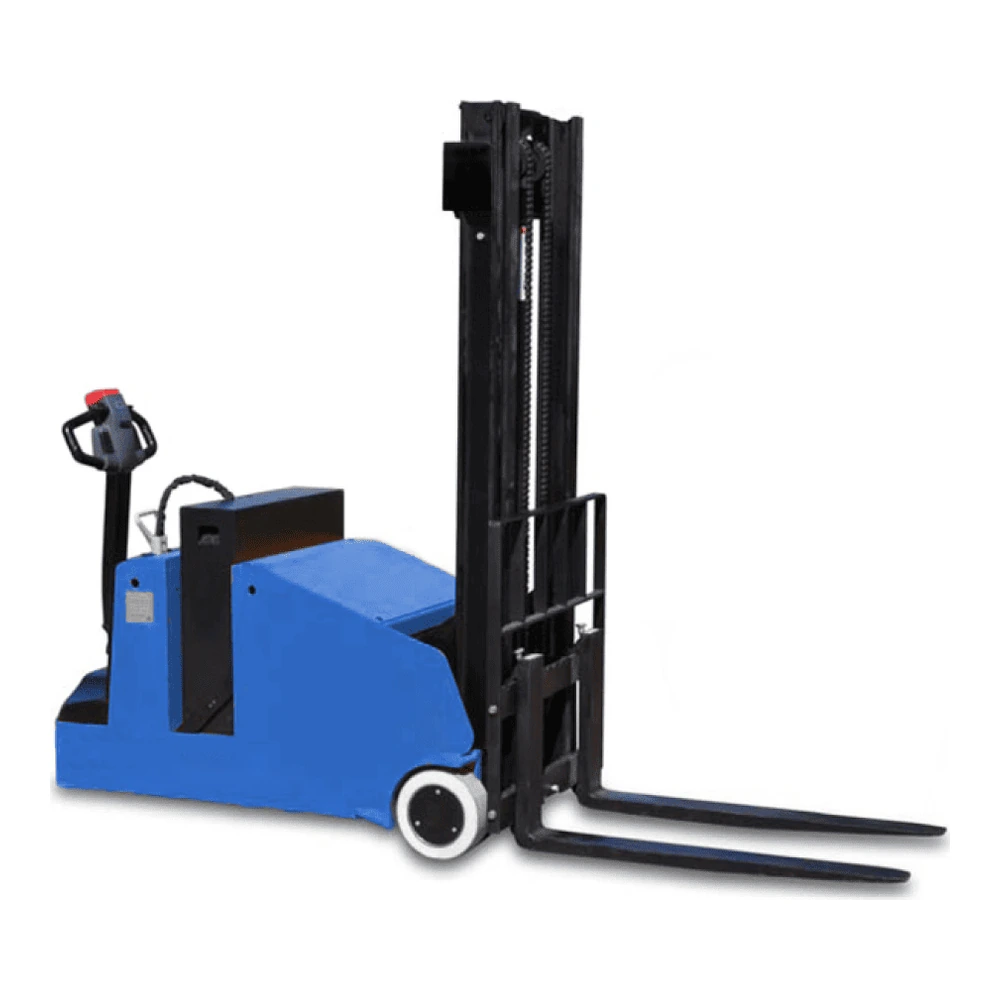

| JBBGL-22 | 2,200 lb nominal; final rating subject to mast and load chart | Nominal mast options: 104 / 128 / 157 in; confirm selected configuration | 42-in standard forks; overall footprint and turning clearance by quotation | Powered walkie counterbalanced design with AC drive. Battery and charger configuration to be confirmed. |
Dimensions are in inches unless otherwise stated. Rated capacity depends on the stated load centre, load distribution and configuration. Use the supplier-approved load chart and operating instructions.
Common questions
Why select a counterbalanced stacker?
It may suit applications where straddle legs would interfere with pallet or load access. The complete operating envelope must still be checked.
Is the rated capacity identical for every mast?
Do not assume that it is. Confirm the residual-capacity chart for the quoted mast and load centre.
Does this page specify the supplied battery package?
No. The final battery type, capacity and charger must be confirmed in the quote.
Request a quote
Send the JB part number, quantity, load weight, load dimensions, required height and delivery postal code. Include pallet, operating-space and power-supply details so we can check the configuration.
