Product overview

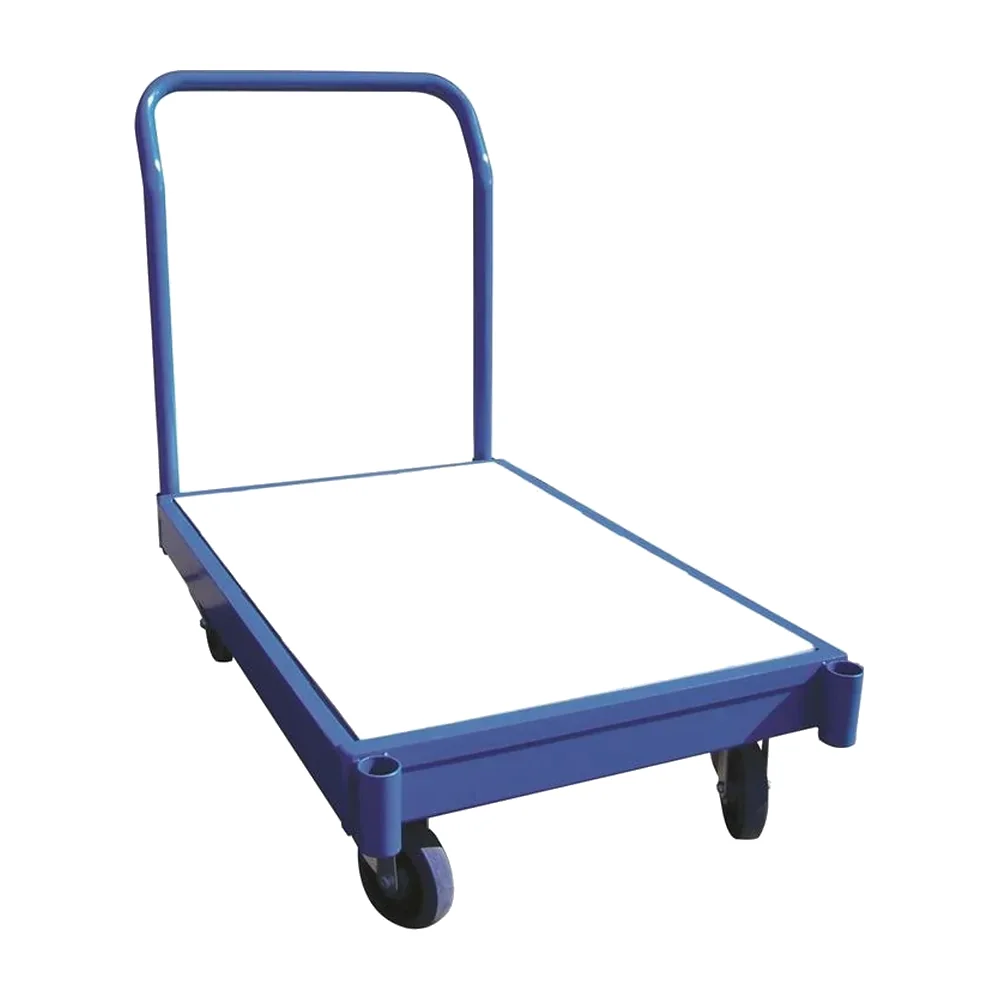

These wood-deck platform trucks are intended for moving products that could be scuffed by metal-to-metal contact. The hardwood deck is reinforced with steel, and a removable handle that fits either end supports flexible handling around work areas.
Construction and features
- Steel-reinforced hardwood deck
- Wood surface helps avoid metal-to-metal contact with products
- Removable tube handle fits either end
- Heavy-duty welded construction
- Blue powder-coated finish
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Deck Height (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Handle Type | Finish | Colour | Caster Size (in) | Caster Type | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24x36WD-5PHL | 24 | 36 | 10 | 36 | 70 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/4 | Phenolic | 40 x 24 x 16 |
| 24x36WD-5RSX | 24 | 36 | 10 | 36 | 69 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 40 x 24 x 16 |
| 24x36WD-8MR | 24 | 36 | 13 | 39 | 87 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Molded Rubber | 40 x 24 x 19 |
| 24x36WD-8PH | 24 | 36 | 13 | 39 | 89 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Phenolic | 40 x 24 x 19 |
| 24x48WD-5PHL | 24 | 48 | 10 | 36 | 81 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/4 | Phenolic | 52 x 24 x 16 |
| 24x48WD-5RSX | 24 | 48 | 10 | 36 | 80 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 52 x 24 x 16 |
| 24x48WD-8MR | 24 | 48 | 13 | 39 | 98 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Molded Rubber | 52 x 24 x 19 |
| 24x48WD-8PH | 24 | 48 | 13 | 39 | 100 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Phenolic | 52 x 24 x 19 |
| 30x48WD-5PHL | 30 | 48 | 10-1/4 | 36 | 93 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/4 | Phenolic | 52 x 30 x 16 |
| 30x48WD-5RSX | 30 | 48 | 10-1/4 | 36 | 92 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 52 x 30 x 16 |
| 30x48WD-8MR | 30 | 48 | 13-1/4 | 39 | 110 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Molded Rubber | 52 x 30 x 19 |
| 30x48WD-8PH | 30 | 48 | 13-1/4 | 39 | 112 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Phenolic | 52 x 30 x 19 |
| 30x60WD-5PHL | 30 | 60 | 10-1/4 | 36 | 106 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/4 | Phenolic | 64 x 30 x 16 |
| 30x60WD-5RSX | 30 | 60 | 10-1/4 | 36 | 105 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 64 x 30 x 16 |
| 30x60WD-8MR | 30 | 60 | 13-1/4 | 39 | 123 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Molded Rubber | 64 x 30 x 19 |
| 30x60WD-8PH | 30 | 60 | 13 | 39 | 125 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Phenolic | 64 x 30 x 19 |
| 36x60WD-8MR | 36 | 60 | 13-1/4 | 39 | 140 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Molded Rubber | 64 x 36 x 19 |
| 36x60WD-8PH | 36 | 60 | 13 | 39 | 142 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Phenolic | 64 x 36 x 19 |
| 36x72WD-8MR | 36 | 72 | 13 | 39 | 155 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Molded Rubber | 76 x 36 x 19 |
| 36x72WD-8PH | 36 | 72 | 13 | 39 | 157 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Phenolic | 76 x 36 x 19 |
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
