Wire Mesh Pallet Rack Back Guards

  • Free, no-obligation quotes
  • Help choosing the right size
  • Serving Ontario since 1985
In stock
  • Complete guards in 5 widths, 8 to 12 ft
  • Or build your own from 1 to 8 ft panels
  • 6, 9 or 12 in bracket offsets

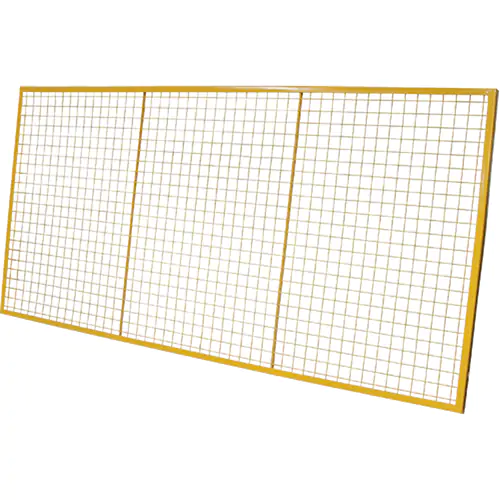

  • 10 ga frame, 2 x 2 in mesh, safety yellow

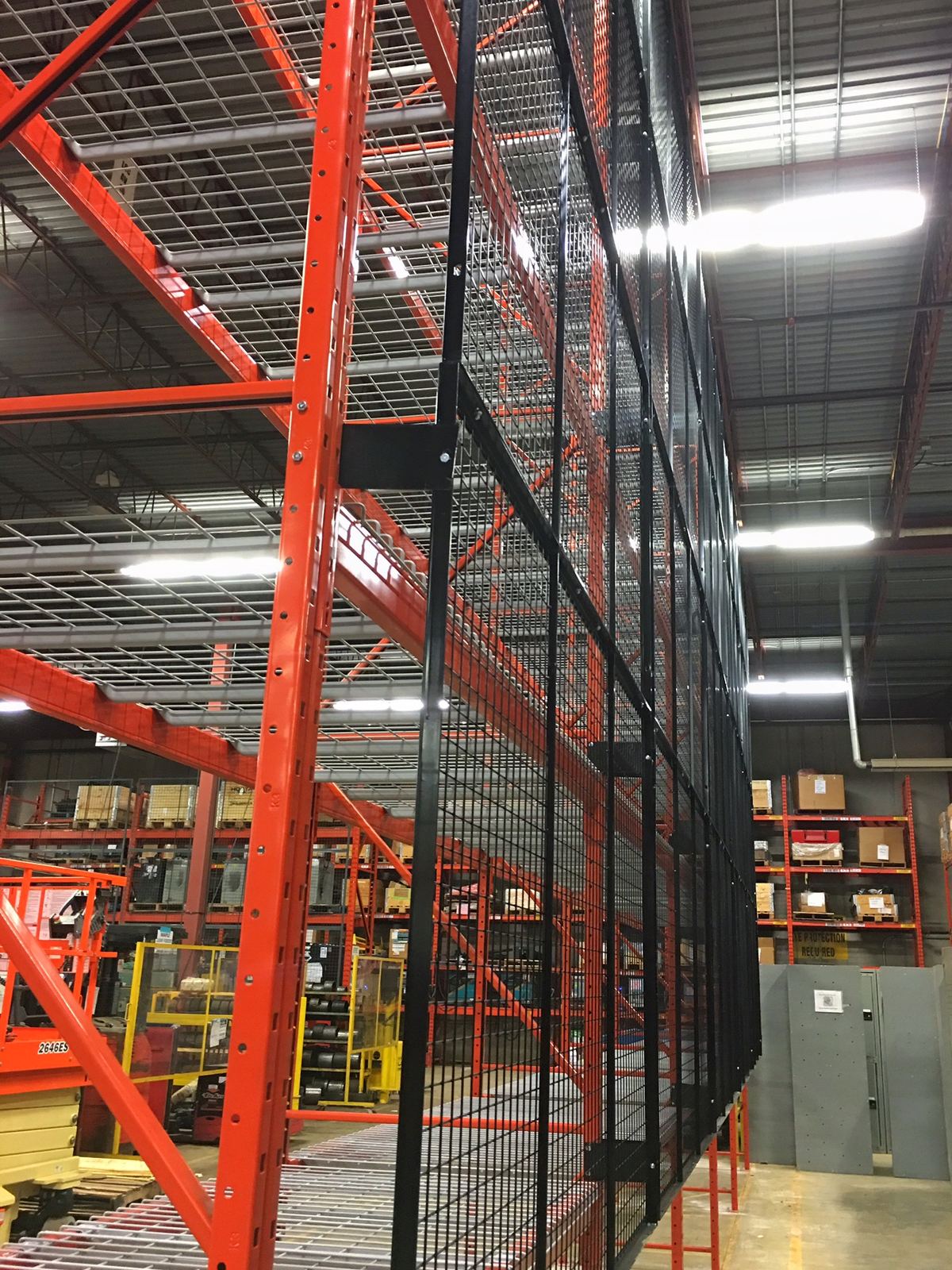

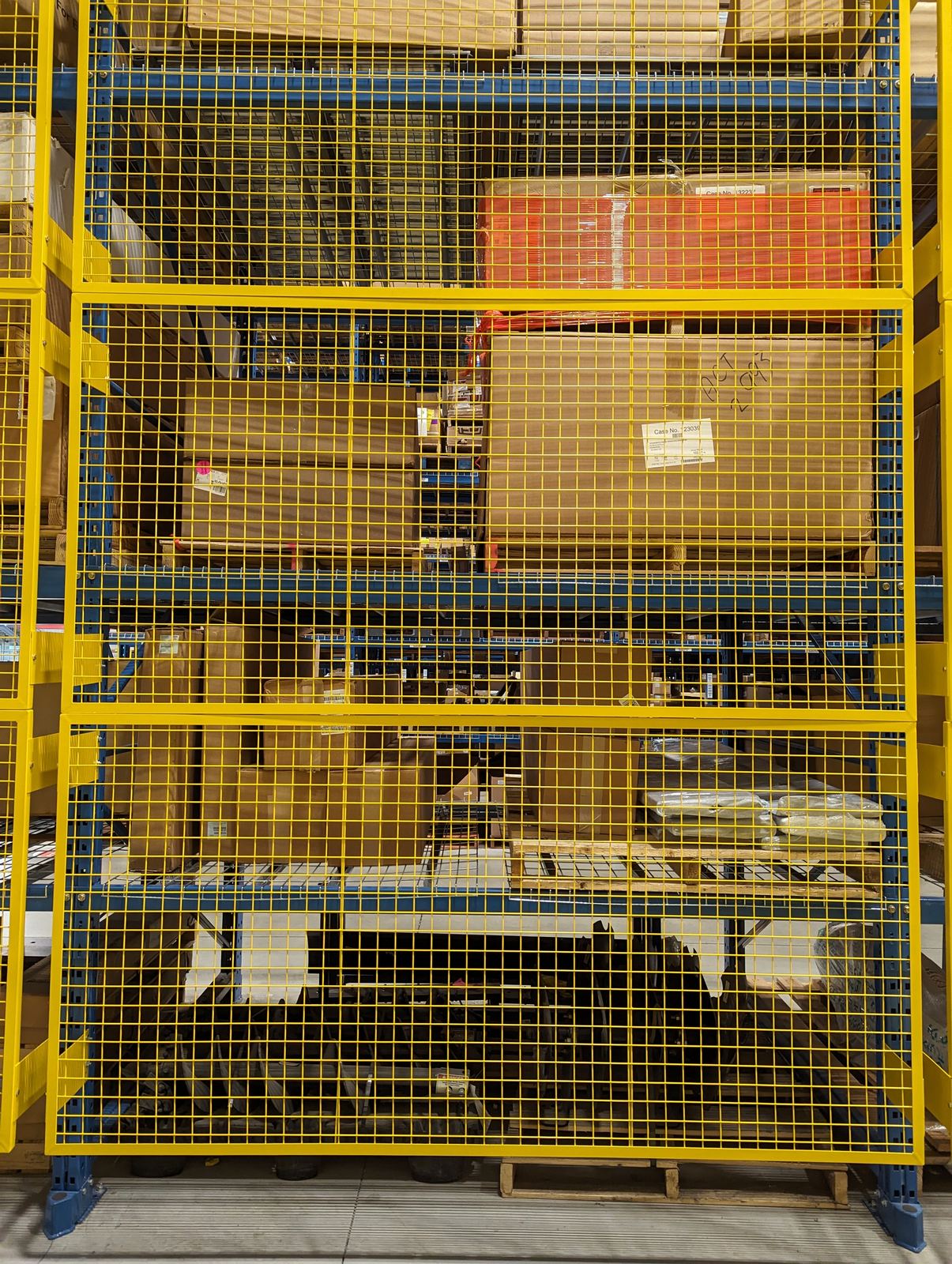

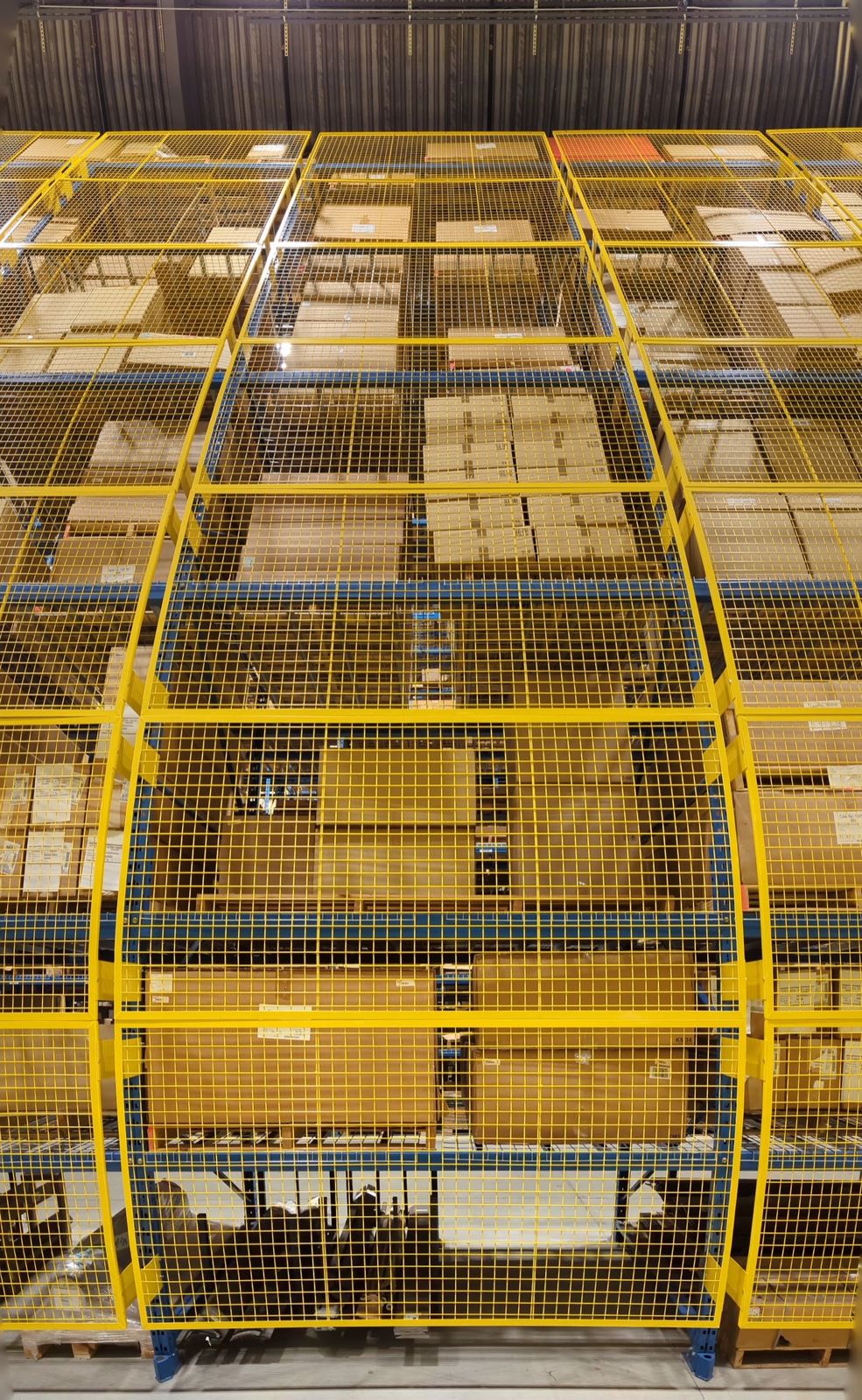

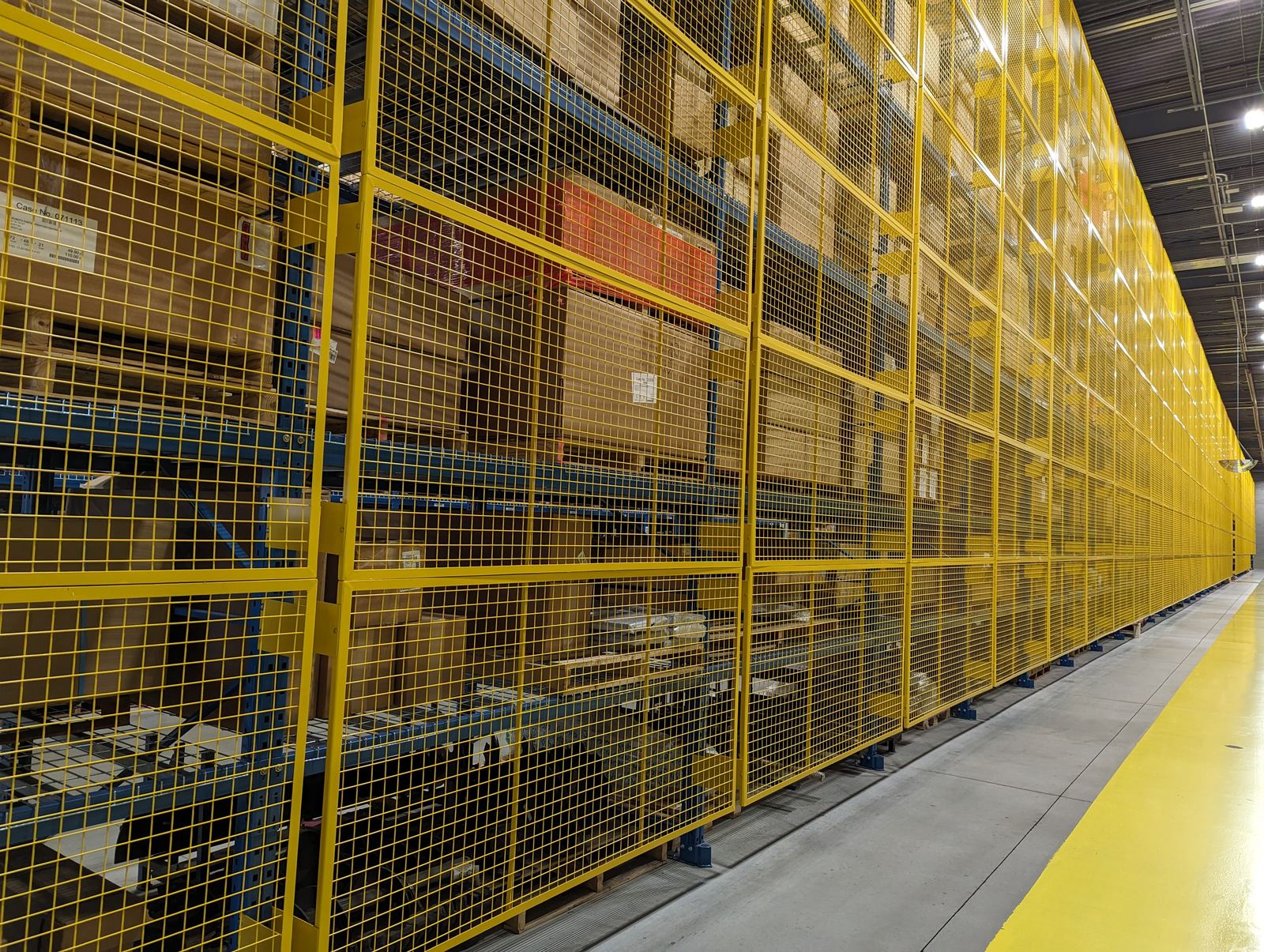

Wire mesh back guards close off the back of your pallet racking so pallets, cartons and loose product can’t be pushed through into a walkway, work area or the next aisle. Choose a complete guard sized to your bay, or build your own from panels, brackets and hardware.

Construction10 ga frame and 10 ga mesh
Mesh2 x 2 in openings
Offsets6, 9 or 12 in brackets
FinishSafety yellow

Two ways to order

Complete guards by bay width

One 48 in high guard sized to cover the full bay, from 8 ft to 12 ft wide, supplied with your choice of 6, 9 or 12 in brackets. The simplest choice for standard bays.

JRBL929 to JRBL943 · 5 widths

Build your own panels

Combine 1 ft to 8 ft wide panels to cover odd bay widths or taller heights, then add brackets and hardware. Good for mixed rack layouts and custom coverage.

Panels · brackets · hardware

Complete guards: widths and bracket options

All complete guards are 48 in high. Pick the width that matches your bay and the bracket offset you need.

Guard size (W x H)6 in brackets9 in brackets12 in brackets
96 x 48 in
8 ft x 4 ft
JRBL929 · 39 lbJRBL930 · 40 lbJRBL931 · 41 lb
108 x 48 in
9 ft x 4 ft
JRBL932 · 49 lbJRBL933 · 50 lbJRBL934 · 51 lb
120 x 48 in
10 ft x 4 ft
JRBL935 · 57 lbJRBL936 · 58 lbJRBL937 · 59 lb
132 x 48 in
11 ft x 4 ft
JRBL938 · 63 lbJRBL939 · 64 lbJRBL940 · 65 lb
144 x 48 in
12 ft x 4 ft
JRBL941 · 70 lbJRBL942 · 71 lbJRBL943 · 72 lb

Weights are product weights, not load or impact ratings.

Build your own: panels, brackets and hardware

Step 1: Choose your panels

Use one panel or a combination to cover the width and height of the bay.

JB part numberPanel size (W x H)
JKBH9261 x 4 ft
JKBH9142 x 4 ft
JKBH9303 x 4 ft
JKBD1304 x 4 ft
JKBD1318 x 4 ft

Step 2: Choose your brackets

Pick the offset you need from the rack, allowing for pallet overhang. A minimum of four brackets is required.

JB part numberBracket size
JMBL2314 x 6 in (6 in offset)
JMBL2324 x 9 in (9 in offset)
JMBL2334 x 12 in (12 in offset)

Step 3: Add hardware

  • For each additional panel: 2 x JGBM332 and 2 x JMBMH254
  • For each mounting bracket: 3 x JMBMP624 and 3 x JGBM332
  • Mounting hardware is not included with panels and brackets

Why add back guards?

  • Keeps pallets and product from falling into walkways behind the rack
  • Brackets fit almost any style of pallet rack
  • Open mesh keeps sprinkler coverage and visibility
  • Bright safety yellow makes the guarded area easy to see

Also see back-of-rack safety netting, pallet rack safety bars and wire mesh decks.

Complete guard or panels?

For standard 8 to 12 ft bays, a complete guard is the quickest option. If your bays are an unusual width, or you need to guard higher than 48 in, combine panels to fit.

Which bracket offset do I need?

Allow for how far your pallets overhang the back beam. Most bays use 6 or 9 in brackets, and 12 in brackets give extra clearance for deeper overhangs.

What should I send for a quote?

Send the width and height of each bay, the offset you need, quantities and a photo of your rack. We will put together the guards, brackets and hardware for you. Custom sizes are available.

Request a back guard quoteCall (905) 883-0316

Submit your details and we will contact your shortly.

    Get a fast quote on this product

    Send the JB part number, quantity and your delivery postal code. We will get back to you with pricing and availability.
