Under-Bench Drawer Units
Lockable under-bench drawer units that bolt beneath any workbench top.
Features
- All-welded heavy-gauge steel
- 100% full-extension ball-bearing slides, 100 lb per drawer
- Locks with two keys; keyed alike by drawer model
- Aluminum extrusion handles
Models and specifications
Select a JB part number to view its photo. Representative photos may differ from the selected size or configuration. On smaller screens, swipe the table to see all columns.
| JB part number / photo | Configuration | Drawer size W x D x H (in) | Overall W x D x H (in) |
|---|---|---|---|

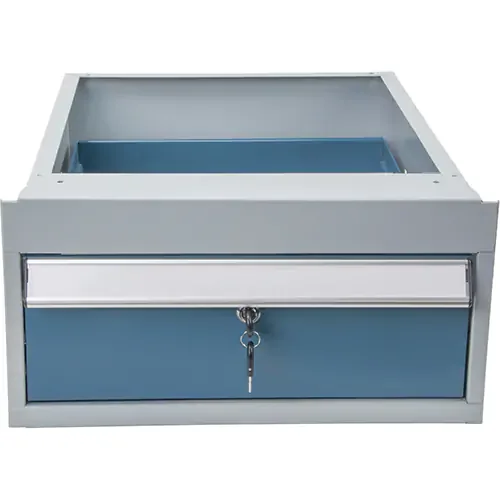

| JFBH673 | Single drawer | 15-3/8 x 20 x 5-5/8 | 18 x 21 x 9 |

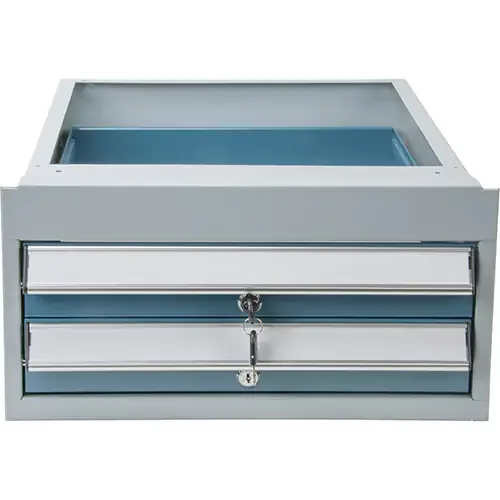

| JFBH674 | Double drawer | (2) 15-3/8 x 20 x 2-3/4 | 18 x 21 x 9 |
Frequently asked questions
Will these fit my existing workbench?
Most components are sized for 24, 30, and 36 in deep tops and 48, 60, and 72 in widths. Send us your bench dimensions and we will confirm fit.
How do I order?
This catalogue is quote-only. Use Request a Quote with the model numbers and quantities you need, and we will reply with pricing, lead time, and freight.
Need a different size, top, or configuration? Send us the model number and we will confirm availability, lead time, and freight to your location.
