Product overview
Trailer access ladder stands provide a raised access point for tractor and cube vans. The listed configuration combines a front walk-through entrance with safety chains, a 50-degree ladder angle, and wheels for moving the stand into position.
Construction and features
- Front walk-through access with safety chains.
- 24-by-22-1/2-inch platform and 24-inch step width.
- 10-inch flat-free wheels.
- Blue powder-coated steel construction.
- Rated for one person at a time.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Contact us” means we can confirm that value for you. “—” means it does not apply.
| Part number | Configuration | Width (in) | Depth (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Material | Finish | Colour | Wheel Size (in) | Wheel Type | # of Steps (incl. Platform) | Platform Height (in) | Platform Size (in) | Step Angle (°) | Step Width (in) | Handrail (in) | Shipping Size (in) | Height When Handrail Down (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

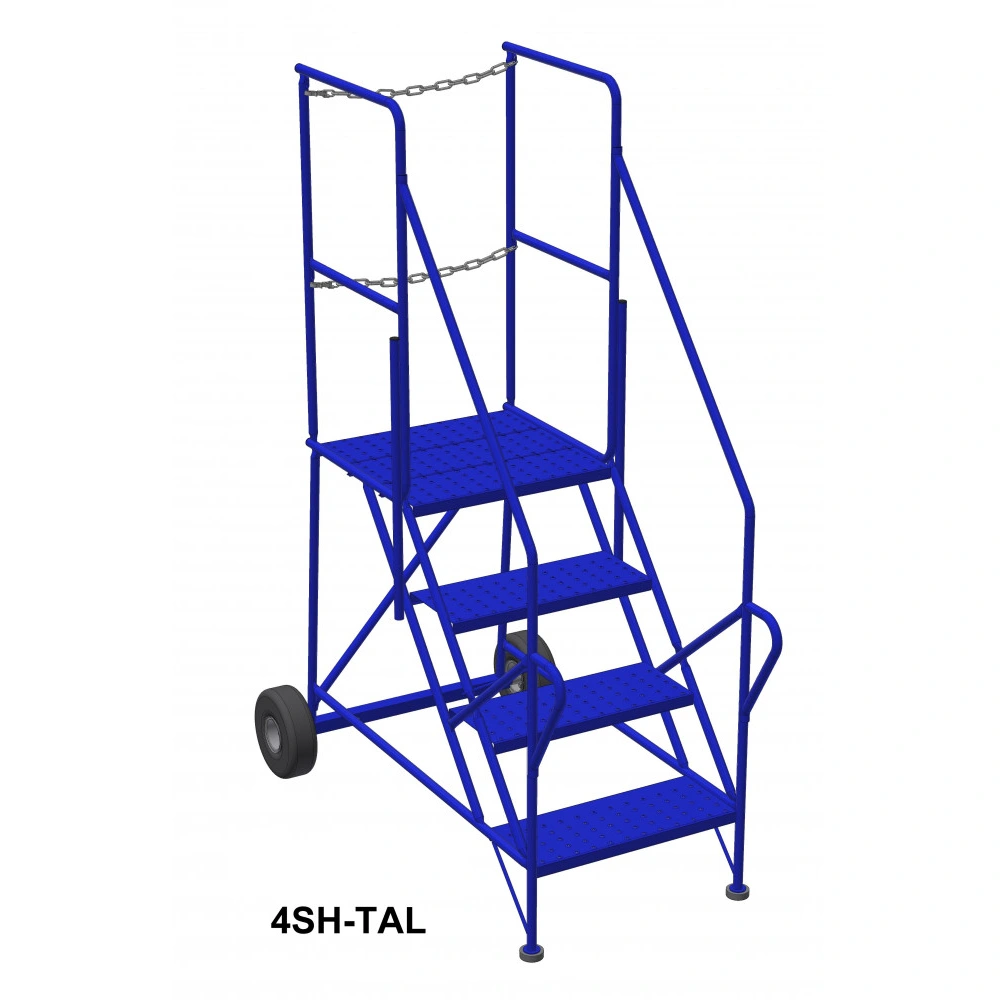

| 4SH-TAL | Trailer Access Ladder Stand | 36 | 62 | 82 | 114 | 400 | Steel | Powder Coat | Blue | 10 | Flat Free | 4 | 40 | 24 x 22.5 | 50 | 24 | 42 | 62 x 36 x 82 | — |
| 5SH-TAL | Trailer Access Ladder Stand | 36 | 71 | 92 | 127 | 400 | Steel | Powder Coat | Blue | 10 | Flat Free | 5 | 50 | 24 x 22.5 | 50 | 24 | 42 | 71 x 36 x 92 | — |
| 6SH-TAL | Trailer Access Ladder Stand | 36 | 78 | 102 | 140 | 400 | Steel | Powder Coat | Blue | 10 | Flat Free | 6 | 60 | 24 x 22.5 | 50 | 24 | 42 | 118 x 36 x 45 | — |
| 7SH-TAL | Trailer Access Ladder Stand | 36 | 87 | 112 | 153 | 400 | Steel | Powder Coat | Blue | 10 | Flat Free | 7 | 70 | 24 x 22.5 | 50 | 24 | 42 | 129 x 36 x 55 | — |
Application notes
Rated for one person only. Confirm the stand's position and access arrangement before climbing.
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
