Product overview
Tilt-and-roll ladder stands can be tilted onto their wheels for repositioning. The listed family shares a 60-degree step angle, 24-inch step width, and rubber wheels, with a blue powder-coated steel construction.
Construction and features
- Tilt-and-roll mobility.
- Five-inch rubber wheels.
- 24-inch step width and 60-degree step angle.
- Steel construction with a blue powder-coat finish.
- Rated for one person at a time.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Contact us” means we can confirm that value for you. “—” means it does not apply.
| Part number | Configuration | Width (in) | Depth (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Material | Finish | Colour | Wheel Size (in) | Wheel Type | # of Steps (incl. Platform) | Platform Height (in) | Platform Size (in) | Step Angle (°) | Step Width (in) | Shipping Size (in) | Height When Handrail Down (in) | Handrail (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

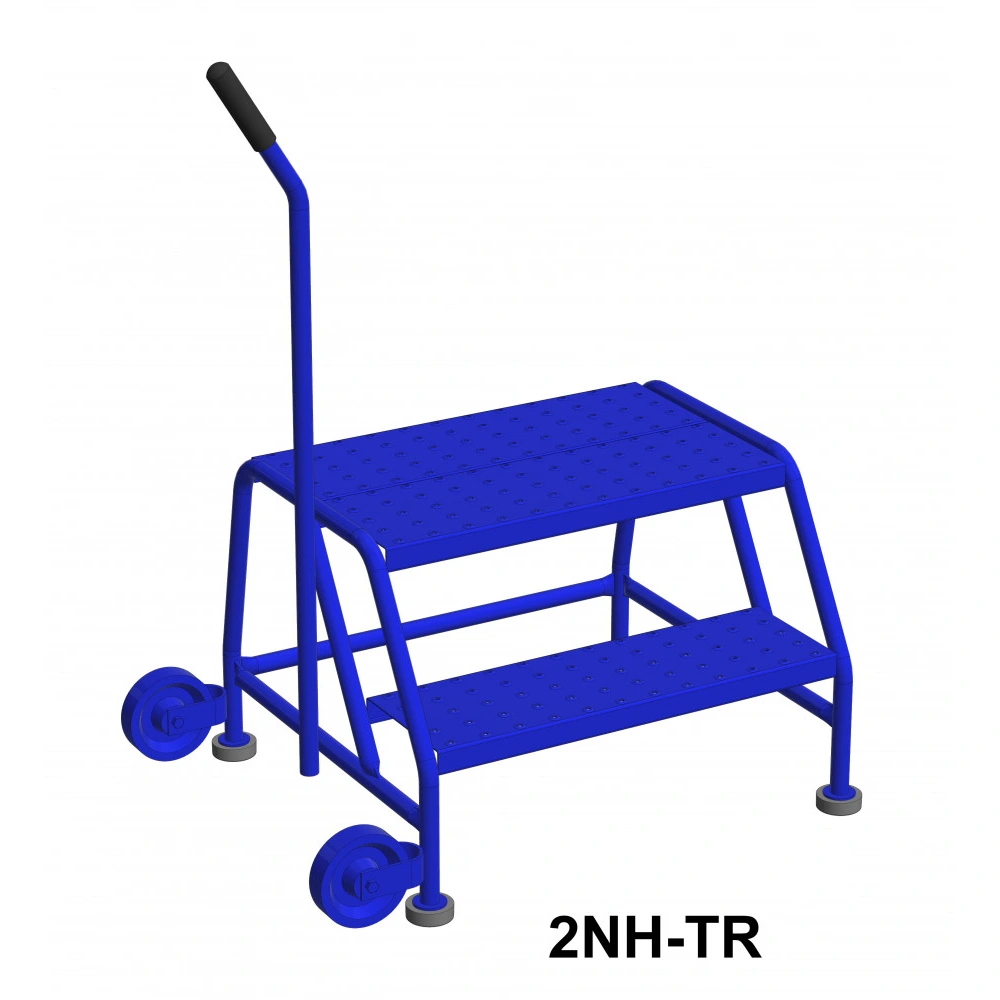

| 2NH-TR | Tilt-and-roll ladder stand | 33 | 25 | 43 | 37 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 2 | 18 | 24 x 15 | 60 | 24 | 25 x 33 x 43 | — | — |
| 2H-TR | Tilt and Roll Ladder Stand | 28 | 38 | 60 | 51 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 2 | 18 | 24 x 22.5 | 60 | 24 | 38 x 28 x 60 | — | 42 |
| 3H-TR | Tilt and Roll Ladder Stand | 28 | 43 | 69 | 65 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 3 | 27 | 24 x 22.5 | 60 | 24 | 43 x 28 x 69 | — | 42 |
| 4H-TR | Tilt and Roll Ladder Stand | 28 | 48 | 78 | 80 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 4 | 36 | 24 x 22.5 | 60 | 24 | 48 x 28 x 78 | — | 42 |
| 5H-TR | Tilt and Roll Ladder Stand | 28 | 54 | 87 | 95 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 5 | 45 | 24 x 22.5 | 60 | 24 | 54 x 28 x 87 | — | 42 |
| 6H-TR | Tilt and Roll Ladder Stand | 28 | 58 | 96 | 110 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 6 | 54 | 24 x 22.5 | 60 | 24 | 58 x 28 x 96 | — | 42 |
Application notes
Rated for one person only. Position the stand for climbing rather than moving it while occupied.
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
