Product overview
This elevated stock picker combines three shelves with a built-in five-step ladder for reaching and moving stock. Its welded steel frame, spring-loaded floor-locking ladder, and non-marking casters support organized handling in warehouse and stockroom settings.
Construction and features
- Steel frame uses 14-gauge construction and 1-inch-diameter tubing.
- Three shelves have progressively longer surfaces from top to bottom.
- The five-step spring-loaded ladder locks to the floor when weight is applied.
- Four 5-inch blue rubber casters include two swivel and two rigid wheels.
- Blue powder coat finish.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Height (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Finish | Colour | Caster Size (in) | Caster Type | # of Steps | Shelf Clearance (in) | Shelf Quantity | Step Width (in) | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20×43364-5RSX | 20 | 60 | 66-5/8 | 79 | 135 | 1000 | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 5 | 27-7/8 | 3 | 18 | 60 x 20 x 79 |
Photo and ordering notes

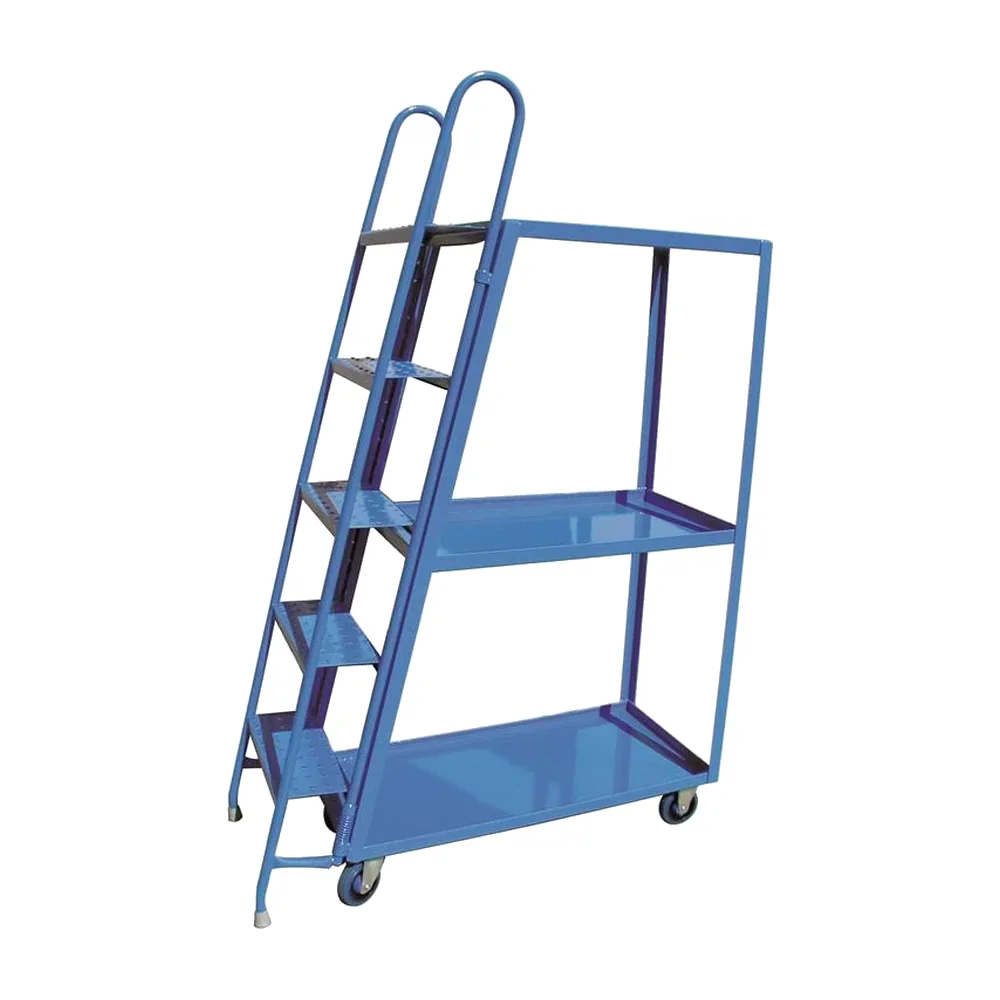

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
