Product overview
This family includes thermoplastic rubber casters and wheels for material-handling equipment. The available source provides limited shared feature information, so consult the specifications for the particular model to confirm its configuration and application requirements.
Construction and features
- Thermoplastic rubber caster family
- Thermoplastic rubber wheel family
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Overall Height (in) | Weight (lbs) | Tread Width (in) | Caster Size (in) | Caster Type | Swivel Radius (in) | Stem Size (in) | Bearing Type | Tire Capacity | Capacity (lbs) | Wheel Size (in) | Wheel Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CAS-2TPR-ST | 3 | .398 | 4/5 | 2-1/2 | Thermoplastic Rubber | 21/4 | 3/8-16×1 | Ball | 75 | Not listed | Not listed | Not listed |
| CAS-3TPR-SET | Not listed | 1 | Not listed | 3 | Thermoplastic Rubber | Not listed | Not listed | Not listed | Not listed | Not listed | Not listed | Not listed |
| CAS-3TPR-SW | Not listed | .8 | Not listed | 3 | Thermoplastic Rubber | Not listed | Not listed | Not listed | Not listed | Not listed | Not listed | Not listed |
| CAS-4TPR-TS | Not listed | .888 | 1 | 4 | Thermoplastic Rubber | Not listed | 1/2-13×1-1/2 | Not listed | Not listed | Not listed | Not listed | Not listed |
| WHL-5TPR | Not listed | 1 | Not listed | Not listed | Not listed | Not listed | Not listed | Not listed | Not listed | 350 | 5 | Thermoplastic Rubber |
Photo and ordering notes

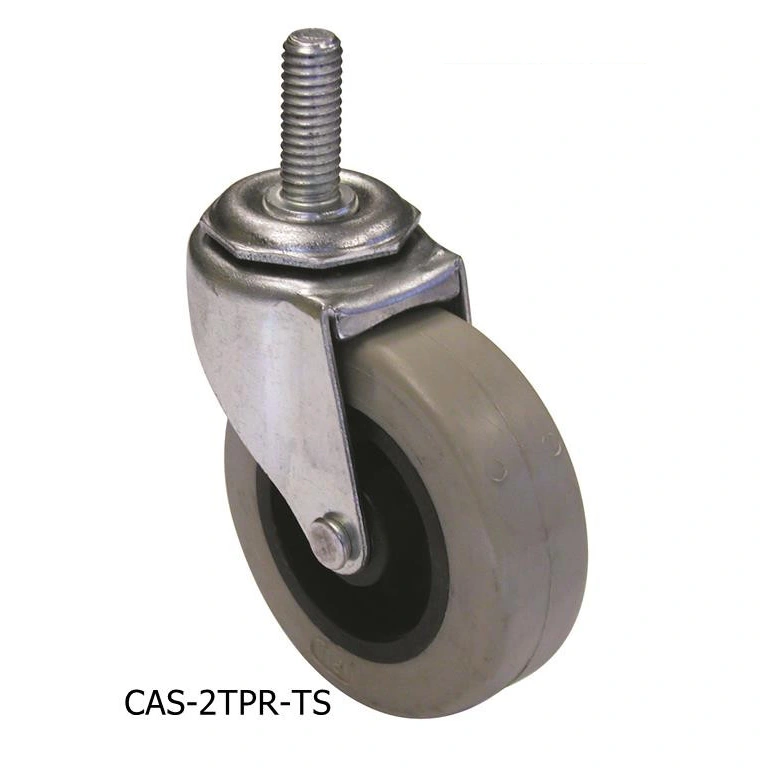

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
