Product overview

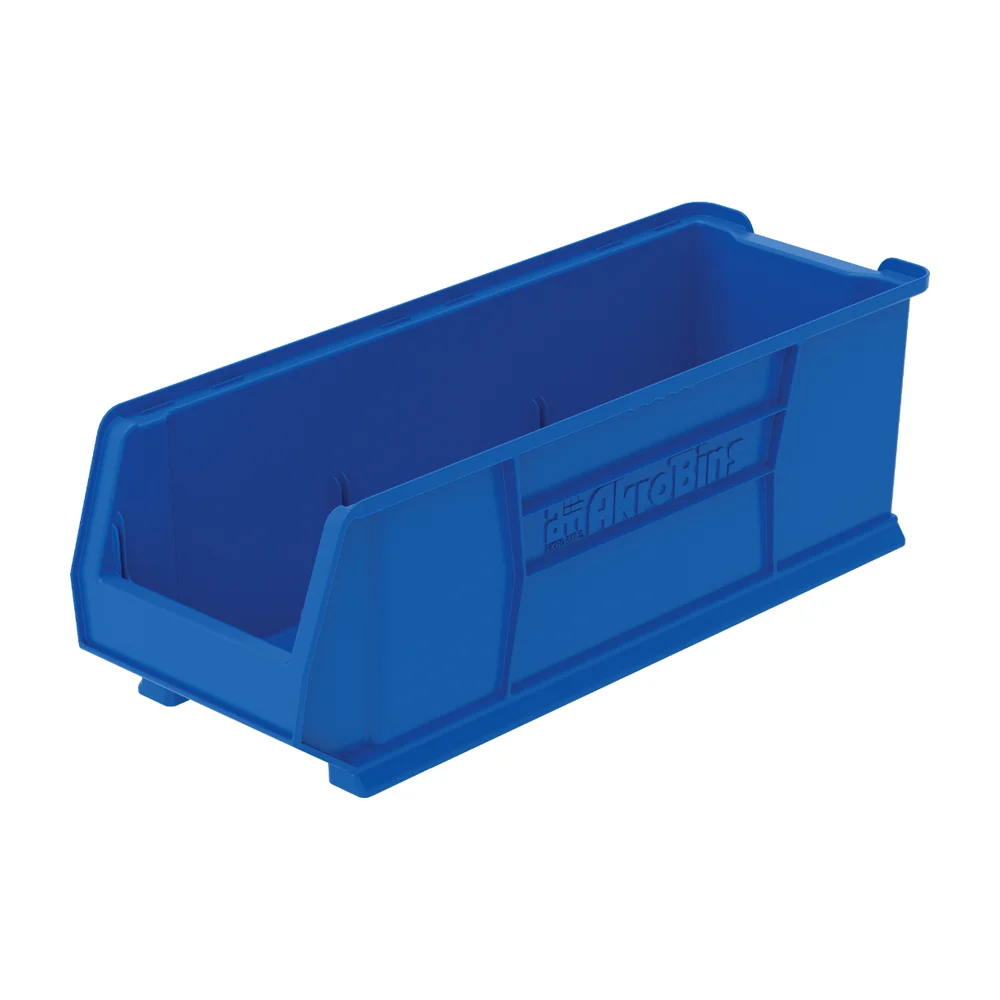

Super-size stacking bins bring the strength of our hanging and stacking bins to bulky items. Reinforced side ribs prevent spreading, an anti-slide stop keeps stacked bins in place, and a large moulded handle on the back makes them easy to carry. Divider slots let you split the bin for mixed parts. They sit on shelving, carts and dollies, and are resistant to weak acids, alkalis, water, rust and corrosion.
Construction and features
- Rated 200 to 300 lbs per bin
- Reinforced side ribs and anti-slide stacking stop
- Large rear carrying handle

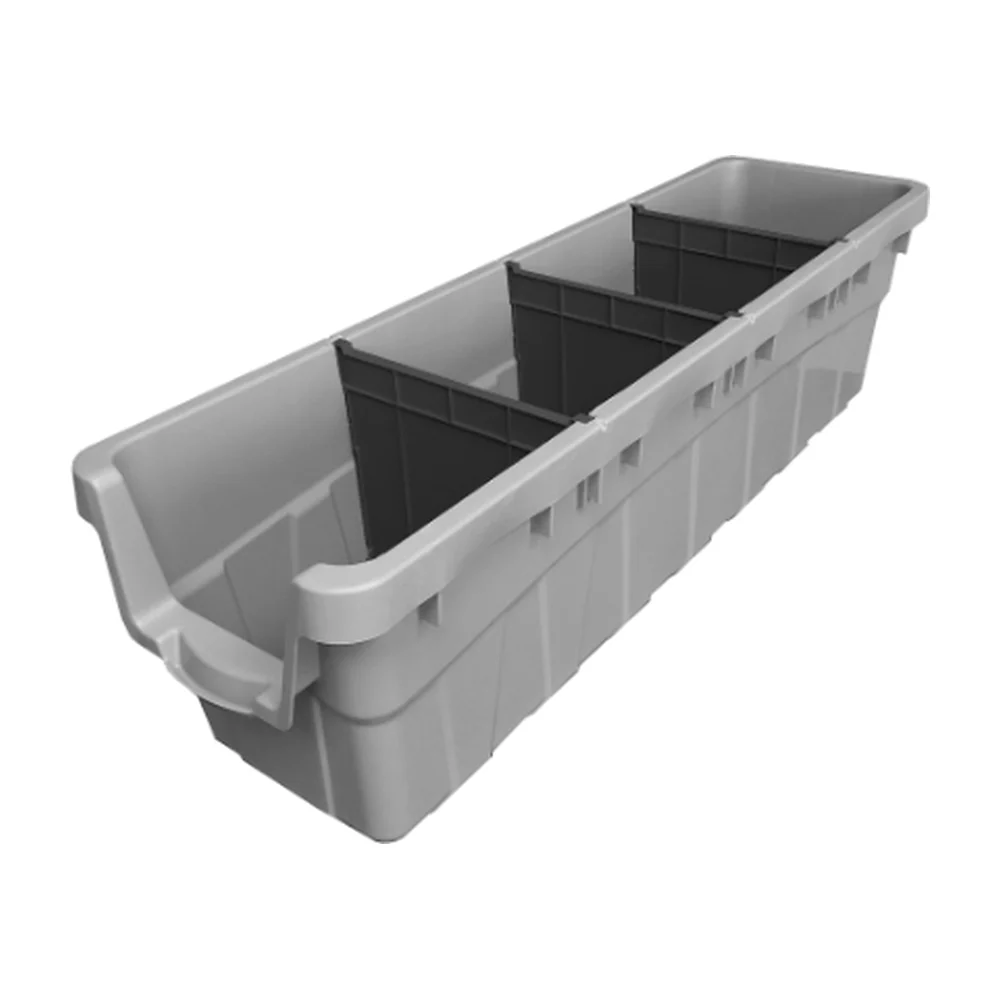

- Length and width divider slots on most models
- Large front label area

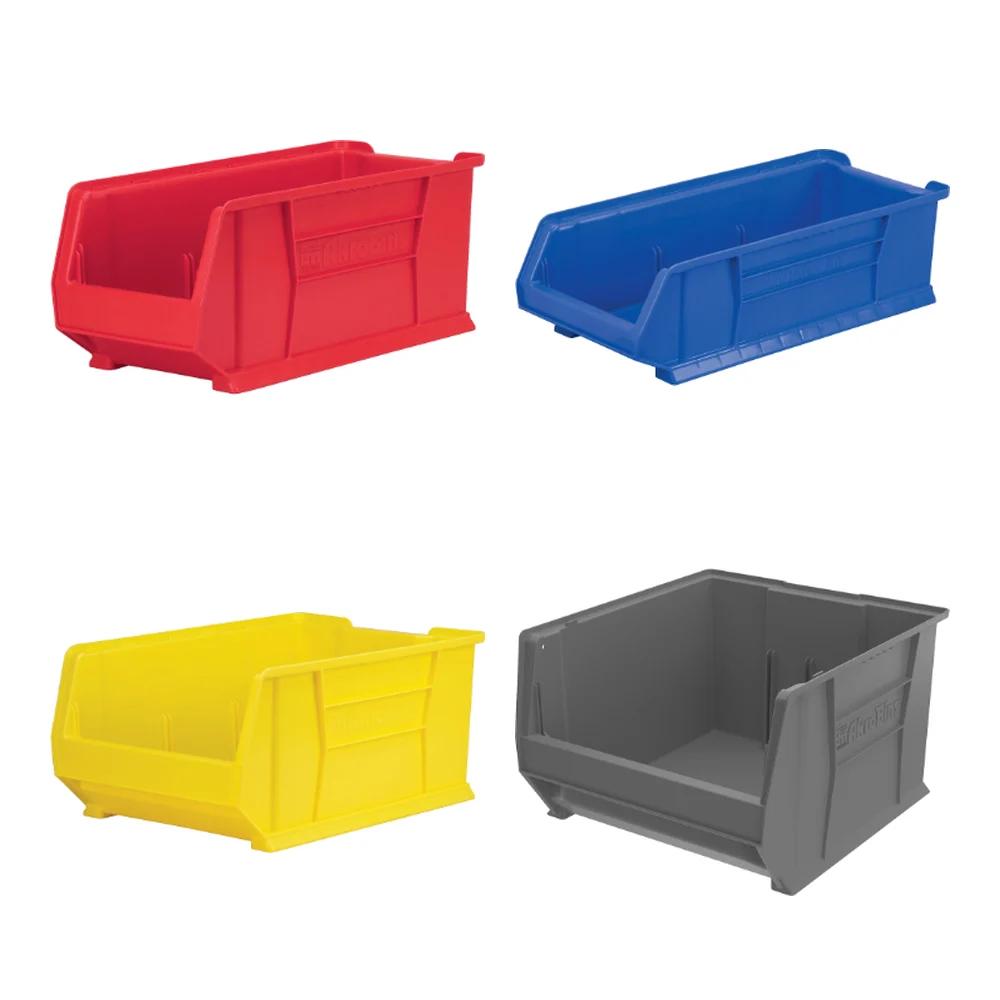

- Standard colours: blue, red, yellow, grey and clear
Super-size stacking bin sizes
Scroll sideways to see all specification columns. L is the front-to-back depth. Capacity is per bin with an evenly distributed load. Order in full carton quantities.
| Part number | Outside L × W × H (in) | Inside L × W × H (in) | Capacity (lbs) | Carton qty | Dividers |
|---|---|---|---|---|---|
| JB30280 | 20 × 12-3/8 × 6 | 16-7/8 × 10-11/16 × 5-3/8 | 200 | 4 | JB40280 |
| JB30281 | 20 × 12-3/8 × 8 | 16-7/8 × 10-11/16 × 7-3/8 | 200 | 3 | JB40281 |
| JB30282 | 20 × 12-3/8 × 12 | 16-7/8 × 10-11/16 × 11-3/8 | 200 | 2 | JB40282 |
| JB30283 | 20 × 18-3/8 × 12 | 16-7/8 × 16-9/16 × 11-3/8 | 300 | 1 | JB40282 |
| JB30284 | 23-7/8 × 8-1/4 × 7 | 20-7/8 × 6-3/8 × 6-1/8 | 200 | 4 | JB40286, JB41284 |
| JB30286 | 23-7/8 × 11 × 7 | 20-7/8 × 9-1/8 × 6-1/8 | 200 | 4 | JB40286, JB41286 |
| JB30287 | 23-7/8 × 11 × 10 | 20-3/4 × 9 × 9-1/8 | 300 | 4 | JB40287, JB41287 |
| JB30288 | 23-7/8 × 16-1/2 × 11 | 20-3/4 × 14-3/8 × 10-1/8 | 300 | 1 | JB40287, JB41288 |
| JB30289 | 23-7/8 × 18-1/4 × 12 | 20-3/4 × 16 × 11-1/8 | 300 | 1 | JB41289 |
| JB30290 | 29-1/4 × 18-3/8 × 12 | 26-1/8 × 16-9/16 × 11-3/8 | 300 | 1 | JB40290 |
| JB30292 | 29-7/8 × 11 × 10 | 26-3/4 × 9 × 9-1/8 | 300 | 4 | JB40292, JB41287 |
| JB30293 | 29-7/8 × 16-1/2 × 11 | 26-3/4 × 14-3/8 × 10-1/8 | 300 | 1 | JB40292, JB41288 |
Ordering notes

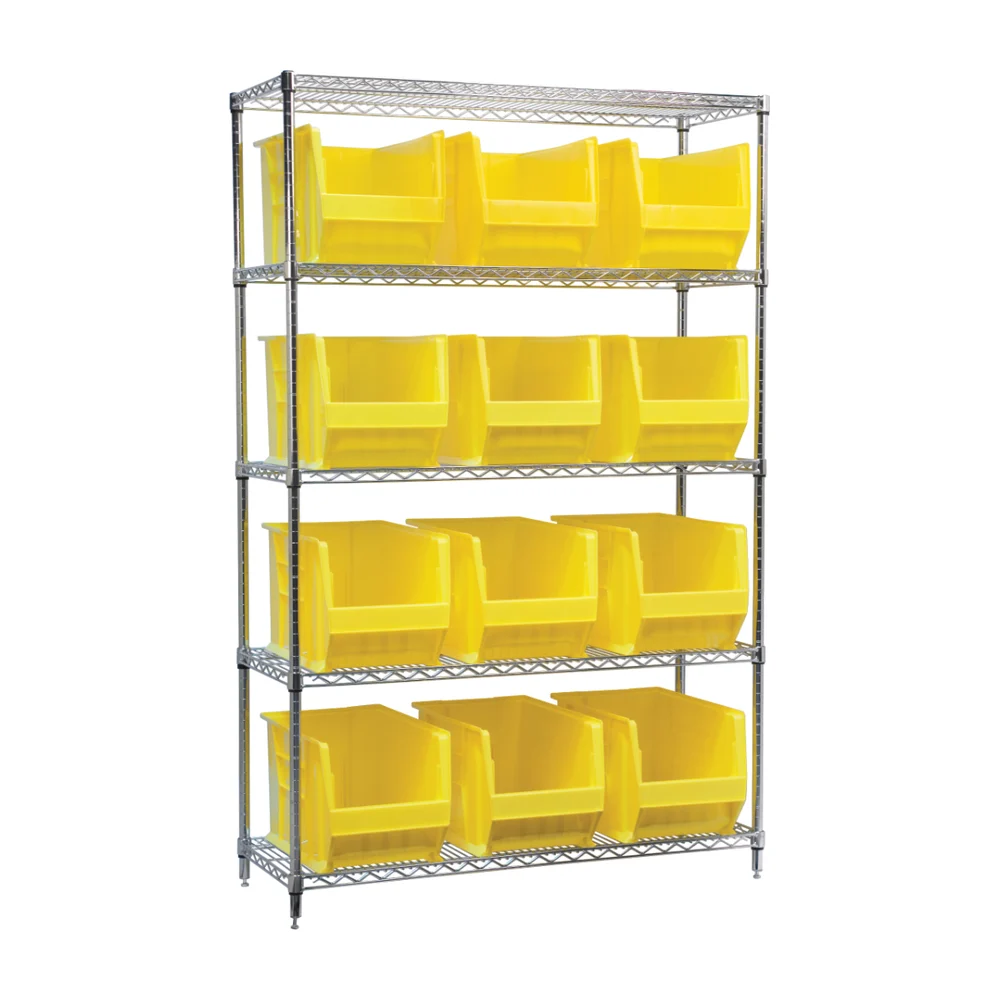

Tell us the part numbers, colours and quantities. We can also quote wire shelving kits sized for these bins. Use the inquiry form below and include your delivery location.
