Product overview
Stock-picking ladder stands are designed to be maneuvered into a work position and folded for compact storage. Their locking mechanism holds the stand in the climbing position, while grip pads provide contact with the floor when set up.
Construction and features
- Ladder locks in the climbing position and folds to 10 inches deep for storage.
- Steps measure 16 by 7-1/2 inches and have a raised, perforated, dimpled non-slip tread.
- Four heavy-duty rubber grip pads.
- Rated for one person at a time.
- Blue powder-coat finish.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Contact us” means we can confirm that value for you. “—” means it does not apply.
| Part number | Configuration | Width (in) | Depth (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Material | Finish | Colour | Wheel Size (in) | Wheel Type | # of Steps (incl. Platform) | Platform Height (in) | Platform Size (in) | Step Angle (°) | Step Width (in) | Handrail (in) | Shipping Size (in) | Height When Handrail Down (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2LNS | Stock-picking ladder stand | 24 | 20 | 43 | 27 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 2 | 20 | 16 x 7.5 | 60 | 16 | 23 | 24 x 11 x 43 | — |
| 3LNS | Stock-picking ladder stand | 24 | 27 | 53 | 35 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 3 | 30 | 16 x 7.5 | 60 | 16 | 23 | 24 x 11 x 53 | — |
| 4LNS | Stock-picking ladder stand | 24 | 34 | 63 | 43 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 4 | 40 | 16 x 7.5 | 60 | 16 | 23 | 24 x 11 x 63 | — |
| 2LNS-FWT | Stock-picking ladder stand with Front Walk Through | 24 | 20 | 43 | 27 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 2 | 20 | 16 x 7.5 | 60 | 16 | 23 | 24 x 11 x 43 | — |
| 3LNS-FWT | Stock-picking ladder stand with Front Walk Through | 24 | 27 | 53 | 35 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 3 | 30 | 16 x 7.5 | 60 | 16 | 23 | 24 x 11 x 53 | — |
| 4LNS-FWT | Stock-picking ladder stand with Front Walk Through | 24 | 34 | 63 | 43 | 400 | steel | Powder Coat | Blue | 5 | Rubber | 4 | 40 | 16 x 7.5 | 60 | 16 | 23 | 24 x 11 x 63 | — |
Available options
Confirm availability and compatibility for the selected model when requesting a quote.
- Front walk-through configuration
Application notes
Rated for one person only. Ensure the stand is locked in its climbing position before use.
Photo and ordering notes

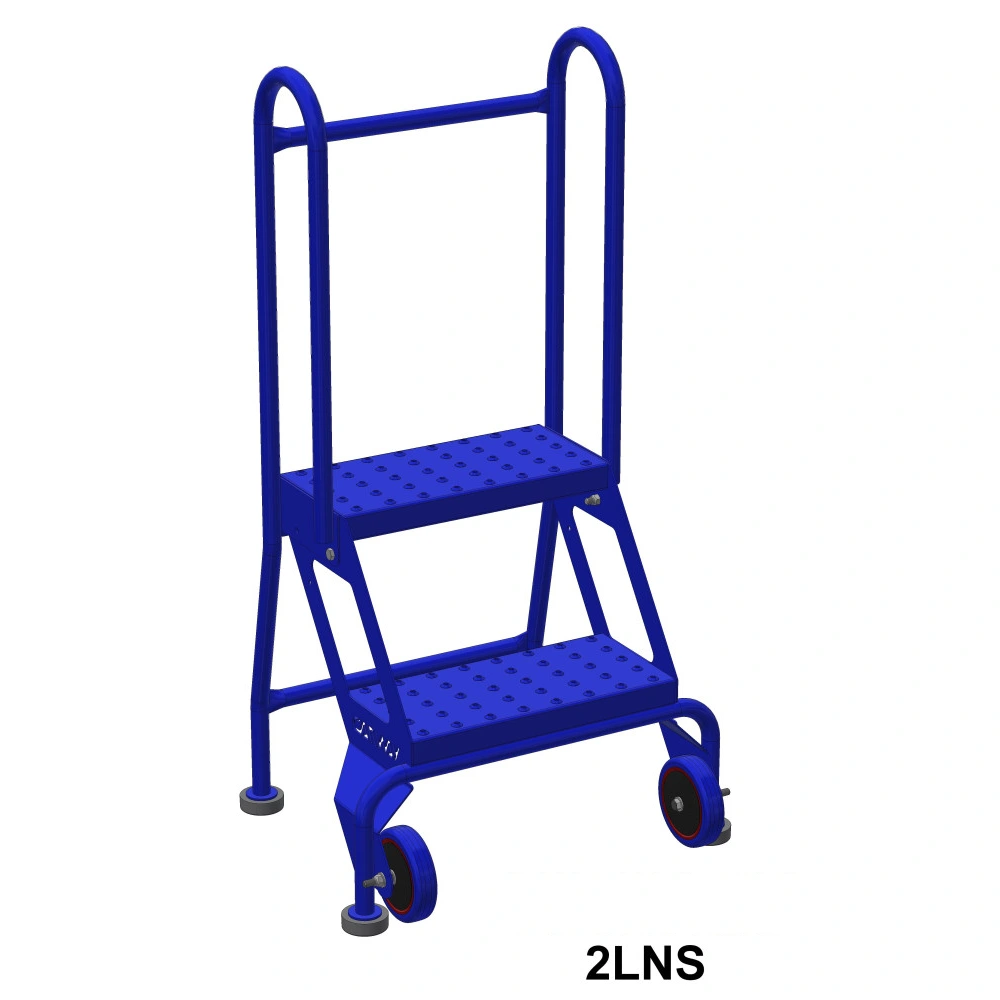

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
