Product overview
These steel drawer cabinets combine a welded 24-gauge galvannealed steel body with a chip-resistant powder-coated finish for long life in busy shops. Every cabinet measures 17 × 11 × 11 inches and holds 9 to 28 industrial-grade plastic drawers. Each drawer has a label holder and a clear window, and included dovetail dividers create up to 8 compartments per drawer. Rounded edges and a rear stop tab help prevent spills. Built-in feet let cabinets stack safely, and optional suspension straps hang them from louvered panels, rails and carts.
Construction and features
- Welded 24-gauge galvannealed steel body, powder-coated
- 17 × 11 × 11 in footprint; drawers are 10-9/16 in deep
- Label holder and clear window on every drawer (one label per drawer included)
- Dovetail dividers included, up to 8 compartments per drawer
- Stackable, wall-mountable, or hang with suspension straps JB98400
- Colour: grey
Steel cabinet sizes
Scroll sideways to see all specification columns.
| Part number | Drawers | Outside W × D × H (in) | Drawer W × H × D (in) | Replacement drawer | Drawer dividers |
|---|---|---|---|---|---|
| JB19228 | 28 | 17 × 11 × 11 | 2-3/16 × 2-1/16 × 10-9/16 | JB20228 | JB40228 (24 per pkg) |

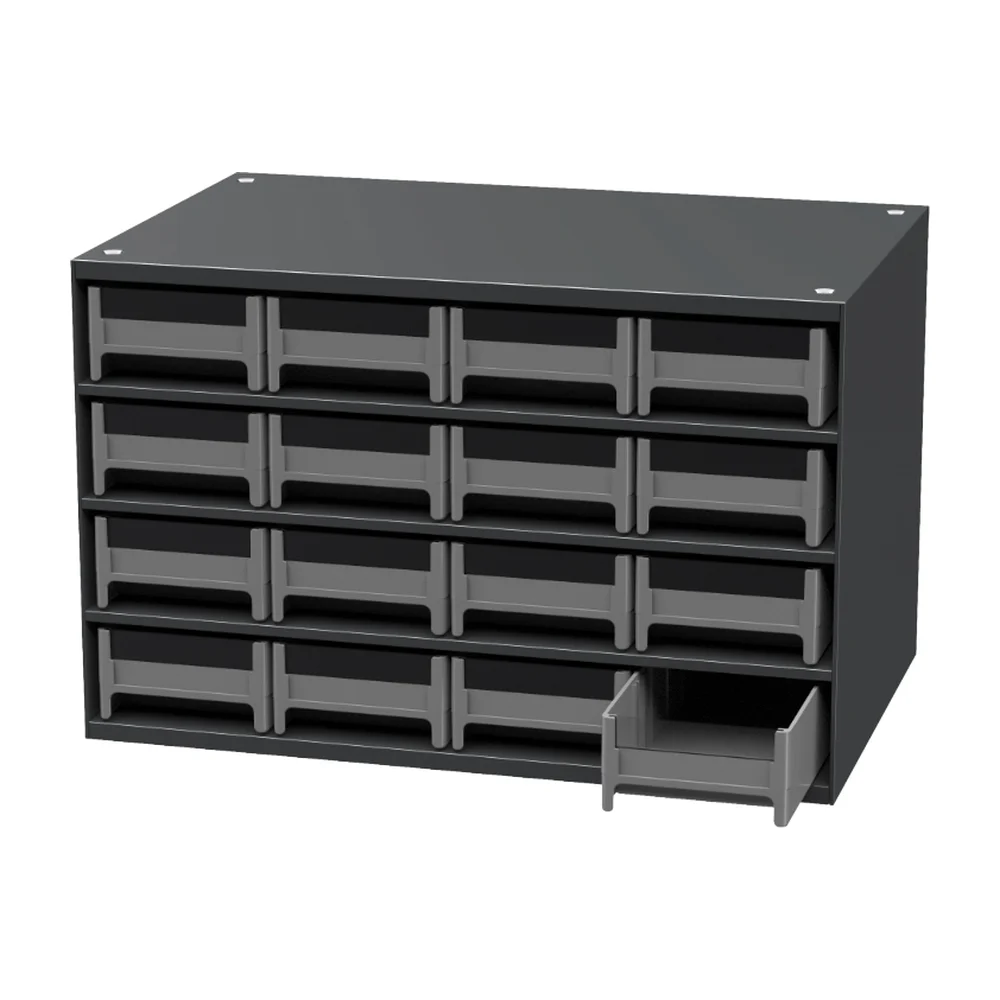

| JB19320 | 20 | 17 × 11 × 11 | 3-3/16 × 2-1/16 × 10-9/16 | JB20320 | JB40320 (30 per pkg) |
| JB19416 | 16 | 17 × 11 × 11 | 4 × 2-1/8 × 10-9/16 | JB20416 | JB40416 (33 per pkg) |

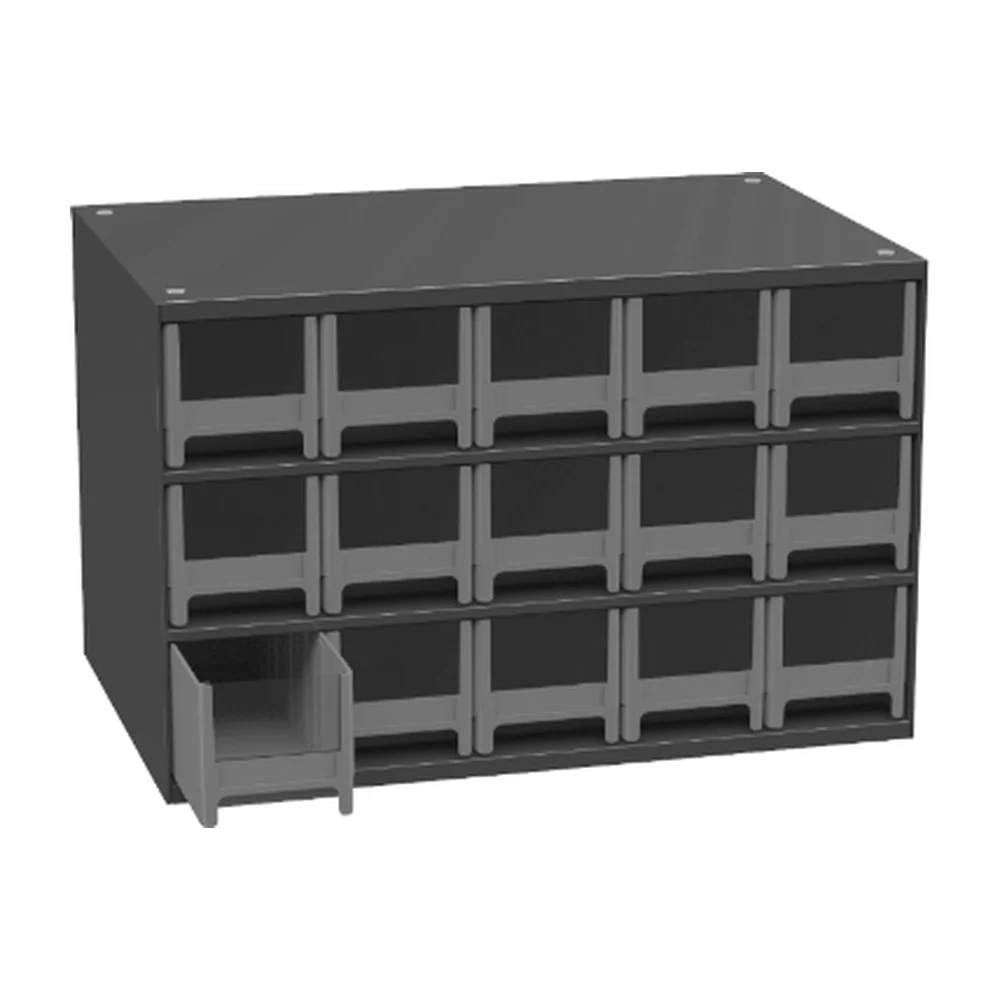

| JB19715 | 15 | 17 × 11 × 11 | 3-3/16 × 3-1/16 × 10-9/16 | JB20715 | JB40715 (30 per pkg) |
| JB19909 | 9 | 17 × 11 × 11 | 5-3/16 × 3-1/16 × 10-9/16 | JB20909 | JB40909 (27 per pkg) |

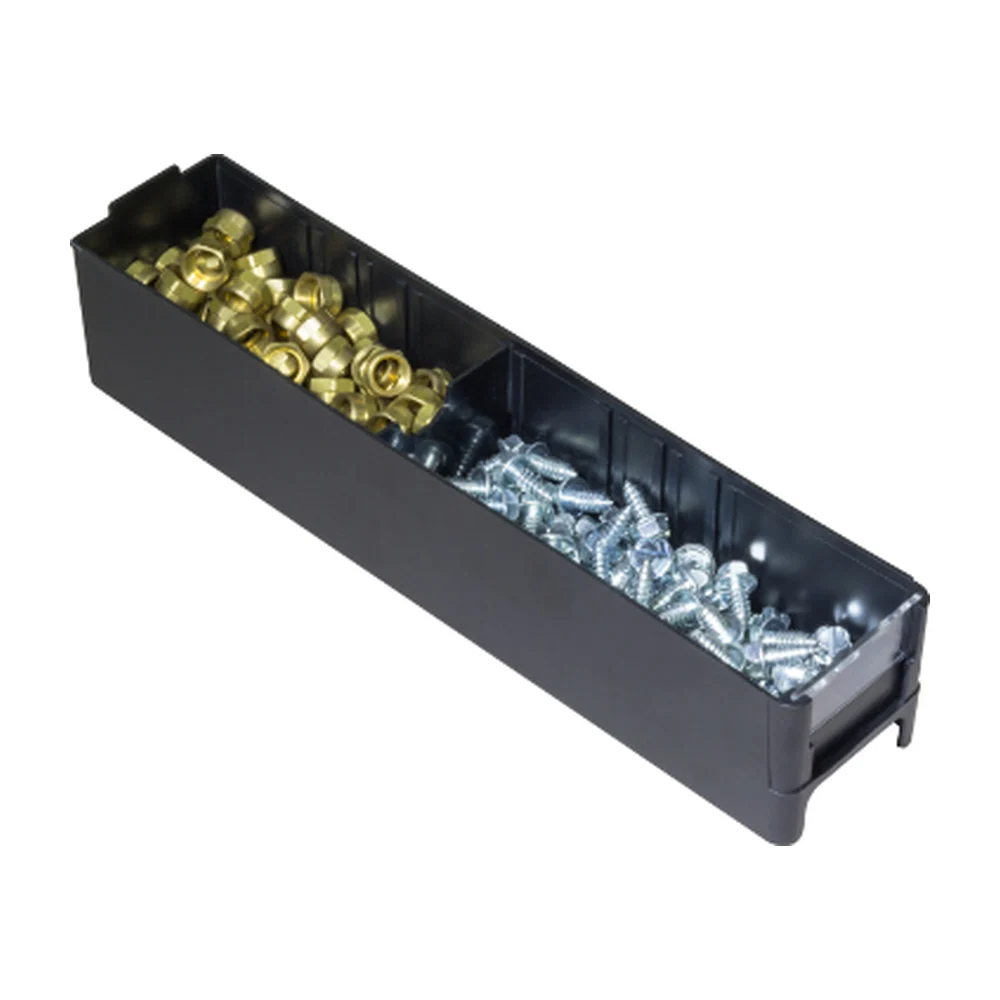

Replacement drawers and straps
| Part number | Description | Size W × H × D (in) | Carton qty |
|---|---|---|---|
| JB20228 | Replacement drawer for JB19228 | 2-3/16 × 2-1/16 × 10-9/16 | 56 |
| JB20320 | Replacement drawer for JB19320 | 3-3/16 × 2-1/16 × 10-9/16 | 40 |
| JB20416 | Replacement drawer for JB19416 | 4 × 2-1/8 × 10-9/16 | 32 |
| JB20715 | Replacement drawer for JB19715 | 3-3/16 × 3-1/16 × 10-9/16 | 30 |
| JB20909 | Replacement drawer for JB19909 | 5-3/16 × 3-1/16 × 10-9/16 | 15 |

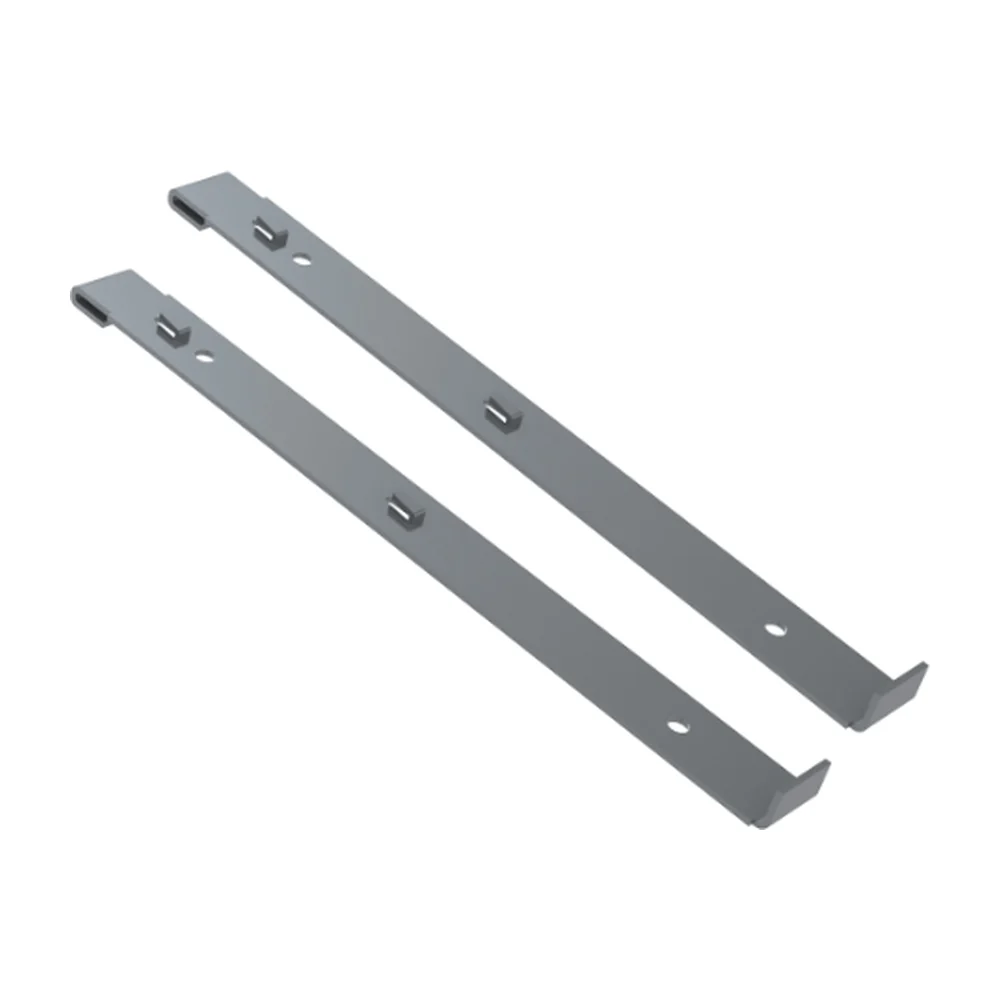

| JB98400 | Suspension straps for louvered panels, rails and carts (set of 2) | – | 1 |
Ordering notes
Include the cabinet part numbers and quantities. Ask about our rotating carousel that holds 20 cabinets. Use the inquiry form below and include your delivery location.
