Product overview
These wagon trucks use a reinforced steel deck and a T-handle steering arrangement with a fifth wheel. Four pneumatic wheels support movement, while welded construction and a blue powder-coated finish complete the family design.
Construction and features
- Steel deck reinforced with 14-gauge material
- T-handle with fifth-wheel steering
- Four pneumatic wheels
- Heavy-duty welded construction
- Blue powder-coated finish
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Deck Height (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Handle Type | Finish | Colour | Wheel Size (in) | Wheel Type | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24x36SDWT-10PN | 24 | 36 | 15 | 30 | 110 | 1000 | T-Handle | Powder Coat | Blue | 10 x 3 | Pneumatic | 42 x 24 x 30 |
| 24x48SDWT-10PN | 24 | 48 | 15 | 30 | 120 | 1000 | T-Handle | Powder Coat | Blue | 10 x 3 | Pneumatic | 54 x 24 x 30 |
| 30x60SDWT-10PN | 30 | 60 | 15 | 30 | 140 | 1000 | T-Handle | Powder Coat | Blue | 10 x 3 | Pneumatic | 66 x 30 x 30 |
| 36x60SDWT-10PN | 36 | 60 | 15 | 30 | 155 | 1000 | T-Handle | Powder Coat | Blue | 10 x 3 | Pneumatic | 66 x 36 x 30 |
Available options
Confirm availability and compatibility for the selected model when requesting a quote.
- Wood deck is also available
Photo and ordering notes

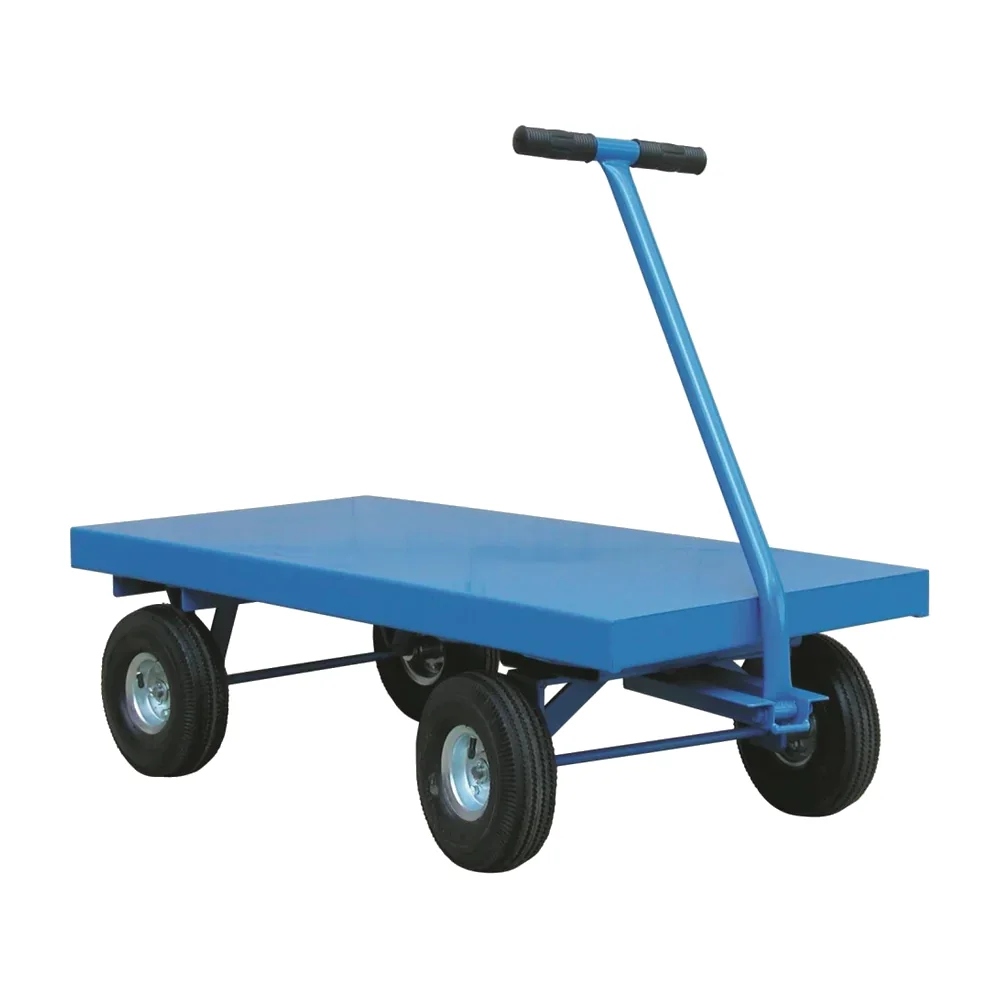

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
