Product overview
These platform trucks pair a smooth aluminum deck with a welded frame for moving goods across work areas. The removable handle can be fitted at either end, while the blue powder-coated finish adds a durable surface to the handle.
Construction and features
- Reinforced aluminum smoothplate deck, 1/8 inch thick
- Removable tube handle fits either end of the truck
- Heavy-duty welded construction
- Blue powder-coated handle finish
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Deck Height (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Handle Type | Finish | Colour | Caster Size (in) | Caster Type | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24x36AS-6MR | 24 | 36 | 10 | 37 | 64 | 1800 | Removable | Powder Coat | Blue | 6 x 2 | Molded Rubber | 40 x 24 x 15 |
| 24x36AS-8MR | 24 | 36 | 12 | 39 | 69 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Molded Rubber | 40 x 24 x 17 |
| 24x48AS-6MR | 24 | 48 | 10 | 37 | 69 | 1800 | Removable | Powder Coat | Blue | 6 x 2 | Molded Rubber | 52 x 24 x 15 |
| 24x48AS-8MR | 24 | 48 | 12 | 39 | 71 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Molded Rubber | 52 x 24 x 17 |
| 30x60AS-6MR | 30 | 60 | 10 | 37 | 79 | 1800 | Removable | Powder Coat | Blue | 6 x 2 | Molded Rubber | 62 x 30 x 15 |
| 30x60AS-8MR | 30 | 60 | 12 | 39 | 79 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Molded Rubber | 62 x 30 x 17 |
| 36x60AS-6MR | 36 | 60 | 10 | 37 | 84 | 1800 | Removable | Powder Coat | Blue | 6 x 2 | Molded Rubber | 62 x 36 x 15 |
| 36x60AS-8MR | 36 | 60 | 12 | 39 | 86 | 2000 | Removable | Powder Coat | Blue | 8 x 2 | Molded Rubber | 62 x 36 x 17 |
Available options
Confirm availability and compatibility for the selected model when requesting a quote.
- Checkerplate deck is also available

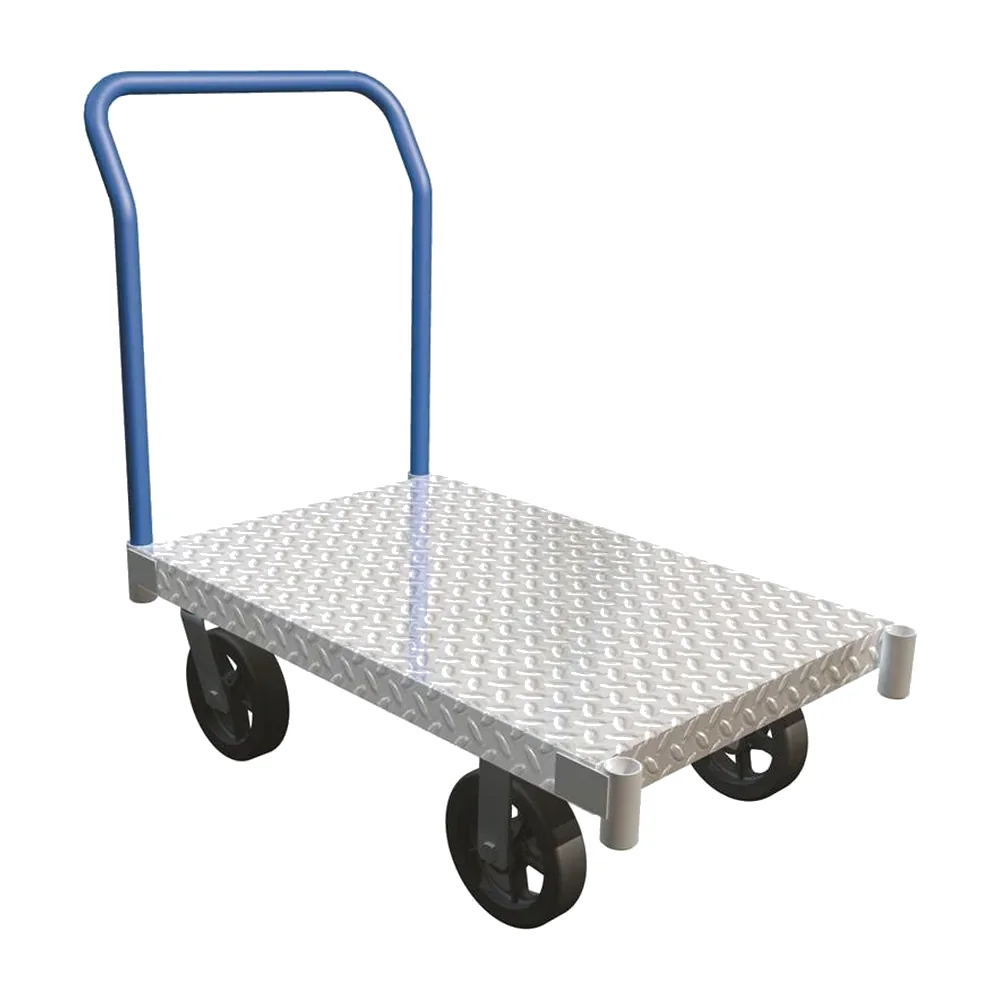

Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
