Short and Long Fork Pallet Trucks
This range covers several non-standard fork lengths in narrow and standard widths. A longer or shorter fork does not automatically suit a pallet; verify support, entry clearance and load centre.
Features and selection
- Short- and long-fork configurations
- Narrow and standard overall widths
- Model-specific capacities
Send the pallet length, width, underside drawing and loaded weight. Confirm that the selected forks support the load correctly without creating clearance problems.
Models and specifications

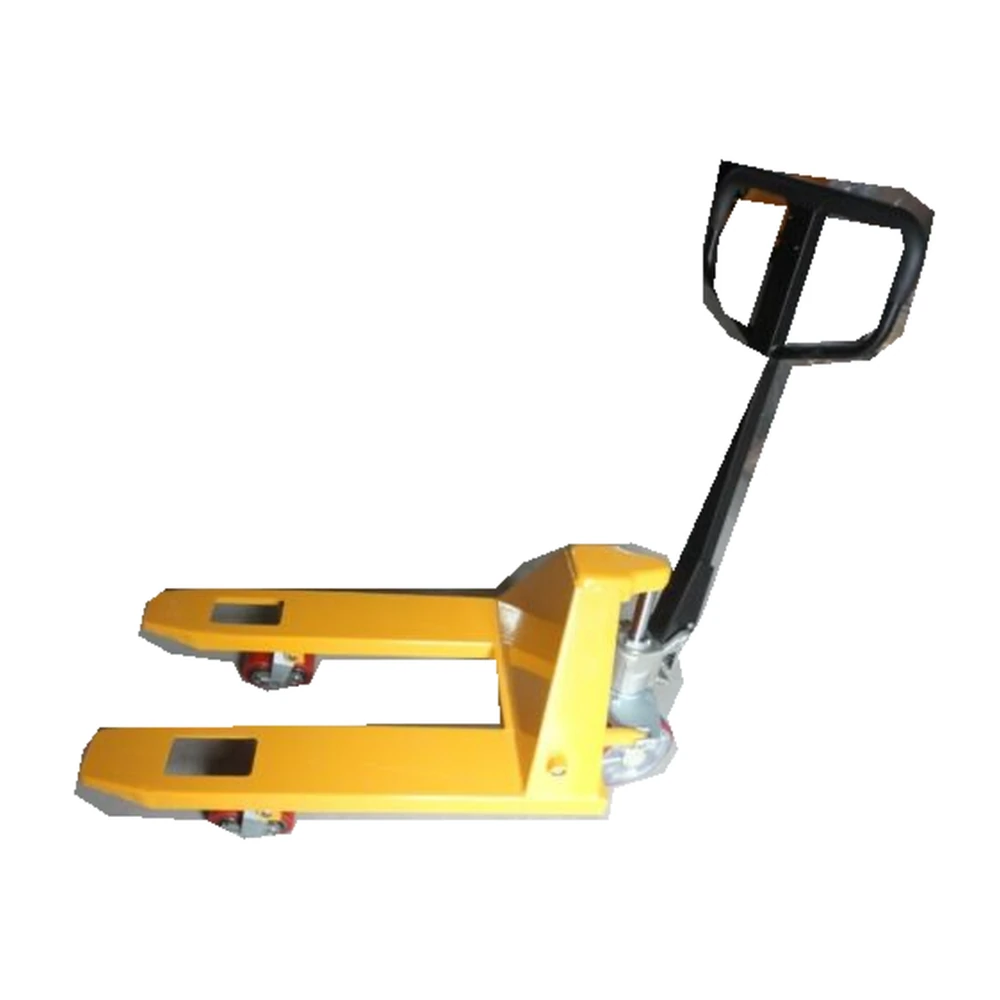

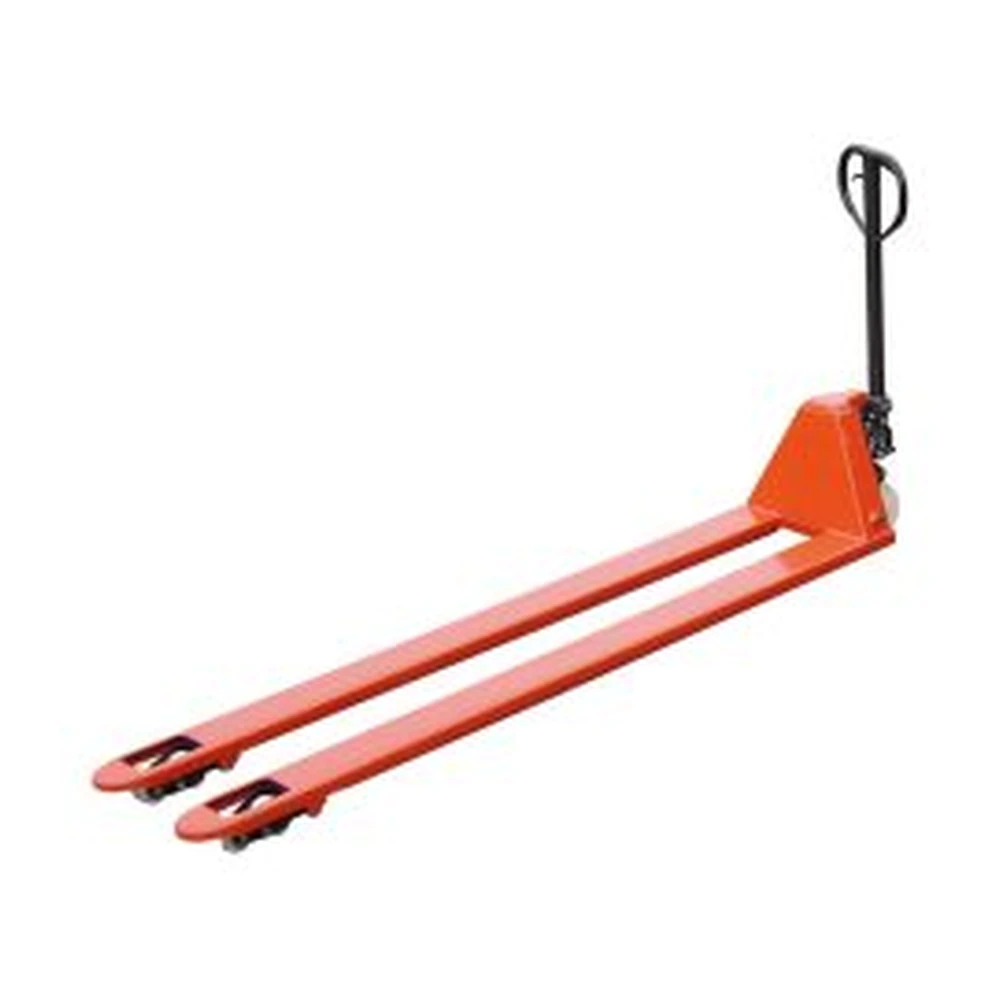

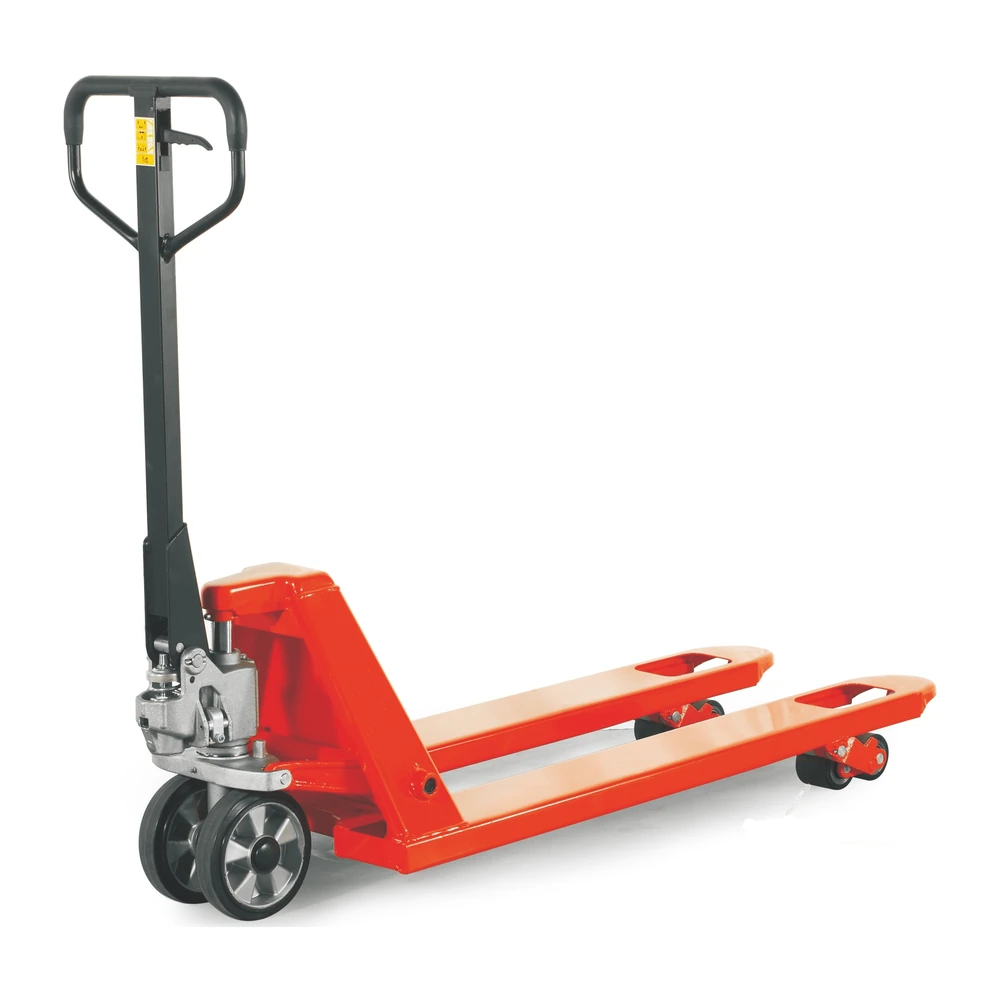

Select a JB part number to view its photo. Representative photos may differ from the selected size or configuration. On smaller screens, swipe the table to see all columns.
| JB part number / photo | Rated capacity | Height / range | Platform or forks | Model details |
|---|---|---|---|---|
| JTBA-HPTAC2020.572 | 4,400 lb | 2.9–7.5 in | 20.5 in W × 72 in L (overall fork width × fork length) | Polyurethane wheels and rollers; other wheel types available |
| JTBA-HPTAC202760 | 4,400 lb | 2.9–7.5 in | 27 in W × 60 in L (overall fork width × fork length) | Polyurethane wheels and rollers; other wheel types available |
| JTBA-HPTAC202772 | 4,400 lb | 2.9–7.5 in | 27 in W × 72 in L (overall fork width × fork length) | Polyurethane wheels and rollers; other wheel types available |
| JTBA-HPTAC202798 | 4,400 lb | 2.9–7.5 in | 27 in W × 98 in L (overall fork width × fork length) | Polyurethane wheels and rollers; other wheel types available |
| JTBA-HPTAC2520.532 | 5,500 lb | 2.9–7.5 in | 20.5 in W × 32 in L (overall fork width × fork length) | Polyurethane wheels and rollers; other wheel types available |
| JTBA-HPTAC2520.536 | 5,500 lb | 2.9–7.5 in | 20.5 in W × 36 in L (overall fork width × fork length) | Polyurethane wheels and rollers; other wheel types available |
| JTBA-HPTAC2520.542 | 5,500 lb | 2.9–7.5 in | 20.5 in W × 42 in L (overall fork width × fork length) | Polyurethane wheels and rollers; other wheel types available |
| JTBA-HPTAC252742 | 5,500 lb | 2.9–7.5 in | 27 in W × 42 in L (overall fork width × fork length) | Polyurethane wheels and rollers; other wheel types available |
Dimensions are in inches unless otherwise stated. Capacity is subject to the selected model’s load centre, load distribution and operating instructions. Height-specific ratings are not interchangeable.
Common questions
Does a longer fork mean a higher capacity?
No. Use the exact model's rated capacity and loading conditions.
How do I select fork length?
Measure the pallet and the load it supports. Check the fork dimensions in the model table rather than estimating from a representative photo.
Request a quote
Send the JB part number, quantity, load weight, load dimensions and required working height. Include your delivery postal code and any pallet-base, power-supply or operating-space requirements so we can check the configuration.
