Product overview

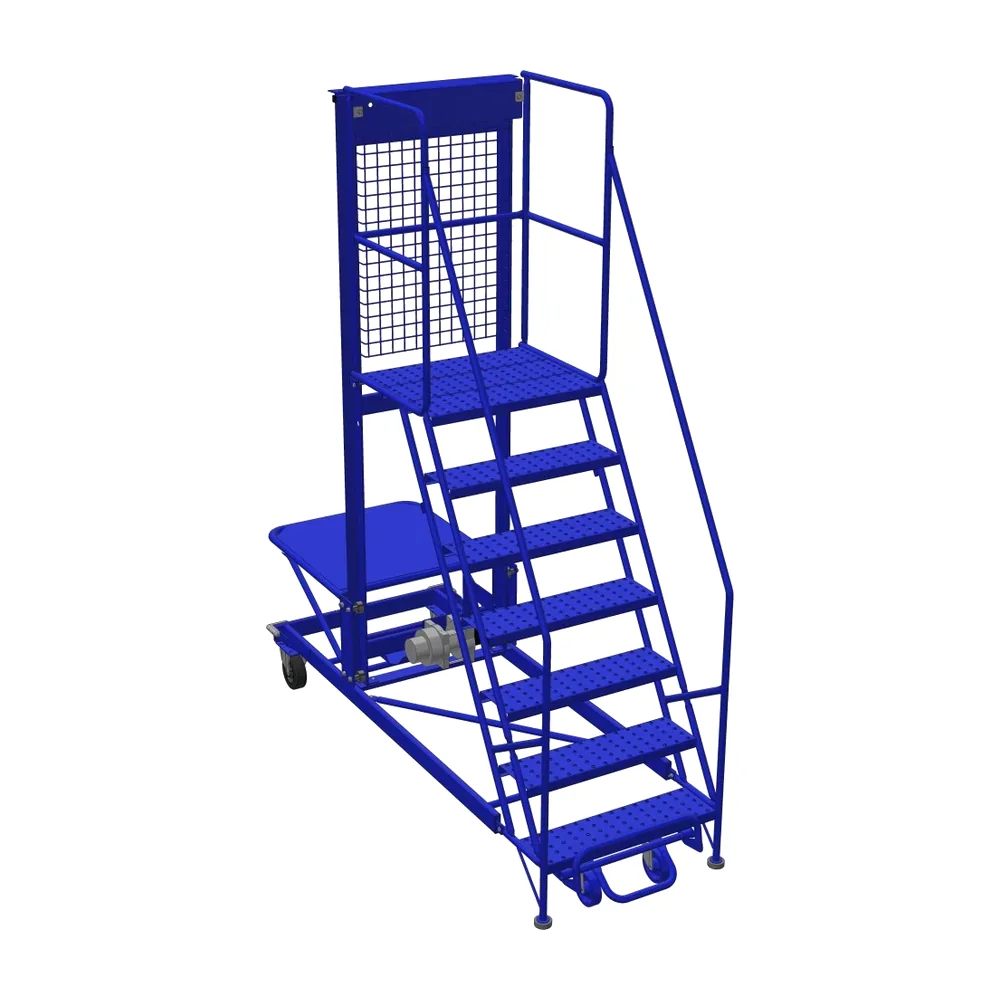

This mobile ladder stand combines an elevated work platform with an integrated cargo shelf for handling materials at height. Its vertical shelf column and reinforced chassis support shelf-lift use, while the modular knock-down construction simplifies compact shipment.
Construction and features
- Cargo shelf rated for 300 lb.
- Shelf column is mounted vertically on the ladder stand's reinforced chassis.
- Positive floor-locking trip step mechanism.
- Steps have raised, perforated, dimpled non-slip treads.
- Blue powder-coat finish.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Contact us” means we can confirm that value for you. “—” means it does not apply.
| Part number | Configuration | Width (in) | Depth (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Material | Finish | Colour | Wheel Size (in) | Wheel Type | Caster Size (in) | Caster Type | # of Steps (incl. Platform) | Platform Height (in) | Platform Size (in) | Step Angle (°) | Step Width (in) | Handrail (in) | Shipping Size (in) | Height When Handrail Down (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7H-ESL | Electric Shelf Lift Mobile Ladder Stand | 35 | 95 | 105 | 455 | 400 | Steel | Powder Coat | Blue | 6" | Mold on rubber | 5 | Rubber Swivel | 7 | 63 | 28 x 22.5 | 60 | 28 | 42 | 113 x 36 x 61 | — |
| 8H-ESL | Electric Shelf Lift Mobile Ladder Stand | 36 | 92 | 114 | 465 | 400 | Steel | Powder Coat | Blue | 6 | Mold on rubber | 5 | Rubber Swivel | 8 | 72 | 28 x 22.5 | 60 | 28 | 42 | 127 x 36 x 61 | — |
| 9H-ESL | Electric Shelf Lift Mobile Ladder Stand | 36 | 97 | 123 | 485 | 400 | Steel | Powder Coat | Blue | 6 | Mold on rubber | 5 | Rubber Swivel | 9 | 81 | 28 x 22.5 | 60 | 28 | 42 | 137 x 36 x 61 | — |
| 10H-ESL | Electric Shelf Lift Mobile Ladder Stand | 35 | 109 | 132 | 515 | 400 | Steel | Powder Coat | Blue | 6 | Mold on rubber | 5 | Rubber Swivel | 10 | 90 | 28 x 22.5 | 60 | 28 | 42 | 148 x 35 x 61 | — |
| 11H-ESL | Electric Shelf Lift Mobile Ladder Stand | 35 | 115 | 141 | 535 | 400 | Steel | Powder Coat | Blue | 6 | Mold on rubber | 5 | Rubber Swivel | 11 | 99 | 28 x 22.5 | 60 | 28 | 42 | 158 x 35 x 61 | — |
| 12H-ESL | Electric Shelf Lift Mobile Ladder Stand | 36 | 114 | 150 | 555 | 400 | Steel | Powder Coat | Blue | 6 | Mold on rubber | 5 | Rubber Swivel | 12 | 108 | 28 x 22.5 | 60 | 28 | 42 | 169 x 36 x 61 | — |
| 7H-MSL | Manual Shelf Lift Mobile Ladder Stand | 35 | 95 | 105 | 355 | 400 | Steel | Powder Coat | Blue | 6 | Mold on rubber | 5 | Rubber Swivel | 7 | 63 | 28 x 22.5 | 60 | 28 | 42 | 113 x 36 x 61 | — |
| 8H-MSL | Manual Shelf Lift Mobile Ladder Stand | 36 | 92 | 114 | 365 | 400 | Steel | Powder Coat | Blue | 6 | Mold on rubber | 5 | Rubber Swivel | 8 | 72 | 28 x 22.5 | 60 | 28 | 42 | 127 x 36 x 61 | — |
| 9H-MSL | Manual Shelf Lift Mobile Ladder Stand | 36 | 97 | 123 | 385 | 400 | Steel | Powder Coat | Blue | 6 | Mold on rubber | 5 | Rubber Swivel | 9 | 81 | 28 x 22.5 | 60 | 28 | 42 | 137 x 36 x 61 | — |
| 10H-MSL | Manual Shelf Lift Mobile Ladder Stand | 35 | 109 | 132 | 415 | 400 | Steel | Powder Coat | Blue | 6 | Mold on rubber | 5 | Rubber Swivel | 10 | 90 | 28 x 22.5 | 60 | 28 | 42 | 148 x 36 x 61 | — |
| 11H-MSL | Manual Shelf Lift Mobile Ladder Stand | 36 | 107 | 141 | 435 | 400 | Steel | Powder Coat | Blue | 6 | Mold on rubber | 5 | Rubber Swivel | 11 | 99 | 28 x 22.5 | 60 | 28 | 42 | 158 x 36 x 61 | — |
| 12H-MSL | Manual Shelf Lift Mobile Ladder Stand | 35 | 120 | 150 | 455 | 400 | Steel | Powder Coat | Blue | 6 | Mold on rubber | 5 | Rubber Swivel | 12 | 108 | 28 x 22.5 | 60 | 28 | 42 | 169 x 35 x 61 | — |
Available options
Confirm availability and compatibility for the selected model when requesting a quote.
- Electric shelf-lift configuration.
- Manual shelf-lift configuration.
Application notes
The stand is rated for a maximum load of 400 lb and one person only. The cargo shelf has a separate 300 lb capacity.
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
