Product overview
These steel self-dumping hoppers use a balanced wedge-box design intended to dump and return to position without assistance under normal operating conditions. Fork pockets support transport, while the guide and latch systems are described as helping control hopper operation.
Construction and features
- Balanced wedge-box design for dumping and return under normal operating conditions.
- Heavy-duty base includes integral fork pockets.
- Box construction is available in 1/8-inch or 3/16-inch sheet metal.
- Self-aligning guide system is designed for smooth operation.
- Positive locking lever latch release system.
- All-welded steel construction with a blue powder-coated finish.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Height (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Finish | Colour | Box Thickness (in) | Shipping Size (in) | Caster Size (in) | Caster Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SDH-050-018 | 24 | 52 | 29 | 36 | 385 | 1/2 cu. yard | Powder Coat | Blue | 1/8 | 32 x 57 x 36 | Not listed | Not listed |
| SDH-050-018-6MR | 24 | 52 | 29 | 42 | 412 | 1800 | Powder Coat | Blue | 1/8 | 32 x 57 x 43 | 6 x 2 | Molded Rubber |
| SDH-050-018-6PH | 24 | 52 | 29 | 42 | 408 | 3600 | Powder Coat | Blue | 1/8 | 32 x 57 x 43 | 6 x 2 | Phenolic |
| SDH-075-018 | 36 | 52 | 29 | 36 | 430 | 3/4 cu. yard | Powder Coat | Blue | 1/8 | 44 x 57 x 36 | Not listed | Not listed |
| SDH-075-018-6MR | 36 | 52 | 29 | 42 | 457 | 1800 | Powder Coat | Blue | 1/8 | 44 x 57 x 43 | 6 x 2 | Molded Rubber |
| SDH-075-018-6PH | 36 | 52 | 29 | 42 | 456 | 3600 | Powder Coat | Blue | 1/8 | 44 x 57 x 43 | 6 x 2 | Phenolic |
| SDH-100-018 | 36 | 61 | 34 | 41 | 575 | 1 cu. yard | Powder Coat | Blue | 1/8 | 44 x 64 x 41 | Not listed | Not listed |
| SDH-100-018-6MR | 36 | 61 | 34 | 47 | 602 | 1800 | Powder Coat | Blue | 1/8 | 44 x 64 x 47 | 6 x 2 | Molded Rubber |
| SDH-100-018-6PH | 36 | 60 | 34 | 49 | 598 | 3600 | Powder Coat | Blue | 1/8 | 44 x 64 x 49 | 6 x 2 | Phenolic |
| SDH-100-316 | 36 | 61 | 34 | 41 | 750 | 1 cu. yard | Powder Coat | Blue | 3/16 | 44 x 64 x 41 | Not listed | Not listed |
| SDH-100-316-6MR | 36 | 61 | 34 | 47 | 777 | 1800 | Powder Coat | Blue | 3/16 | 44 x 64 x 47 | 6 x 2 | Molded Rubber |
| SDH-100-316-6PH | 36 | 61 | 34 | 47 | 783 | 3600 | Powder Coat | Blue | 3/16 | 44 x 64 x 47 | 6 x 2 | Phenolic |
| SDH-150-018 | 54 | 61 | 34 | 41 | 630 | 1-1/2 cu. yard | Powder Coat | Blue | 1/8 | 59 x 64 x 41 | Not listed | Not listed |
| SDH-150-018-6MR | 54 | 61 | 34 | 47 | 657 | 1800 | Powder Coat | Blue | 1/8 | 59 x 64 x 47 | 6 x 2 | Molded Rubber |
| SDH-150-018-6PH | 54 | 61 | 34 | 47 | 653 | 3600 | Powder Coat | Blue | 1/8 | 59 x 64 x 47 | 6 x 2 | Phenolic |
| SDH-150-316 | 54 | 61 | 34 | 41 | 825 | 1-1/2 cu. yard | Powder Coat | Blue | 3/16 | 59 x 64 x 41 | Not listed | Not listed |
| SDH-150-316-6MR | 54 | 61 | 34 | 47 | 852 | 1800 | Powder Coat | Blue | 3/16 | 59 x 64 x 47 | 6 x 2 | Molded Rubber |
| SDH-150-316-6PH | 54 | 61 | 34 | 47 | 858 | 3600 | Powder Coat | Blue | 3/16 | 59 x 64 x 47 | 6 x 2 | Phenolic |
| SDH-200-018 | 72 | 61 | 34 | 41 | 685 | 2 cu. yard | Powder Coat | Blue | 1/8 | 77 x 64 x 41 | Not listed | Not listed |
| SDH-200-018-6MR | 72 | 61 | 34 | 47 | 712 | 1800 | Powder Coat | Blue | 1/8 | 77 x 64 x 47 | 6 x 2 | Molded Rubber |
| SDH-200-018-6PH | 72 | 61 | 34 | 47 | 708 | 3600 | Powder Coat | Blue | 1/8 | 77 x 64 x 47 | 6 x 2 | Phenolic |
| SDH-200-316 | 72 | 61 | 34 | 41 | 900 | 2 cu. yard | Powder Coat | Blue | 3/16 | 77 x 64 x 41 | Not listed | Not listed |
| SDH-200-316-6MR | 72 | 61 | 34 | 47 | 927 | 1800 | Powder Coat | Blue | 3/16 | 77 x 64 x 47 | 6 x 2 | Molded Rubber |
| SDH-200-316-6PH | 72 | 61 | 34 | 47 | 923 | 3600 | Powder Coat | Blue | 3/16 | 77 x 64 x 47 | 6 x 2 | Phenolic |
Application notes
The stated dump-and-return behavior applies under normal operating conditions; confirm that the hopper configuration suits the intended application.
Photo and ordering notes

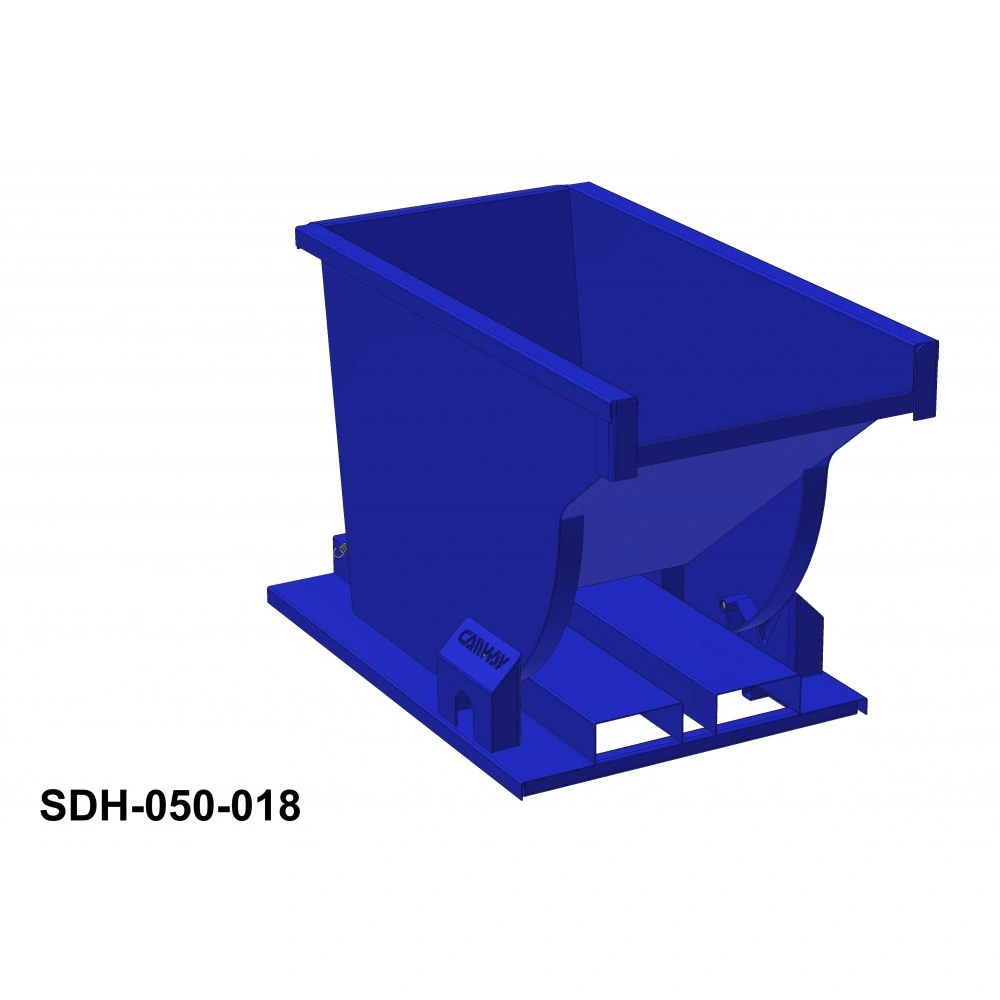

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
