Product overview
Self-closing ladder safety gates swing open as a worker passes through, then close gently behind them so the opening is never left unprotected. They provide top and mid-rail protection at ladderways, mezzanine edges and elevated platforms, reducing the risk of falls.
Construction and features
- Provides top-rail and mid-rail protection at the opening.
- Each gate adjusts up to 10 inches in width to fit the opening.
- Controlled, soft-closing action prevents the gate from slamming.
- Adjustable spring torque lets you set how quickly the gate closes.
- Standard mounting hardware fits round pipe up to 2 inches O.D. or square tubing up to 2 x 2 inches.
- Can also be match-drilled directly to an existing wall or railing system.
- Tested to OSHA 1910.28 and 1910.29, ANSI A1264.1-2017 and ANSI A14.3, and Canada OHS Regulations SOR/86-304 Part II, exceeding the loading requirement by two times.
- Springs are tested to over 1 million cycles and are guaranteed for the life of the gate.
Models
Choose the width range that matches your opening, then the finish that suits your environment. Galvanized and stainless steel gates are well suited to outdoor, wet or washdown areas.
Widths are in inches.
| Part number | Fits opening width (in) | Finish |
|---|---|---|

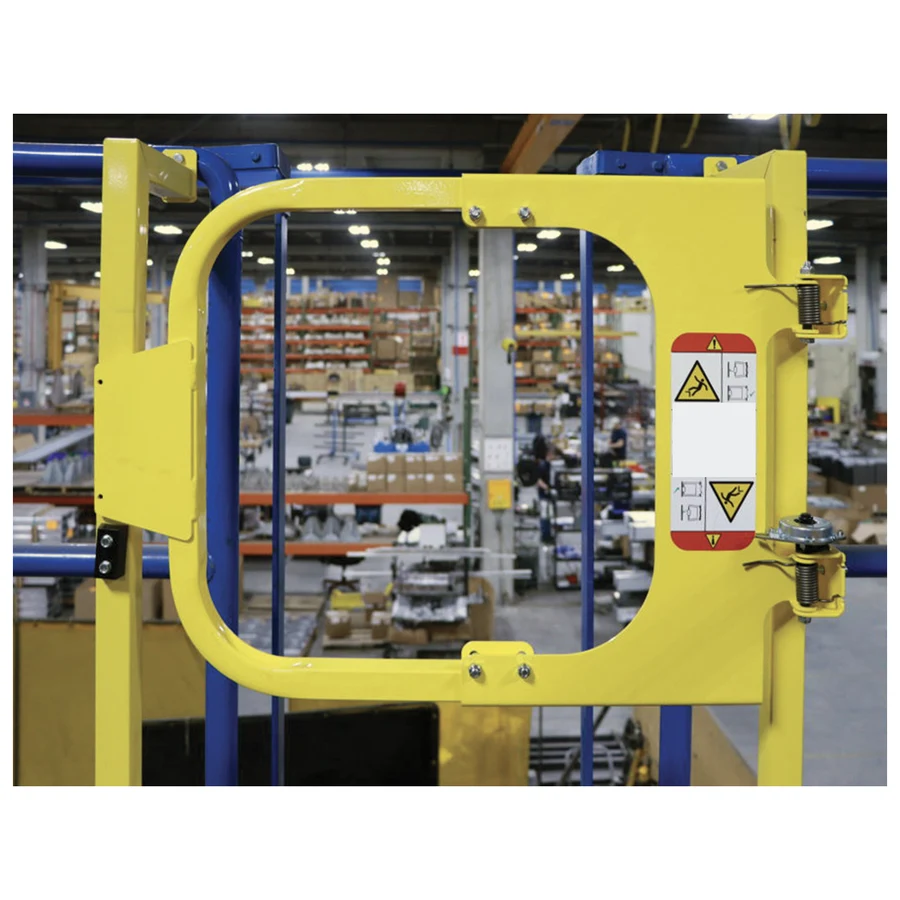

| JMBP709 | 15 to 20 | Powder-coated yellow |
| JMBP710 | 20 to 30 | Powder-coated yellow |
| JMBP711 | 30 to 40 | Powder-coated yellow |
| JMBP712 | 40 to 50 | Powder-coated yellow |

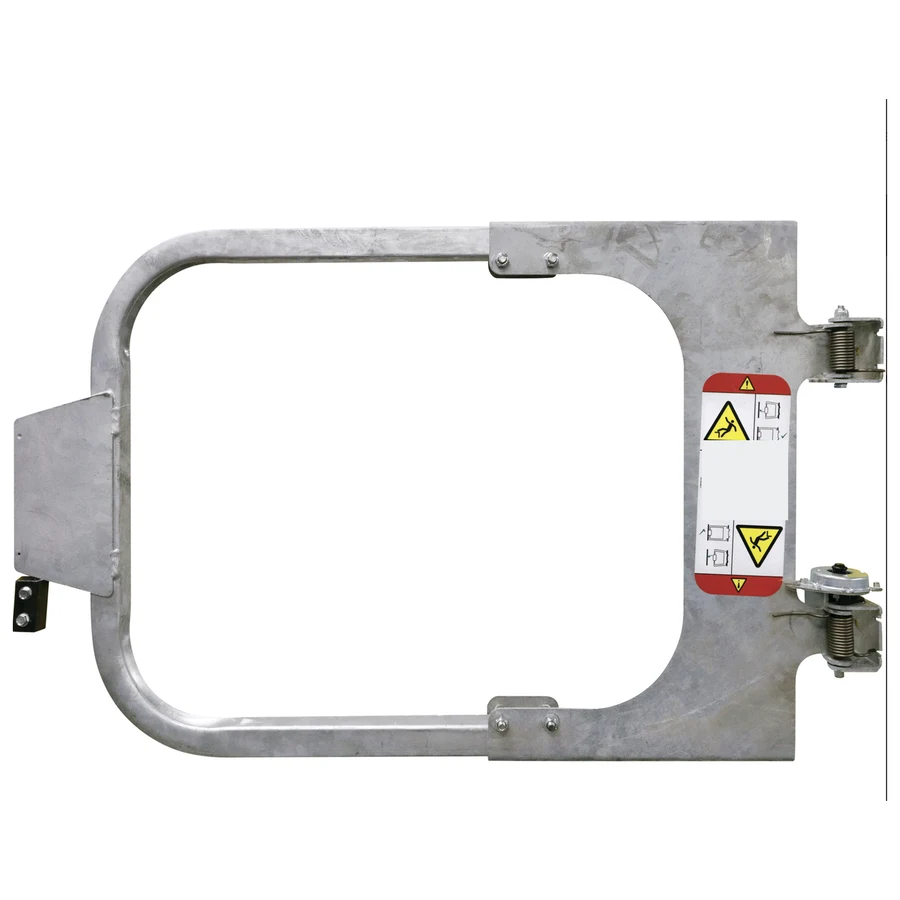

| JMBP713 | 15 to 20 | Hot-dipped galvanized |
| JMBP714 | 20 to 30 | Hot-dipped galvanized |
| JMBP715 | 30 to 40 | Hot-dipped galvanized |
| JMBP716 | 40 to 50 | Hot-dipped galvanized |
| JMBP717 | 15 to 20 | 304 stainless steel, seal welded |
| JMBP718 | 20 to 30 | 304 stainless steel, seal welded |
| JMBP719 | 30 to 40 | 304 stainless steel, seal welded |
| JMBP720 | 40 to 50 | 304 stainless steel, seal welded |
Ordering notes
Measure the clear width of the opening and the size and shape of the posts or rail you are mounting to. Contact us if you are not sure which width range or finish to choose.
