Product overview
These medium-duty platform trucks combine a reinforced steel deck with a removable handle for everyday material movement. The handle can be fitted at either end to suit the direction of travel, and welded construction provides a durable platform truck design.
Construction and features
- Deck is reinforced with 14-gauge steel.
- Removable 1-5/16-inch-diameter tube handle fits at either end.
- Welded construction supports material handling.
- Blue powder coat finish.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Deck Height (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Handle Type | Finish | Colour | Caster Size (in) | Caster Type | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24x36SD-5PHL | 24 | 36 | 8-3/4 | 35 | 57 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/2 | Phenolic | 40 x 24 x 14 |
| 24x36SD-5PUPL | 24 | 36 | 8-3/4 | 35 | 57 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/2 | Polyurethane on plastic | 40 x 24 x 14 |
| 24x36SD-5RSX | 24 | 36 | 8-3/4 | 35 | 57 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 40 x 24 x 14 |
| 24x48SD-5PHL | 24 | 48 | 8-3/4 | 35 | 67 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/2 | Phenolic | 52 x 24 x 14 |
| 24x48SD-5PUPL | 24 | 48 | 8-3/4 | 35 | 67 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/2 | Polyurethane on Plastic | 52 x 24 x 14 |
| 24x48SD-5RSX | 24 | 48 | 8-3/4 | 35-1/2 | 67 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 55 x 24 x 14 |
| 24x60SD-5PHL | 24 | 60 | 8-3/4 | 35 | 77 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/2 | Phenolic | 64 x 24 x 14 |
| 24x60SD-5PUPL | 24 | 60 | 8-3/4 | 35 | 77 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/2 | Polyurethane on Plastic | 64 x 24 x 14 |
| 24x60SD-5RSX | 24 | 60 | 8-3/4 | 35 | 77 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 64 x 24 x 14 |
| 30x48SD-5PHL | 30 | 48 | 9-1/4 | 36 | 77 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/2 | Phenolic | 52 x 30 x 14 |
| 30x48SD-5PUPL | 30 | 48 | 9-1/4 | 36 | 77 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/2 | Polyurethane on Plastic | 52 x 30 x 14 |
| 30x48SD-5RSX | 30 | 48 | 9-1/4 | 36 | 77 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 55 x 30 x 14 |
| 30x60SD-5PHL | 30 | 60 | 9-1/4 | 36 | 92 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/2 | Phenolic | 64 x 30 x 14 |
| 30x60SD-5PUPL | 30 | 60 | 9-1/4 | 36 | 92 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/2 | Polyurethane on Plastic | 64 x 30 x 14 |
| 30x60SD-5RSX | 30 | 60 | 9-1/4 | 36 | 92 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 64 x 30 x 14 |
| 36x60SD-5PHL | 36 | 60 | 9-1/4 | 36 | 102 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/2 | Phenolic | 64 x 36 x 14 |
| 36x60SD-5PUPL | 36 | 60 | 9-1/4 | 36 | 102 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/2 | Polyurethane on Plastic | 64 x 36 x 14 |
| 36x60SD-5RSX | 36 | 60 | 9-1/4 | 36 | 102 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 64 x 36 x 14 |
| 36x72SD-5PHL | 36 | 72 | 9-1/4 | 36 | 114 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/2 | Phenolic | 76 x 36 x 14 |
| 36x72SD-5PUPL | 36 | 72 | 9-1/4 | 36 | 114 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/2 | Polyurethane on Plastic | 76 x 36 x 14 |
| 36x72SD-5RSX | 36 | 72 | 9-1/4 | 36 | 114 | 1200 | Removable | Powder Coat | Blue | 5 x 1-1/2 | Blue Rubber | 76 x 36 x 14 |
Photo and ordering notes

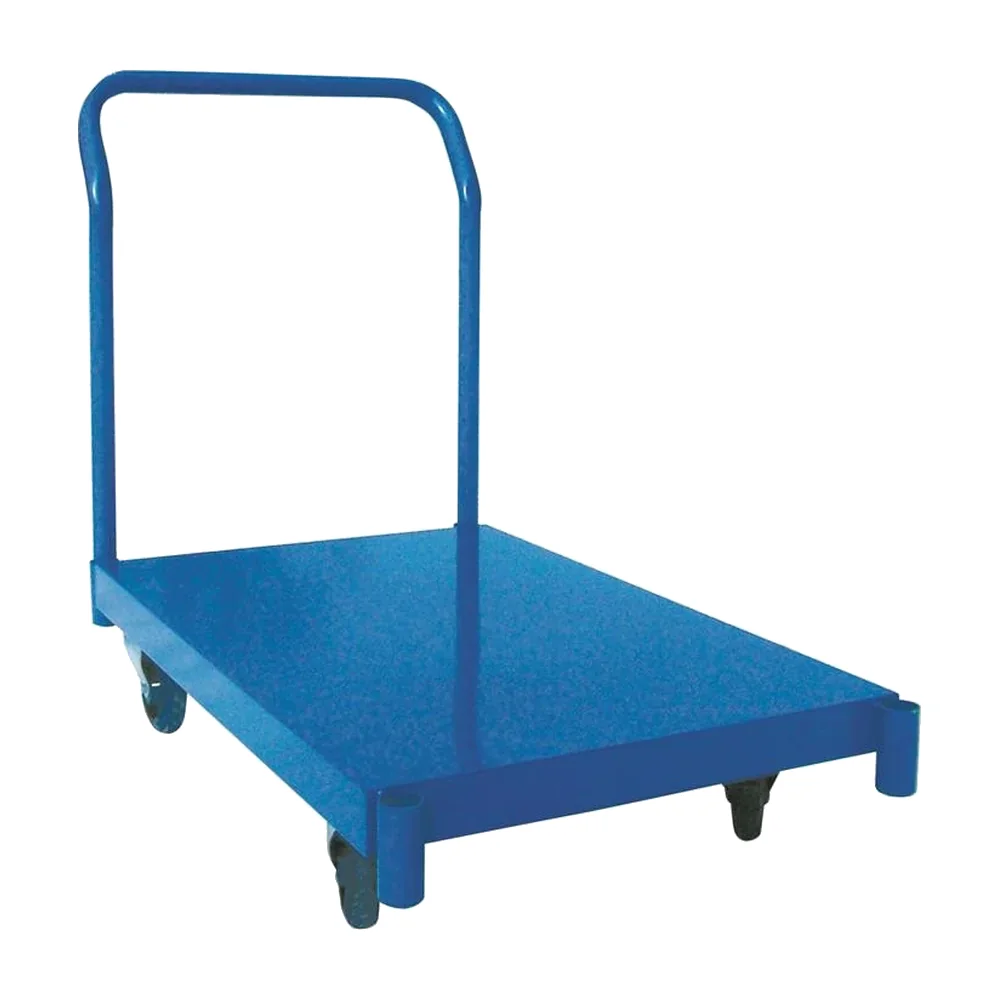

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
