Product overview
Rolling work platforms offer a larger standing area for people working with equipment at height. The shared platform size is 36 by 38 inches, and the family description identifies the platform as accommodating two people and equipment.
Construction and features
- 36-by-38-inch platform is shared across the family.
- Rated for a total load that includes people and equipment.
- Steps use 9-1/2-inch diamond-channel grating tread.
- Positive floor-locking trip-step mechanism.
- Blue powder-coated steel construction with a 50-degree ladder angle.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Contact us” means we can confirm that value for you. “—” means it does not apply.
| Part number | Configuration | Width (in) | Depth (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Material | Finish | Colour | Wheel Size (in) | Wheel Type | Caster Size (in) | Caster Type | # of Steps (incl. Platform) | Platform Height (in) | Platform Size (in) | Step Angle (°) | Step Width (in) | Handrail (in) | Shipping Size (in) | Height When Handrail Down (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3SH-RWP | Rolling Work Platform | 46 | 64 | 72 | 105 | 800 | Steel | Powder Coat | Blue | 6 | Polyolefin | 5 | Rubber | 3 | 30 | 36 x 38 | 50 | 36 | 42 | 64 x 46 x 72 | — |
| 4SH-RWP | Rolling Work Platform | 46 | 73 | 82 | 124 | 800 | Steel | Powder Coat | Blue | 6 | Polyolefin | 5 | Rubber | 4 | 40 | 36 x 38 | 50 | 36 | 42 | 73 x 46 x 82 | — |
| 5SH-RWP | Rolling Work Platform | 46 | 82 | 92 | 143 | 800 | Steel | Powder Coat | Blue | 6 | Polyolefin | 5 | Rubber Swivel | 5 | 50 | 36 x 38 | 50 | 36 | 42 | 82 x 46 x 92 | — |
| 6SH-RWP | Rolling Work Platform | 46 | 90 | 102 | 162 | 800 | Steel | Powder Coat | Blue | 6 | Polyolefin | 5 | Rubber Swivel | 6 | 60 | 36 x 38 | 50 | 36 | 42 | 128 x 46 x 60 | — |
| 7SH-RWP | Rolling Work Platform | 46 | 98 | 112 | 181 | 800 | Steel | Powder Coat | Blue | 6 | Polyolefin | 5 | Rubber Swivel | 7 | 70 | 36 x 38 | 50 | 36 | 42 | 143 x 46 x 60 | — |
Application notes
The platform is described for two people and equipment; keep the combined load within the selected unit's rated limit.
Photo and ordering notes

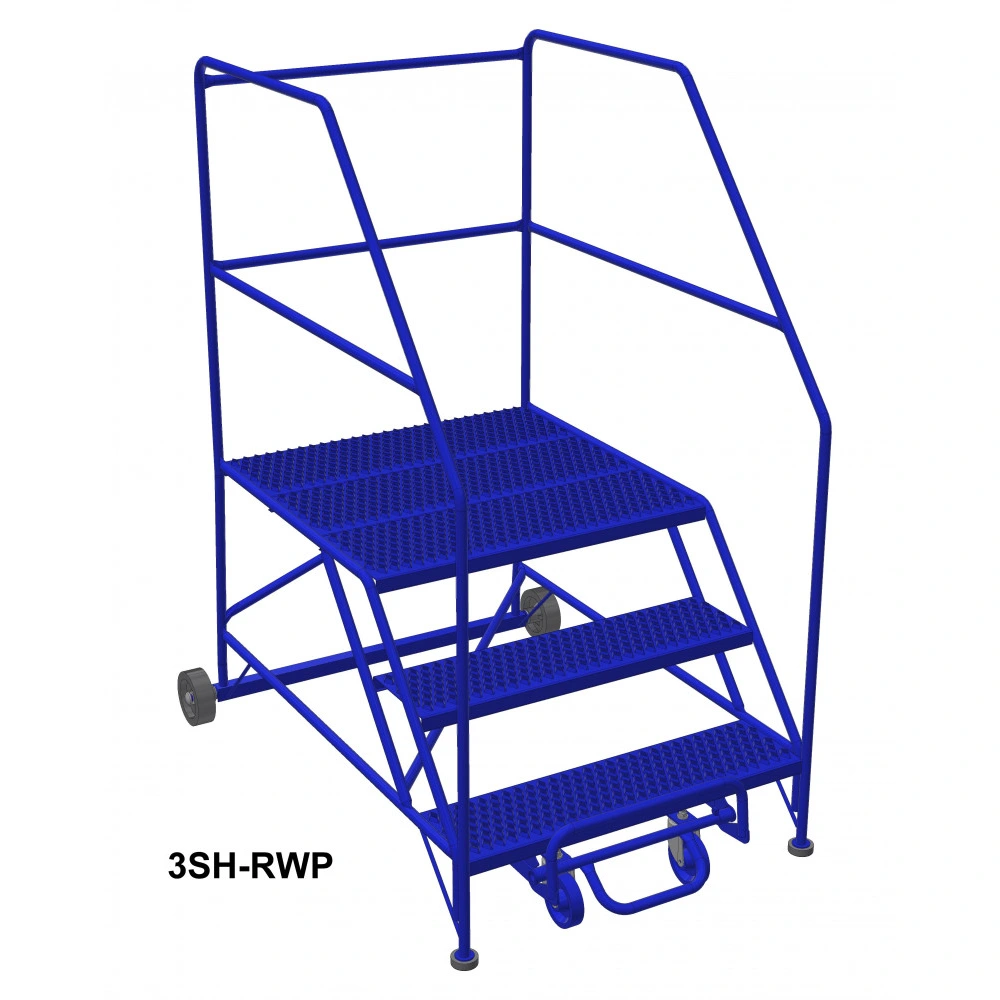

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
