Product overview
Racking aisle protectors wrap around the ends of pallet rack rows to absorb impacts from forklifts, pallet trucks and other in-plant vehicles before they reach the uprights. Protecting the end of the row helps prevent costly rack damage and keeps your aisles safer.
Construction and features
- All-welded steel construction with a safety yellow finish.
- Corner wraps are 16 inches high, made from 5 x 3 x 1/4-inch angle.
- Holes for anchoring to the floor; floor anchors are not included.

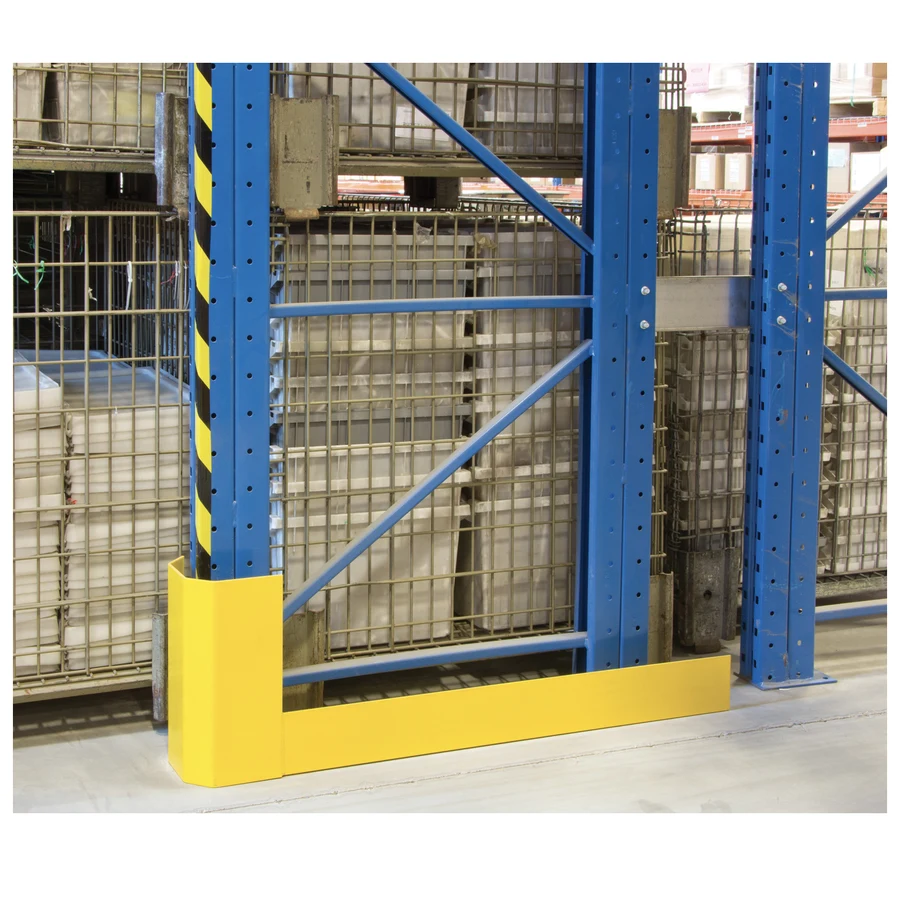

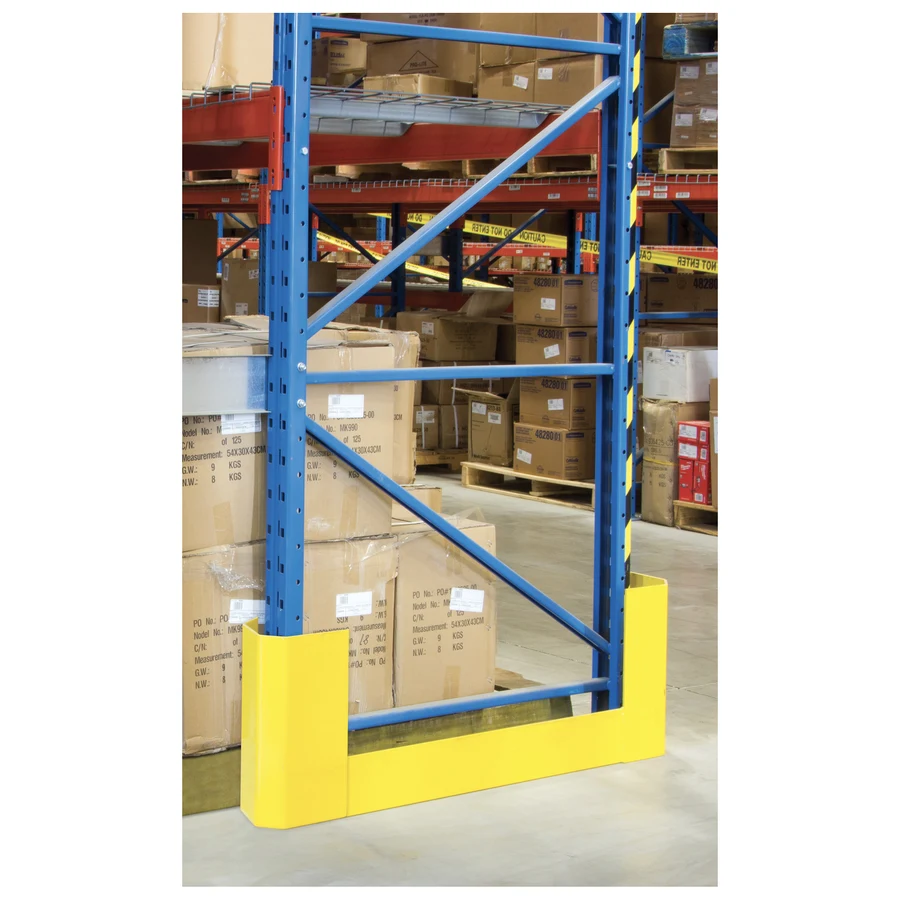

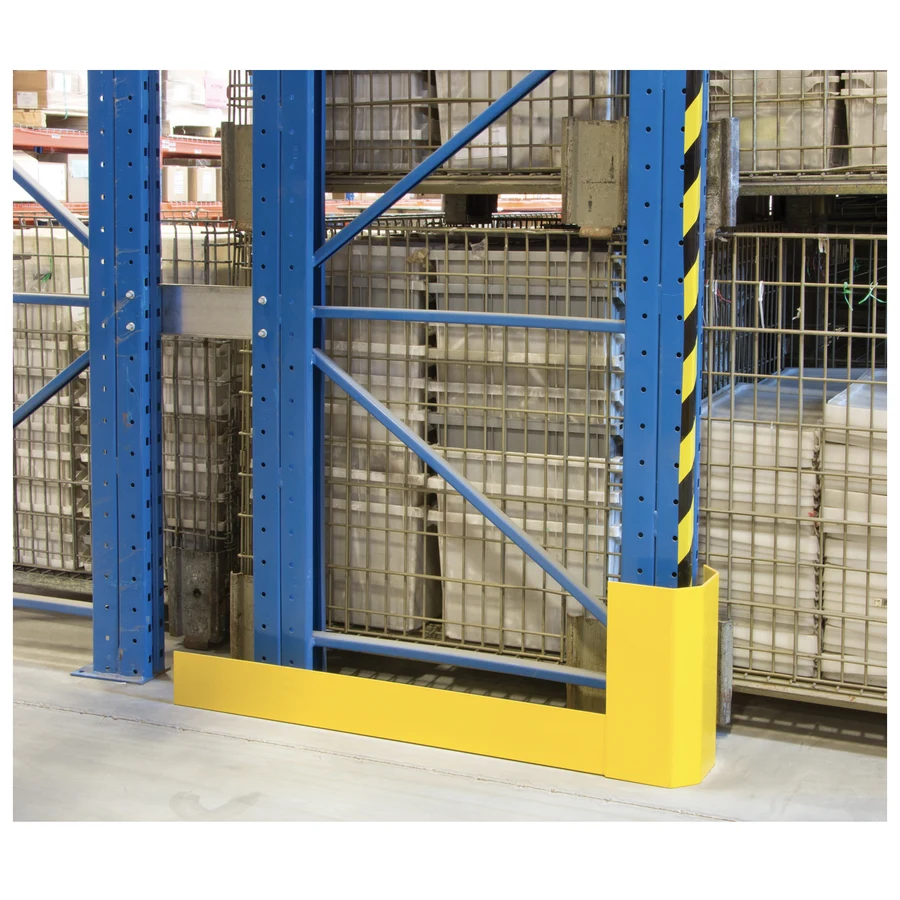

- Single wraps protect one upright, left or right; double wraps protect both uprights at the end of a row.
- Can be customized to other lengths and depths.
Models
Choose a style and the size that matches the depth of your rack frame.
Lengths and depths are in inches.
| Part number | Style | Overall length (in) | Fits upright depth (in) |
|---|---|---|---|
| JRBN059 | Single wrap, left | 50 | 42 |
| JRBN060 | Single wrap, right | 50 | 42 |
| JRBN061 | Single wrap, left | 56 | 48 |
| JRBN062 | Single wrap, right | 56 | 48 |
| JRBN063 | Double wrap | 47 | 42 |
| JRBN064 | Double wrap | 53 | 48 |
Ordering notes
Let us know your frame depth and how many row ends you need to protect. Contact us for custom sizes and floor anchors.
