Product overview

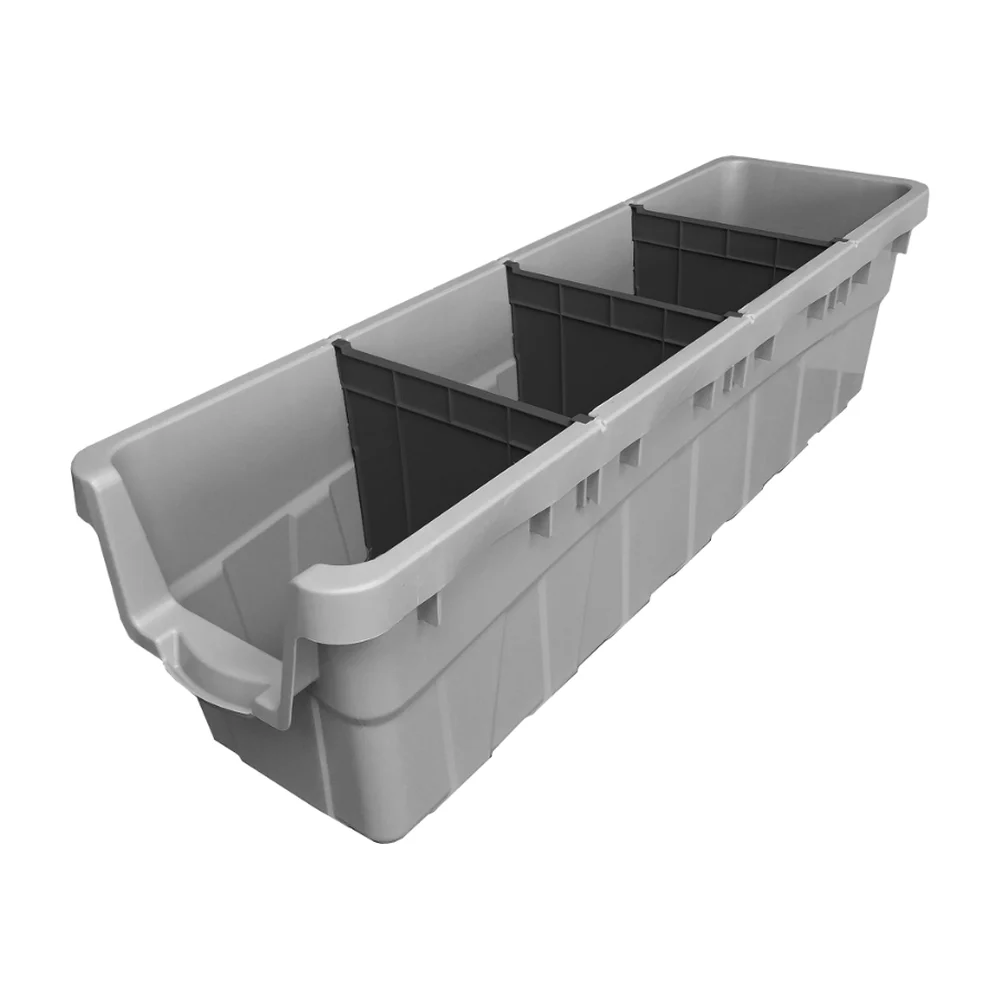

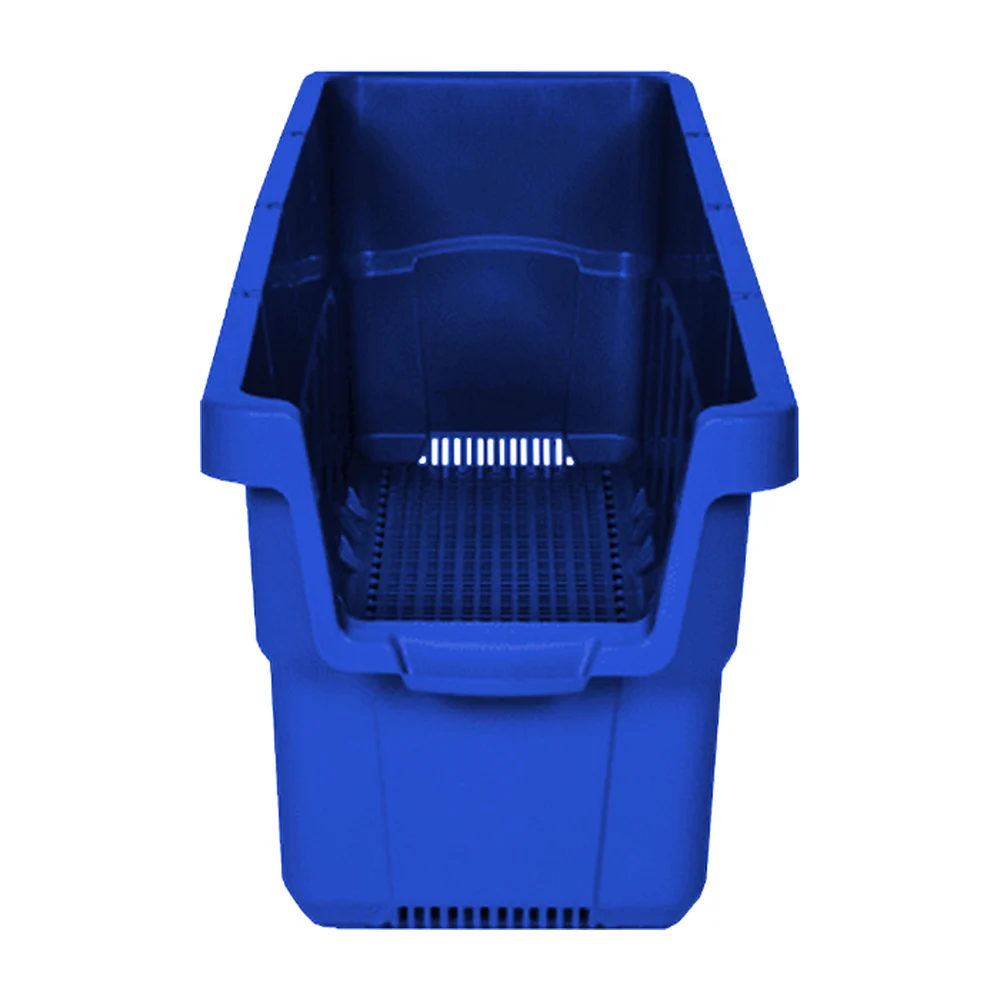

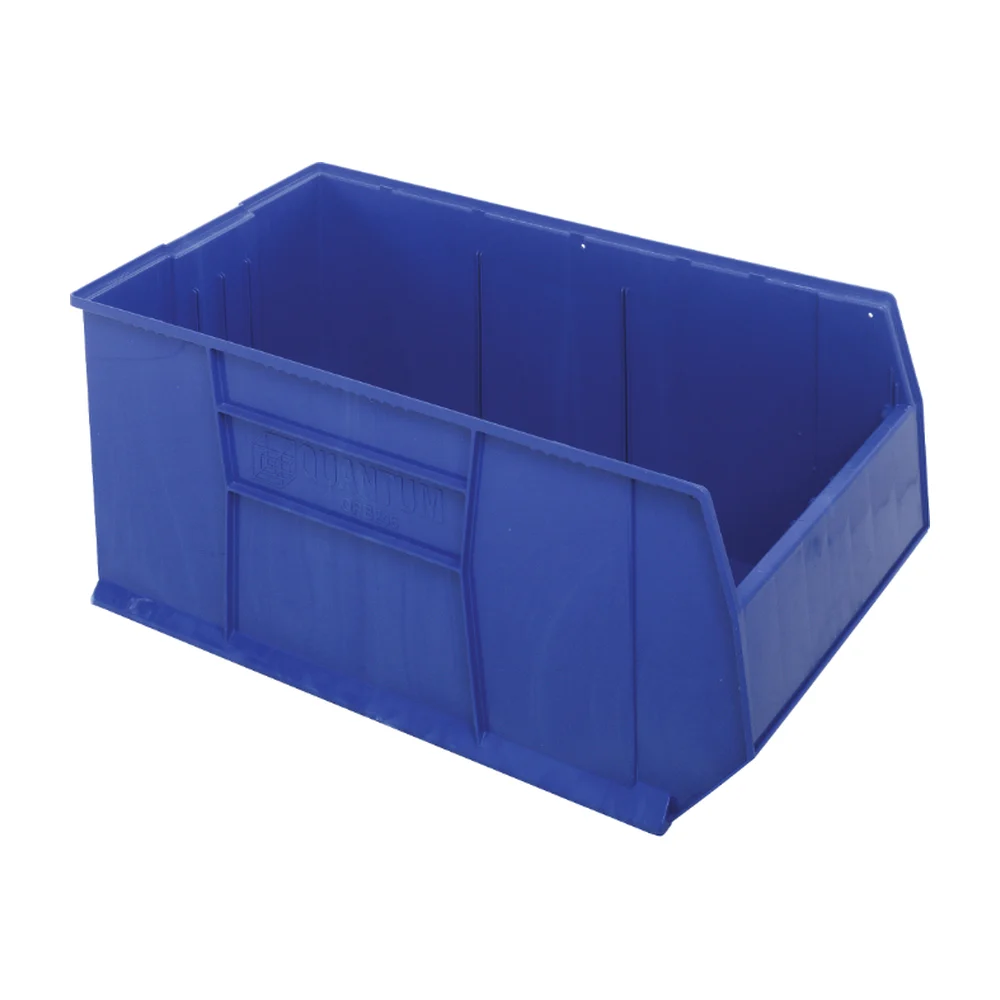

Rackable bins turn pallet rack levels into organized small-parts storage. They are sized for 42 inch deep racks, so no space goes to waste, with heavy-duty grips on all sides for safe handling. The warehouse bin has a perforated base that lets sprinkler water drain, plus optional lockable dividers for up to 8 SKUs per bin. The larger rack bins have an anti-slide stacking lock and a base with eight 1/4 inch drill points for airflow or drainage.
Construction and features
- Sized for 42 inch deep pallet racking
- Grips on front, back and sides
- Wide stacking ledge stops forward shifting
- Perforated or drillable bases for sprinkler drainage
- Large label area for SKUs and bar codes
- Waterproof and corrosion-free; colours: blue and grey
Rackable bin sizes
Scroll sideways to see all specification columns. Dividers are sold individually.
| Part number | Outside L × W × H (in) | Inside L × W × H (in) | Capacity (lbs) | Dividers |
|---|---|---|---|---|
| JABK42121203 | 42 × 11-3/5 × 11-1/2 | 39-3/4 × 8-7/8 × 11 | – | JABK421212DIVIDER (up to 7) |
| JQBRB166 | 41-7/8 × 16-1/2 × 17-1/2 | 40-1/8 × 14 × 16-1/2 | 180 | – |
| JQBRB206 | 41-7/8 × 19-7/8 × 17-1/2 | 40-1/8 × 17-3/8 × 16-1/2 | 180 | – |
| JQBRB246 | 41-7/8 × 23-7/8 × 17-1/2 | 40-1/8 × 21-1/2 × 16-1/2 | 180 | – |
Ordering notes
Send us your rack depth, beam length and the number of bins per level, and we will confirm the best fit. Use the inquiry form below and include your delivery location.
