Premium Manual Pallet Trucks
This range offers manual pallet handling with more than one fork layout. Tandem-roller and single-roller configurations should be matched to pallet entry and floor conditions rather than assumed interchangeable.
Features and selection
- Standard and narrow fork configurations
- Tandem-roller option
- Manual lift and travel
Measure the pallet openings and identify the required wheel arrangement. Provide the loaded weight and floor conditions when requesting a quote.
Models and specifications
Select a JB part number to view its photo. Representative photos may differ from the selected size or configuration. On smaller screens, swipe the table to see all columns.
| JB part number / photo | Rated capacity | Height / range | Platform or forks | Model details |
|---|---|---|---|---|
| JTBA-HPTAC2520548 | 5,500 lb | Raised height 7.5 in; lowered height to be confirmed | Fork length 48 in; overall width to be confirmed | Polyurethane wheels and rollers; other wheel types available |
| JTBA-HPTAC252748 | 5,500 lb | 2.9–7.5 in | 27 in W × 48 in L (overall fork width × fork length) | Polyurethane wheels and rollers; other wheel types available |

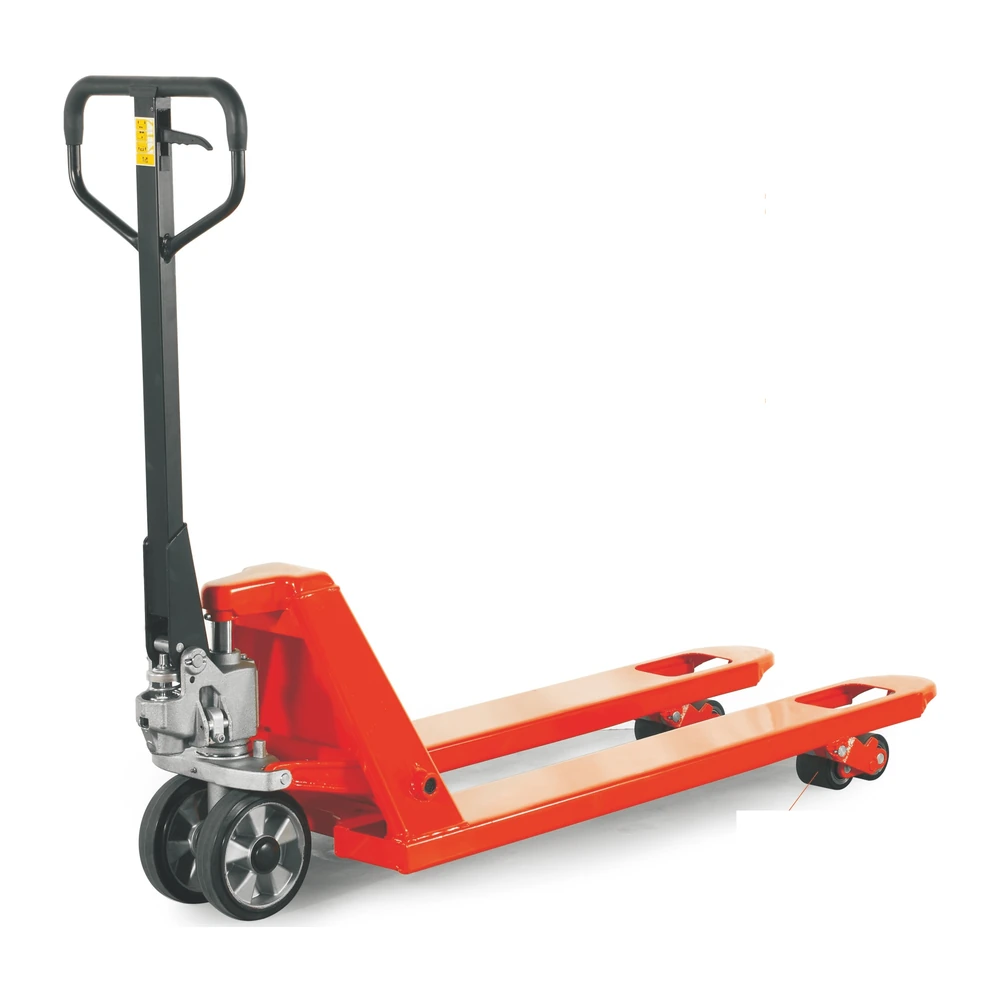

| JTBA-HPTAC25DR2748 | To be confirmed | Raised height 7.5 in; lowered height to be confirmed | 27 in W × 48 in L (overall fork width × fork length) | Polyurethane wheels; tandem load rollers |
Dimensions are in inches unless otherwise stated. Capacity is subject to the selected model’s load centre, load distribution and operating instructions. Height-specific ratings are not interchangeable.
Common questions
Are all models the same overall fork width?
No. Standard and narrow configurations are listed.
Can I choose tandem rollers without checking the pallet?
Check the pallet entry and underside clearance for the selected configuration.
Request a quote
Send the JB part number, quantity, load weight, load dimensions and required working height. Include your delivery postal code and any pallet-base, power-supply or operating-space requirements so we can check the configuration.
