Product overview
Polyurethane on poly casters and wheels combine a polyurethane tread with a polyolefin core. The tread is molded around and through a ribbed core extension to help prevent separation, and the material resists many chemicals, solvents, water, and acids.
Construction and features
- Polyurethane tread is bonded to a polyolefin core.
- Tread is molded around and through a ribbed core extension to help prevent debonding.
- Resists most chemicals, solvents, water, and acids.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Overall Height (in) | Weight (lbs) | Tread Width (in) | Caster Size (in) | Caster Type | Swivel Radius (in) | Stem Size (in) | Bearing Type | Tire Capacity |
|---|---|---|---|---|---|---|---|---|---|
| CAS-5PUP-RG | 6 1/2 | 4 3/4 | 2 | 5 | Polyurethane on Poly | Not listed | Not listed | Ball | 750 |
| CAS-5PUP-SW | 6 1/2 | 4 3/4 | 2 | 5 | Polyurethane on Poly | 4 1/4 | Not listed | Ball | 750 |
| CAS-5PUPL-RG | 6 | 4 1/2 | 1 1/2 | 5 | Polyurethane on Poly | Not listed | Not listed | Precision Ball | 350 |
| CAS-5PUPL-SW | 6 | 4 1/2 | 1 1/2 | 5 | Polyurethane on Poly | 4 | Not listed | Precision Ball | 350 |
| CAS-6PUP-RG | 7 1/2 | 4.02 | 2 | 6 | Polyurethane on Poly | Not listed | Not listed | Ball | 900 |
| CAS-6PUP-SW | 7 1/2 | 4.83 | 2 | 6 | Polyurethane on Poly | 5 | Not listed | Ball | 900 |
| CAS-8PUP-RG | 9 1/2 | 5 3/4 | 2 | 8 | Polyurethane on Poly | Not listed | Not listed | Ball | 1000 |
| CAS-8PUP-SW | 9 1/2 | 5 3/4 | 2 | 8 | Polyurethane on Poly | 6 1/2 | Not listed | Ball | 1000 |
Photo and ordering notes

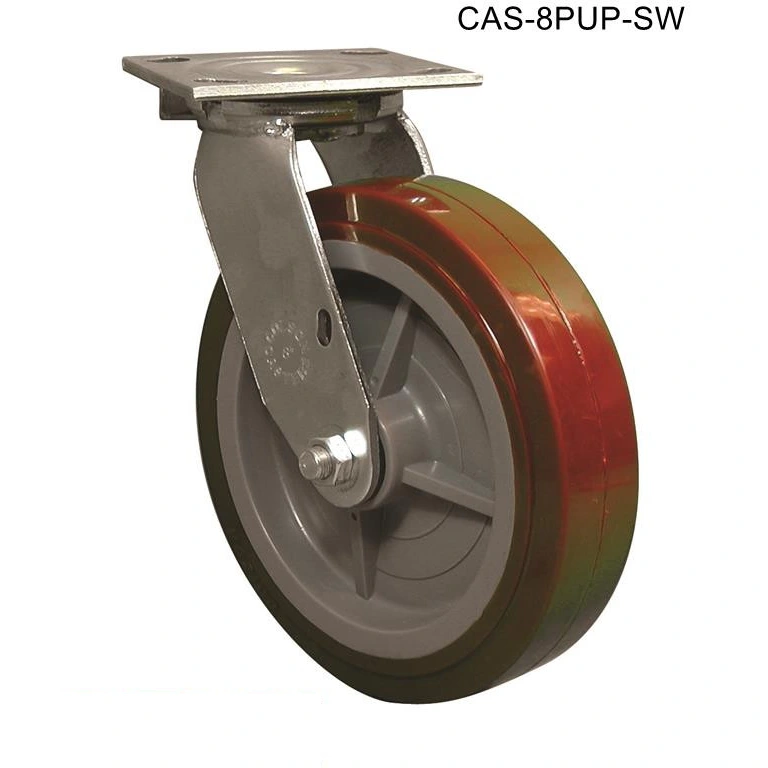

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
