Product overview
Polyurethane on cast iron casters and wheels combine a durable polyurethane tread with a cast iron core. They are intended for heavy-load service and offer a high strength-to-weight ratio for equipment that needs a robust rolling assembly.
Construction and features
- Polyurethane is bonded to a cast iron core.
- High strength-to-weight ratio.
- Described as capable of long service under heavy loads.
- Operating temperature range: -45°F to +180°F; hardness: 95(±5) Durometer Shore D.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Overall Height (in) | Weight (lbs) | Tread Width (in) | Caster Size (in) | Caster Type | Swivel Radius (in) | Stem Size (in) | Bearing Type | Tire Capacity |
|---|---|---|---|---|---|---|---|---|---|
| CAS-5PUC-RG | 6 1/2 | 7 | 2 | 5 | Polyurethane on Cast Iron | Not listed | Not listed | Roller | 900 |
| CAS-5PUC-SW | 6 1/2 | 7.5 | 2 | 5 | Polyurethane on Cast Iron | 4 1/4 | Not listed | Roller | 900 |
| CAS-6PUC-RG | 7 1/2 | 9 | 2 | 6 | Polyurethane on Cast Iron | Not listed | Not listed | Roller | 900 |
| CAS-6PUC-SW | 7 1/2 | 9 | 2 | 6 | Polyurethane on Cast Iron | 5 | Not listed | Roller | 900 |
| CAS-8PUC-RG | 9 1/2 | 11 | 2 | 8 | Polyurethane on Cast Iron | Not listed | Not listed | Roller | 1000 |
| CAS-8PUC-SW | 9 1/2 | 11 | 2 | 8 | Polyurethane on Cast Iron | 6 1/2 | Not listed | Roller | 1000 |
Photo and ordering notes

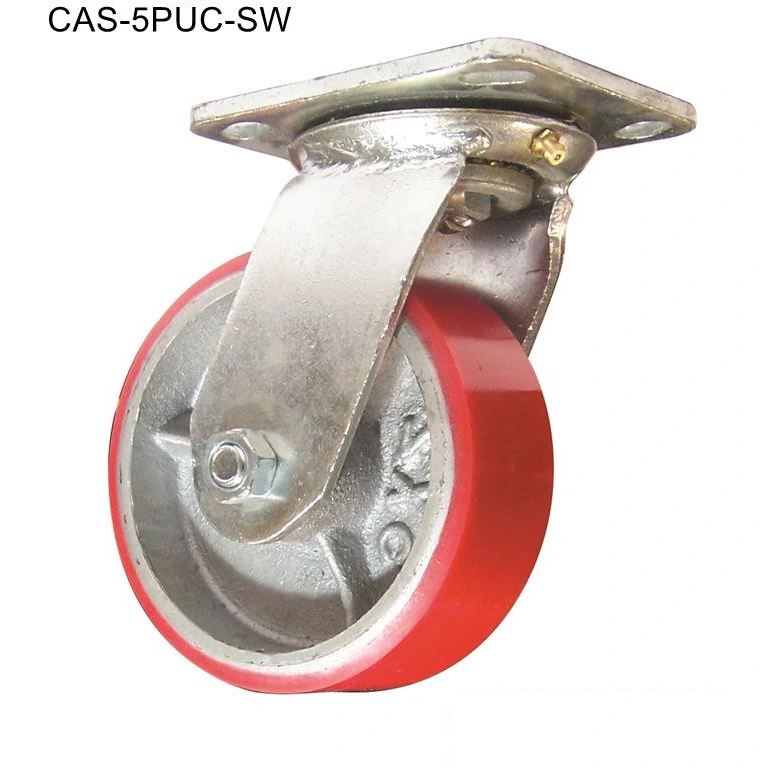

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
