Product overview
These pneumatic casters and wheels are described for industrial and commercial applications where fragile materials or uneven surfaces are encountered. They are intended to provide protection to both the load and the floor during movement.
Construction and features
- Pneumatic caster and wheel family
- Designed for industrial and commercial applications
- Suitable for applications involving fragile materials or uneven surfaces
- Provides protection to loads and floors
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Overall Height (in) | Weight (lbs) | Tread Width (in) | Caster Size (in) | Caster Type | Swivel Radius (in) | Stem Size (in) | Bearing Type | Tire Capacity | Wheel Size (in) | Wheel Type | Bore (in) | Hub Length (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CAS-10PN-RG | 12 | 6 | 3 1/2 | 10 | Pneumatic | Not listed | Not listed | Ball | 400 | Not listed | Not listed | Not listed | Not listed |
| CAS-10PN-SW | 12 | 6 1/2 | 3 1/2 | 10 | Pneumatic | 8 1/4 | Not listed | Ball | 400 | Not listed | Not listed | Not listed | Not listed |
| CAS-10PN-SW-BR | 12 | 6-1/2 | Not listed | 10 | Pneumatic | Not listed | Not listed | Not listed | 300 | Not listed | Not listed | Not listed | Not listed |
| CAS-8PN-RG | 10 | 5 | 2 1/2 | 8 | Pneumatic | Not listed | Not listed | Ball | 350 | Not listed | Not listed | Not listed | Not listed |
| CAS-8PN-SW | 10 | 5 1/2 | 2 1/2 | 8 | Pneumatic | 6 3/4 | Not listed | Ball | 350 | Not listed | Not listed | Not listed | Not listed |
| CAS-8PN-SW-BR | 10 | 5-1/2 | Not listed | 8 | Pneumatic | Not listed | Not listed | Not listed | 350 | Not listed | Not listed | Not listed | Not listed |
| WHL-10PNHD | Not listed | 4.43 | 3 1/2 | Not listed | Not listed | Not listed | Not listed | Not listed | 350 | 10 | Pneumatic | 5/8 | 2 1/4 Offset |
| WHL-16PN | Not listed | 6 | 3 | Not listed | Not listed | Not listed | Not listed | Not listed | 450 | 16 | Pneumatic | 1 | 2 3/4 |
| WHL-8PN | Not listed | 3 1/2 | 2 | Not listed | Not listed | Not listed | Not listed | Not listed | 300 | 8 | Pneumatic | 5/8 | 3 1/4 |
Photo and ordering notes

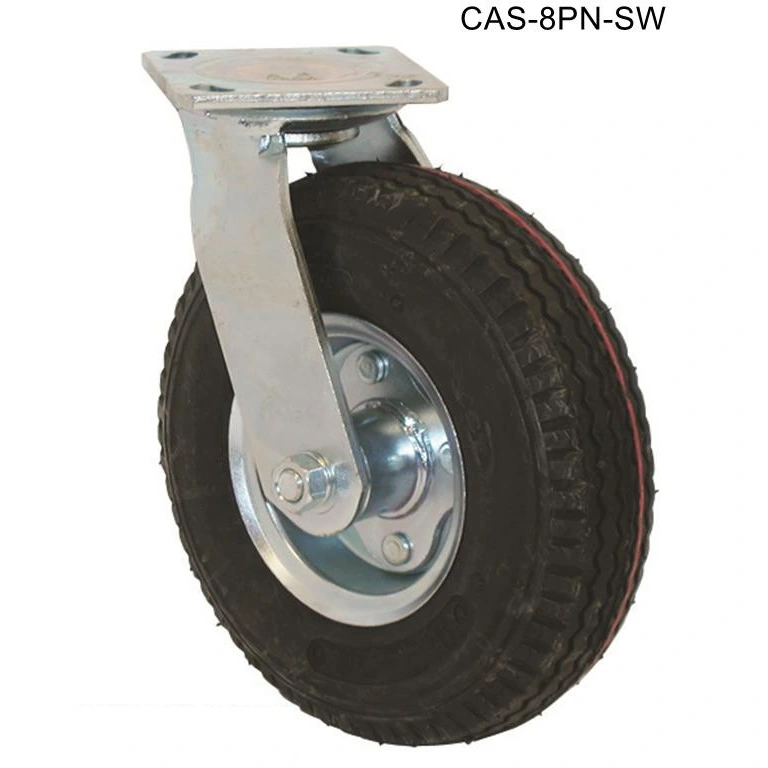

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
