Product overview

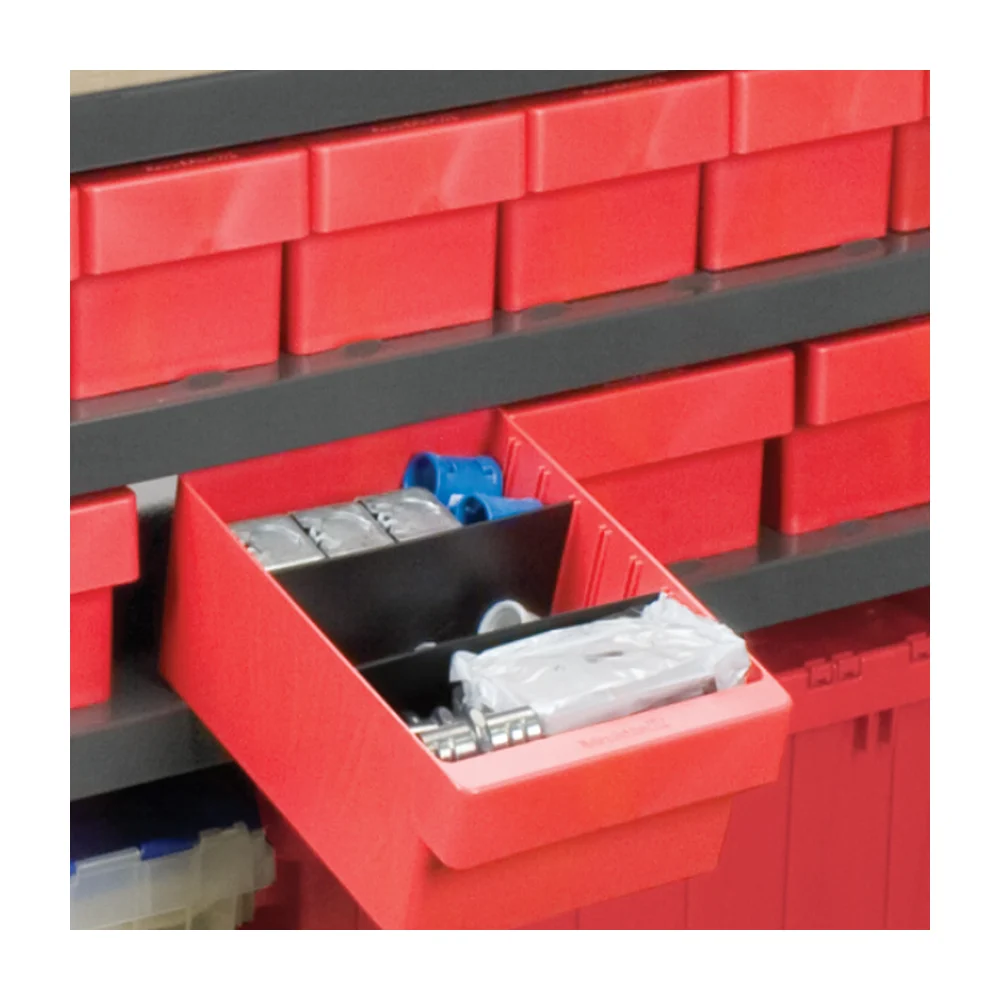

Drawer bins turn ordinary shelving into a drawer storage system. A sturdy backstop tab keeps the bin from sliding off the shelf when it is pulled out, and a wide front handle gives a comfortable grip even when the bin is loaded. Multiple divider slots let you create custom compartments. The bins work with pick racks and enclosed steel shelving. Colour bins are made from high-impact polystyrene and the crystal-clear bins from a tough acrylic blend.
Construction and features
- Backstop tab prevents the bin from falling off the shelf
- Wide front handle for easy pulling
- Large front label area

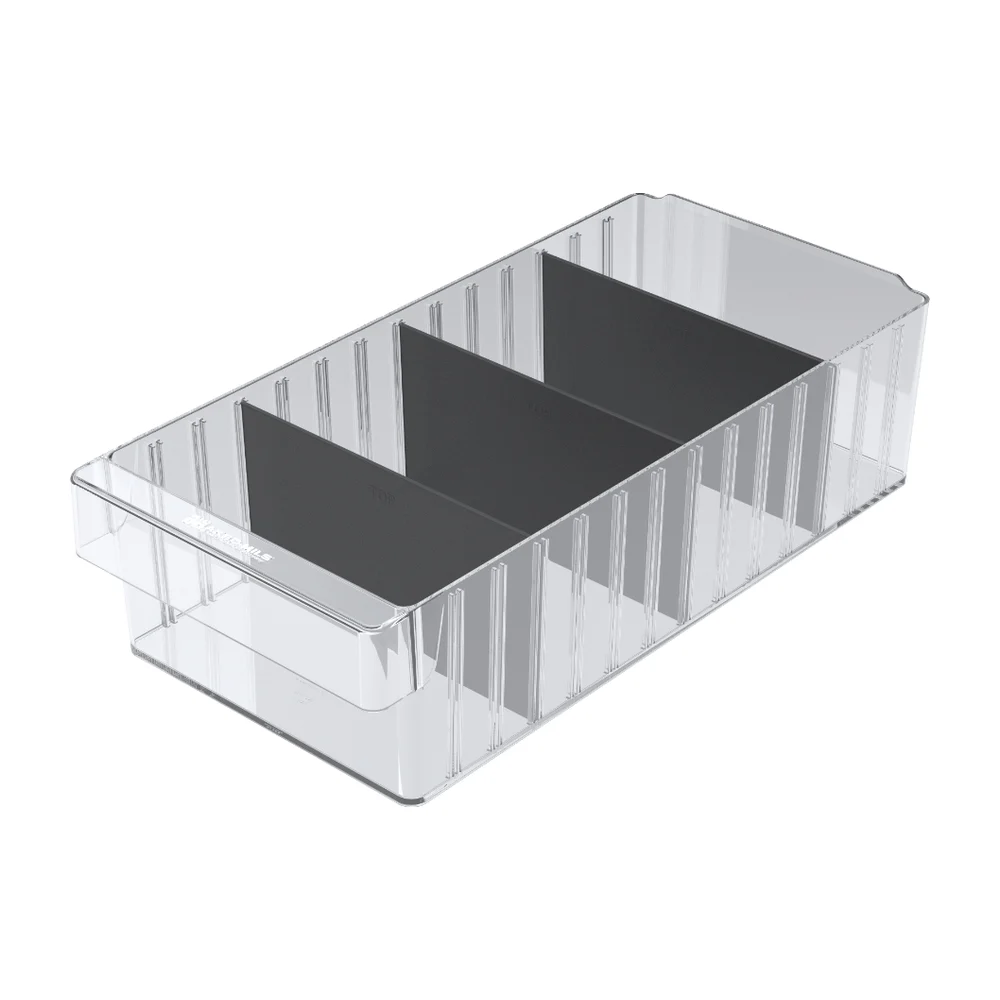

- Up to 8 or 13 divider positions depending on depth
- Stackable when needed

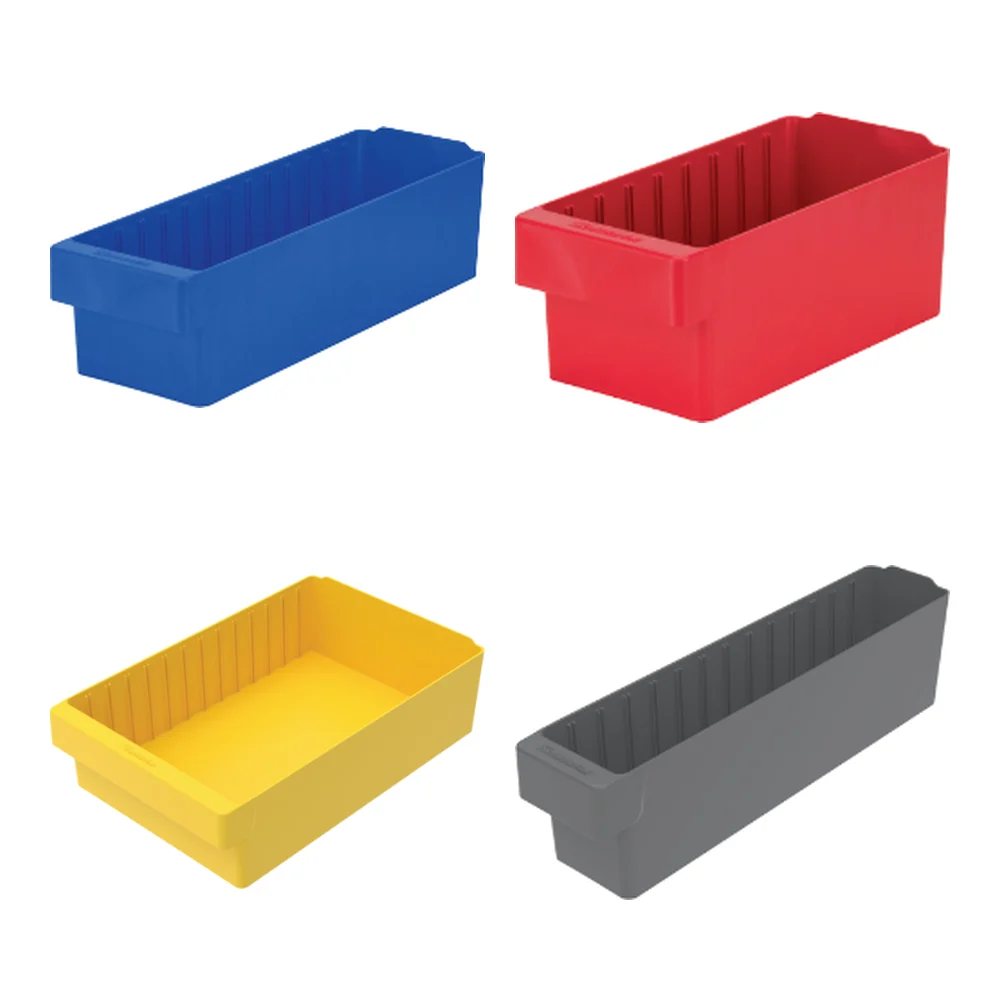

- Colours: blue standard; red, yellow, grey and crystal clear also offered
Drawer bin sizes
Scroll sideways to see all specification columns. L is the front-to-back depth. Capacity is per bin with an evenly distributed load. Order in full carton quantities.
| Part number | Outside L × W × H (in) | Inside L × W × H (in) | Capacity (lbs) | Carton qty | Dividers |
|---|---|---|---|---|---|
| JB31142 | 11-5/8 × 3-3/4 × 4-5/8 | 10-1/4 × 3-1/16 × 4-7/16 | 15 | 6 | JB41440 |
| JB31162 | 11-5/8 × 5-9/16 × 4-5/8 | 10-1/4 × 4-7/8 × 4-7/16 | 20 | 6 | JB41460 |
| JB31182 | 11-5/8 × 8-3/8 × 4-5/8 | 10-1/4 × 7-5/8 × 4-7/16 | 20 | 4 | JB41480 |
| JB31112 | 11-5/8 × 11-1/8 × 4-5/8 | 10-1/4 × 10-7/16 × 4-7/16 | 25 | 4 | JB41410 |
| JB31148 | 17-5/8 × 3-3/4 × 4-5/8 | 16-1/4 × 3-1/16 × 4-7/16 | 20 | 6 | JB41440 |
| JB31168 | 17-5/8 × 5-9/16 × 4-5/8 | 16-1/4 × 4-7/8 × 4-7/16 | 25 | 6 | JB41460 |
| JB31188 | 17-5/8 × 8-3/8 × 4-5/8 | 16-1/4 × 7-5/8 × 4-7/16 | 25 | 4 | JB41480 |
| JB31118 | 17-5/8 × 11-1/8 × 4-5/8 | 16-1/4 × 10-7/16 × 4-7/16 | 25 | 4 | JB41410 |
| JB31164 | 23-7/8 × 5-9/16 × 4-5/8 | – | – | 6 | JB41460 |
Ordering notes
Include the part numbers, colours and quantities, plus your shelf depth so we can confirm the fit. Use the inquiry form below and include your delivery location.
