Product overview
Phenolic casters and wheels use resin filled with macerated fabric. They offer quieter operation than steel or aluminum wheels, help protect floors, and resist hard impacts, many chemicals, and steam.
Construction and features
- Phenolic resin is filled with macerated fabric.
- Quieter operation than steel or aluminum wheels.
- Designed to provide floor protection.
- Resists hard impacts, most chemicals, and steam.
- Operating temperature range: -45°F to +180°F; hardness: 90(±5) Durometer Shore D.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Overall Height (in) | Weight (lbs) | Tread Width (in) | Caster Size (in) | Caster Type | Swivel Radius (in) | Stem Size (in) | Bearing Type | Tire Capacity | Wheel Size (in) | Wheel Type | Bore (in) | Hub Length (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CAS-4PHL-RG | 5 | 3 | 1 1/2 | 4 | Phenolic | Not listed | Not listed | Plain | 300 | Not listed | Not listed | Not listed | Not listed |
| CAS-4PHL-SW | 5 | 3 1/2 | 1 1/2 | 4 | Phenolic | 3 1/2 | Not listed | Plain | 300 | Not listed | Not listed | Not listed | Not listed |
| CAS-5PHL-RG | 6 | 4 | 1 1/2 | 5 | Phenolic | Not listed | Not listed | Plain | 300 | Not listed | Not listed | Not listed | Not listed |
| CAS-5PHL-SW | 6 | 4 1/2 | 1 1/2 | 5 | Phenolic | 4 | Not listed | Plain | 300 | Not listed | Not listed | Not listed | Not listed |
| CAS-6PH-RG | 7 1/2 | 4.73 | 2 | 6 | Phenolic | Not listed | Not listed | Roller | 900 | Not listed | Not listed | Not listed | Not listed |
| CAS-6PH-SW | 7 1/2 | 5.54 | 2 | 6 | Phenolic | 5 | Not listed | Roller | 900 | Not listed | Not listed | Not listed | Not listed |
| CAS-6PH-SW-TLB | 7-1/2 | 5.54 | Not listed | 6 | Phenolic | Not listed | Not listed | Not listed | 900 | Not listed | Not listed | Not listed | Not listed |
| CAS-8PH-RG | 9 1/2 | 6.2 | 2 | 8 | Phenolic | Not listed | Not listed | Roller | 1000 | Not listed | Not listed | Not listed | Not listed |
| CAS-8PH-SW | 9 1/2 | 7.062 | 2 | 8 | Phenolic | 6 1/2 | Not listed | Roller | 1000 | Not listed | Not listed | Not listed | Not listed |
| WHL-12PH | Not listed | 11 1/2 | 2 1/2 | Not listed | Not listed | Not listed | Not listed | Not listed | 3000 | 12 | Phenolic | 1 | 3 1/4 |
Photo and ordering notes

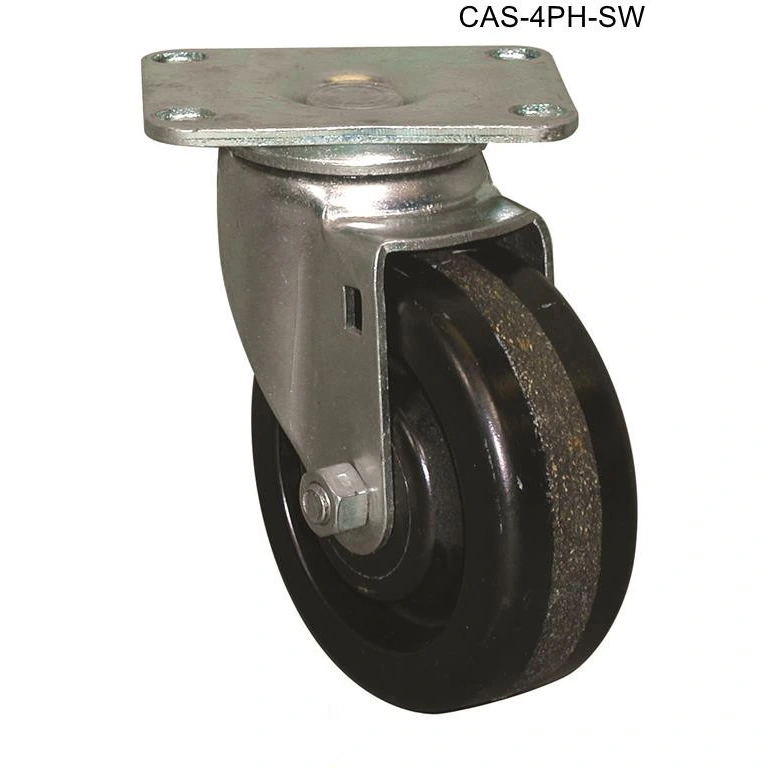

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
