Product overview
This order picker platform fits most order pickers and provides removable shelves for organizing items during picking work. It has a low deck above the forks, a hardwood gripper block and polyurethane casters, and ships fully assembled.
Construction and features
- Includes three removable shelves, each measuring 30 x 36 inches.
- Deck is 5-1/4 inches above the forks.
- Includes a hardwood gripper block and three 36-inch lengths of grip tape.
- Uses two rigid and two swivel casters with total-lock brakes.
- The stated capacity is 2,000 pounds overall and 300 pounds per shelf.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Height (in) | Deck Height (in) | Weight (lbs) | Colour | Caster Type | Platform Size (in) | Shelf Quantity | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|

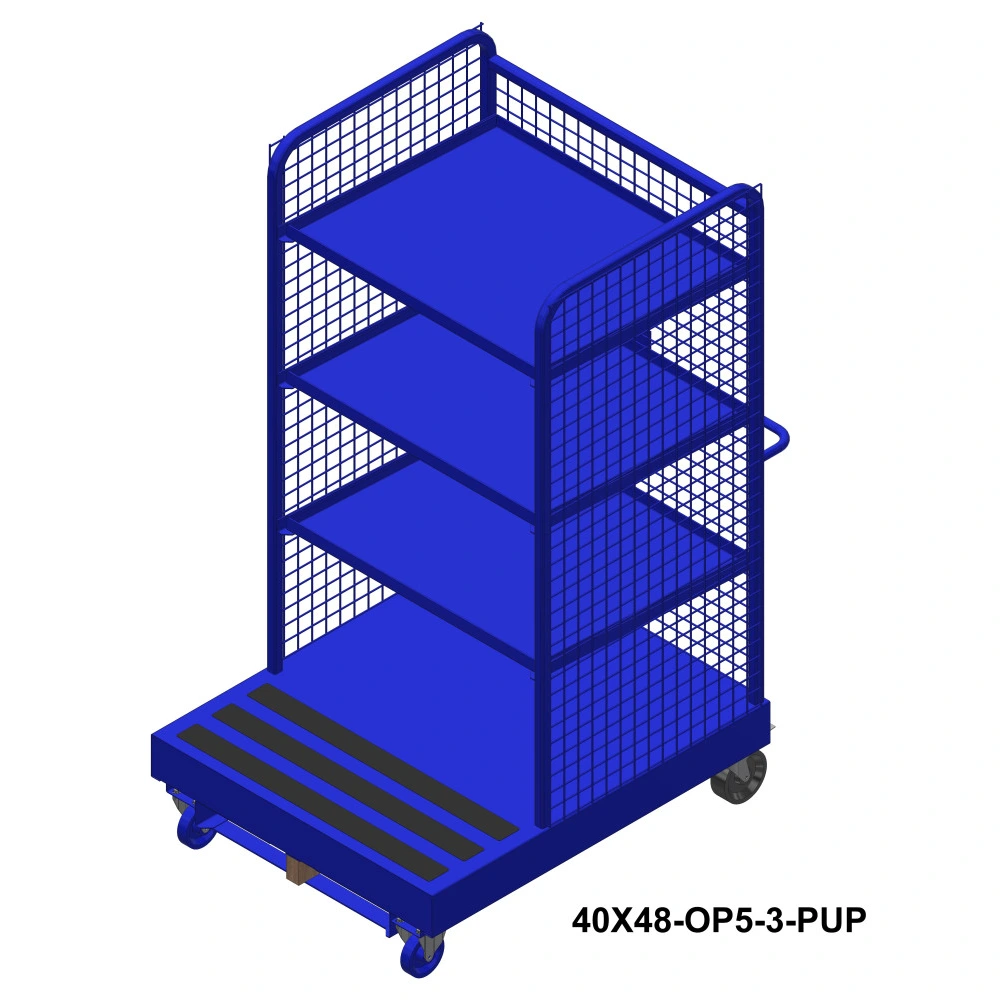

| 40X48-OP5-3-PUP | 40 | 53 | 78 | 5 | 375 | Blue | PUP | 40X48 | 3 | 40 x 53 x 78 |
Application notes
Confirm fit with the specific order picker before use.
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
