Product overview

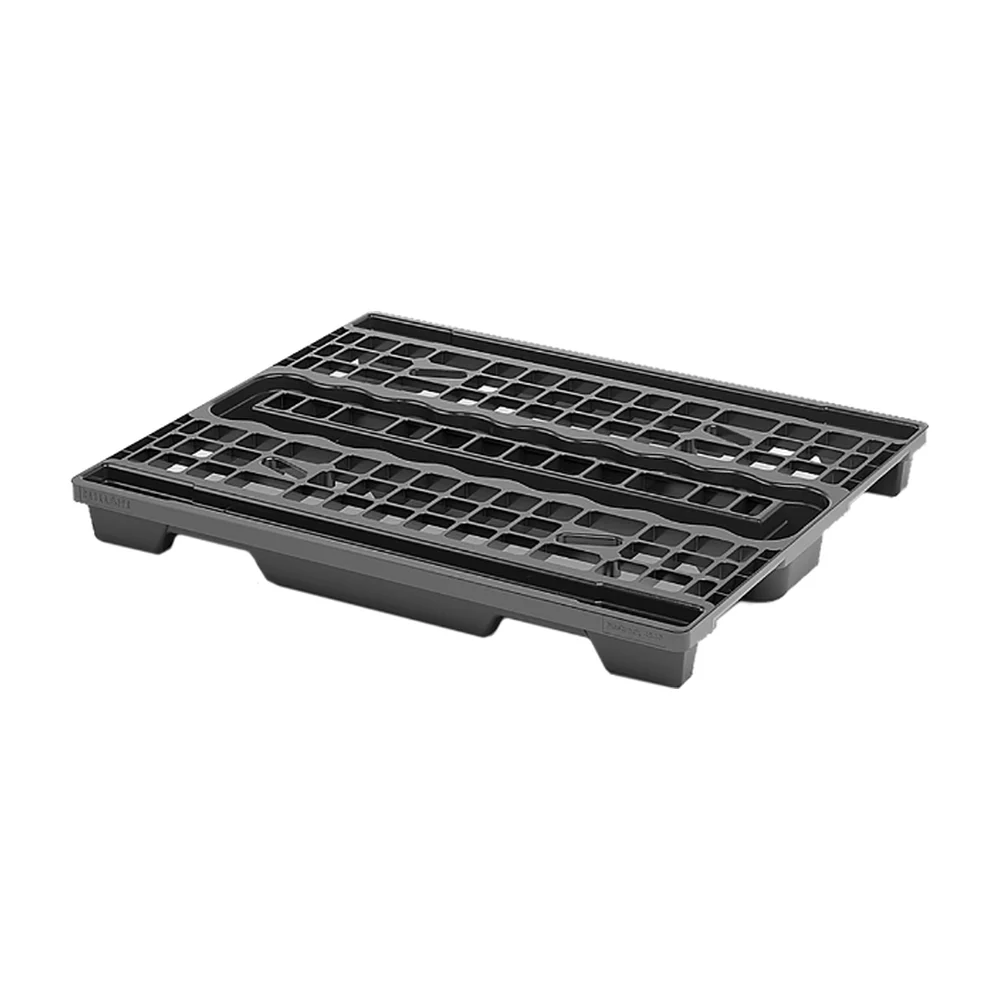

Nest-and-rack pallets give you the space savings of a nestable pallet and the flexibility to use racking. Three bottom runners spread the load for racking at up to 2,200 lbs and help the pallet run smoothly on conveyors. Remove the runners and the pallets nest for compact storage. They offer an excellent weight-to-load ratio and four-way forklift access.
Construction and features
- 48 × 40 × 5 in, four-way entry
- 3 runners for racking and conveyors
- Nestable for space-saving storage
- Static 6,000 lbs, dynamic 3,000 lbs, racking 2,200 lbs

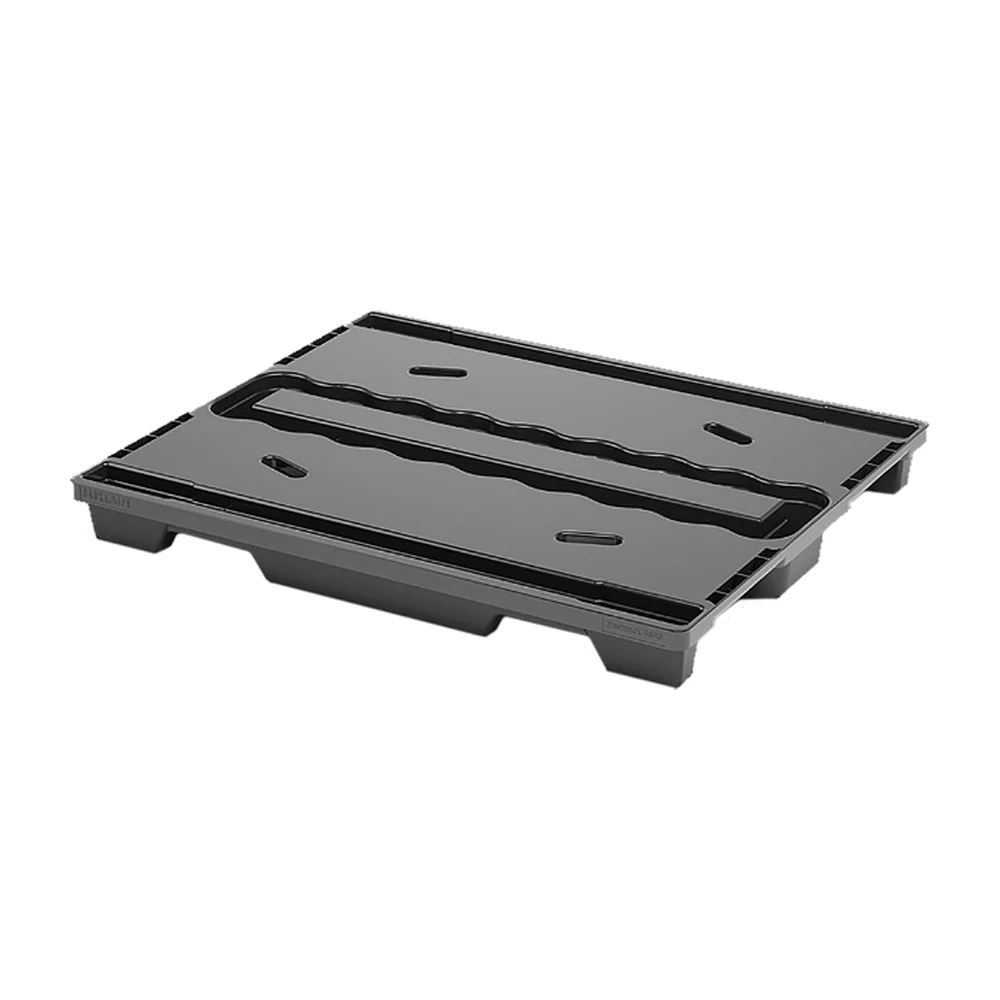

- Open or closed deck; colour: black
Nest-and-rack pallet models
Scroll sideways to see all specification columns. Racking capacity applies only when using runners. Capacity is based on evenly distributed loads.
| Part number | Deck | Base | Outside L × W × H (in) | Static capacity (lbs) | Dynamic capacity (lbs) | Racking capacity (lbs) |
|---|---|---|---|---|---|---|
| JNBRUSOD3R | Open | 3 runners | 48 × 40 × 5 | 6,000 | 3,000 | 2,200 |
| JNBRUSCD3R | Closed | 3 runners | 48 × 40 × 5 | 6,000 | 3,000 | 2,200 |
Ordering notes
Tell us the quantity and whether you need open or closed deck. Use the inquiry form below and include your delivery location.
