Product overview
Narrow-aisle mobile ladder stands are designed to travel through tighter aisle spaces than wider ladder stands. Their shared 60-degree climbing angle, narrow steps, and compact platform provide access while keeping the stand's working footprint suited to aisle use.
Construction and features
- 20-inch step width and 20-by-15-inch platform size are shared across the family.
- Platform depth is 15 inches.
- Steps have a raised, perforated, dimpled non-slip tread pattern and are 7-1/2 inches deep.
- 42-inch handrail and blue powder-coated steel construction.
- Rated for one person at a time.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Contact us” means we can confirm that value for you. “—” means it does not apply.
| Part number | Configuration | Width (in) | Depth (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Material | Finish | Colour | Caster Size (in) | Caster Type | # of Steps (incl. Platform) | Platform Height (in) | Platform Size (in) | Step Angle (°) | Step Width (in) | Handrail (in) | Shipping Size (in) | Height When Handrail Down (in) | Wheel Size (in) | Wheel Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

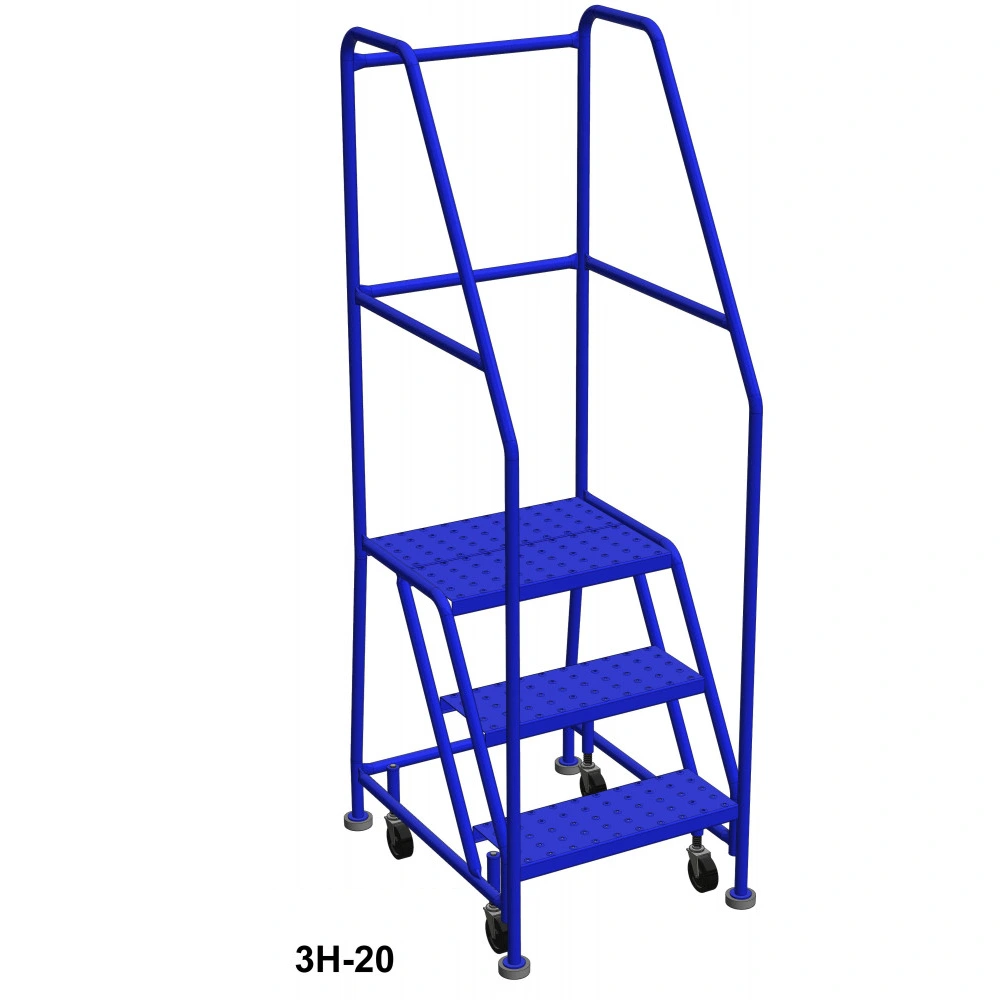

| 3H-20 | Narrow Aisle Mobile Ladder Stand | 24 | 30 | 69 | 55 | 400 | Steel | Powder Coat | Blue | 3 | Spring loaded, non-marking | 3 | 27 | 20 x 15 | 60 | 20 | 42 | 30 x 24 x 69 | — | — | — |
| 4H-20 | Narrow Aisle Mobile Ladder Stand | 30 | 40 | 78 | 80 | 400 | Steel | Powder Coat | Blue | 5 | Rubber Swivel | 4 | 36 | 20 x 15 | 60 | 20 | 42 | 40 x 30 x 78 | — | 6 | Polyolefin |
| 5H-20 | Narrow Aisle Mobile Ladder Stand | 30 | 46 | 87 | 90 | 400 | Steel | Powder Coat | Blue | 5 | Rubber Swivel | 5 | 45 | 20 x 15 | 60 | 20 | 42 | 46 x 30 x 87 | — | 6 | Polyolefin |
| 6H-20 | Narrow Aisle Mobile Ladder Stand | 30 | 50 | 96 | 110 | 400 | Steel | Powder Coat | Blue | 5 | Rubber Swivel | 6 | 54 | 20 x 15 | 60 | 20 | 42 | 102 x 30 x 39 | — | 6 | Polyolefin |
| 7H-20 | Narrow Aisle Mobile Ladder Stand | 30 | 56 | 105 | 115 | 400 | Steel | Powder Coat | Blue | 5 | Rubber Swivel | 7 | 63 | 20 x 15 | 60 | 20 | 42 | 110 x 30 x 39 | — | 6 | Polyolefin |
| 8H-20 | Narrow Aisle Mobile Ladder Stand | 30 | 62 | 114 | 120 | 400 | Steel | Powder Coat | Blue | 5 | Rubber Swivel | 8 | 72 | 20 x 15 | 60 | 20 | 42 | 124 x 30 x 39 | — | 8 | Polyolefin |
| 9H-20 | Narrow Aisle Mobile Ladder Stand | 30 | 67 | 123 | 135 | 400 | Steel | Powder Coat | Blue | 5 | Rubber Swivel | 9 | 81 | 20 x 15 | 60 | 20 | 42 | 136 x 30 x 39 | — | 8 | Polyolefin |
| 10H-20 | Narrow Aisle Mobile Ladder Stand | 30 | 72 | 132 | 142 | 400 | Steel | Powder Coat | Blue | 5 | Rubber Swivel | 10 | 90 | 20 x 15 | 60 | 20 | 42 | 144 x 30 x 39 | — | 8 | Polyolefin |
Application notes
Rated for one person only. Check aisle clearance and the selected unit's load information before use.
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
