Product overview
Molded rubber on cast iron casters and wheels pairs a rubber tread with a cast iron core. The construction is designed for quiet rolling and to absorb shock and vibration, helping protect both equipment and its cargo during movement.
Construction and features
- Rubber is molded and bonded to a cast iron core.
- Quiet operation with shock and vibration absorption.
- Helps protect equipment and cargo.
- Operating temperature range: -45°F to +160°F; hardness: 70(±5) Durometer Shore A.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Overall Height (in) | Weight (lbs) | Tread Width (in) | Caster Size (in) | Caster Type | Swivel Radius (in) | Stem Size (in) | Bearing Type | Tire Capacity | Wheel Size (in) | Wheel Type | Bore (in) | Hub Length (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CAS-5MR-RG | 6 1/2 | 5 | 2 | 5 | Molded Rubber on Cast | Not listed | Not listed | Roller | 400 | Not listed | Not listed | Not listed | Not listed |

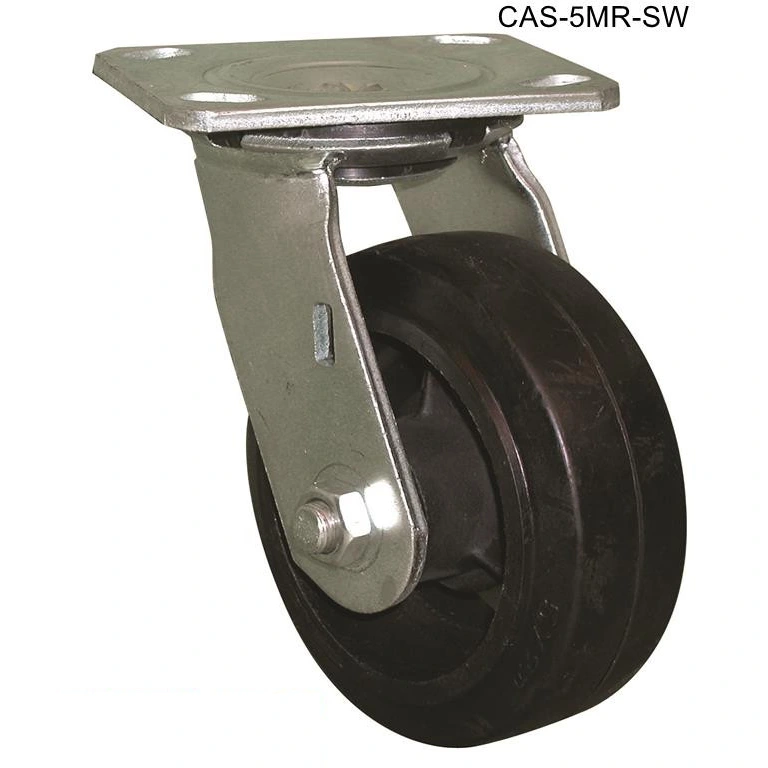

| CAS-5MR-SW | 6 1/2 | 5 1/2 | 2 | 5 | Molded Rubber on Cast | 4 1/4 | Not listed | Roller | 400 | Not listed | Not listed | Not listed | Not listed |
| CAS-6MR-RG | 7 1/2 | 5.530 | 2 | 6 | Molded Rubber on Cast | Not listed | Not listed | Roller | 450 | Not listed | Not listed | Not listed | Not listed |
| CAS-6MR-SW | 7 1/2 | 6.38 | 2 | 6 | Molded Rubber on Cast | 5 | Not listed | Roller | 450 | Not listed | Not listed | Not listed | Not listed |
| CAS-8MR-RG | 9 1/2 | 7.52 | 2 | 8 | Molded Rubber on Cast | Not listed | Not listed | Roller | 525 | Not listed | Not listed | Not listed | Not listed |
| CAS-8MR-SW | 9 1/2 | 8.28 | 2 | 8 | Molded Rubber on Cast | 6 1/2 | Not listed | Roller | 525 | Not listed | Not listed | Not listed | Not listed |
| WHL-10MR | Not listed | 12.6 | 2 1/2 | Not listed | Not listed | Not listed | Not listed | Not listed | 800 | 10 | Molded Rubber on Cast Iron | 1 | 2 3/4 |
| WHL-12MR | Not listed | 17 | 2 1/2 | Not listed | Not listed | Not listed | Not listed | Not listed | 950 | 12 | Molded Rubber on Cast Iron | 1 | 2 3/4 |
| WHL-6MR | Not listed | 4.1 | 2 | Not listed | Not listed | Not listed | Not listed | Not listed | 450 | 6 | Molded Rubber on Cast Iron | 3/4 | 2 1/4 |
| WHL-8MR | Not listed | 5.16 | 2 | Not listed | Not listed | Not listed | Not listed | Not listed | 525 | 8 | Molded Rubber on Cast Iron | 3/4 | 2 1/4 |
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
