Product overview

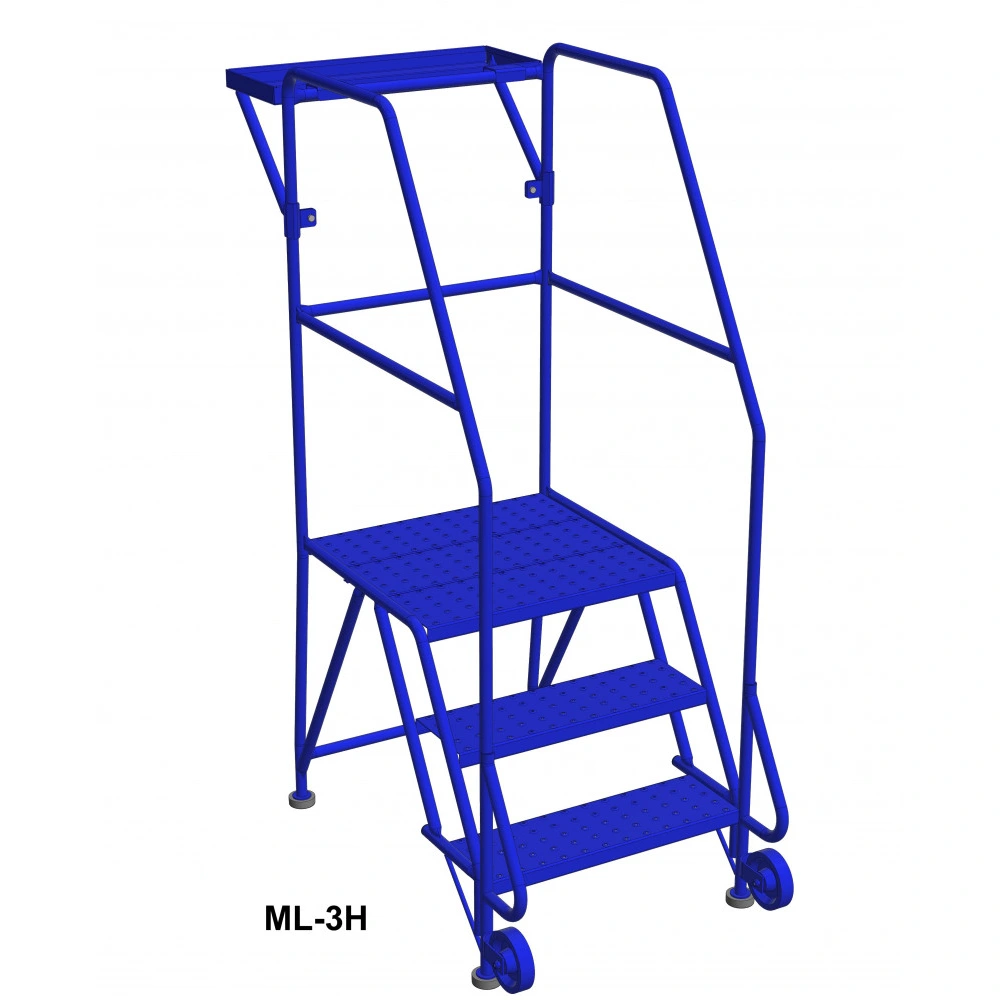

Mechanic's ladders combine a raised platform with a removable tool shelf for repair and maintenance tasks. The tilt-and-roll design uses rubber wheels for repositioning, and the shared platform measures 24 by 22-1/2 inches.
Construction and features
- Removable tool shelf measures 26 by 10 inches.
- Platform measures 24 by 22-1/2 inches.
- Steps are 7-1/2 inches deep with raised, perforated, dimpled non-slip tread.
- Tilt-and-roll mobility with rubber wheels.
- Rated for one person at a time.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Contact us” means we can confirm that value for you. “—” means it does not apply.
| Part number | Configuration | Width (in) | Depth (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Material | Finish | Colour | Wheel Size (in) | Wheel Type | # of Steps (incl. Platform) | Platform Height (in) | Platform Size (in) | Step Angle (°) | Step Width (in) | Handrail (in) | Shipping Size (in) | Height When Handrail Down (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3H-ML | Mechanic's Ladder | 28 | 43 | 69 | 85 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 3 | 27 | 24 x 22.5 | 60 | 24 | 42 | 43 x 28 x 69 | — |
| 4H-ML | Mechanic's Ladder | 28 | 48 | 78 | 95 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 4 | 36 | 24 x 22.5 | 60 | 24 | 42 | 48 x 28 x 78 | — |
| 5H-ML | Mechanic's Ladder | 28 | 55 | 87 | 105 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 5 | 45 | 24 x 22.5 | 60 | 24 | 42 | 55 x 28 x 87 | — |
| 6H-ML | Mechanic's Ladder | 28 | 58 | 96 | 115 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 6 | 54 | 24 x 22.5 | 60 | 24 | 42 | 58 x 28 x 96 | — |
Application notes
Rated for one person only. Remove or secure tools as appropriate before repositioning the ladder.
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
