Product overview

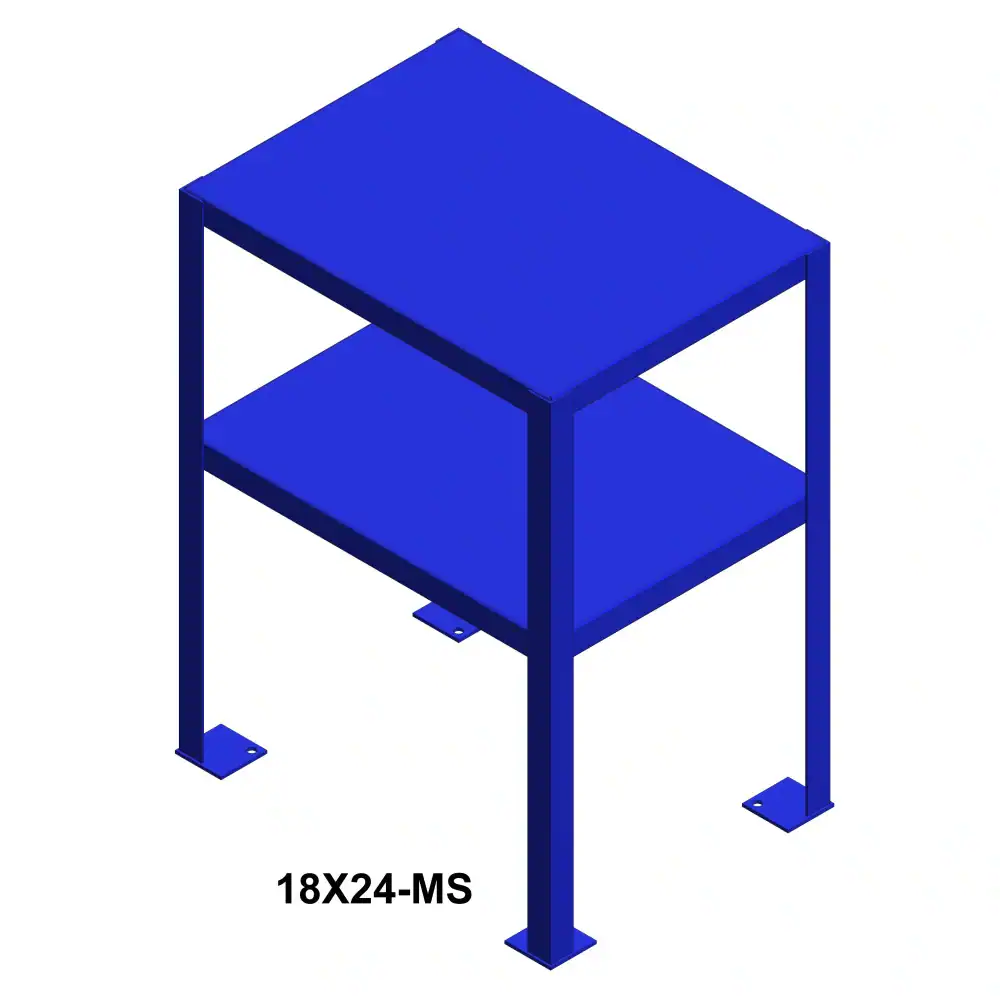

This machine stand can also serve as a work table, providing two reinforced steel shelves for equipment or work materials. Bolt-down foot plates are provided on all legs, and the stand has a blue powder coat finish.
Construction and features
- Shelves made from 14-gauge reinforced steel
- Angle corner posts
- 1-1/2-inch lips face down on both shelves
- 14-3/8 inches of clearance between shelves
- Bolt-down foot plates on all legs
- 2,000 lb. capacity
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Height (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Finish | Colour | Shelf Clearance (in) | Shelf Quantity | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 18x24MS | 18 | 24 | 32 | 32 | 40 | 2000 | Powder Coat | Blue | 14-3/8 | 2 | 25 x 19 x 32 |
| 18x30MS | 18 | 30 | 32 | 32 | 45 | 2000 | Powder Coat | Blue | 14-3/8 | 2 | 31 x 19 x 32 |
| 18x36MS | 18 | 36 | 32 | 32 | 51 | 2000 | Powder Coat | Blue | 14-3/8 | 2 | 37 x 19 x 32 |
| 20x36MS | 20 | 36 | 32 | 32 | 51 | 2000 | Powder Coat | Blue | 14-3/8 | 2 | 37 x 21 x 32 |
| 24x36MS | 24 | 36 | 32 | 32 | 62 | 2000 | Powder Coat | Blue | 14-3/8 | 2 | 37 x 25 x 32 |
| 24x42MS | 24 | 42 | 32 | 32 | 69 | 2000 | Powder Coat | Blue | 14-3/8 | 2 | 43 x 25 x 32 |
| 24x48MS | 24 | 48 | 32 | 32 | 72 | 2000 | Powder Coat | Blue | 14-3/8 | 2 | 49 x 25 x 32 |
Available options
Confirm availability and compatibility for the selected model when requesting a quote.
- Custom sizes and capacities
Application notes
Secure the stand using its bolt-down foot plates before use.
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
