Product overview

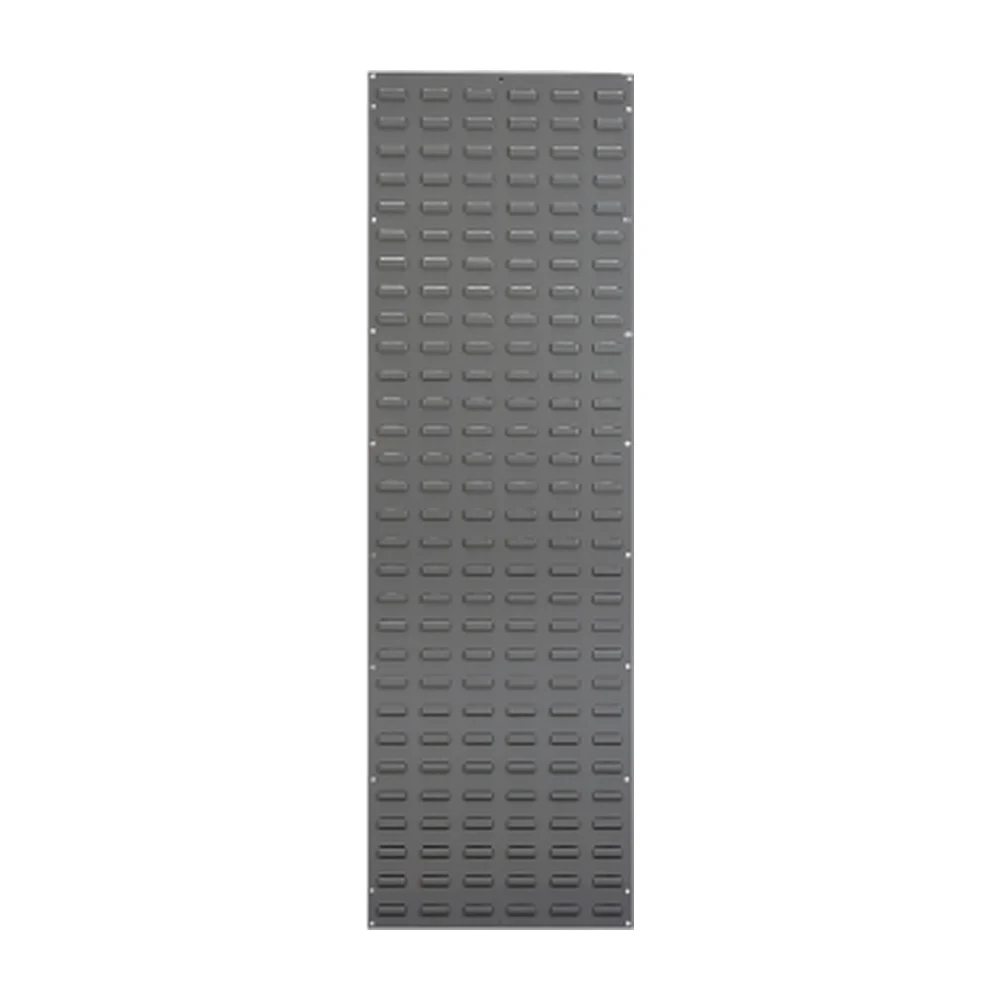

Louvered wall panels are a space-saving way to store small parts vertically. The 16-gauge cold-rolled steel panels have rows of punched louvers that accept hanging and stacking bins and clear polycarbonate bins. Mount them on a wall, a bench or a cabinet, or join several panels together for a full bin wall. The tough powder-coated finish stays clean and resists wear.
Construction and features
- 16-gauge cold-rolled steel with a powder-coated finish

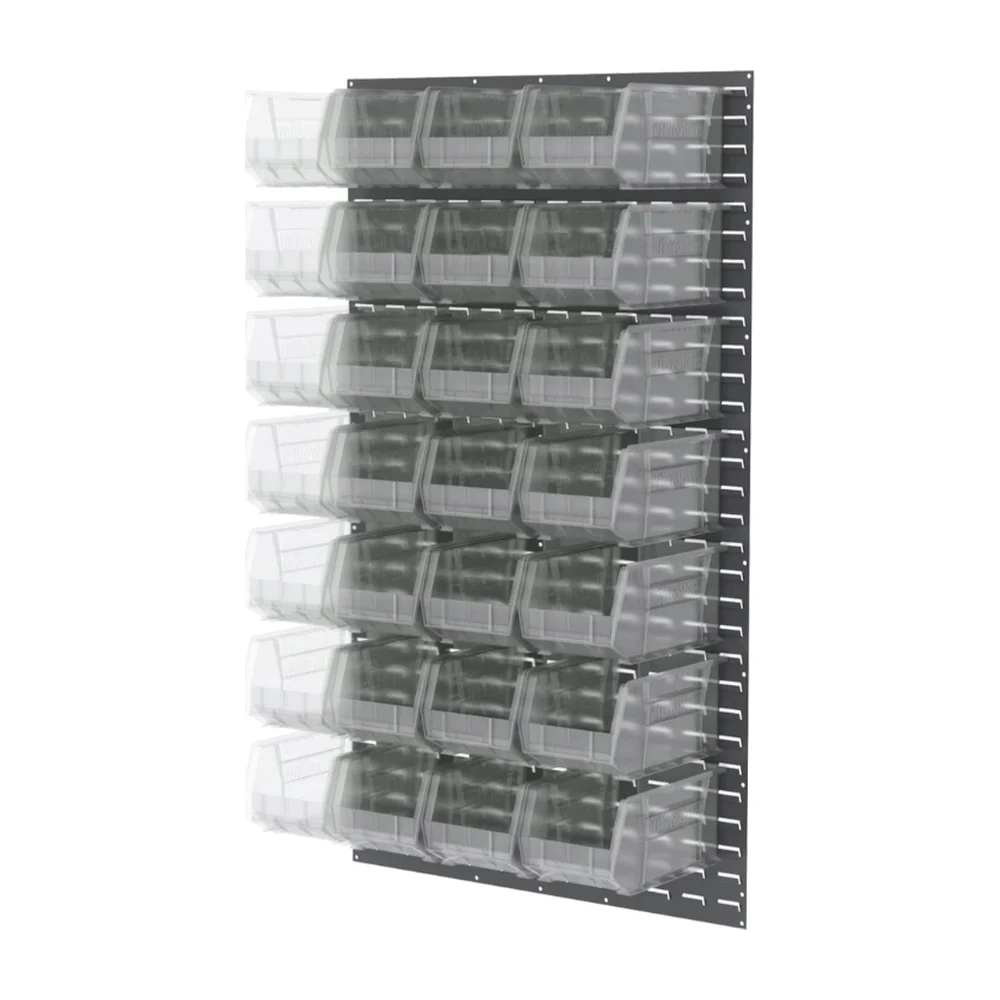

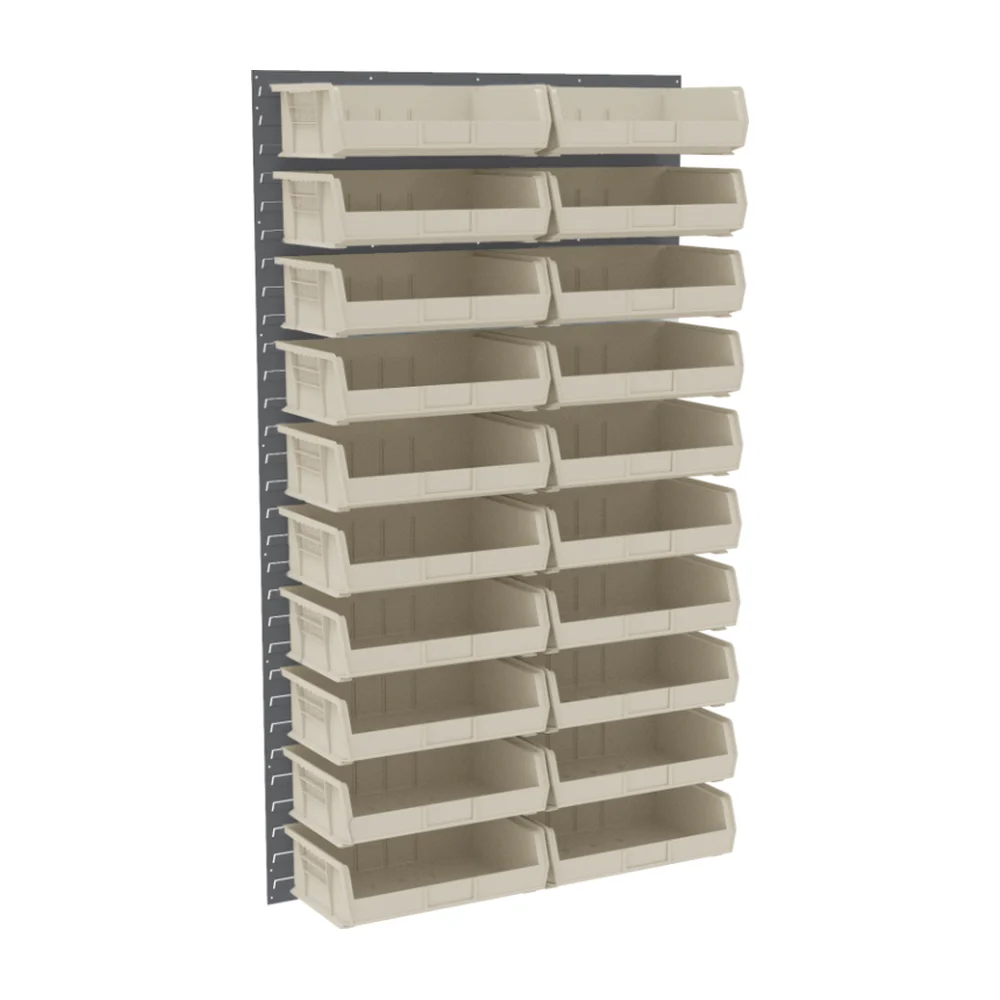

- Accepts hanging and stacking bins and clear polycarbonate bins
- Wall-mount panels from 18 × 19 in to 36 × 61 in
- Single-row and angled panels for benches and tight spaces
- Colours: grey (JB30636 also in beige)
Wall panel sizes
Scroll sideways to see all specification columns. Do not exceed the rack capacity, which may be less than the total capacity of the bins hung on it.
| Part number | Width × height (in) | Rack capacity (lbs) |
|---|---|---|
| JB30618 | 18 × 19 | 160 |
| JB30632 | 31-15/16 × 3 | 80 |
| JB30636 | 35-3/4 × 19 | 160 |
| JB30655 | 52 × 34-1/8 | 750 |
| JB30161 | 36 × 61 | 1000 |
| JB30118 | 18 × 61 | 500 |
| JB30637 | Angled panel, 35-1/2 × 13-1/4 (2-1/2 deep) | – |
| JQBLP-1819 | 18 × 19 | – |
| JQBLP-3619 | 36 × 19 | – |
How many bins fit
Number of each hanging and stacking bin that fits one panel.
| Panel / rack | JB30210 | JB30220 | JB30224 | JB30230 | JB30234 | JB30235 | JB30237 | JB30239 | JB30240 | JB30250 | JB30255 | JB30260 | JB30265 | JB30270 | JB30320 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JB30618 | 16 | 16 | 12 | 9 | 9 | 3 | 6 | 4 | 4 | 2 | 3 | 1 | 2 | 1 | – |
| JB30632 | 7 | 7 | 7 | 5 | 5 | 2 | 5 | 3 | 3 | 1 | 1 | 2 | 3 | 1 | – |
| JB30636 | 32 | 32 | 24 | 18 | 18 | 9 | 15 | 8 | 8 | 4 | 6 | 3 | 4 | 2 | 3 |
| JB30655 | 96 | 96 | 60 | 45 | 45 | 20 | 40 | 24 | 24 | 12 | 15 | 8 | 18 | 6 | 5 |
| JB30161 | 120 | 120 | 80 | 60 | 60 | 30 | 50 | 28 | 28 | 14 | 20 | 15 | 24 | 10 | 10 |
| JB30118 | 60 | 60 | 40 | 30 | 30 | 10 | 20 | 14 | 14 | 7 | 10 | 5 | 12 | 5 | – |
Ordering notes
Tell us the wall space you have and the bins you plan to use. We can quote panels and bins together. Use the inquiry form below and include your delivery location.
