Product overview
These propane cylinder cages provide enclosed storage with heavy-duty construction and ventilation through welded wire mesh. A sloped top, reinforced floor and double swinging door are shared across the family, with capacity and dimensions varying by configuration.
Construction and features
- 1-1/2-inch angle-frame construction
- Vented sides and door made with 2 x 2-inch welded wire mesh
- Solid 14-gauge top and reinforced 14-gauge floor
- Sloped top directs rain and water away
- Double swinging door with padlock hasp; legs are pre-drilled for floor anchoring
- Ships fully assembled with a yellow powder-coated finish
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Overall Height (in) | Weight (lbs) | Finish | Colour | Shipping Size (in) |
|---|---|---|---|---|---|---|---|
| GS-12 | 28 | 40 | 72 | 180 | Powder Coat | Yellow | 40 x 28 x 72 |
| GS-6 | 28 | 40 | 37 | 125 | Powder Coat | Yellow | 40 x 28 x 37 |
Application notes
Cylinders must be stored vertically. The cage legs are pre-drilled for floor anchoring.
Photo and ordering notes

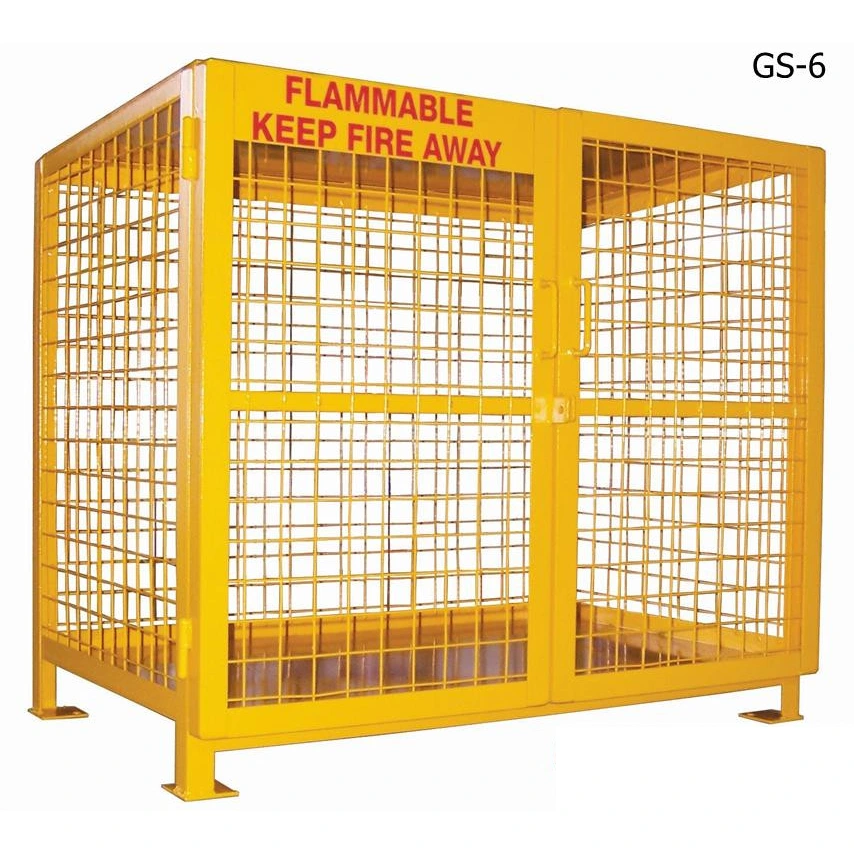

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
