Product overview
Lift basket dollies are used to transport lift baskets. Choose this product family when a dedicated dolly is needed for moving lift baskets, keeping its stated purpose focused on basket transport without assuming additional features or configurations.
Construction and features
- Used to transport lift baskets
- A dedicated product for lift-basket transport
- Intended for moving lift baskets
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Capacity (lbs) | Finish | Colour | Caster Size (in) | Caster Type | Shipping Size (in) |
|---|---|---|---|---|---|---|
| LBD-1-36×36-6PH | 1000 | Powder Coat | Blue | 6 x 2 | Phenolic | 40x38x12 |
| LBD-1-42×42-6PH | 1000 | Powder Coat | Blue | 6 x 2 | Phenolic | 46x45x11 |
| LBD-2-36×36-6PH | 2000 | Powder Coat | Blue | 6 x 2 | Phenolic | 40x38x12 |
| LBD-2-42×42-6PH | 2000 | Powder Coat | Blue | 6 x 2 | Phenolic | 46x44x12 |
| LBD-2-48×48-6PH | 2000 | Powder Coat | Blue | 6 x 2 | Phenolic | 52x50x12 |
| LBD-3-36×36-6PH | 3000 | Powder Coat | Blue | 6 x 2 | Phenolic | 40x38x12 |
| LBD-3-42×42-6PH | 3000 | Powder Coat | Blue | 6 x 2 | Phenolic | 46x44x12 |
| LBD-3-48×48-6PH | 3000 | Powder Coat | Blue | 6 x 2 | Phenolic | 52x50x12 |
| LBD-4-36×36-8PH | 4000 | Powder Coat | Blue | 8 x 2 | Phenolic | 39x38x14 |
| LBD-4-42×42-8PH | 4000 | Powder Coat | Blue | 8 x 2 | Phenolic | 45x44x14 |
| LBD-4-48×48-8PH | 4000 | Powder Coat | Blue | 8 x 2 | Phenolic | 51x50x14 |
| LBD-4-60×60-8PH | 4000 | Powder Coat | Blue | 8 x 2 | Phenolic | 63x62x14 |
Photo and ordering notes

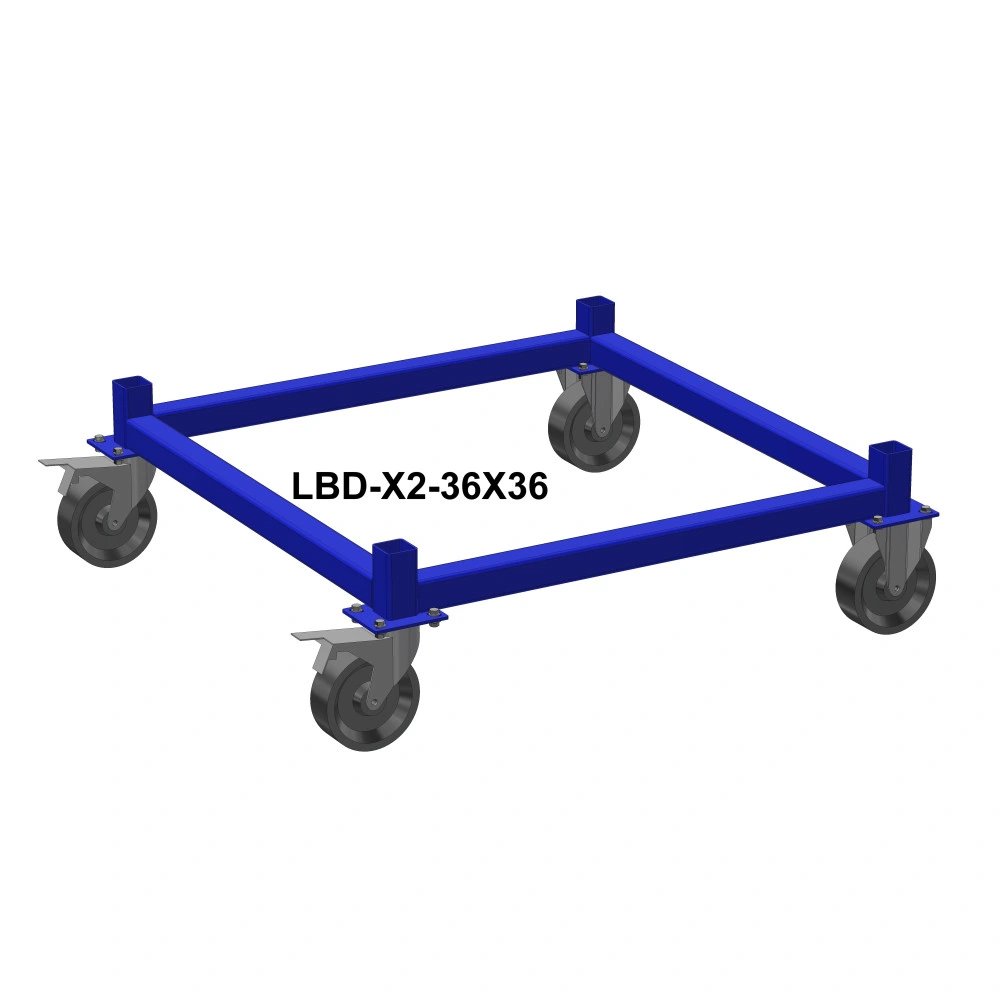

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
