Product overview
Lever-lift mobile ladder stands use a lever action to make repositioning easier. The family includes standard and safety-angle configurations, with welded steel construction and rubber casters across the listed models.
Construction and features
- Lever-lift action supports maneuvering the stand.
- Heavy-duty, all-welded construction using round steel tubing.
- Blue powder-coat finish and rubber casters.
- 42-inch handrail is shared across the family.
- Rated for one person at a time.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Contact us” means we can confirm that value for you. “—” means it does not apply.
| Part number | Configuration | Width (in) | Depth (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Material | Finish | Colour | Caster Size (in) | Caster Type | # of Steps (incl. Platform) | Platform Height (in) | Platform Size (in) | Step Angle (°) | Step Width (in) | Handrail (in) | Shipping Size (in) | Height When Handrail Down (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4H-LL | Lever Lift Mobile Ladder Stand | 30 | 36 | 78 | 85 | 400 | Steel | Powder Coat | Blue | 4 | Rubber | 4 | 36 | 24 x 15 | 60 | 24 | 42 | 36 x 30 x 78 | — |
| 5H-LL | Lever Lift Mobile Ladder Stand | 30 | 42 | 87 | 95 | 400 | Steel | Powder Coat | Blue | 4 | Rubber | 5 | 45 | 24 x 15 | 60 | 24 | 42 | 42 x 30 x 87 | — |
| 6H-LL | Lever Lift Mobile Ladder Stand | 31 | 46 | 96 | 120 | 400 | Steel | Powder Coat | Blue | 4 | Rubber | 6 | 54 | 24 x 15 | 60 | 24 | 42 | 102 x 31 x 39 | — |
| 7H-LL | Lever Lift Mobile Ladder Stand | 31 | 51 | 105 | 125 | 400 | Steel | Powder Coat | Blue | 4 | Rubber | 7 | 63 | 24 x 15 | 60 | 24 | 42 | 110 x 31 x 39 | — |
| 8H-LL | Lever Lift Mobile Ladder Stand | 34 | 56 | 114 | 150 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 8 | 72 | 28 x 15 | 60 | 28 | 42 | 124 x 34 x 39 | — |
| 9H-LL | Lever Lift Mobile Ladder Stand | 34 | 61 | 123 | 170 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 9 | 81 | 28 x 15 | 60 | 28 | 42 | 136 x 34 x 39 | — |
| 10H-LL | Lever Lift Mobile Ladder Stand | 35 | 67 | 132 | 175 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 10 | 90 | 28 x 15 | 60 | 28 | 42 | 144 x 35 x 39 | — |
| 11H-LL | Lever Lift Mobile Ladder Stand | 35 | 72 | 141 | 180 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 11 | 99 | 28 x 15 | 60 | 28 | 42 | 155 x 35 x 39 | — |
| 12H-LL | Lever Lift Mobile Ladder Stand | 35 | 77 | 150 | 200 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 12 | 108 | 28 x 15 | 60 | 28 | 42 | 166 x 35 x 39 | — |
| 13H-LL | Lever Lift Mobile Ladder Stand | 35 | 83 | 159 | 215 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 13 | 117 | 28 x 15 | 60 | 28 | 42 | 177 x 35 x 39 | — |
| 14H-LL | Lever Lift Mobile Ladder Stand | 35 | 88 | 168 | 250 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 14 | 126 | 28 x 15 | 60 | 28 | 42 | 187 x 35 x 39 | — |
| 15H-LL | Lever Lift Mobile Ladder Stand | 35 | 93 | 177 | 260 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 15 | 135 | 28 x 15 | 60 | 28 | 42 | 197 x 35 x 39 | — |
| 16H-LL | Lever Lift Mobile Ladder Stand | 35 | 98 | 186 | 270 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 16 | 144 | 28 x 15 | 60 | 28 | 42 | 208 x 35 x 39 | — |
| 4SH-LL | Safety Angle Lever Lift Mobile Ladder Stand | 34 | 53 | 82 | 105 | 400 | Steel | Powder Coat | Blue | 4 | Rubber | 4 | 40 | 24 x 19 | 50 | 24 | 42 | 53 x 34 x 82 | — |
| 5SH-LL | Safety Angle Lever Lift Mobile Ladder Stand | 34 | 59 | 92 | 120 | 400 | Steel | Powder Coat | Blue | 4 | Rubber | 5 | 50 | 24 x 19 | 50 | 24 | 42 | 59 x 34 x 92 | — |
| 6SH-LL | Safety Angle Lever Lift Mobile Ladder Stand | 34 | 71 | 102 | 135 | 400 | Steel | Powder Coat | Blue | 4 | Rubber | 6 | 60 | 24 x 19 | 50 | 24 | 42 | 116 x 34 x 47 | — |
| 7SH-LL | Safety Angle Lever Lift Mobile Ladder Stand | 34 | 79 | 112 | 145 | 400 | Steel | Powder Coat | Blue | 4 | Rubber | 7 | 70 | 24 x 19 | 50 | 24 | 42 | 129 x 34 x 47 | — |
| 8SH-LL | Safety Angle Lever Lift Mobile Ladder Stand | 38 | 86 | 122 | 175 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 8 | 80 | 28 x 19 | 50 | 28 | 42 | 142 x 38 x 47 | — |
| 9SH-LL | Safety Angle Lever Lift Mobile Ladder Stand | 38 | 94 | 132 | 205 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 9 | 90 | 28 x 19 | 50 | 28 | 42 | 155 x 38 x 47 | — |
| 10SH-LL | Safety Angle Lever Lift Mobile Ladder Stand | 38 | 105 | 142 | 230 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 10 | 100 | 28 x 19 | 50 | 28 | 42 | 165 x 38 x 47 | — |
| 11SH-LL | Safety Angle Lever Lift Mobile Ladder Stand | 38 | 109 | 152 | 250 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 11 | 110 | 28 x 19 | 50 | 28 | 42 | 181 x 38 x 47 | — |
| 12SH-LL | Safety Angle Lever Lift Mobile Ladder Stand | 38 | 119 | 162 | 270 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 12 | 120 | 28 x 19 | 50 | 28 | 42 | 195 x 38 x 47 | — |
| 13SH-LL | Safety Angle Lever Lift Mobile Ladder Stand | 38 | 128 | 172 | 290 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 13 | 130 | 28 x 19 | 50 | 28 | 42 | 208 x 38 x 47 | — |
| 14SH-LL | Safety Angle Lever Lift Mobile Ladder Stand | 38 | 136 | 182 | 315 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 14 | 140 | 28 x 19 | 50 | 28 | 42 | 221 x 38 x 47 | — |
| 15SH-LL | Safety Angle Lever Lift Mobile Ladder Stand | 44 | 144 | 192 | 340 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 15 | 150 | 28 x 19 | 50 | 28 | 42 | 234 x 38 x 47 | — |
| 16SH-LL | Safety Angle Lever Lift Mobile Ladder Stand | 46 | 153 | 202 | 365 | 400 | Steel | Powder Coat | Blue | 5 | Rubber | 16 | 160 | 28 x 19 | 50 | 28 | 42 | 247 x 46 x 47 | — |
Available options
Confirm availability and compatibility for the selected model when requesting a quote.
- Safety-angle configuration
Application notes
Rated for one person only. Follow the unit's instructions when moving or positioning the stand.
Photo and ordering notes

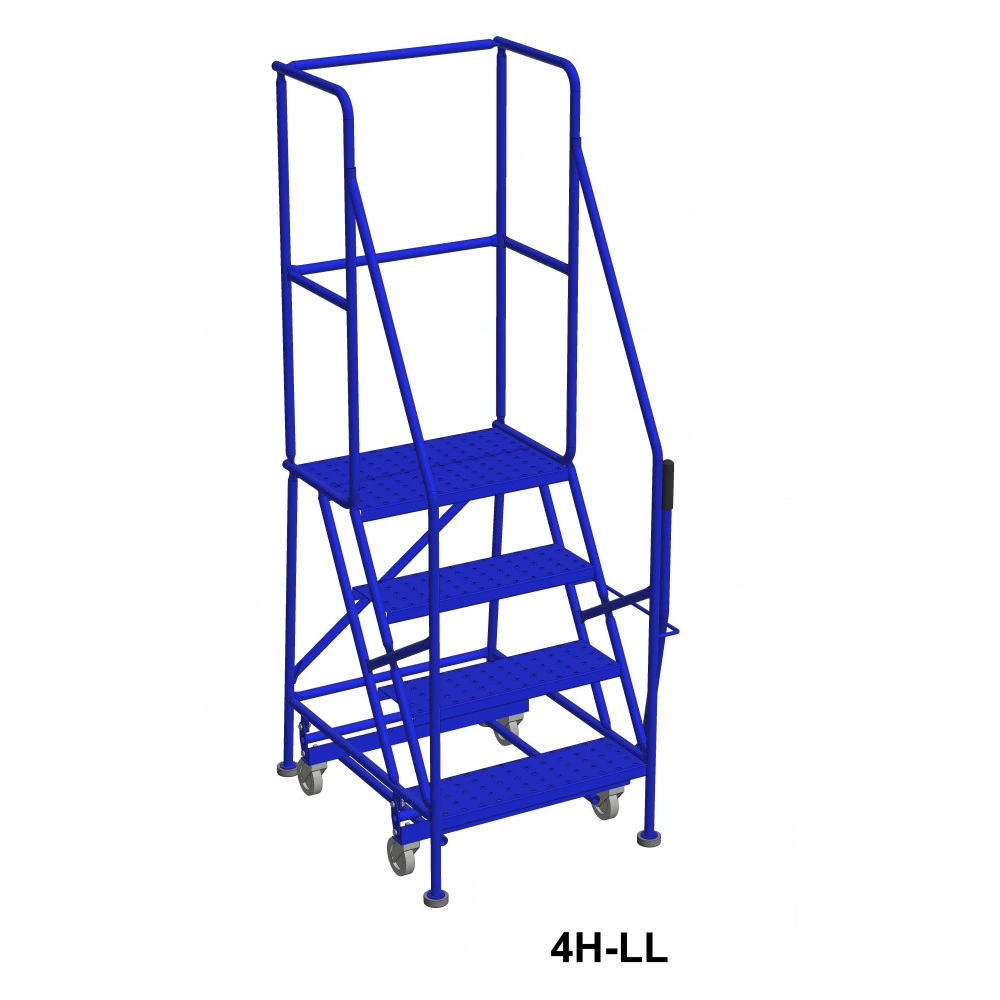

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
